Cruise Control: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

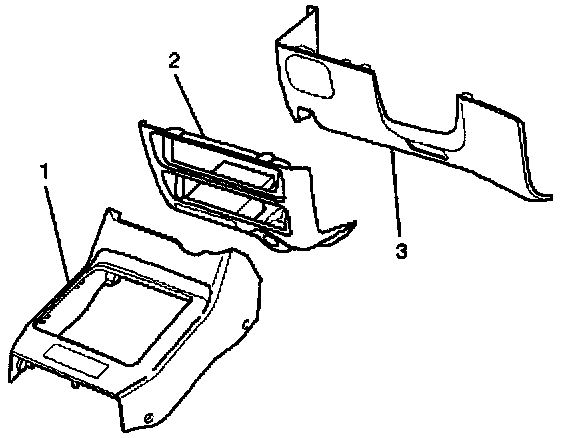

2. Remove the front console assembly (1). Refer to Instrument Panel, Gauges and Warning Indicators.
3. Remove the lower cluster assembly (2). Refer to Instrument Panel, Gauges and Warning Indicators.
4. Remove the instrument panel driver lower cover assembly (3). Refer to Instrument Panel, Gauges and Warning Indicators.

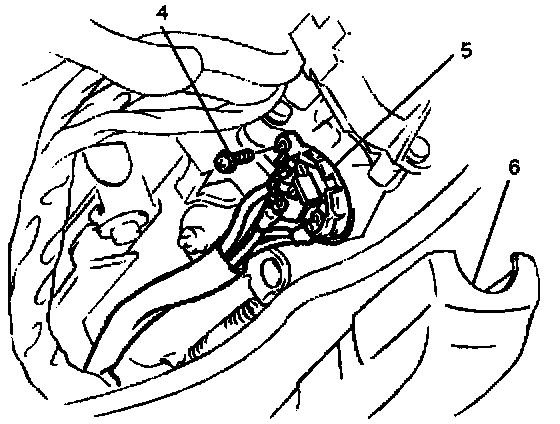

5. Remove seven screws to remove the steering cowl (6).
6. Disconnect the connector, remove the screw (4) and then remove the starter switch (5).




INSTALLATION
To install, follow the removal steps in the reverse order, noting the following point.

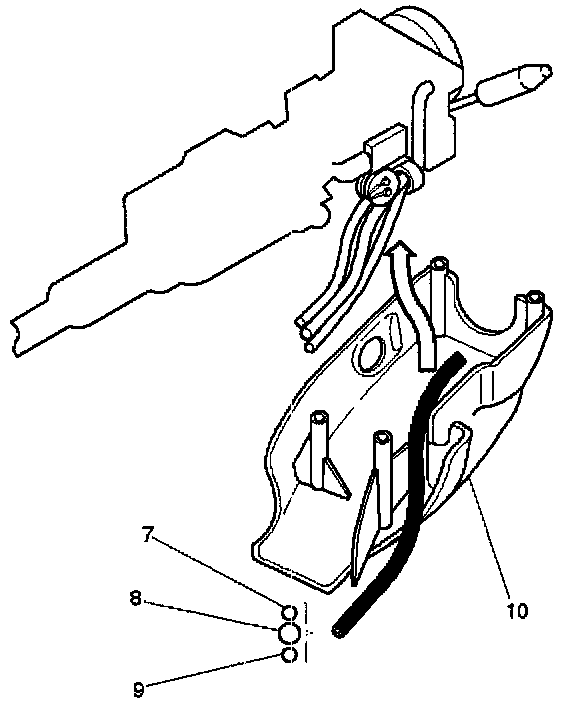

1. When installing the steering cowl (10), be sure to pass the harnesses through the route as shown in the figure so that the starter switch harness (7), the combination switch harness (8) and the inflator module harness (9) will not catch.
