General Module

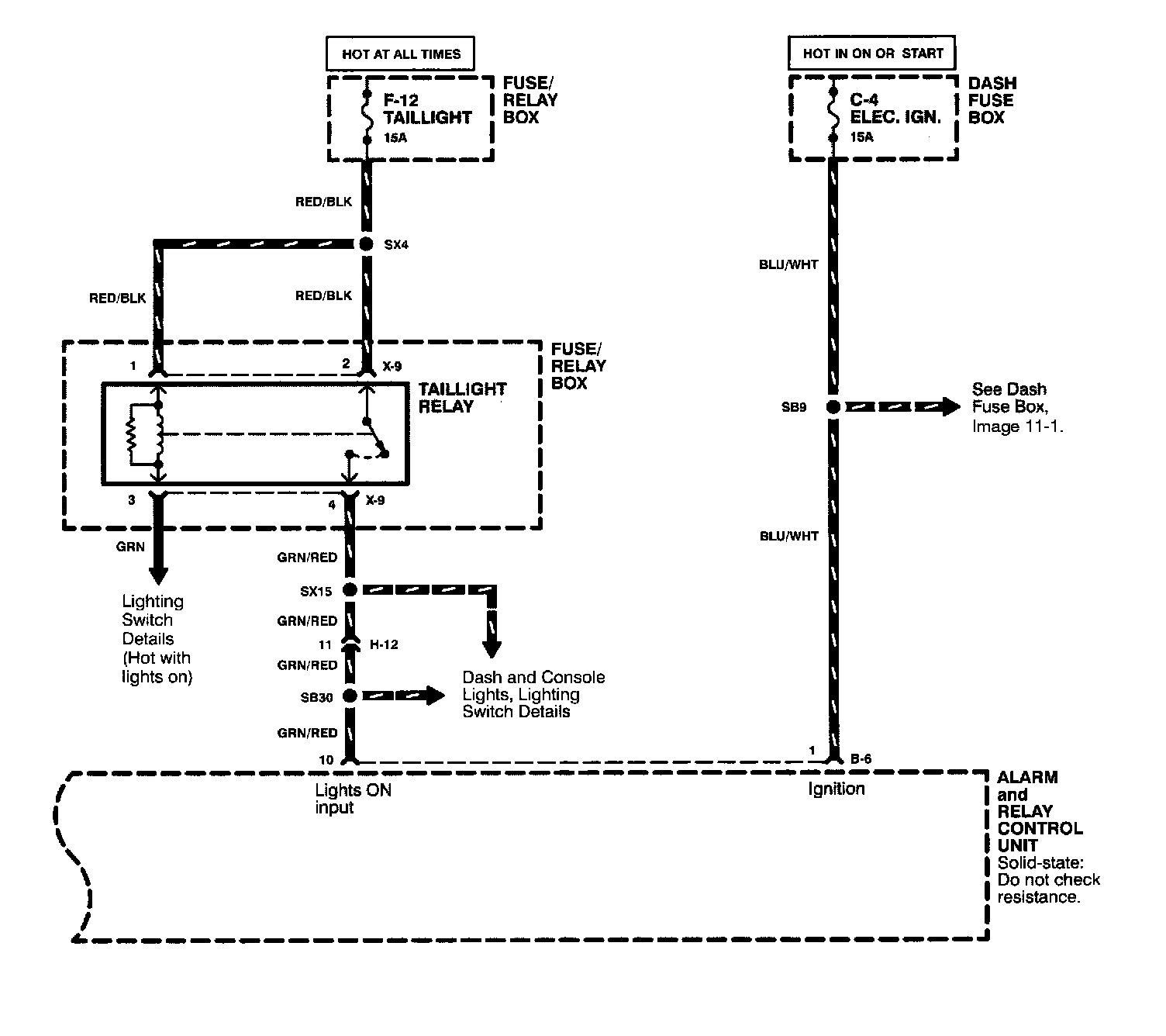

Alarm & Relay Controls (1 Of 3) Image 70:

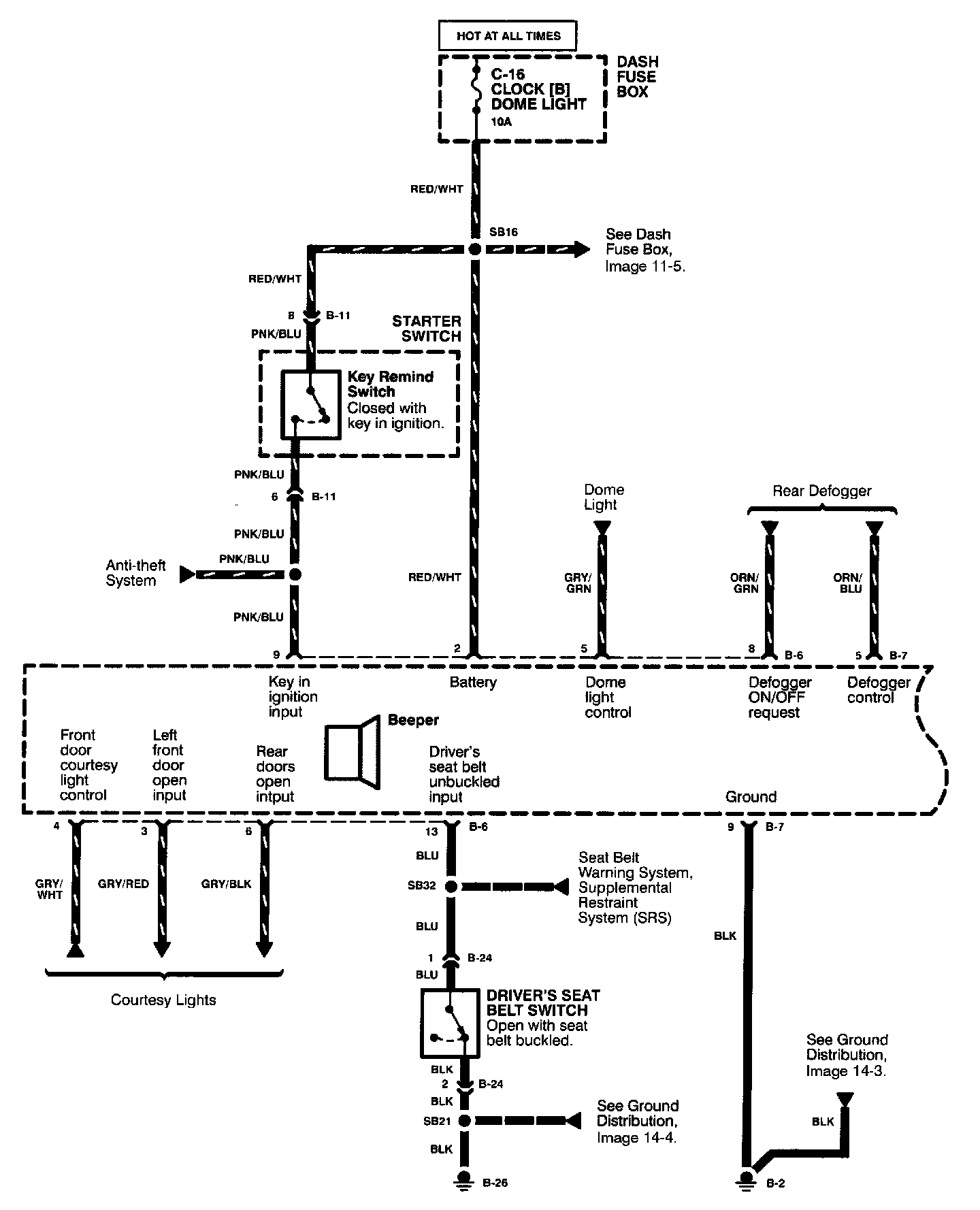

Alarm & Relay Controls (2 Of 3) Image 70-1:

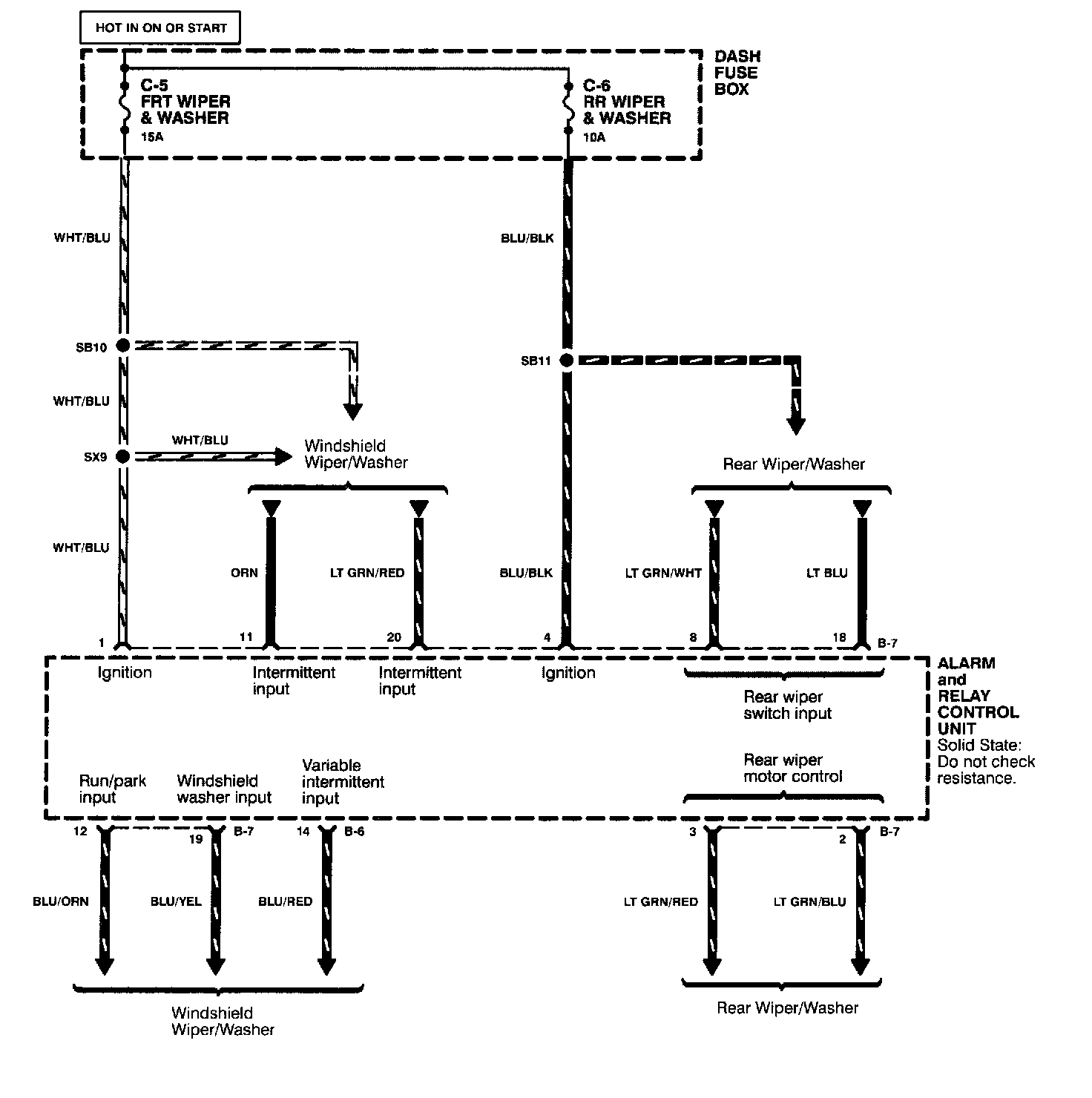

Alarm & Relay Controls (3 Of 3) Image 70-2:
