Keyless Entry

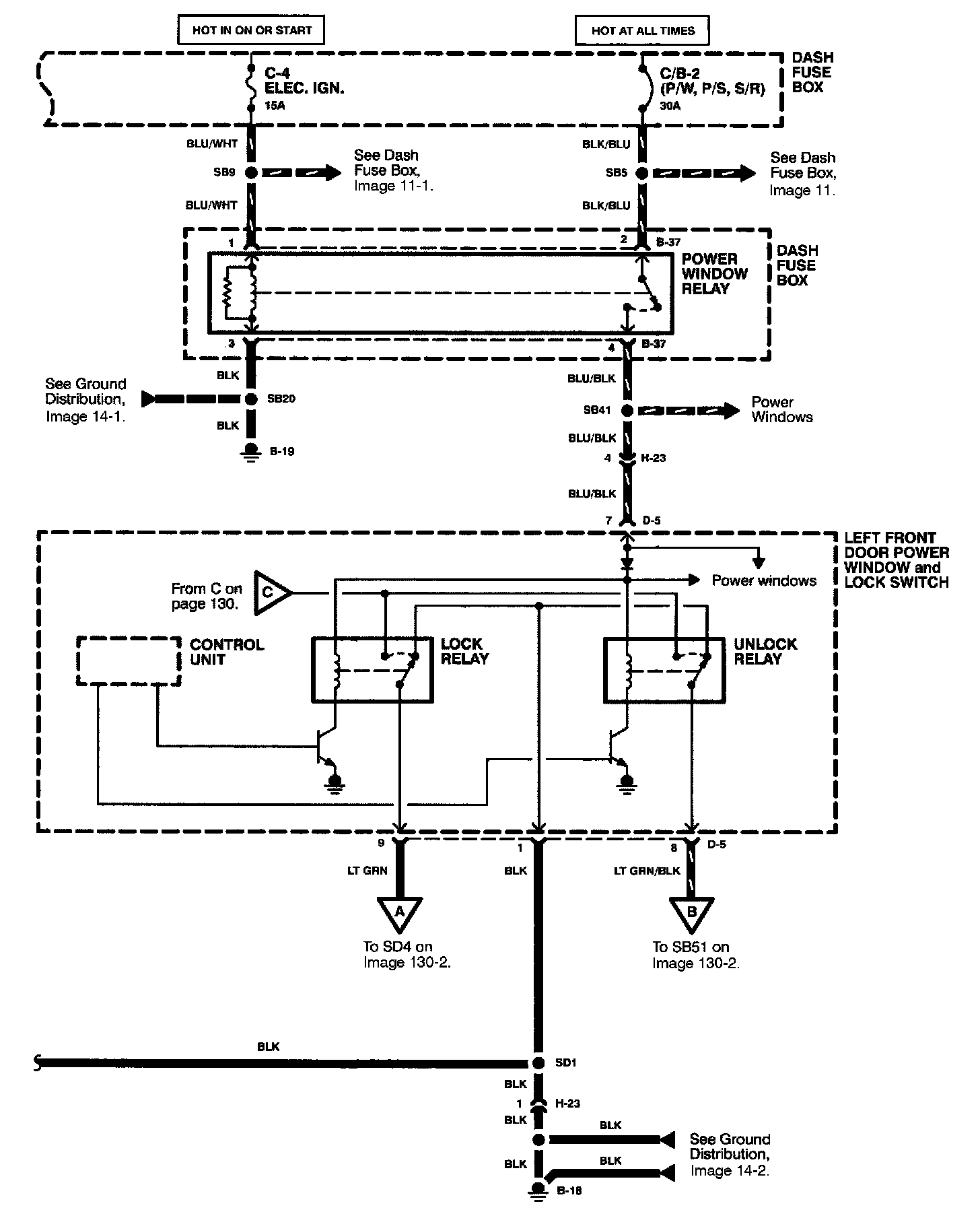

Power Door Locks (1 Of 3) Image 130:

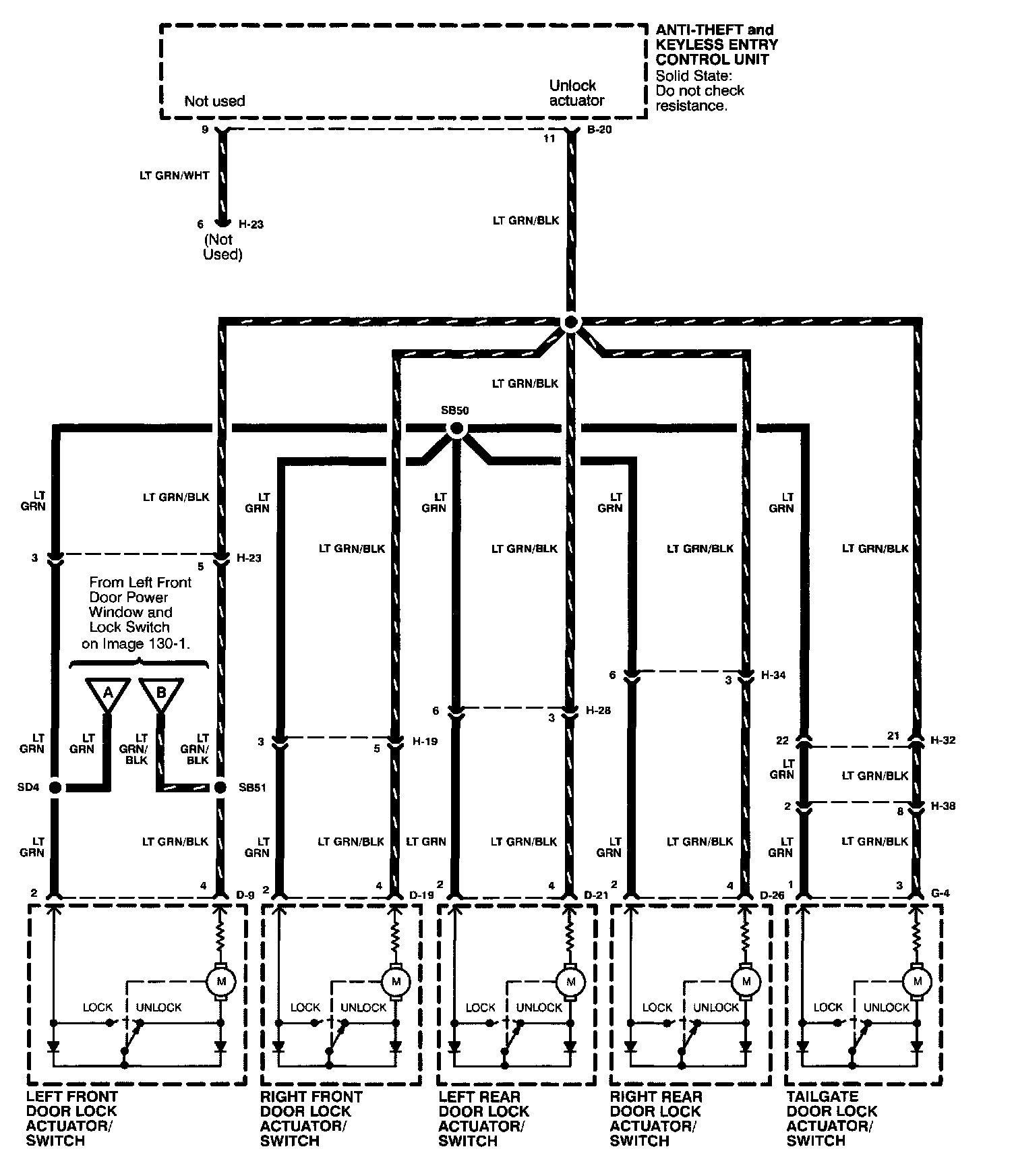

Power Door Locks (2 Of 3) Image 130-1:

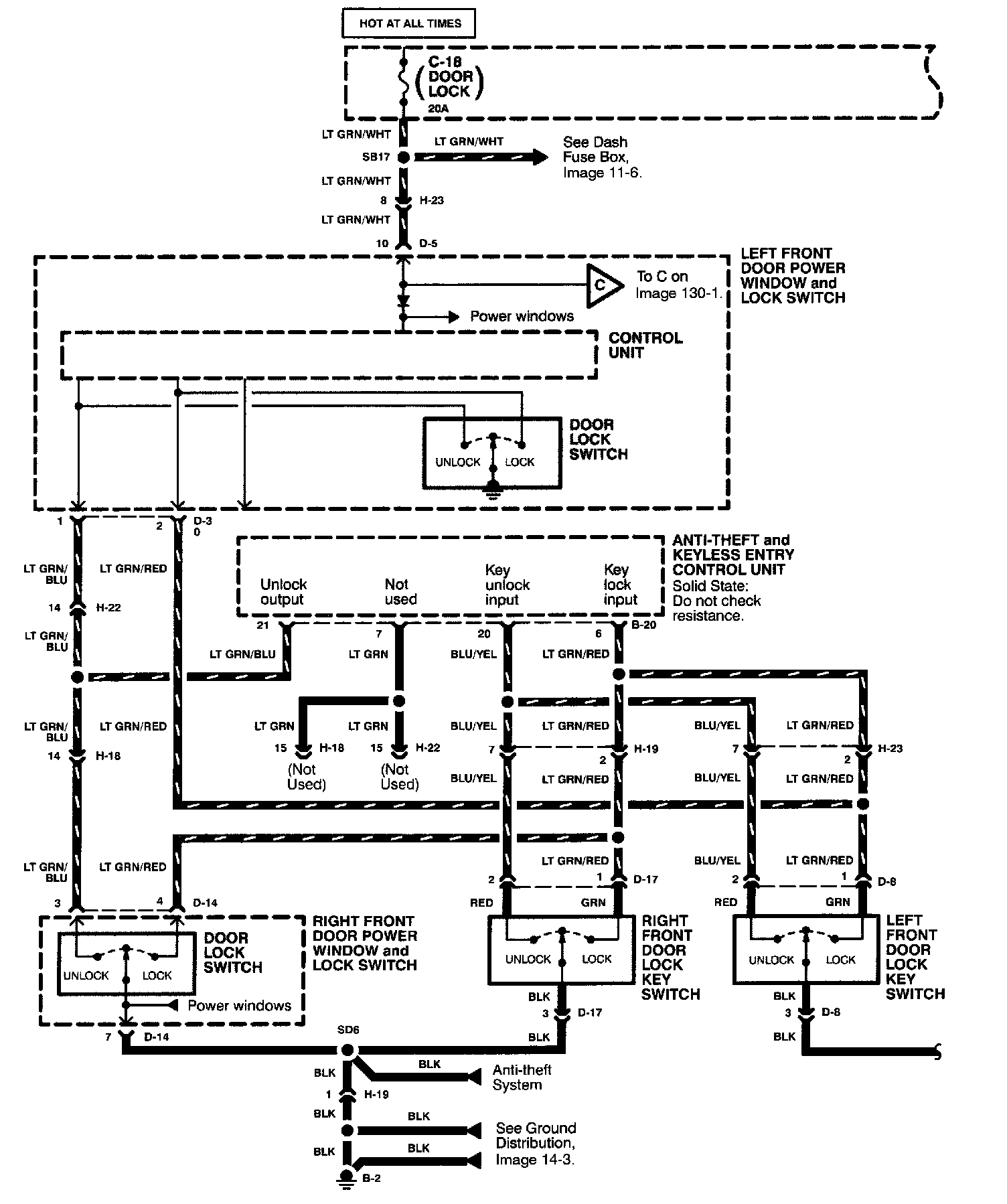

Power Door Locks (3 Of 3) Image 130-2:
