Connector Locations

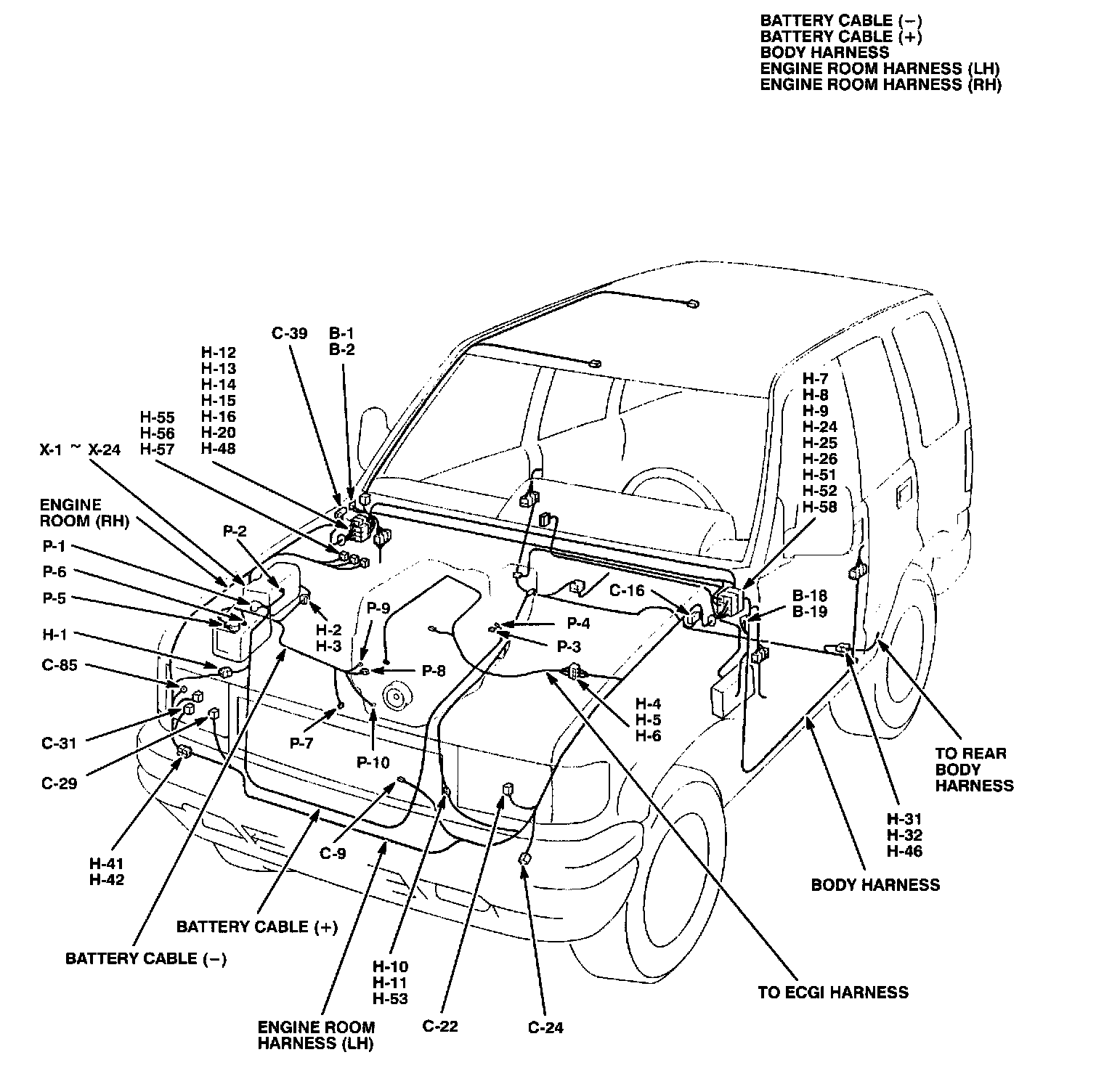

Connector & Harness Routing:

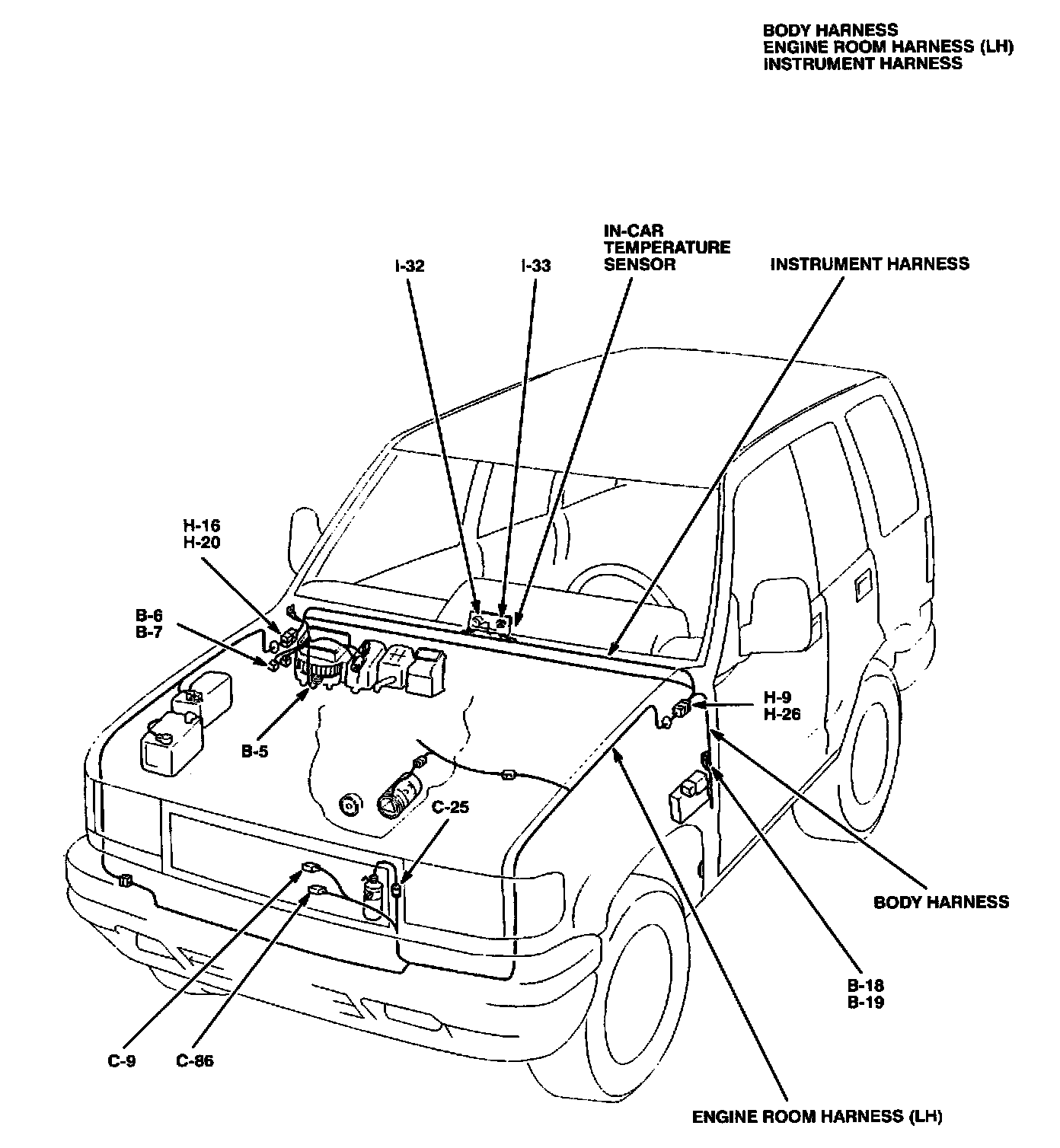

Connector & Harness Routing:

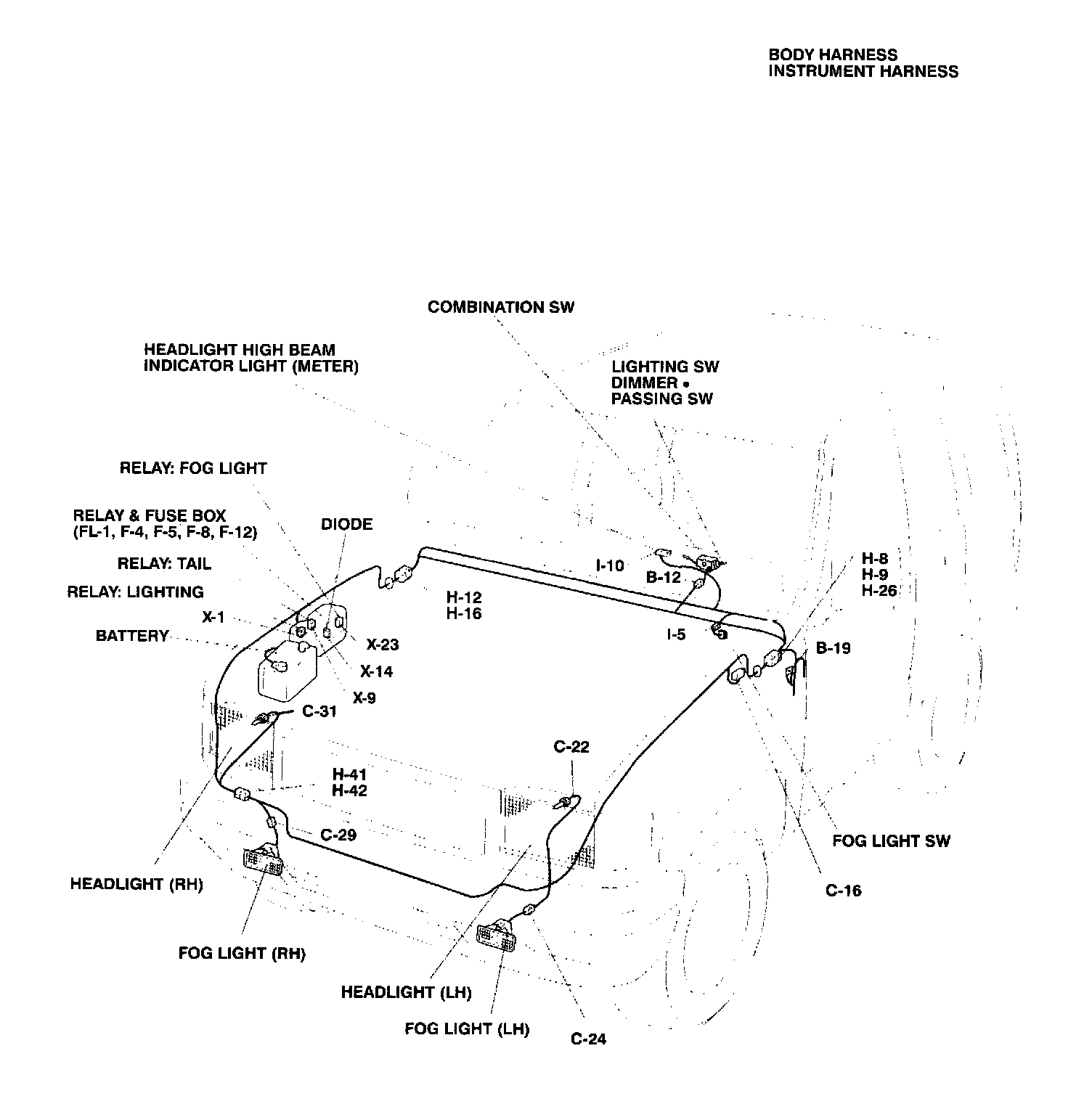

Connector & Harness Routing:

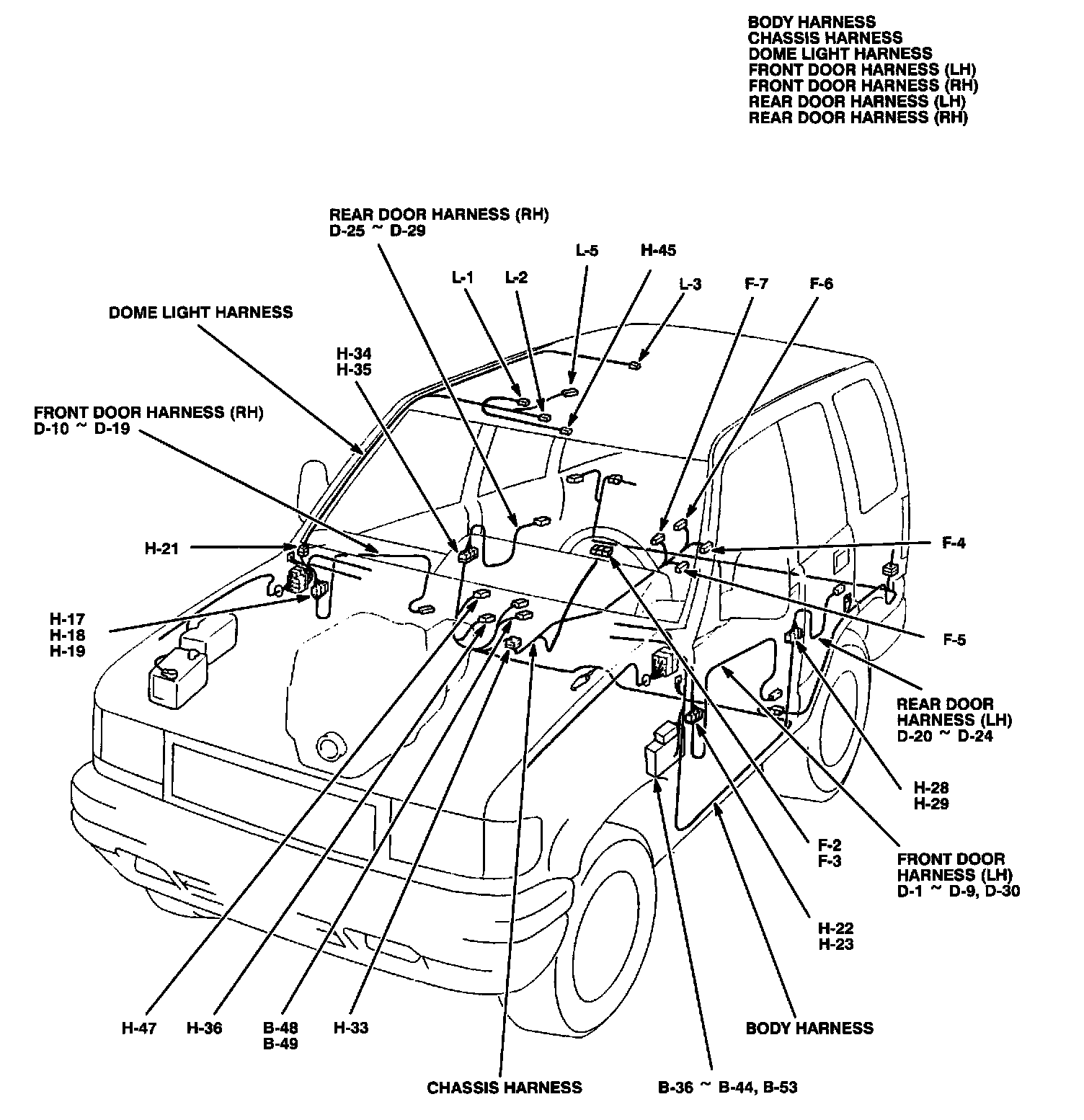

Connector & Harness Routing (Part 4 Of 10):

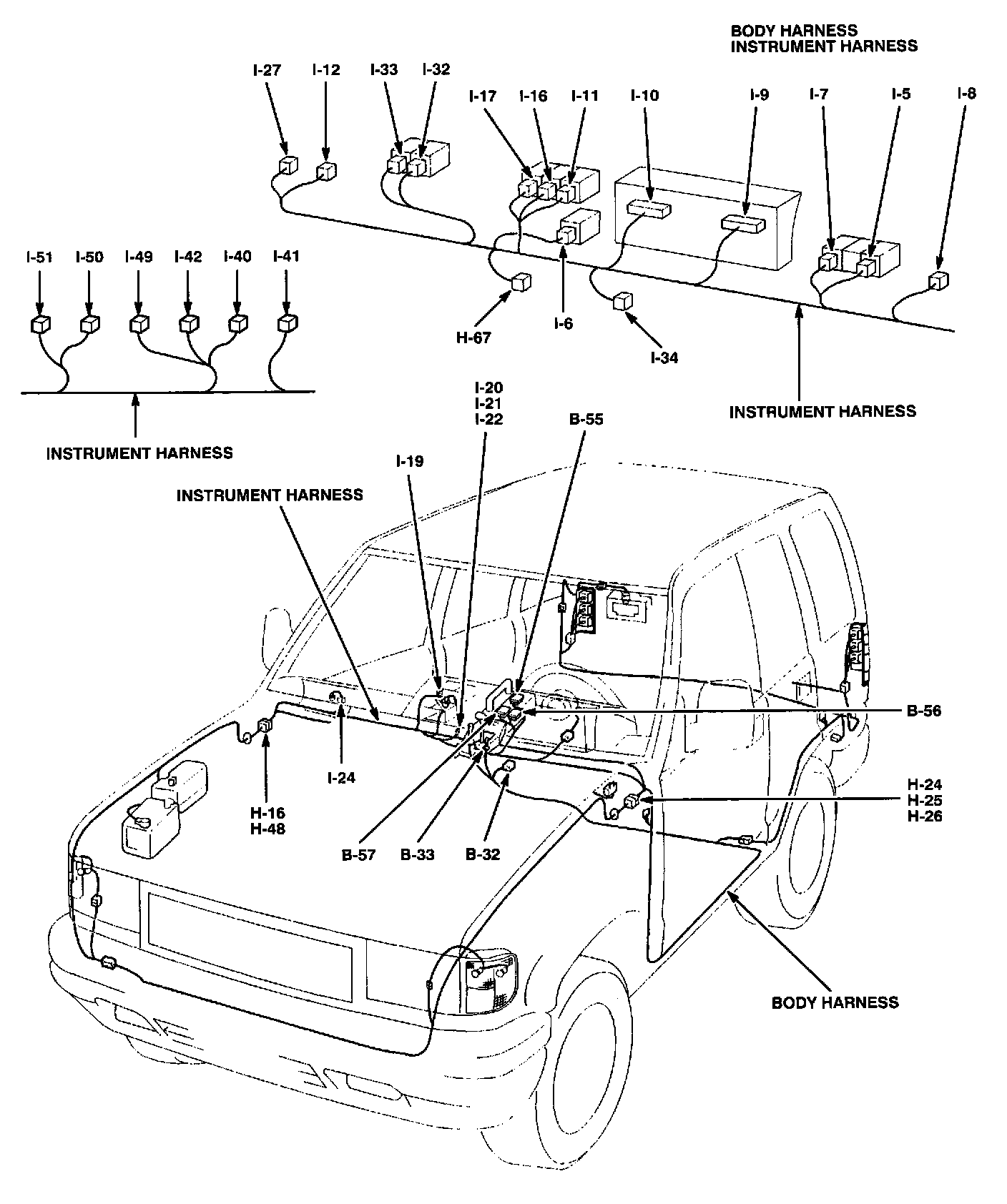

Connector & Harness Routing:

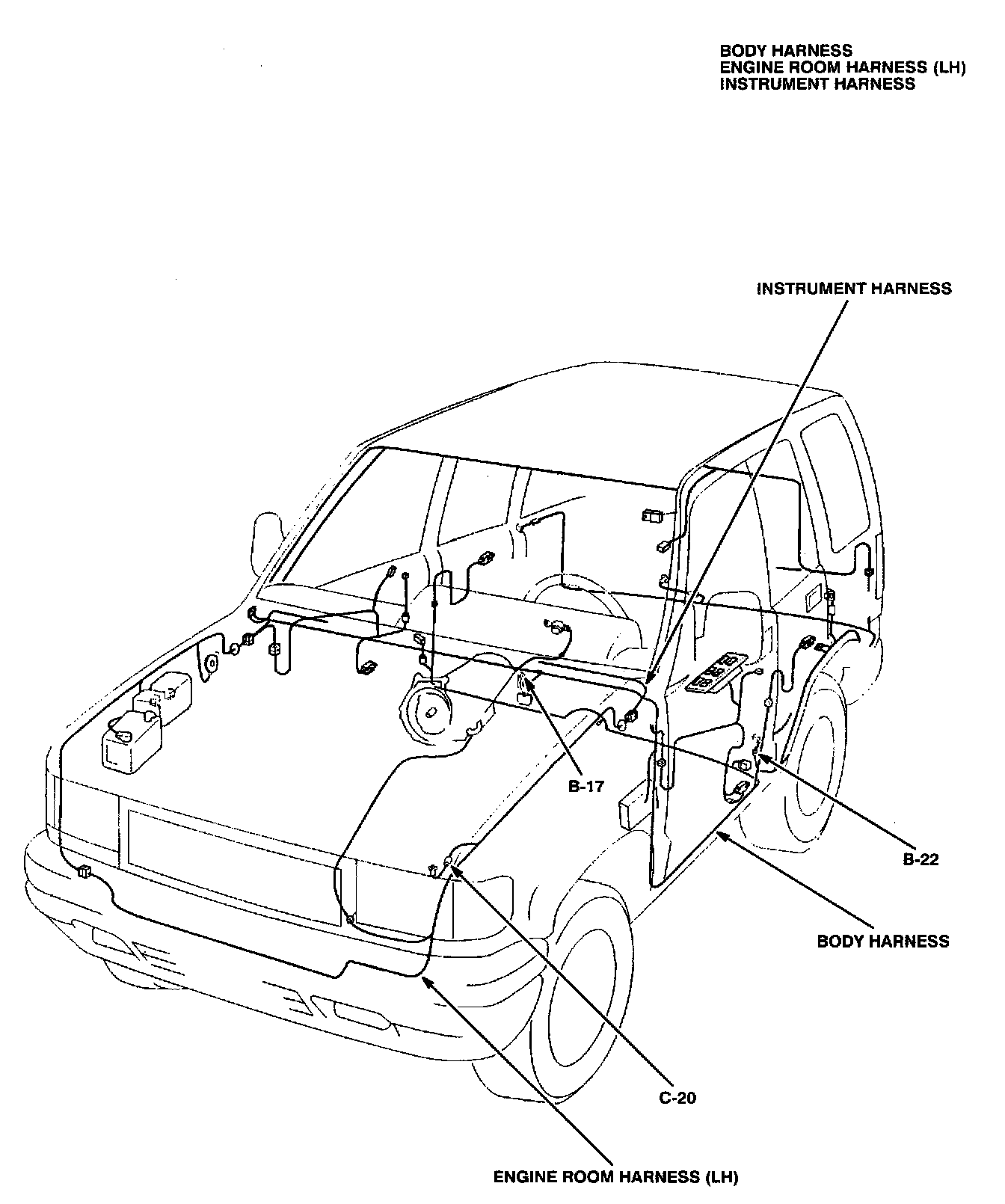

Connector & Harness Routing:

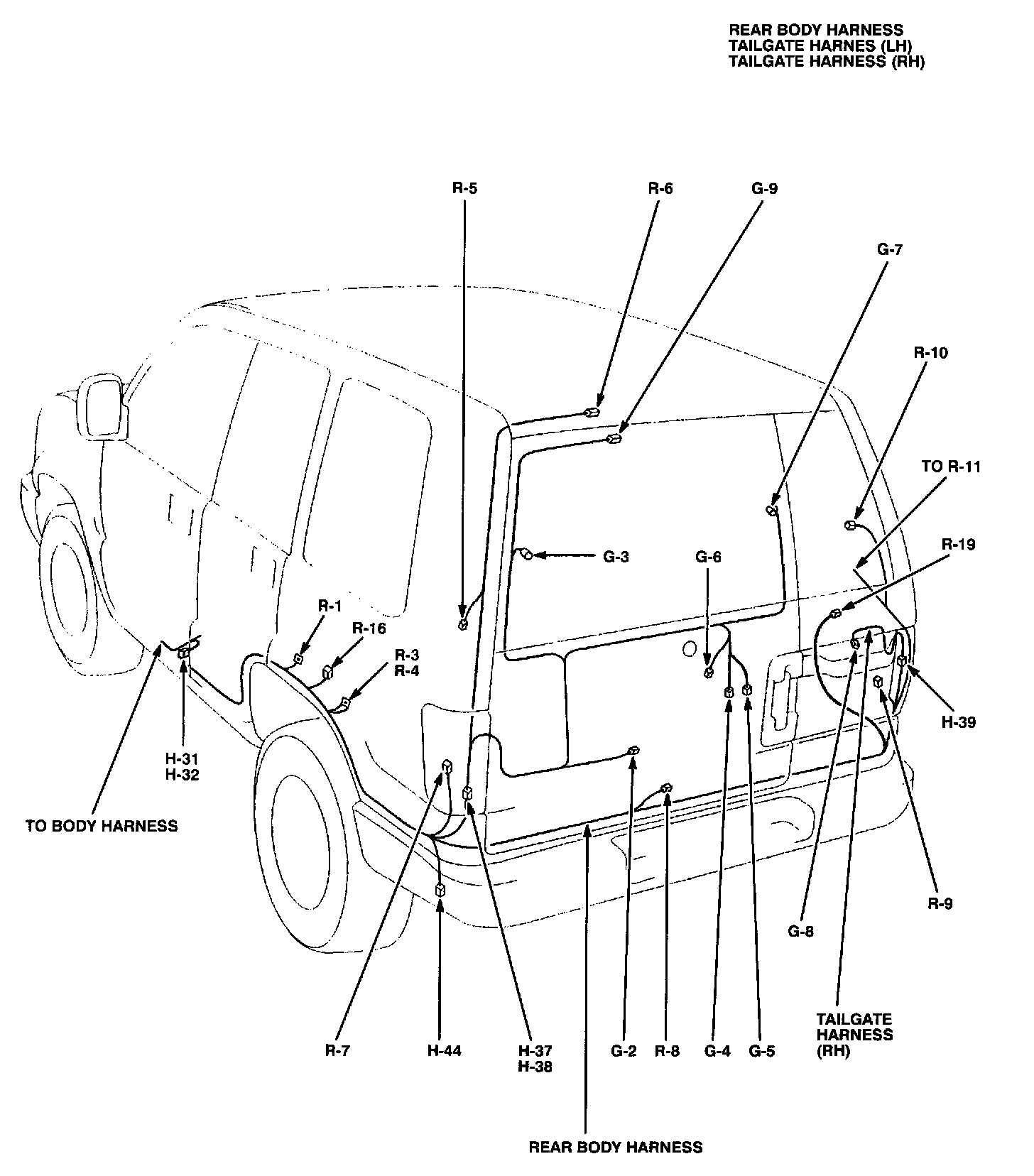

Connector & Harness Routing:



Connector & Harness Routing:
