Sensor and Miscellaneous Components

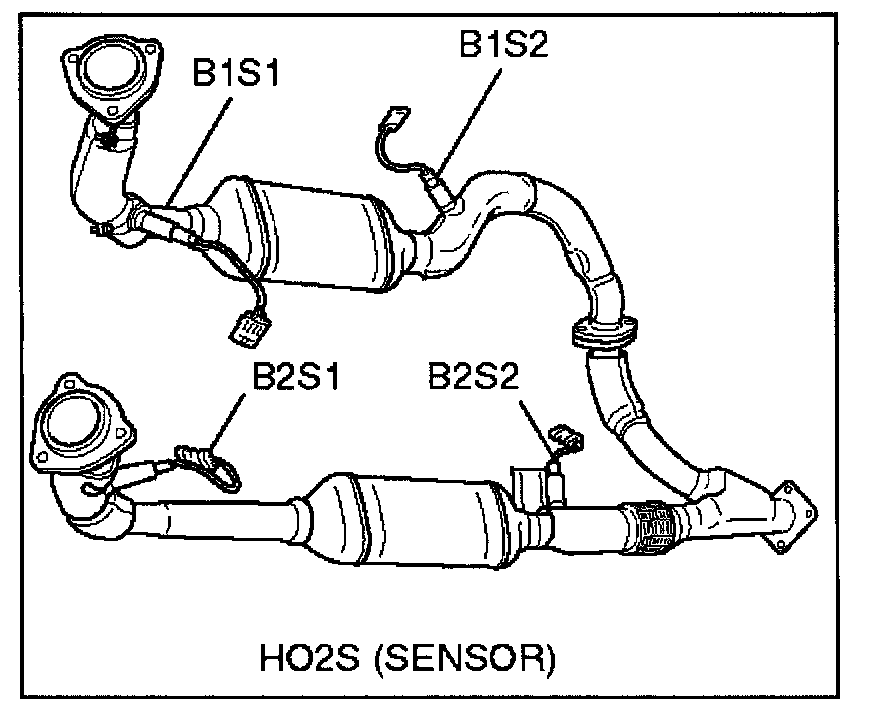

HO2S (Sensor):

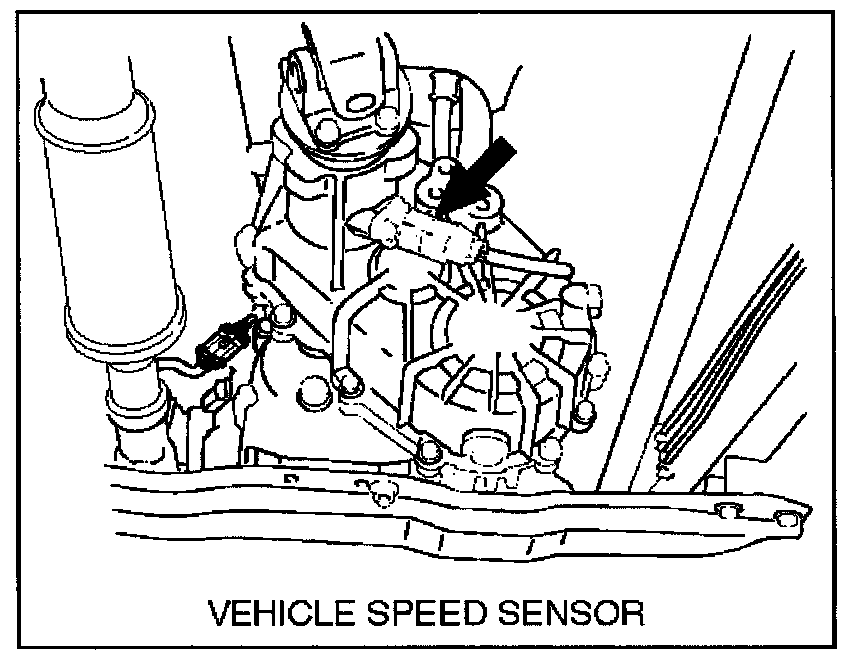

Vehicle Speed Sensor:

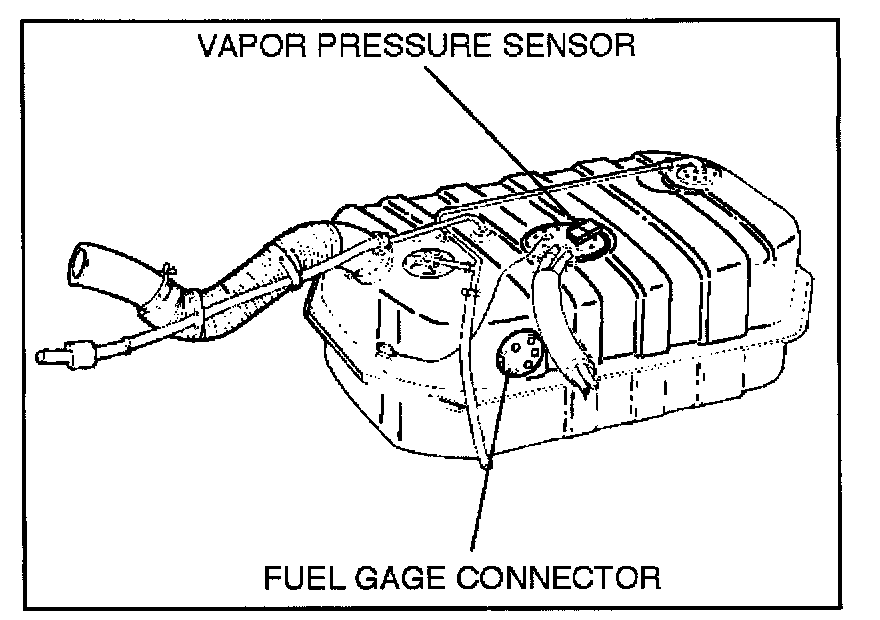

Vapor Pressure Sensor And Fuel Gage Connector:

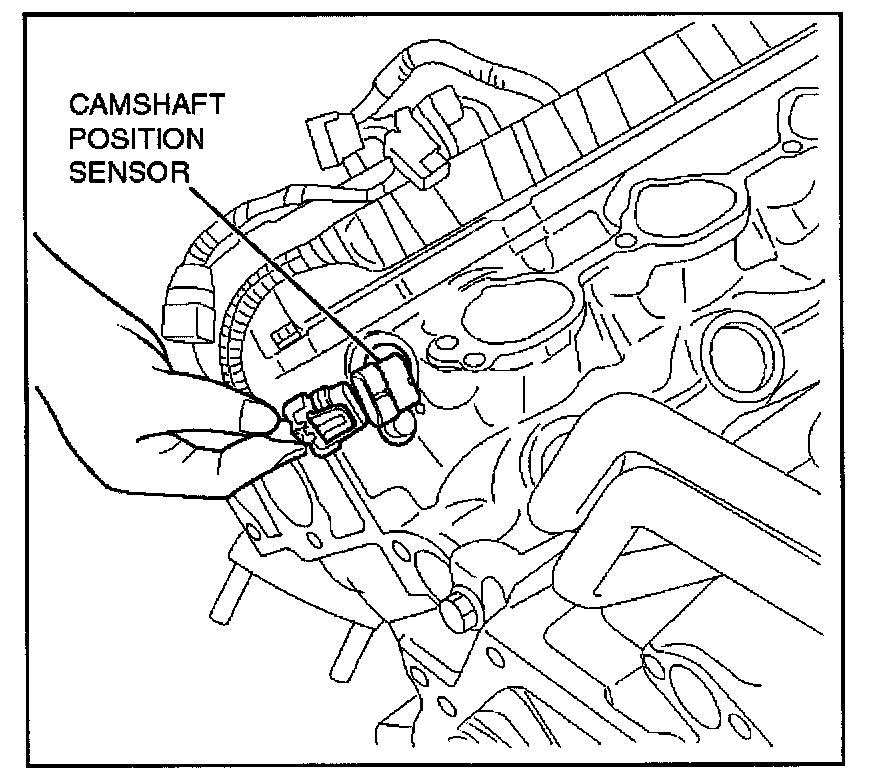

Camshaft Position Sensor:

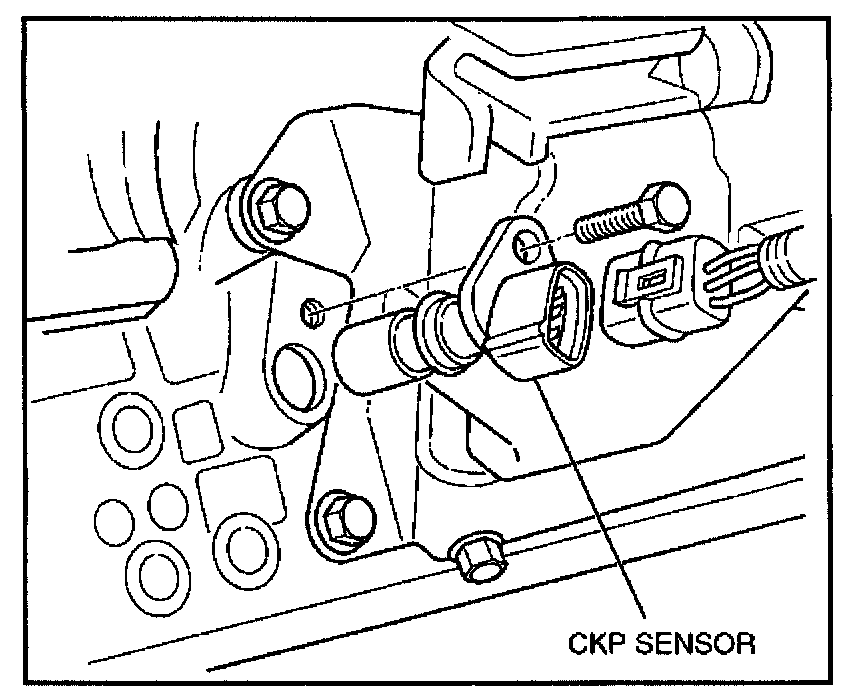

CKP Sensor:

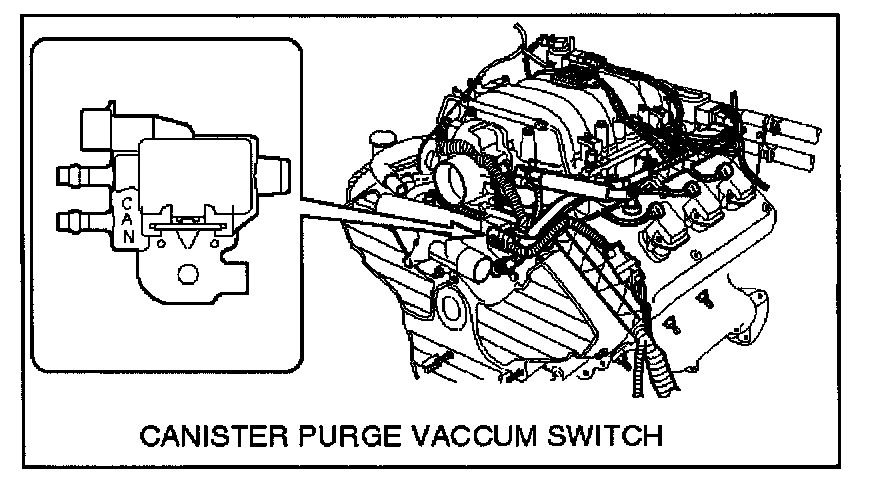

Canister Purge Vaccum Switch:

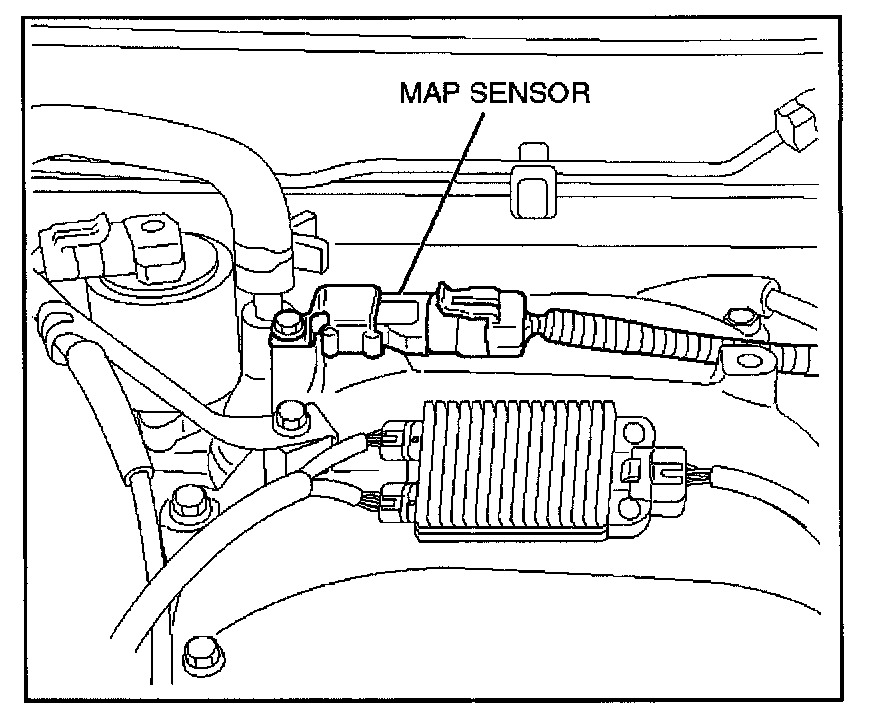

MAP Sensor:

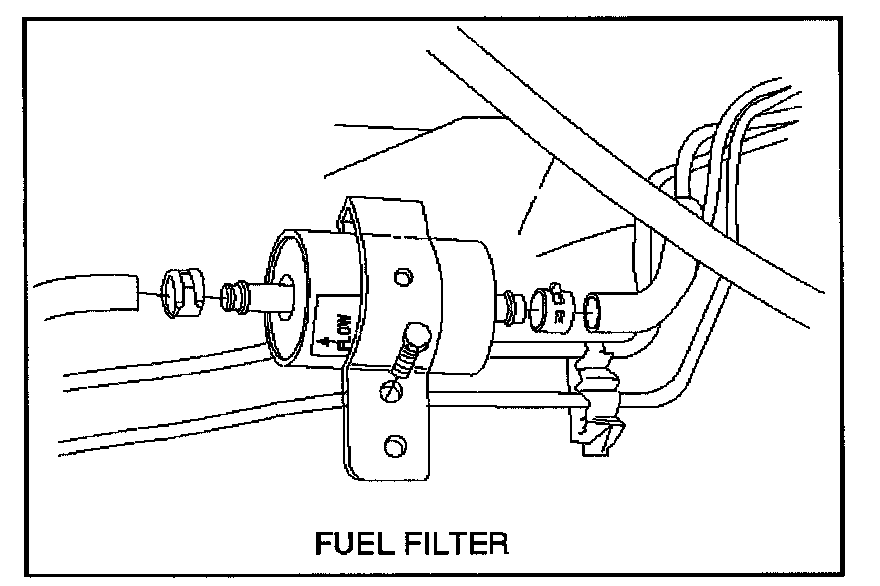

Fuel Filter:

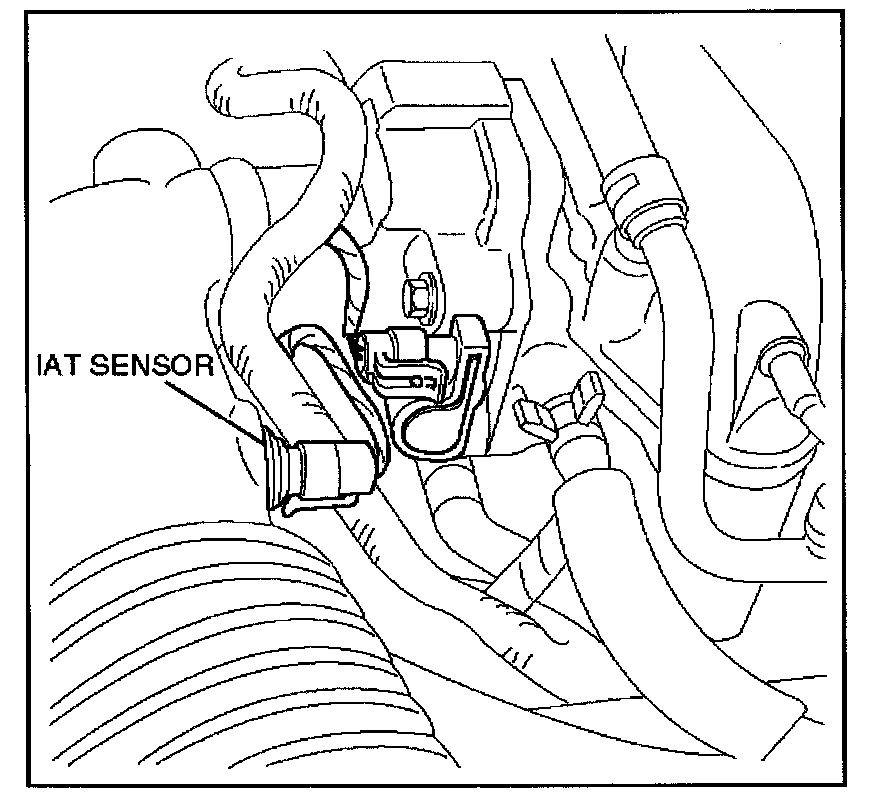

IAT Sensor:



MAP Sensor:

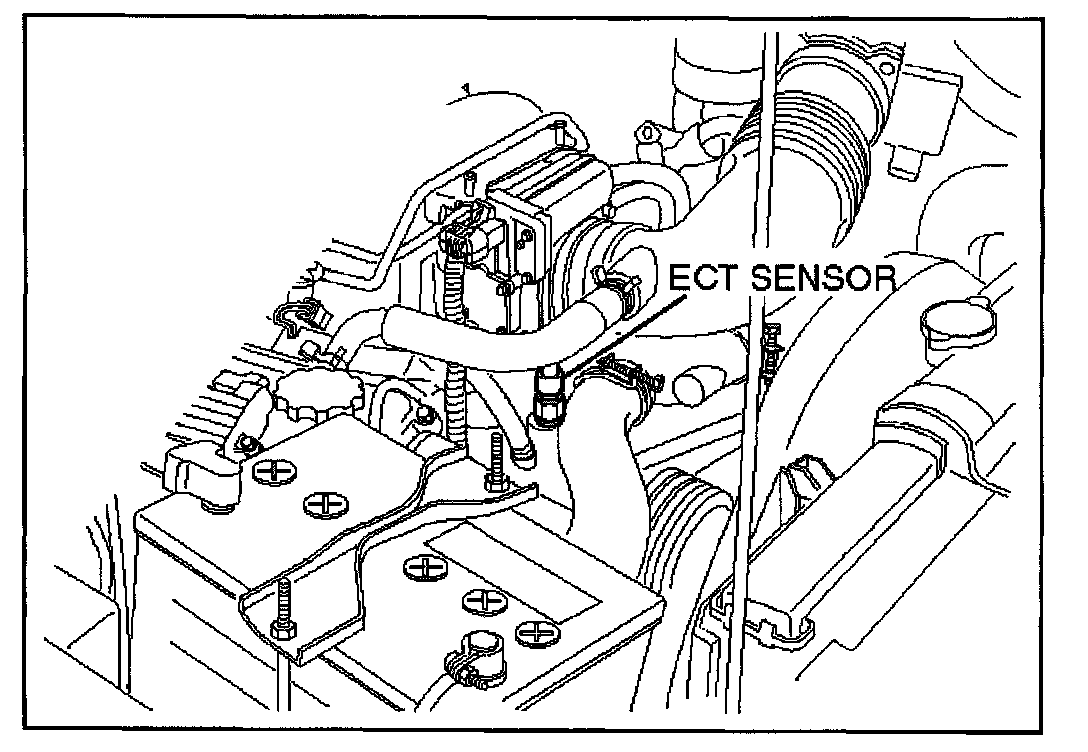

ECT Sensor:

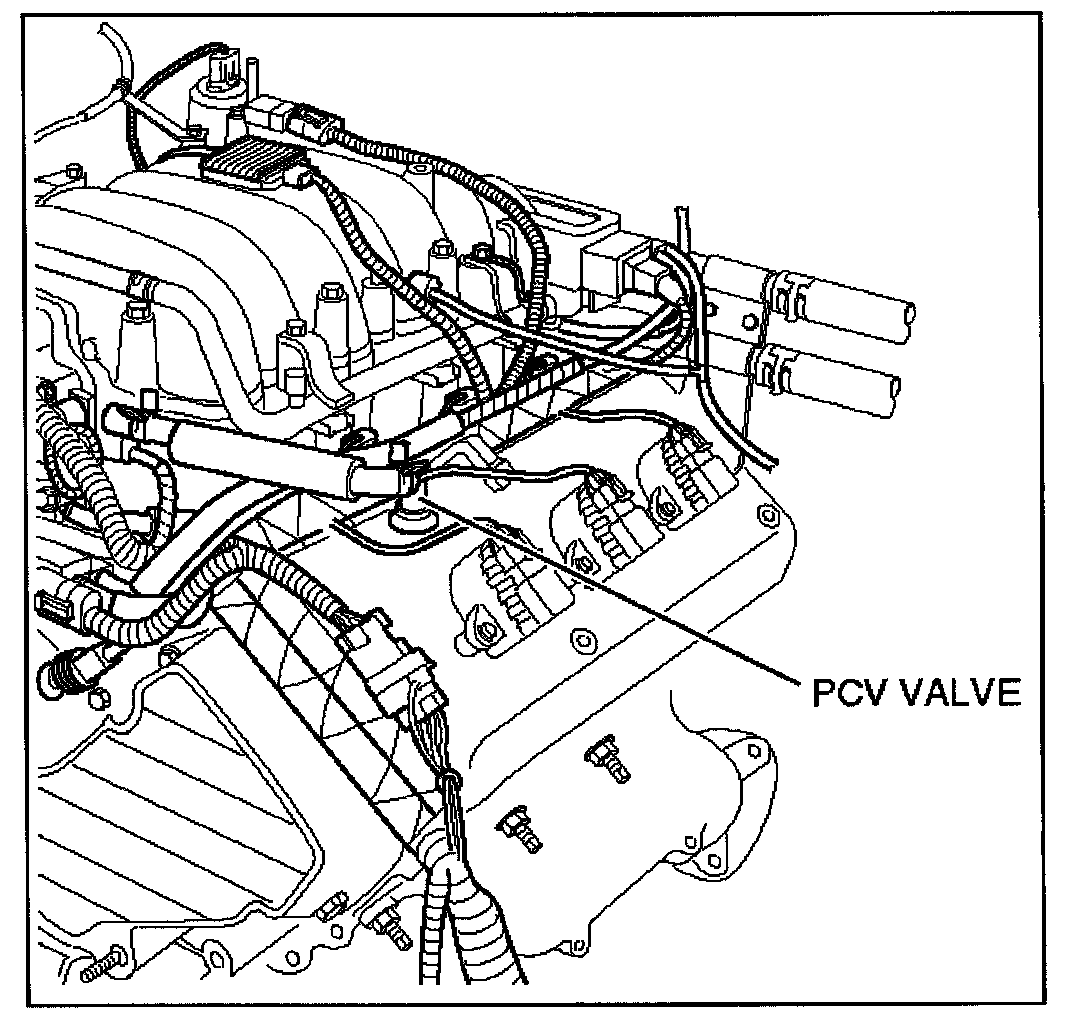

PCV Valve:

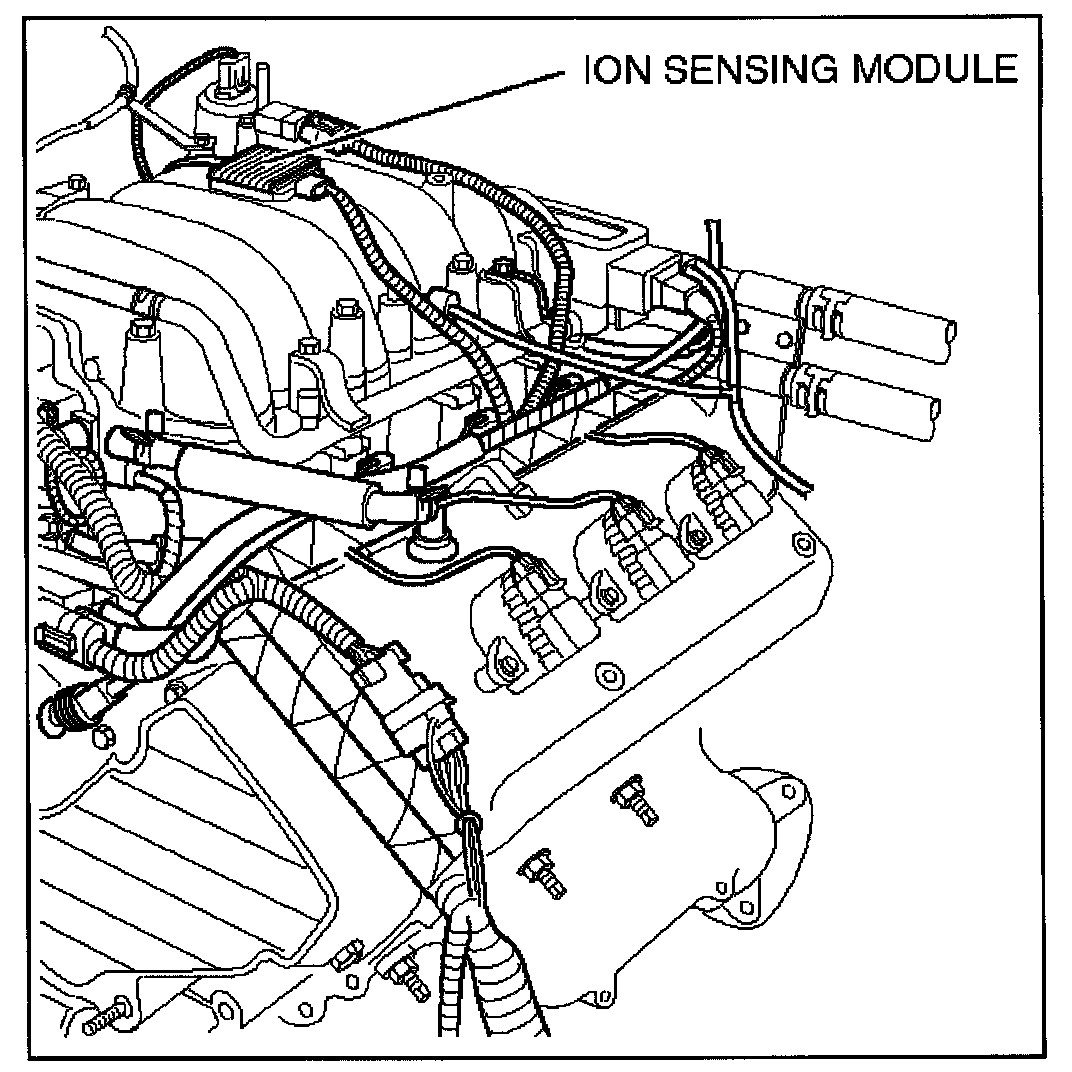

ION Sensing Module:
