Lamps Test

Lamps Test

This test is conducted check MIL and Low Fuel Lamp for its working.
Tech 2 must be used for this test.

Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

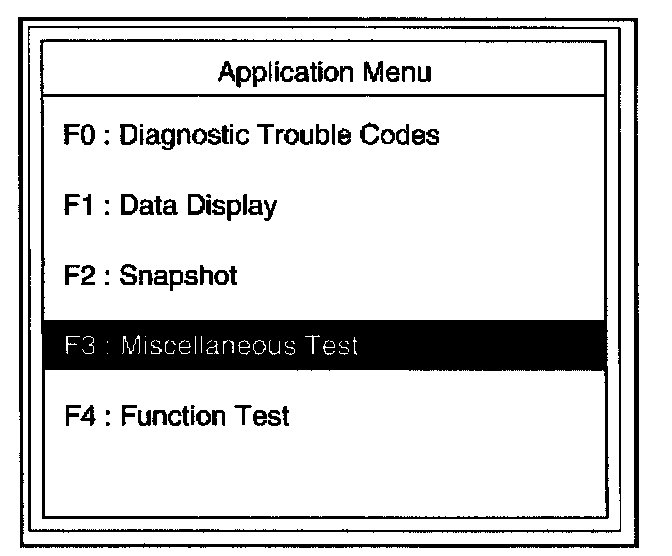

3. Select F3: Miscellaneous Test in the Application Menu.

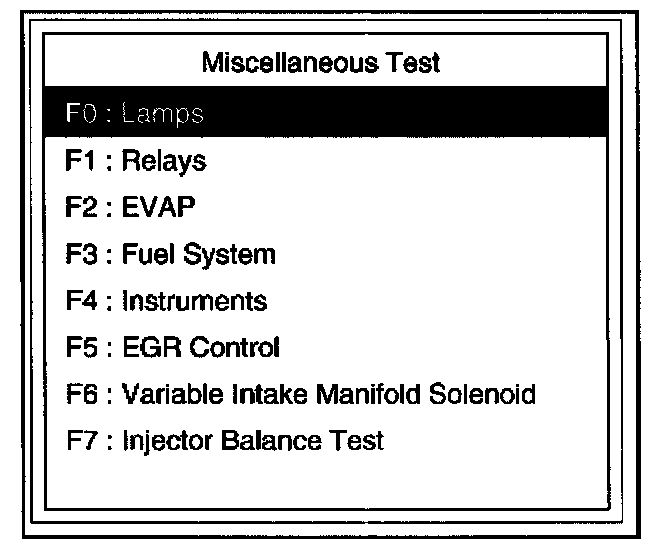

4. Select F0:Lamps Test in the Miscellaneous Test.

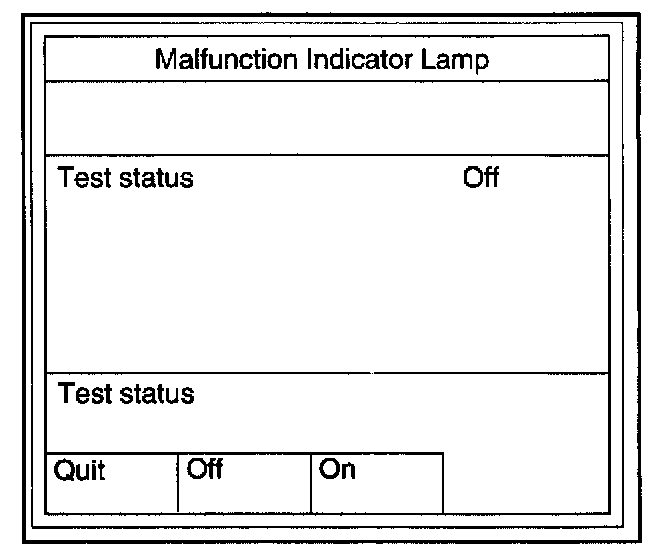

5. Select F0:Malfunction Indicator Lamp.
6. Push "On" soft key.
- Make sure Lamp illuminates.
- If lamp illuminates, the Lamp is operating correctly.

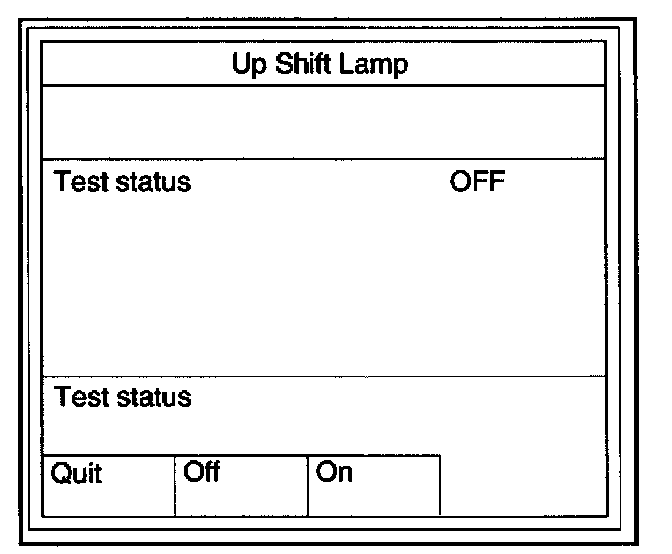

7. Select F2: Up Shift Lamp
8. Push "On" of soft key.
- Make sure Lamp illuminates.
- If Lamp illuminates, the Lamp is operating correctly.

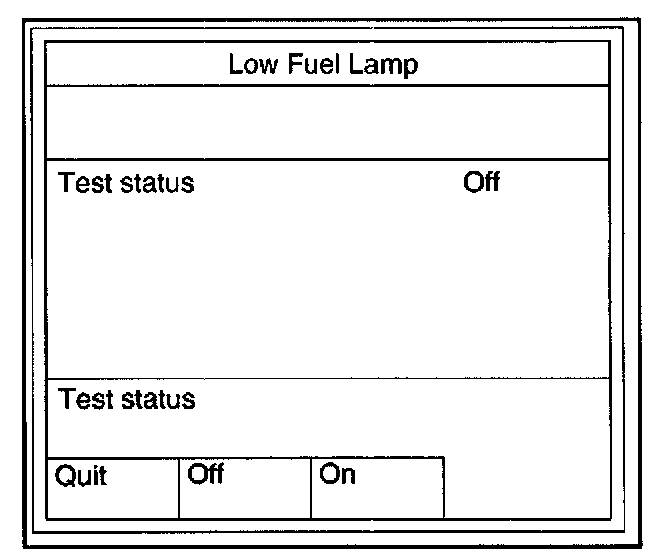

9. Select F2:Low Fuel Lamp
10. Push "On" of soft key.
- Make sure Lamp illuminates.
- If Lamp illuminates, the Lamp is operating correctly.

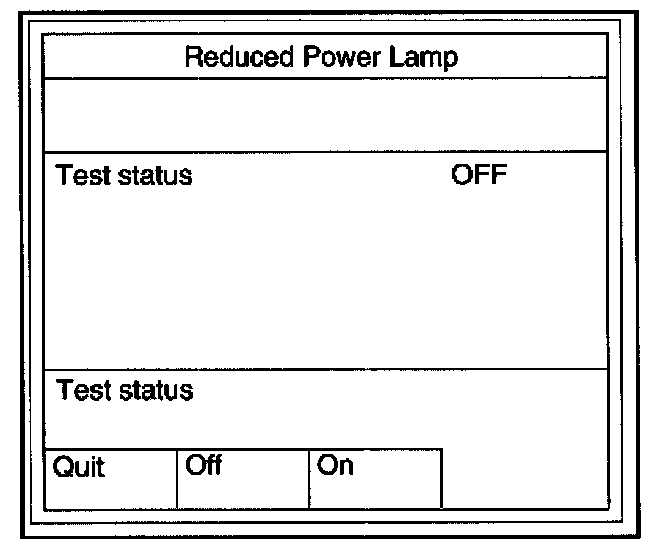

11. Select F3: Reduced Power Lamp
12. Push "On" of soft key.
- Make sure Lamp illuminates.
- If Lamp illuminates, the Lamp is operating correctly.

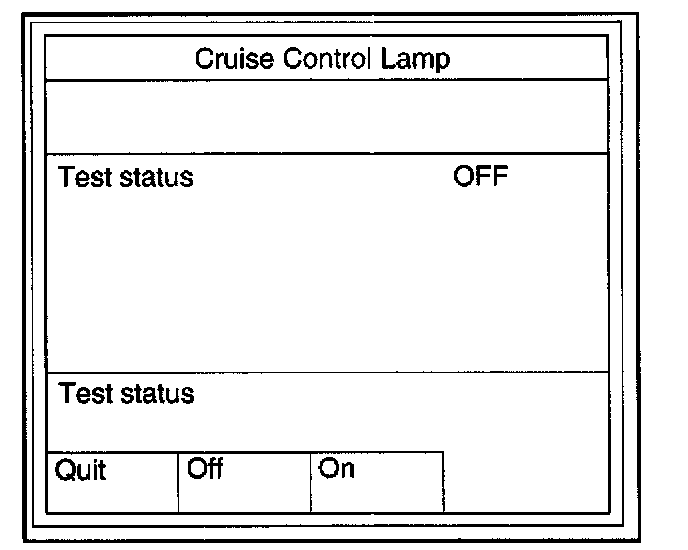

13. Select F5: Cruise Control Lamp
14. Push "On" of soft key.
- Make sure Lamp illuminates.
- If Lamp illuminates, the Lamp is operating correctly.
