Side Body

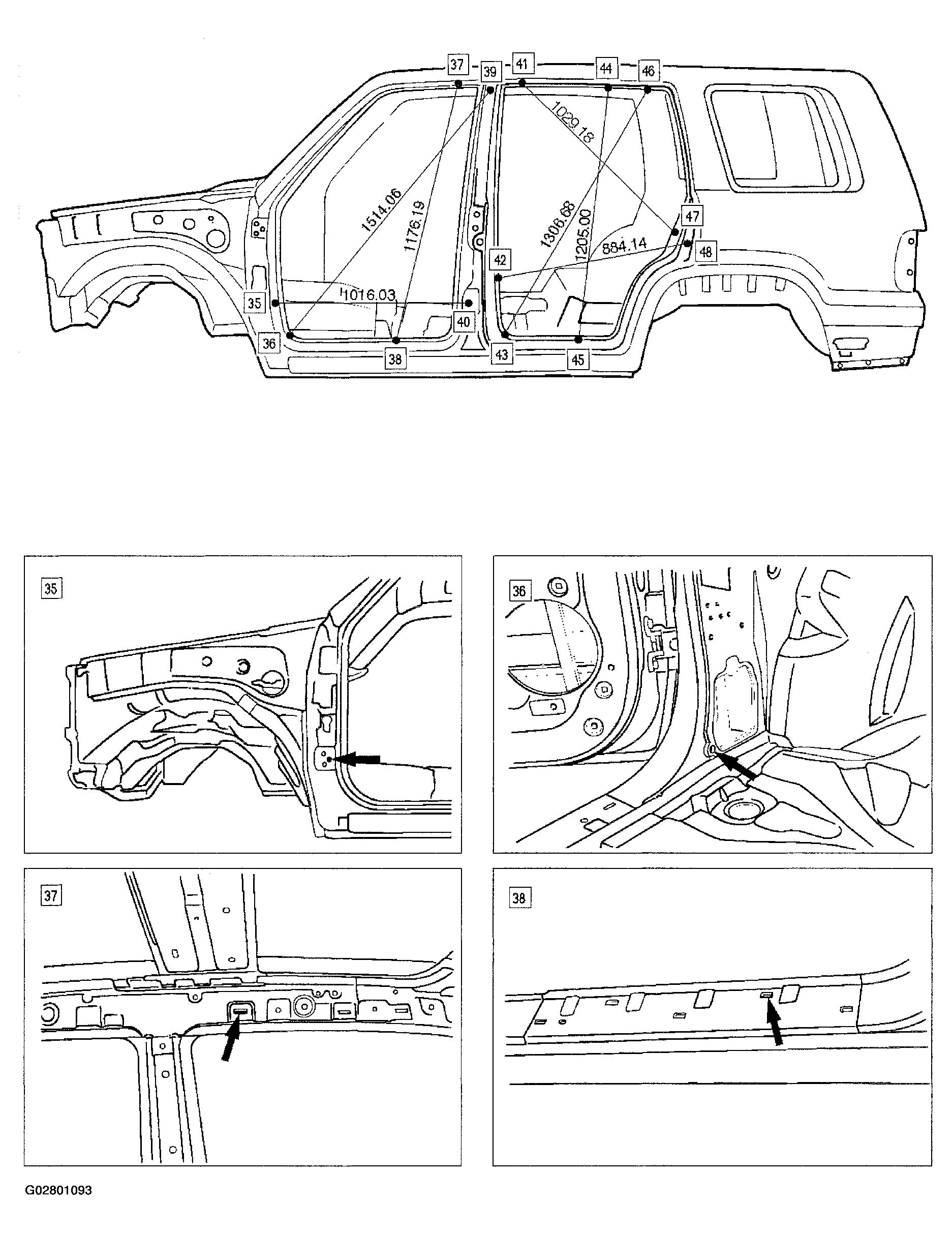

Fig 1: Identifying Side Body Dimensions (1 Of 3)
G02801093Courtesy of ISUZU MOTOR CO.

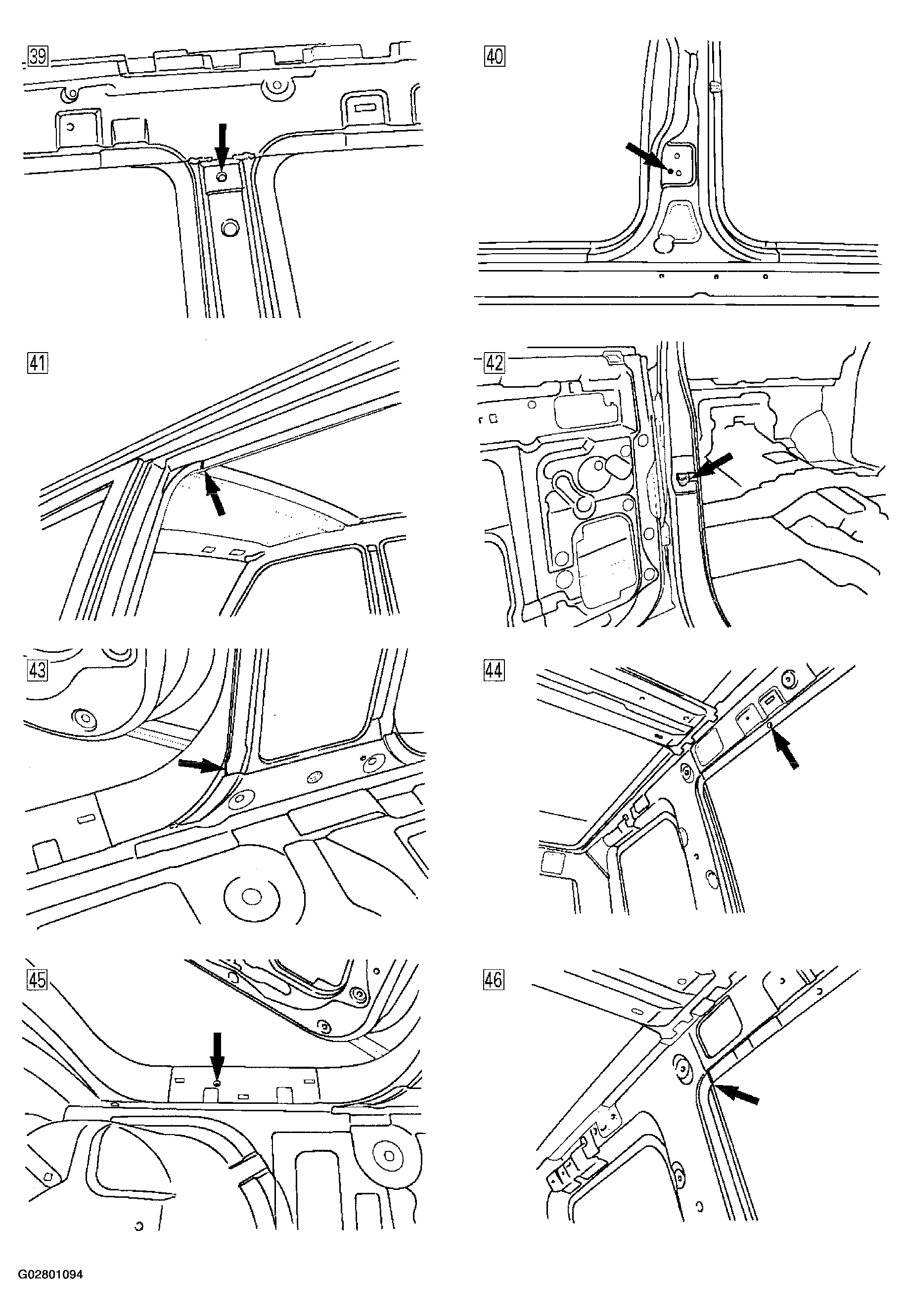

Fig 2: Identifying Side Body Dimensions (2 Of 3)
G02801094Courtesy of ISUZU MOTOR CO.

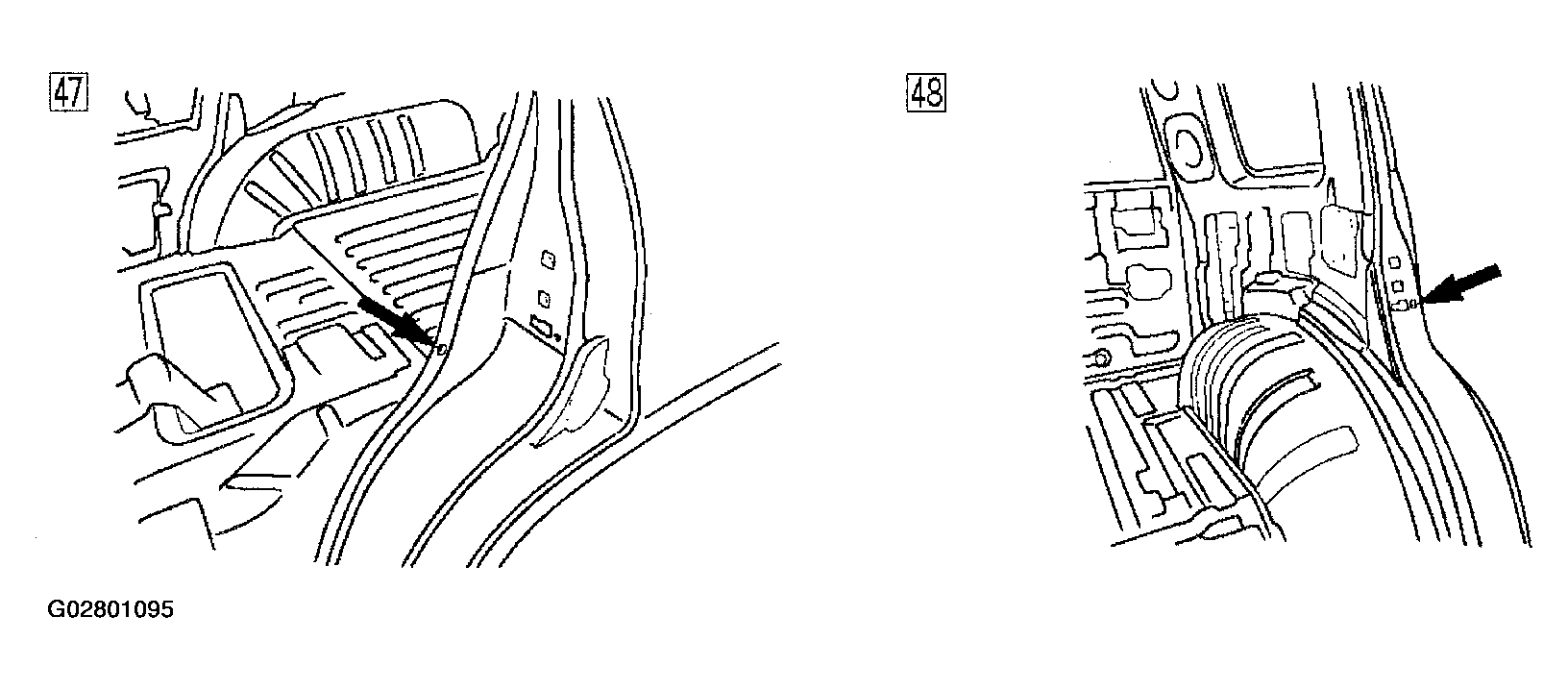

Fig 3: Identifying Side Body Dimensions (3 Of 3)
G02801095Courtesy of ISUZU MOTOR CO.
