Engine Hood Lock: Removal
- Remove hood lock control lever.
- Remove inner liner.
- Remove control cable.
- Remove the cable fixing clips from the body panel.
- Remove radiator grille.
- Refer to RADIATOR GRILLE AND FRONT END LOWER PANEL .
- Remove engine hood lock assembly.

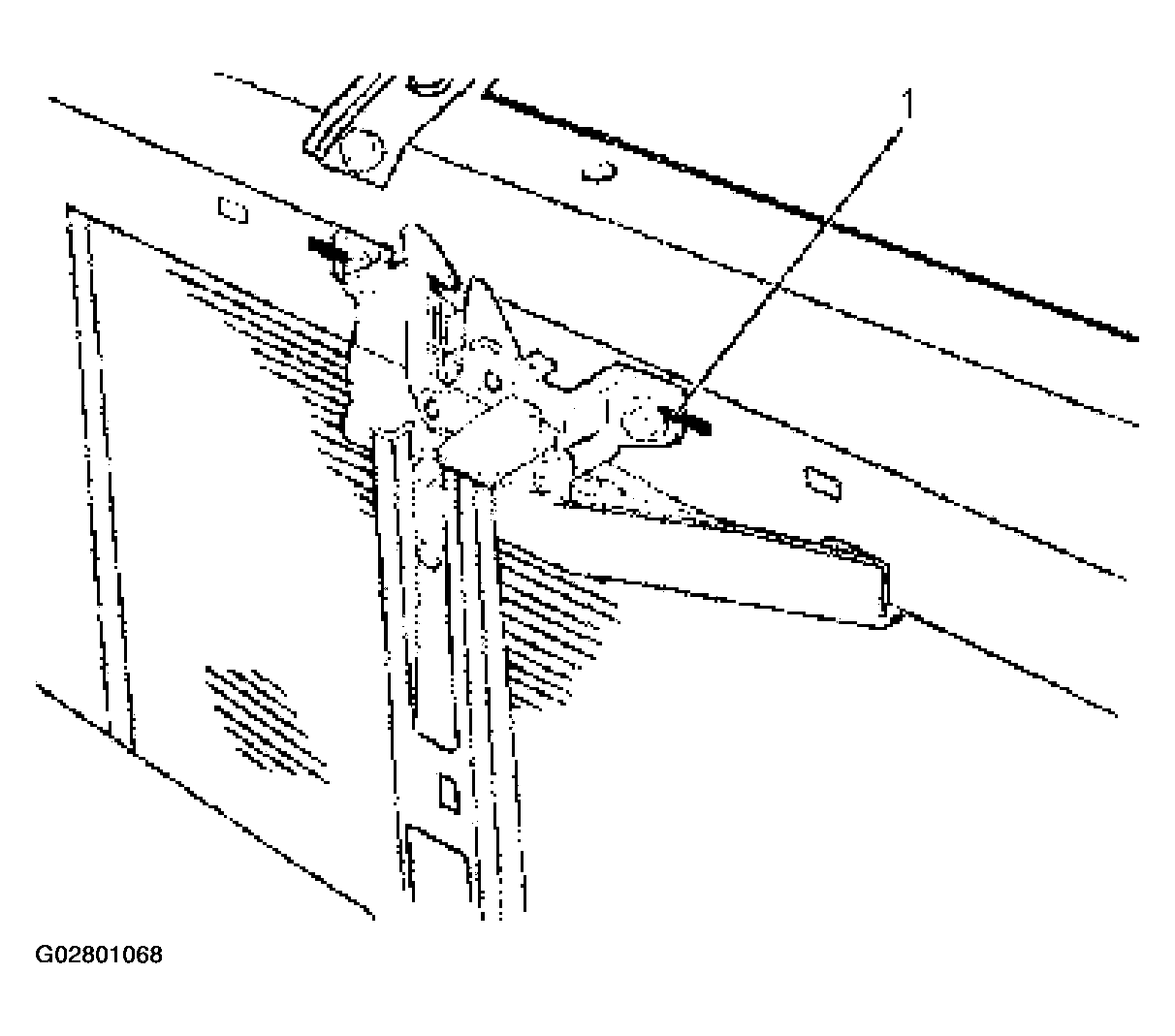

- Apply setting marks (1) to the hood lock assembly and the body prior to removal.
