Engine Hood: Removal

  1. Open the hood.
  2. Support the hood.
  3. Remove windshield washer nozzle tube.

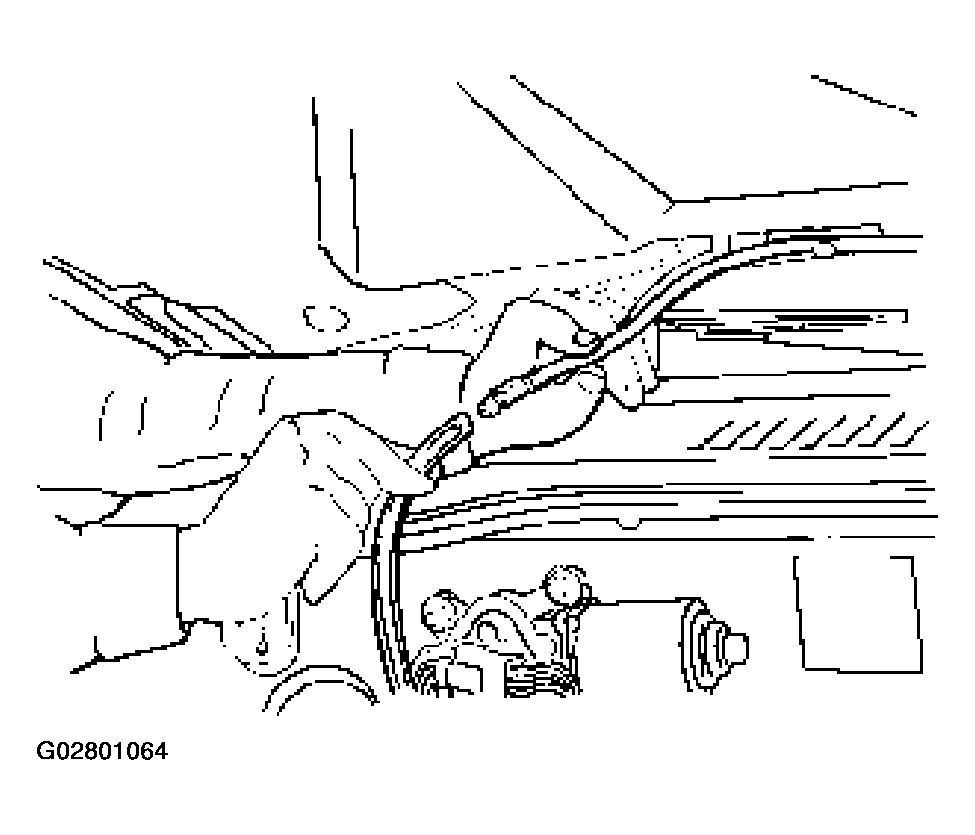

    Fig 1: Removing Windshield Washer Nozzle Tube
    G02801064Courtesy of ISUZU MOTOR CO.
  4. Remove hood hinge bolts (3).
    • Before removing the hinges from the Engine hood (1), scribe a mark (2) showing location of the hinges to facilitate installation in the original position.

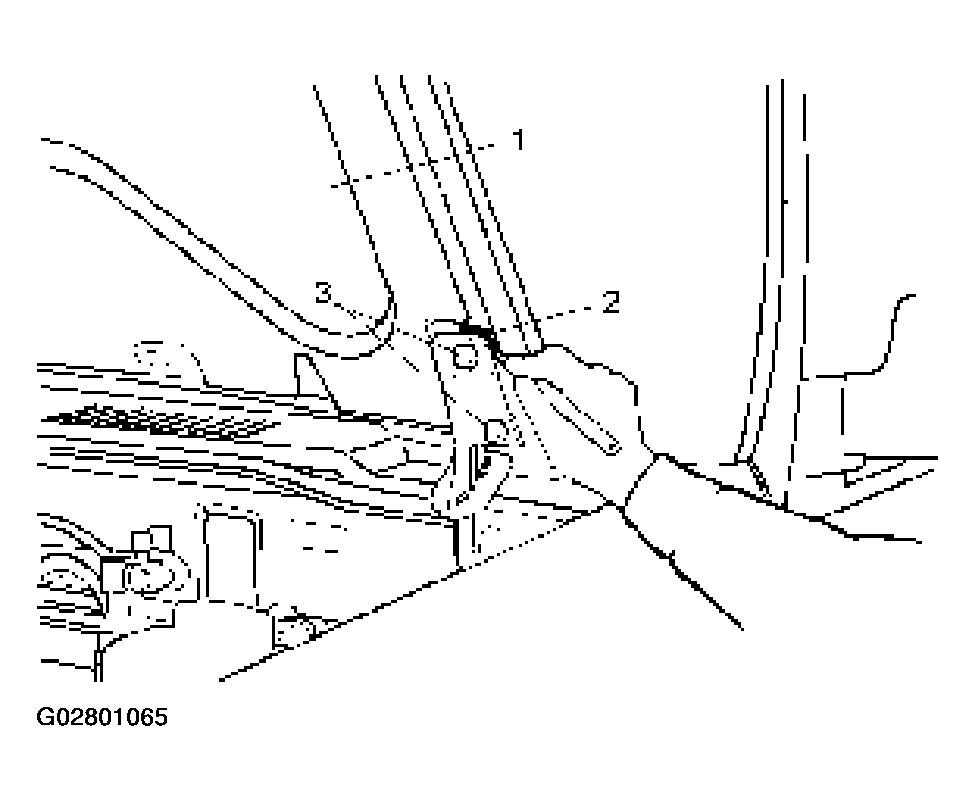

    Fig 2: Marking Hinge Location Before Removing Hood
    G02801065Courtesy of ISUZU MOTOR CO.
  5. Remove engine hood.
