Front Section

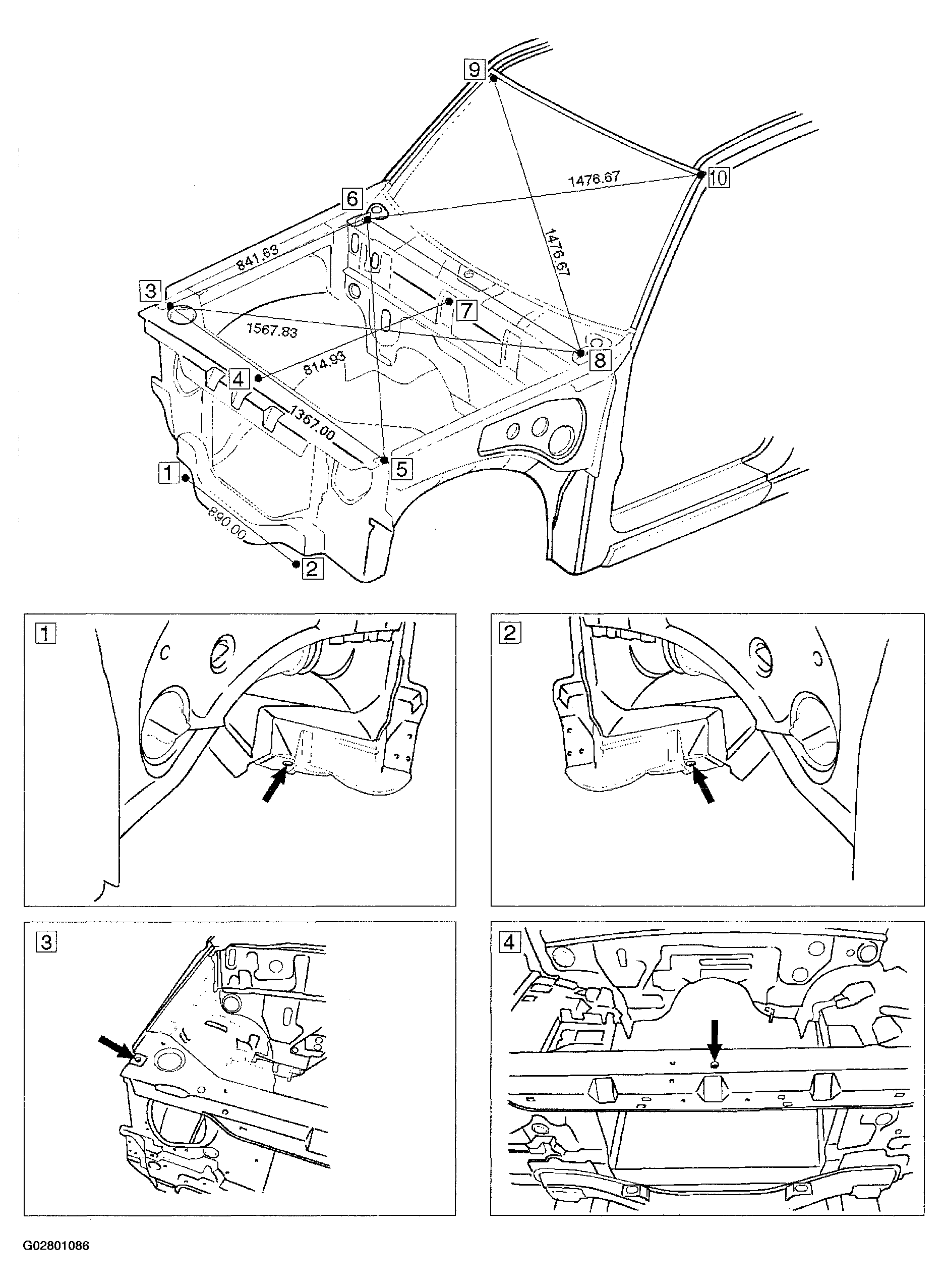

Fig 1: Identifying Front Section Dimensions (1 Of 2)
G02801086Courtesy of ISUZU MOTOR CO.

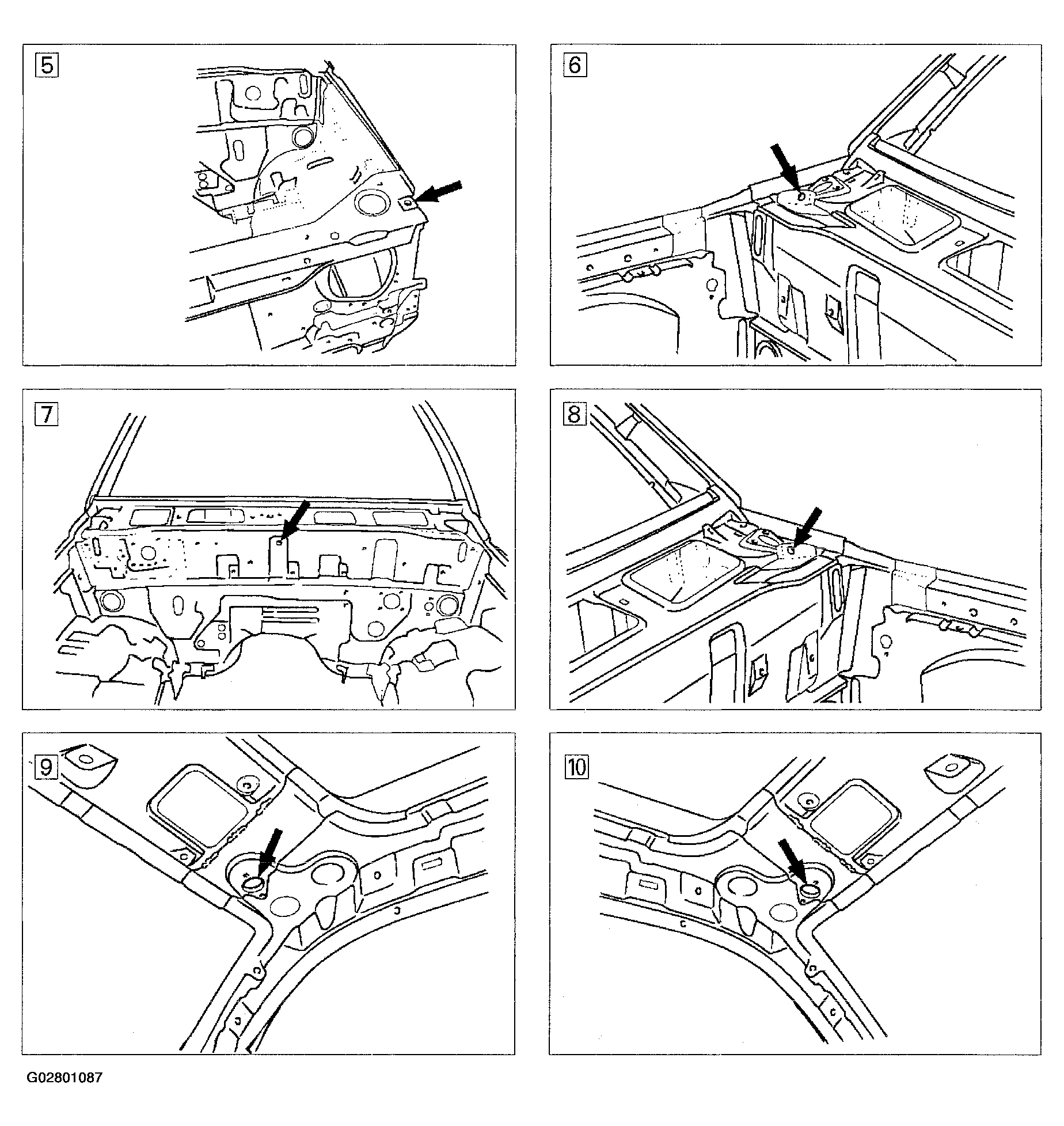

Fig 2: Identifying Front Section Dimensions (2 Of 2)
G02801087Courtesy of ISUZU MOTOR CO.
