Window Glass

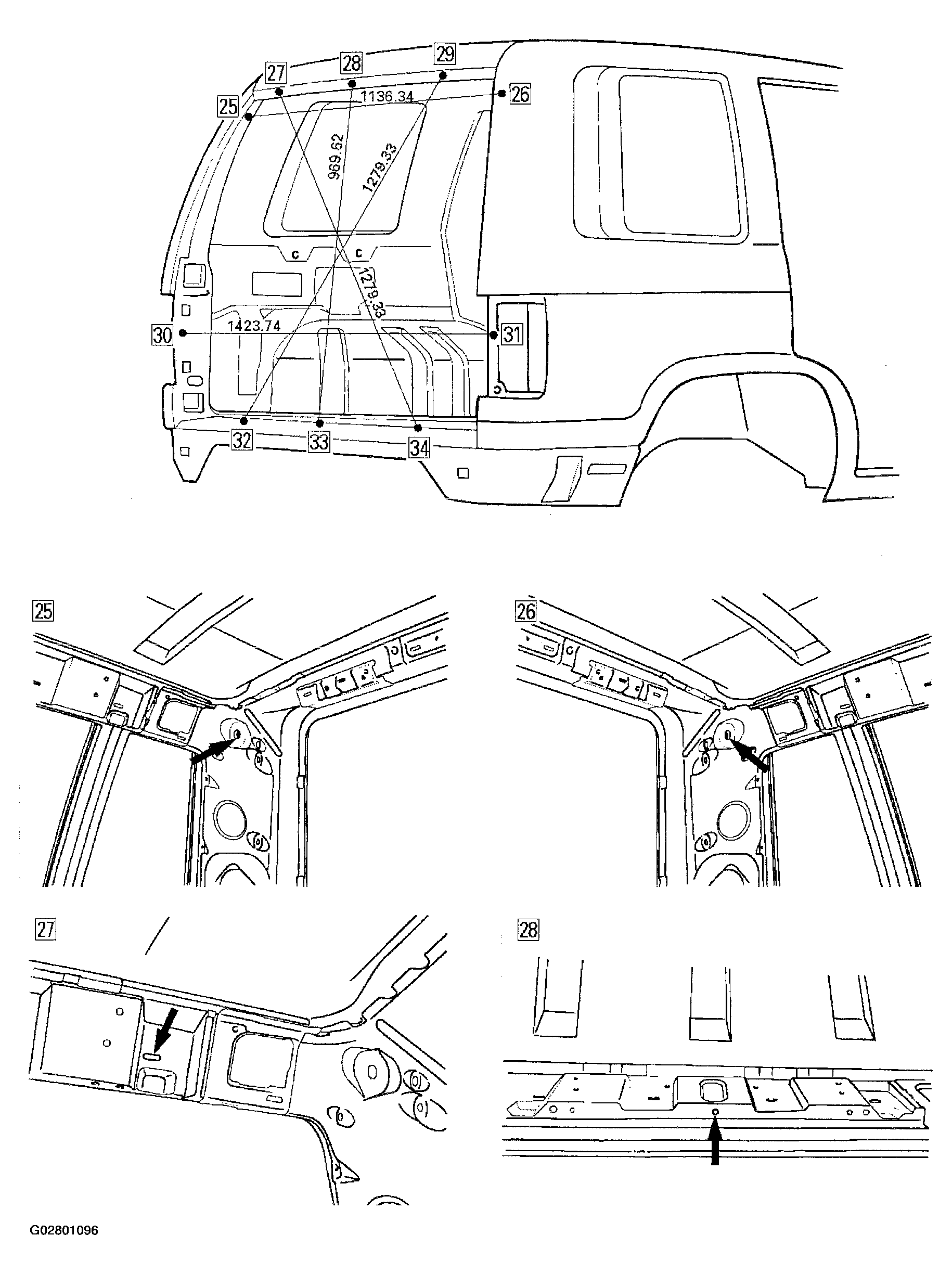

Fig 1: Identifying Window Glass Dimensions (1 Of 4)
Courtesy of ISUZU MOTOR CO.

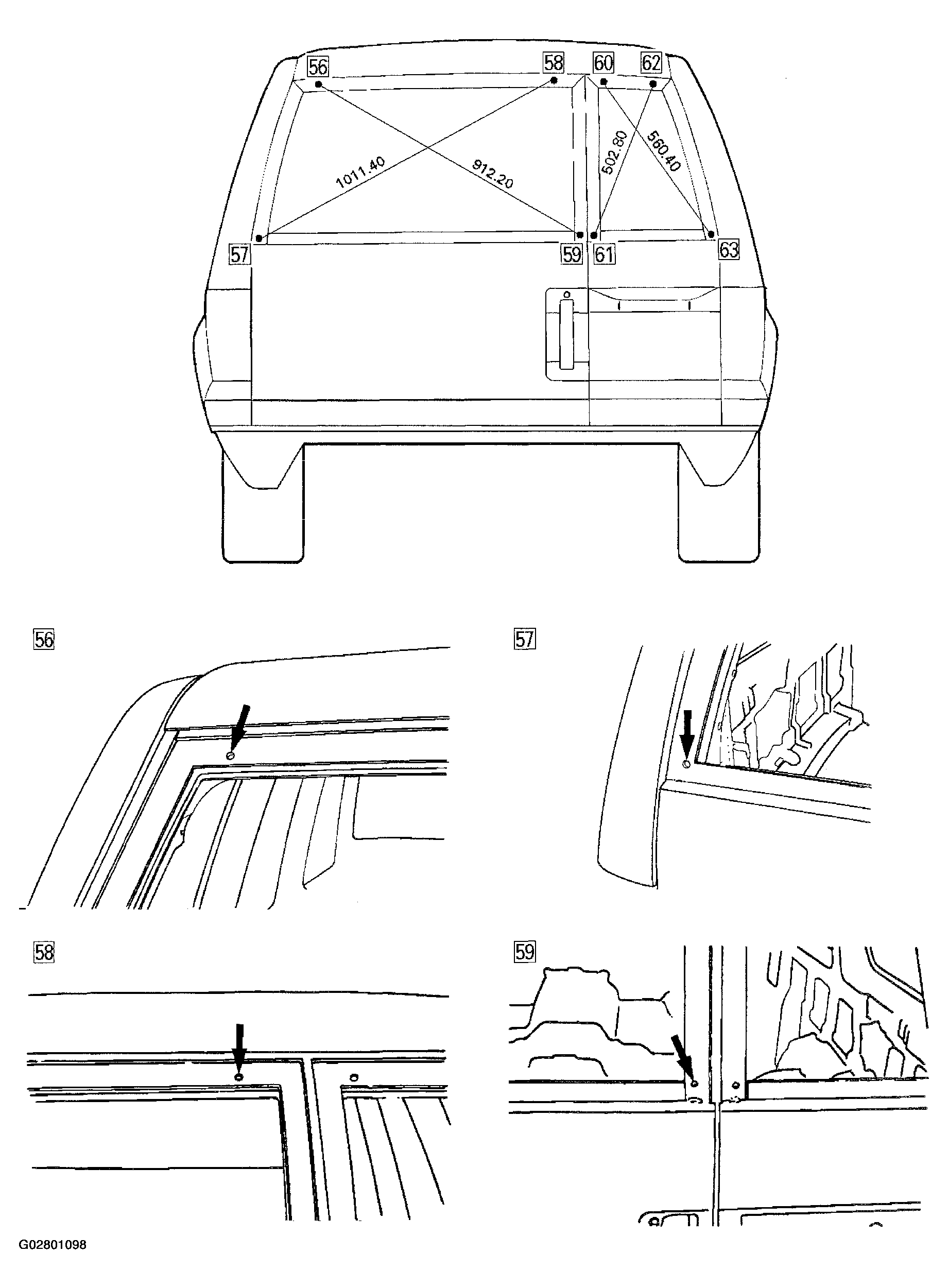

Fig 2: Identifying Window Glass Dimensions (2 Of 4)
Courtesy of ISUZU MOTOR CO.

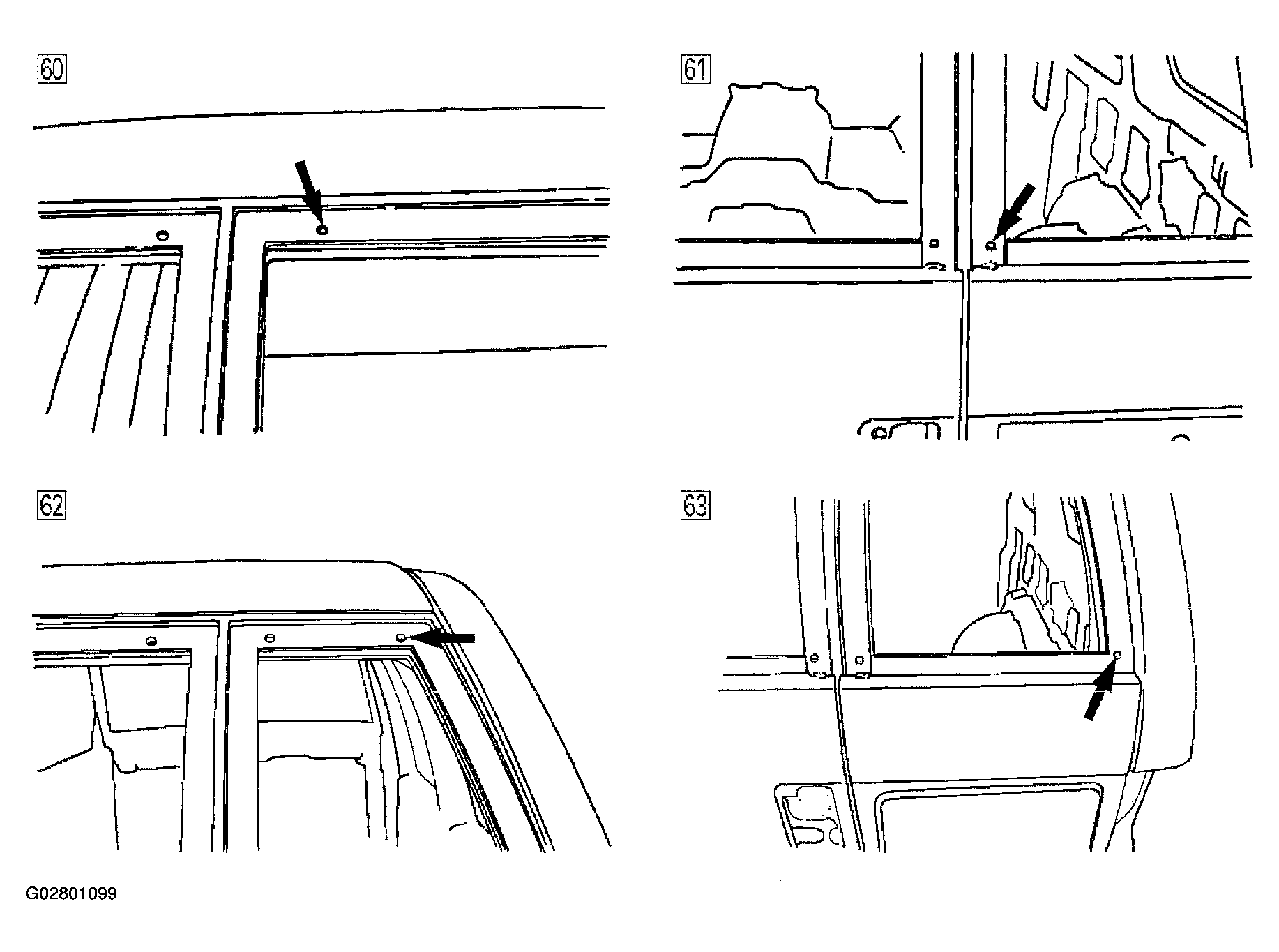

Fig 3: Identifying Window Glass Dimensions (3 Of 4)
Courtesy of ISUZU MOTOR CO.

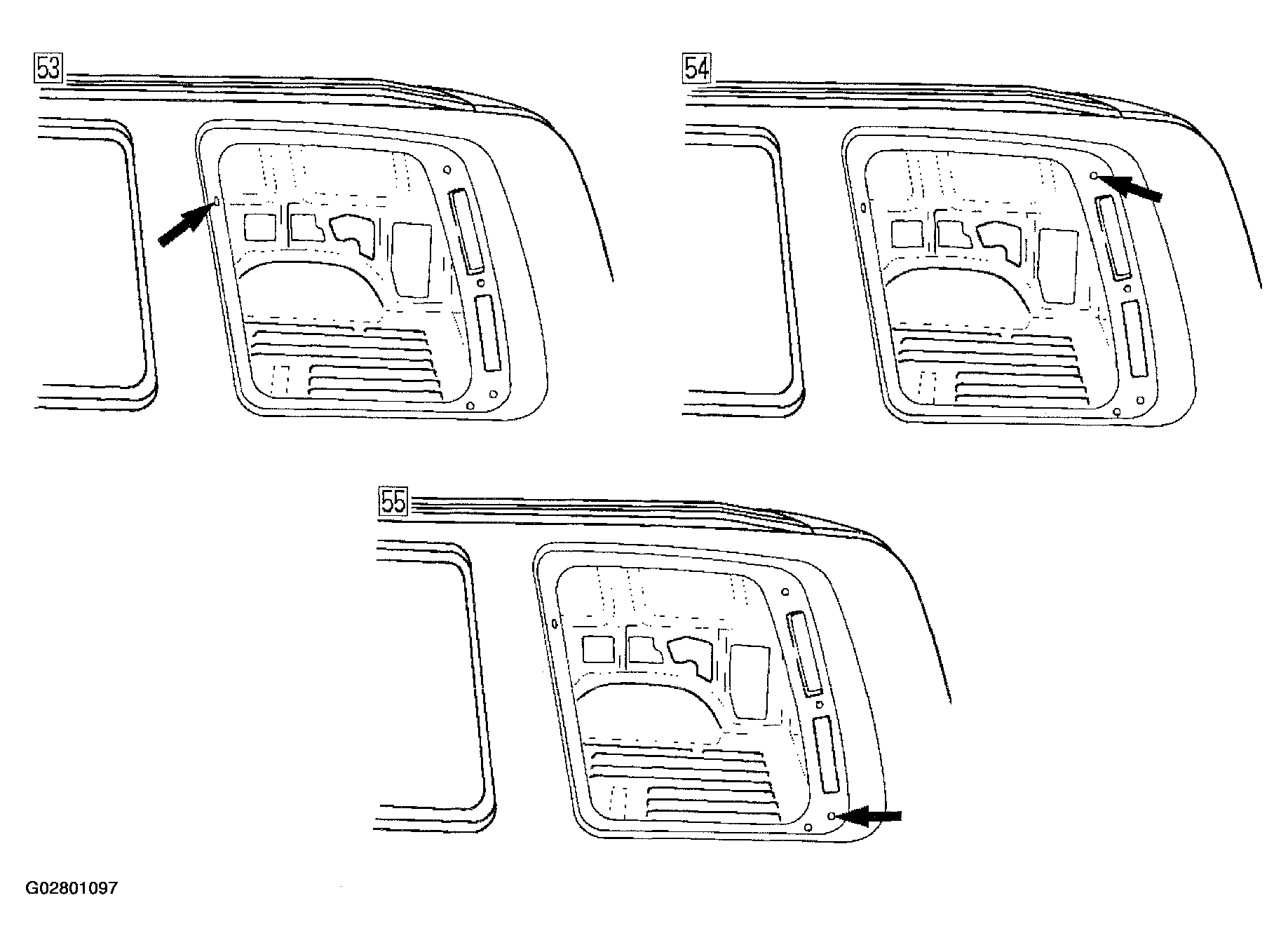

Fig 4: Identifying Window Glass Dimensions (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
