Front Bumper Slider Bracket: Removal

  1. Remove the Front bumper.
  2. Remove the three nuts (1) and draw out the slider bracket (2).

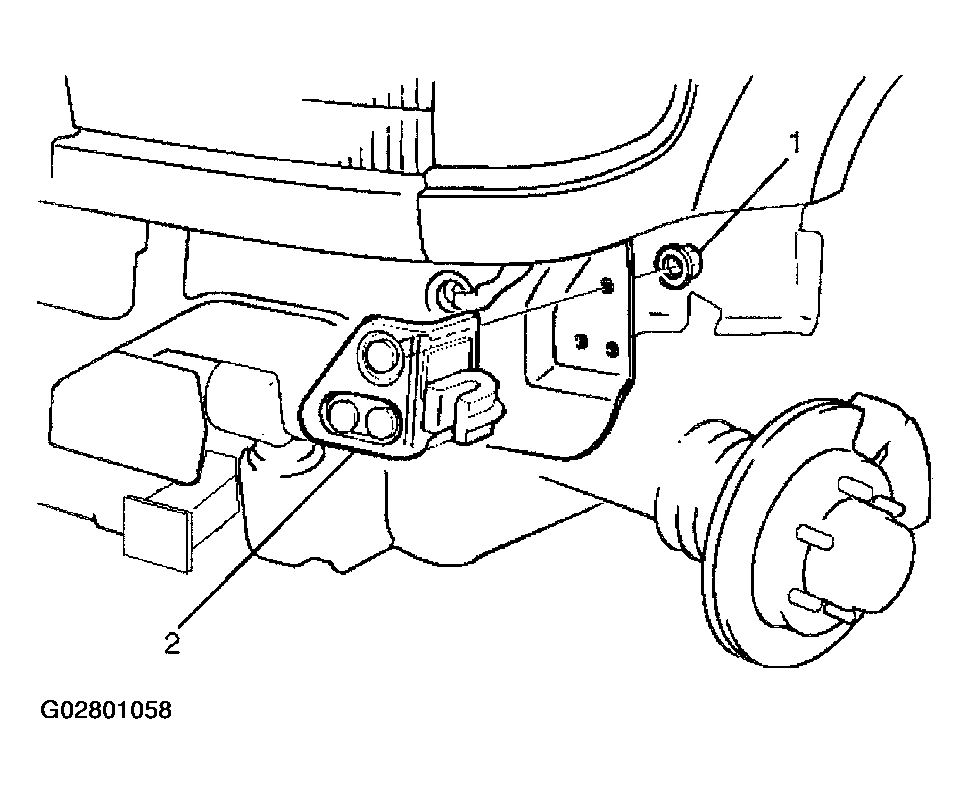

Fig 1: Removing Three Nuts And Slider Bracket
G02801058Courtesy of ISUZU MOTOR CO.
