Front Bumper: Removal

  1. Remove front fog light connector.
  2. Remove front bumper assembly fixing bolt.

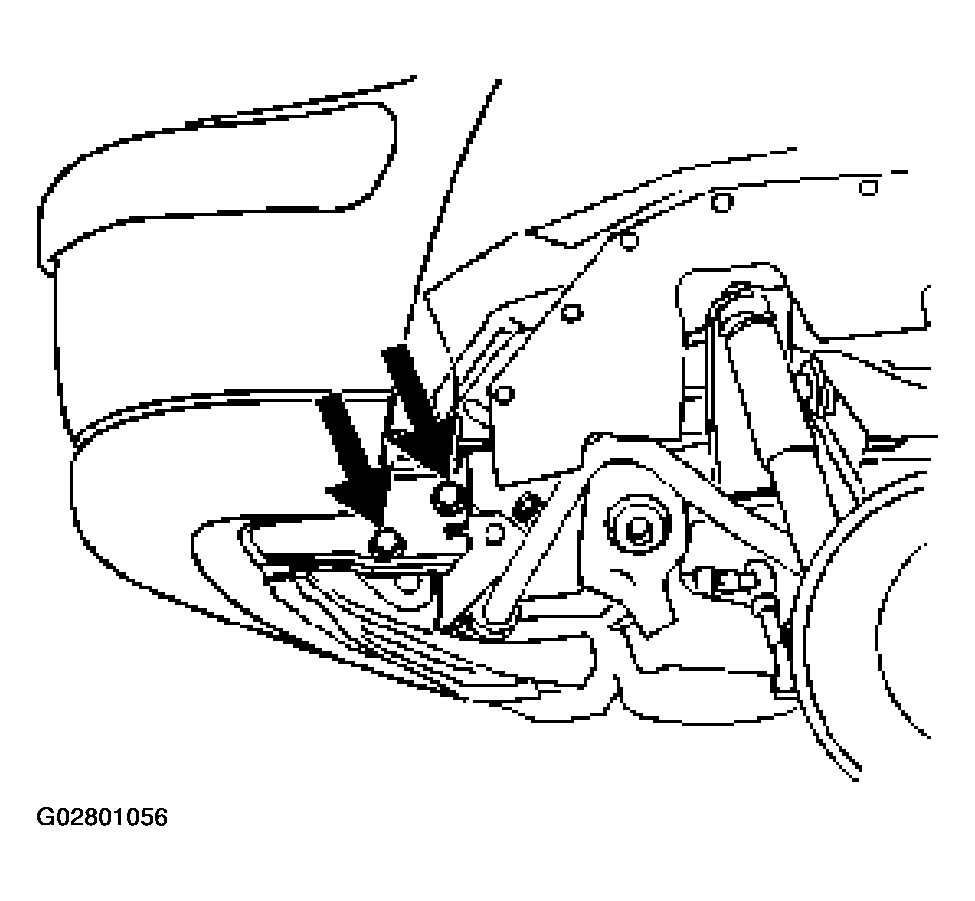

    • Remove the two bolts from both sides of the front bumper.
    Fig 1: Removing The Two Bolts From Both Sides Of The Front Bumper
    G02801056Courtesy of ISUZU MOTOR CO.
  3. Remove front bumper assembly.
  4. Remove bumper fascia lower bolts.
  5. Remove front bumper retainer.
  6. Remove reinforce lower bolts.
    • Loosen the five bolts and release claws.
  7. Remove reinforce assembly.
  8. Remove backbar fixing bolts.
    • Remove the four bolts at each backbar.
  9. Remove front fog light assembly.

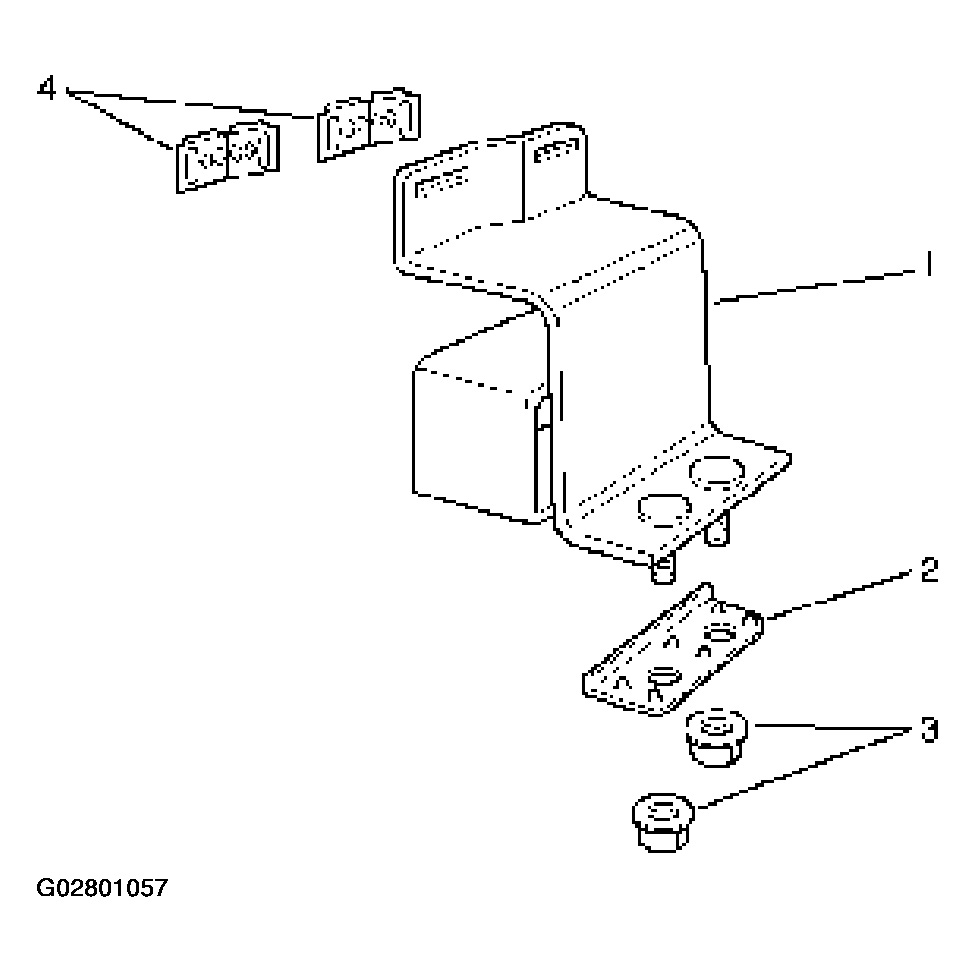

  10. Remove the front bumper slider (1).
Fig 2: Removing Front Bumper Slider
G02801057Courtesy of ISUZU MOTOR CO.
