Parts Location

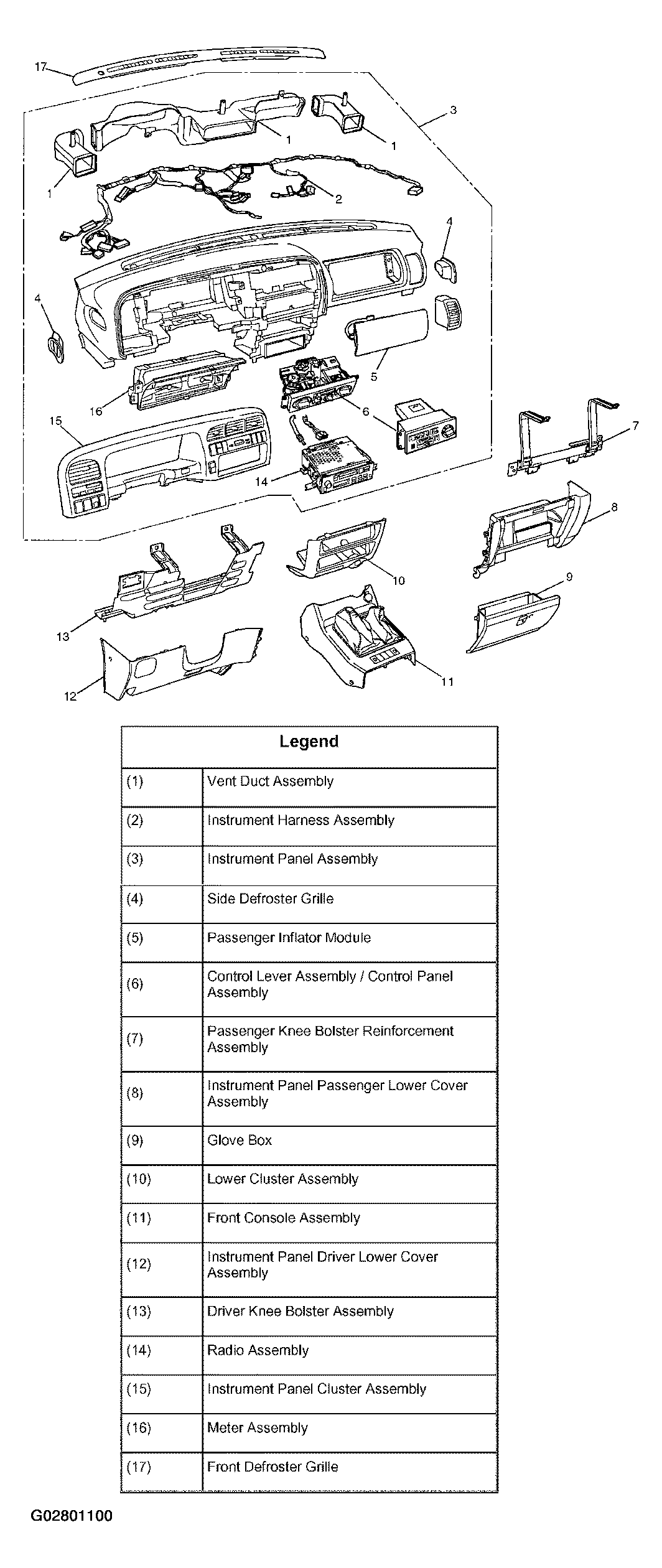

Fig 1: Locating Instrument Panel Assembly Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
