Torque Specifications

Fig 1: Torque Specifications (1 Of 10)

G02801222

Courtesy of ISUZU MOTOR CO.

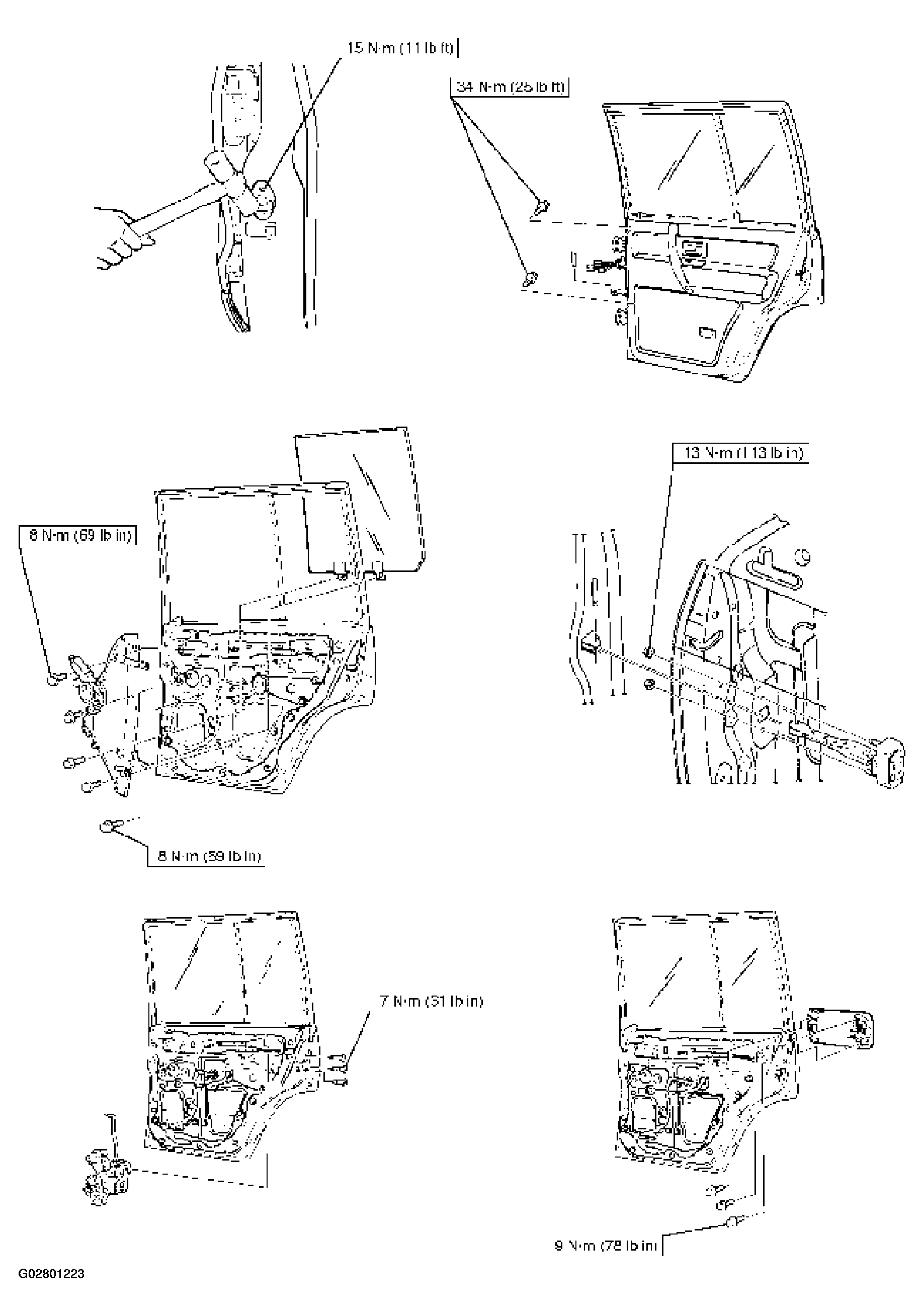

Fig 2: Torque Specifications (2 Of 10)

G02801223

Courtesy of ISUZU MOTOR CO.

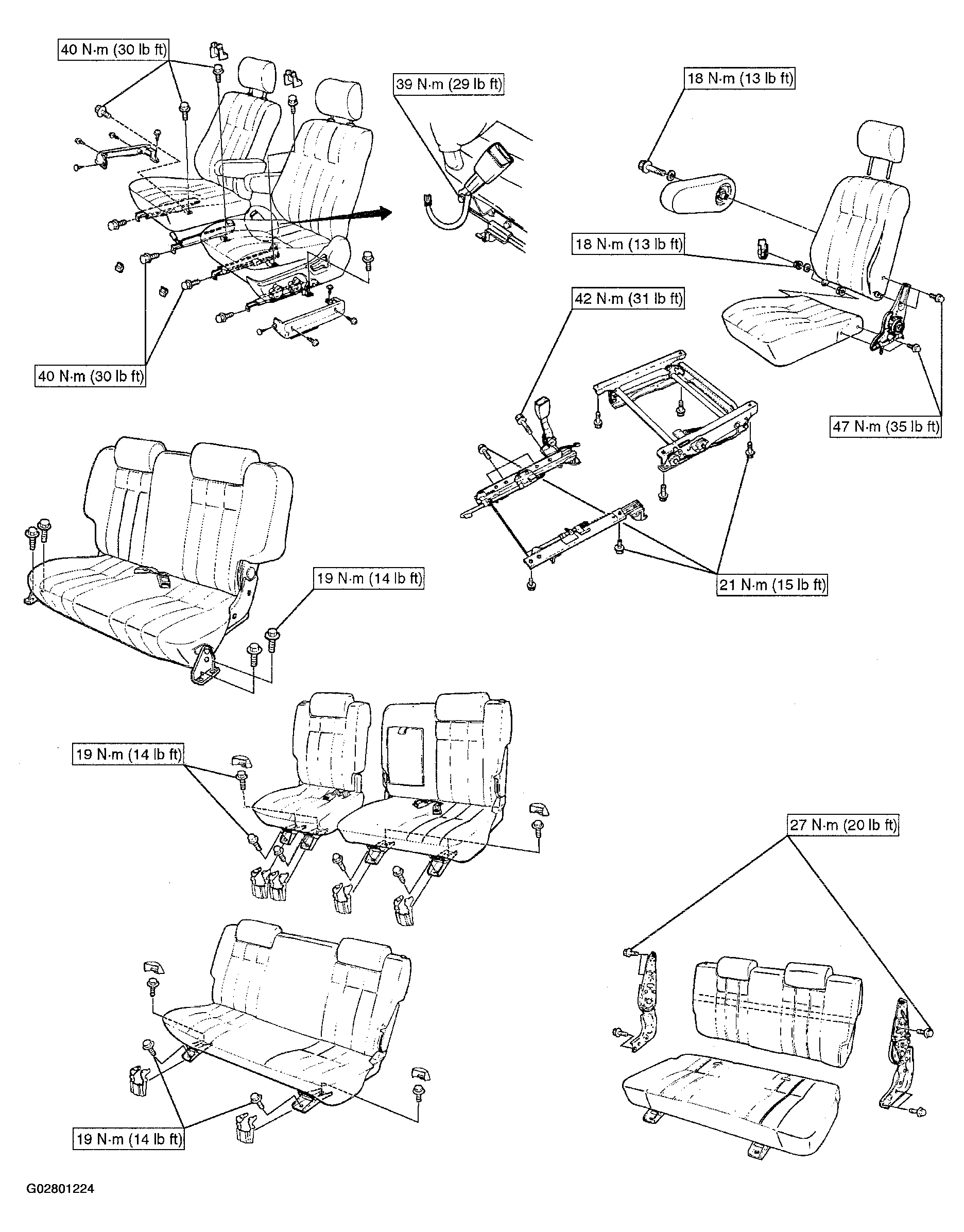

Fig 3: Torque Specifications (3 Of 10)

G02801224

Courtesy of ISUZU MOTOR CO.

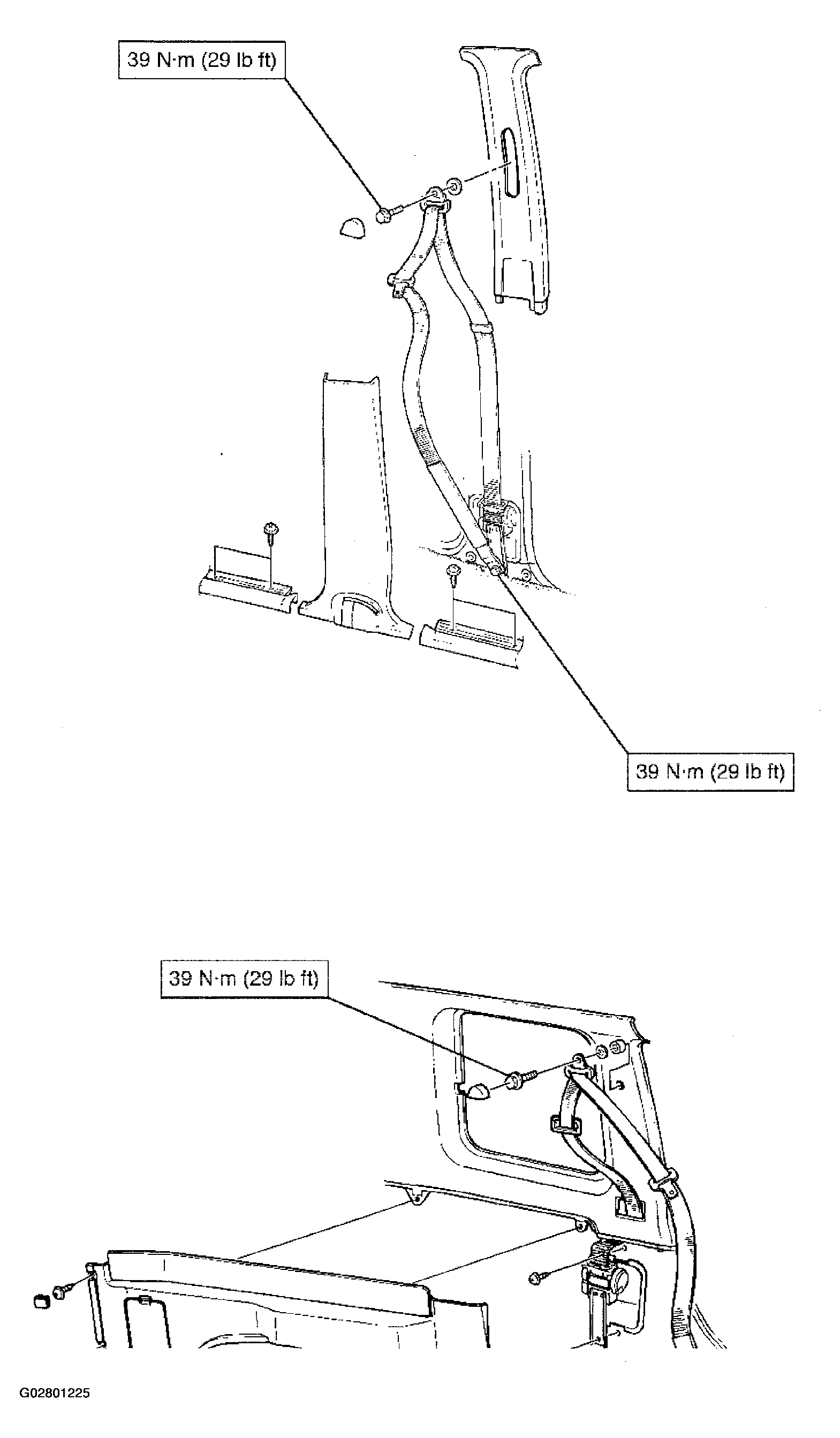

Fig 4: Torque Specifications (4 Of 10)

G02801225

Courtesy of ISUZU MOTOR CO.

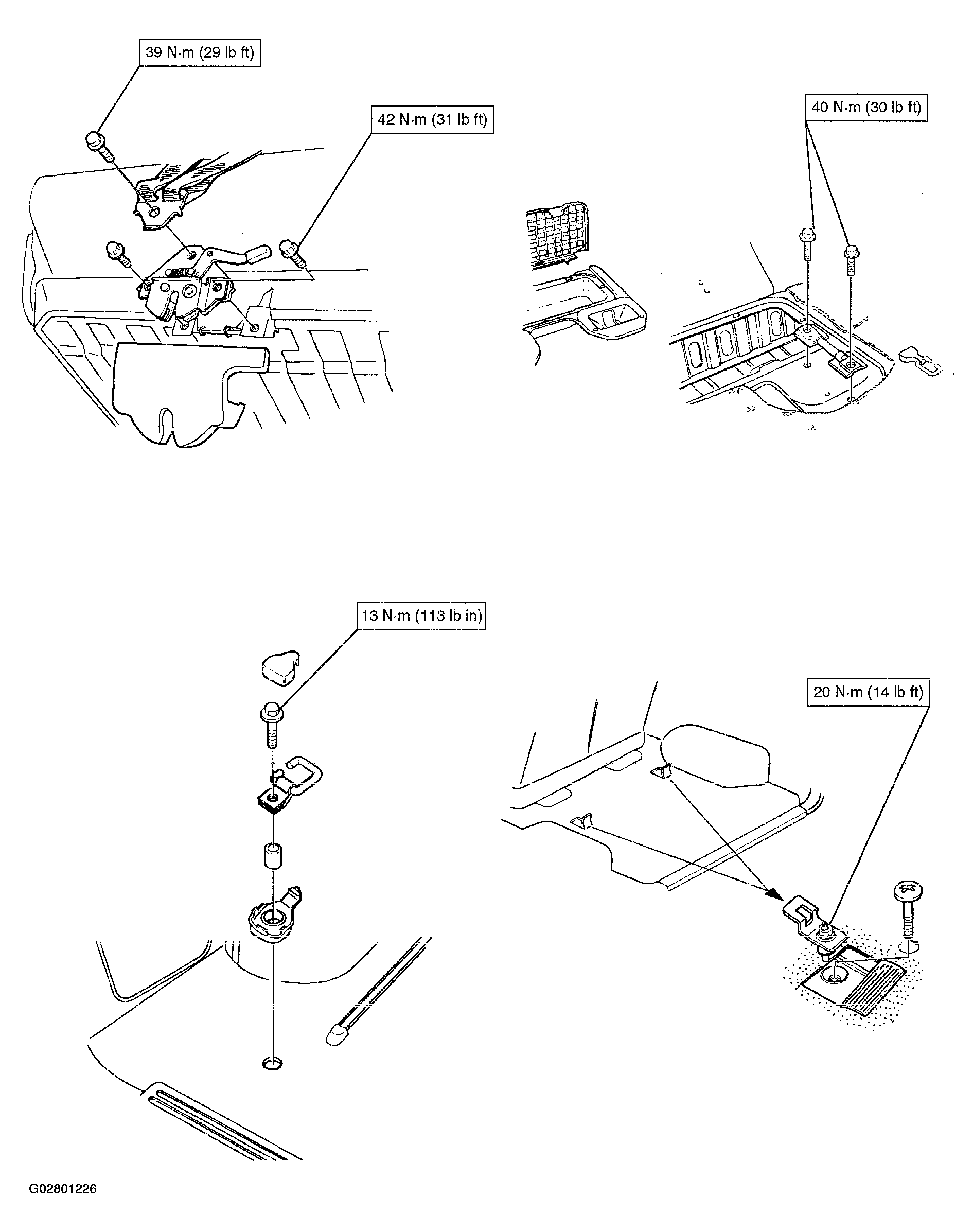

Fig 5: Torque Specifications (5 Of 10)

G02801226

Courtesy of ISUZU MOTOR CO.

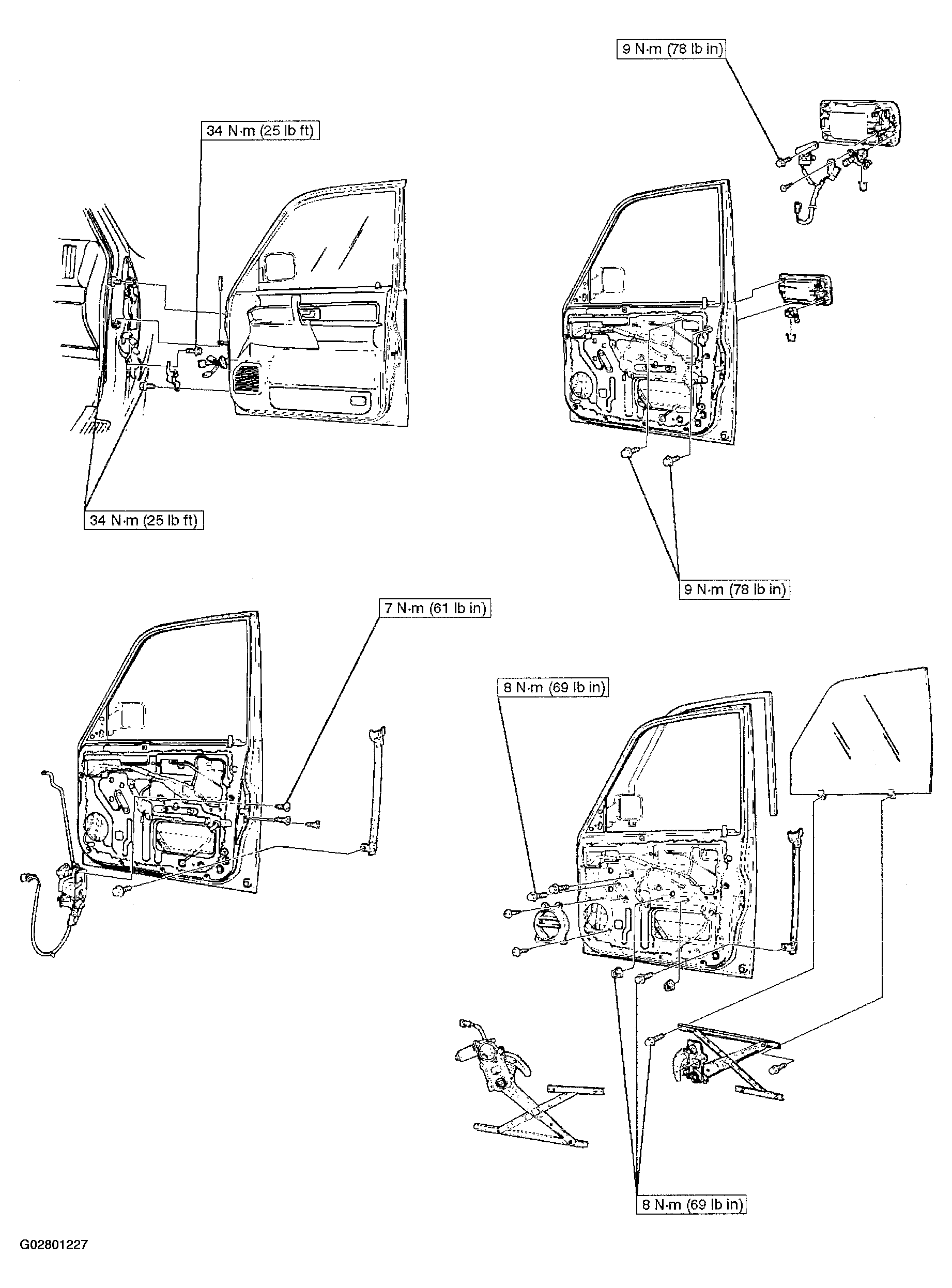

Fig 6: Torque Specifications (6 Of 10)

G02801227

Courtesy of ISUZU MOTOR CO.

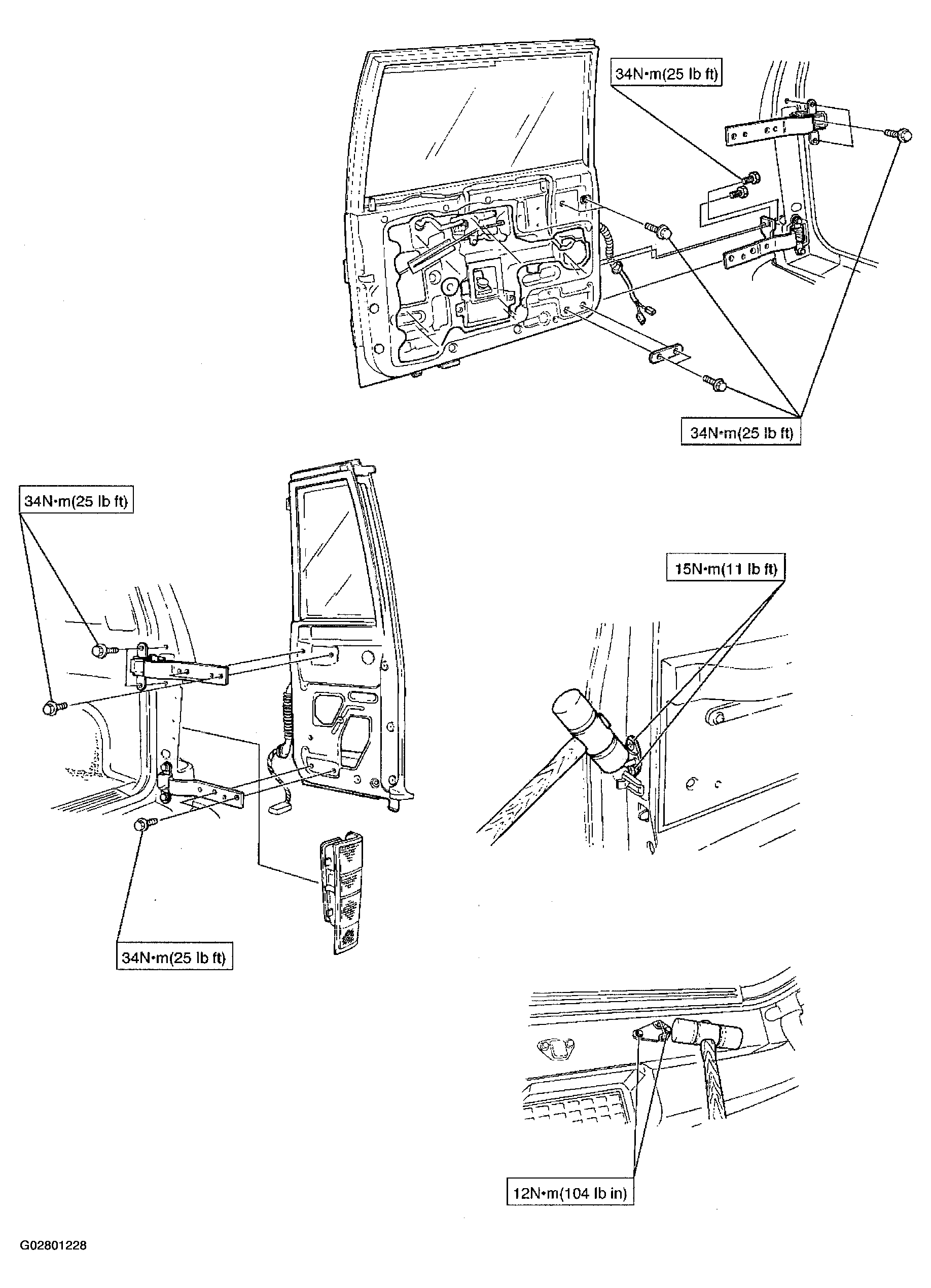

Fig 7: Torque Specifications (7 Of 10)

G02801228

Courtesy of ISUZU MOTOR CO.

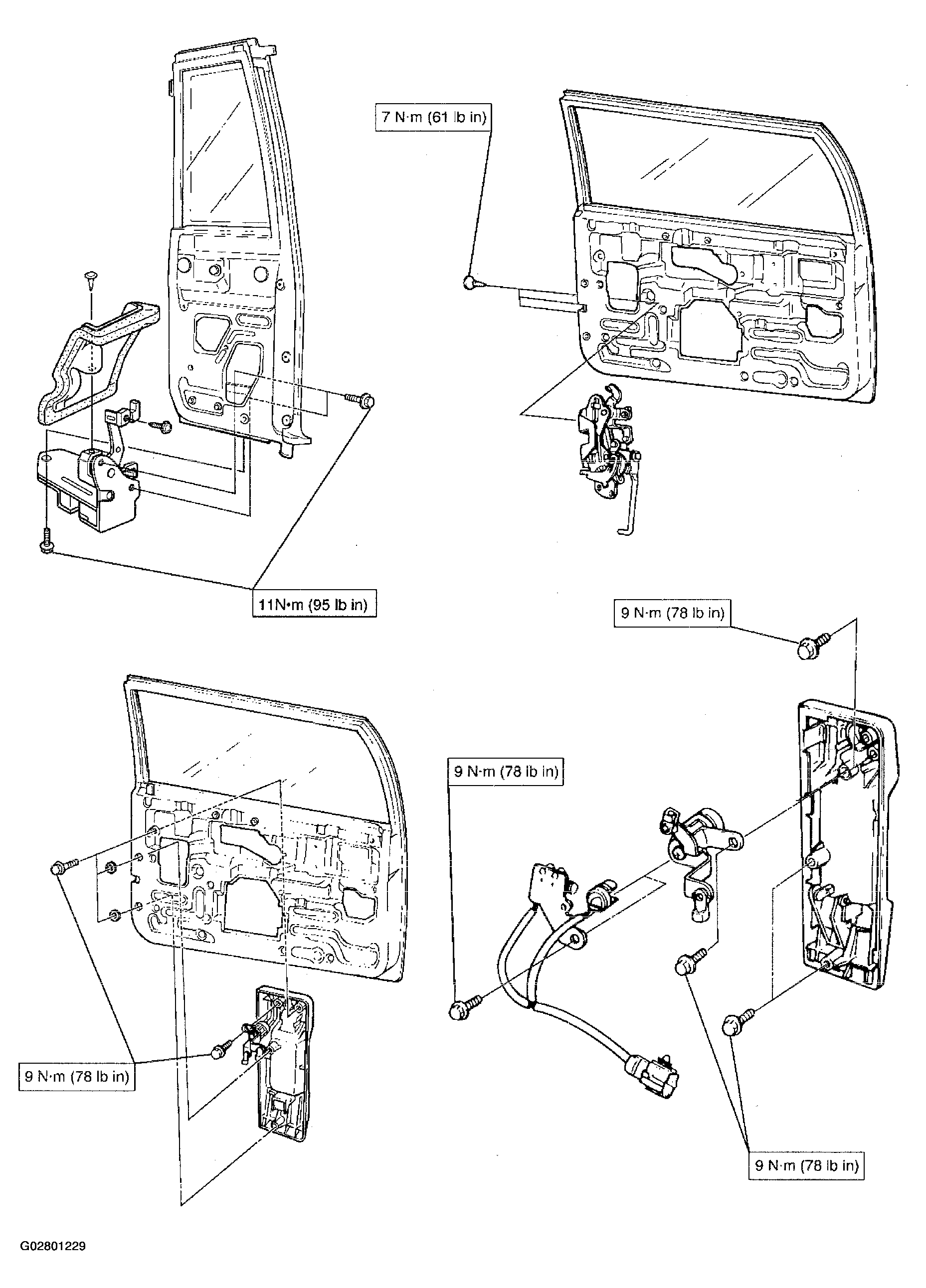

Fig 8: Torque Specifications (8 Of 10)

G02801229

Courtesy of ISUZU MOTOR CO.

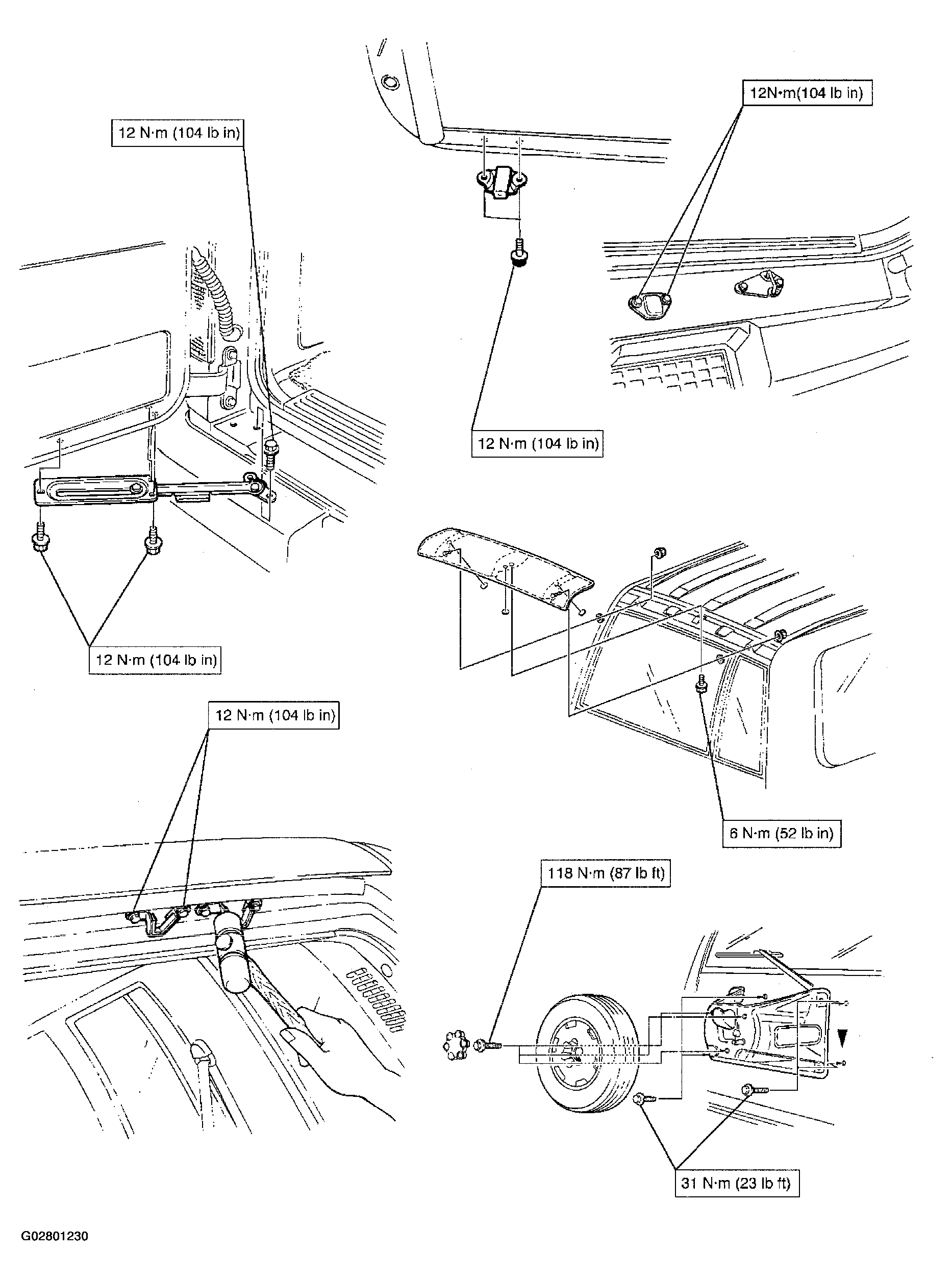

Fig 9: Torque Specifications (9 Of 10)

G02801230

Courtesy of ISUZU MOTOR CO.

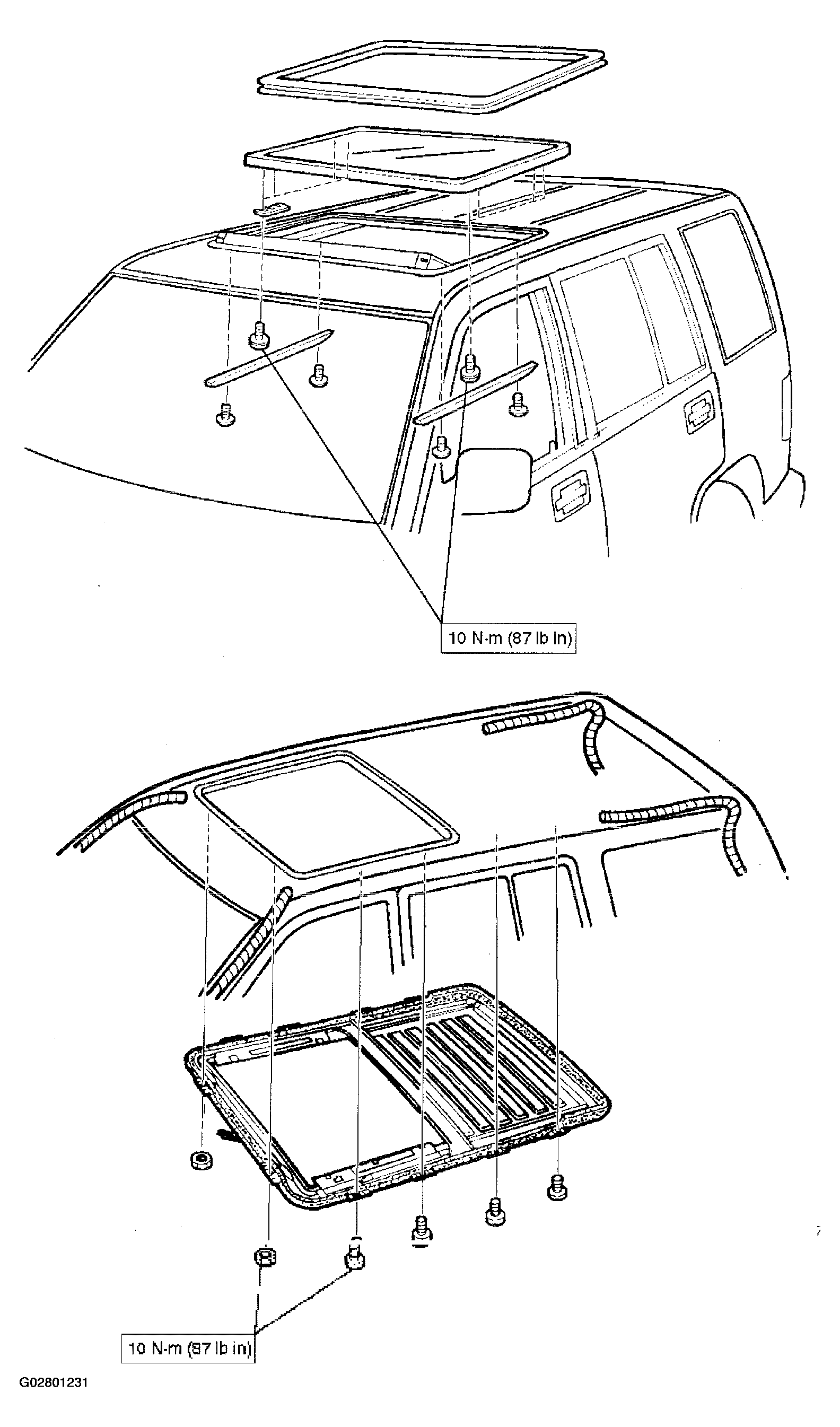

Fig 10: Torque Specifications (10 Of 10)

G02801231

Courtesy of ISUZU MOTOR CO.
