Tailgate Assembly (LH): Removal

  1. Disconnect the battery ground cable.
  2. Remove tailgate trim panel (LH).
  3. Remove tailgate stopper assembly
  4. Remove tailgate harness connection.
    • Open the luggage trim panel lid and disconnect the tailgate harness connection.

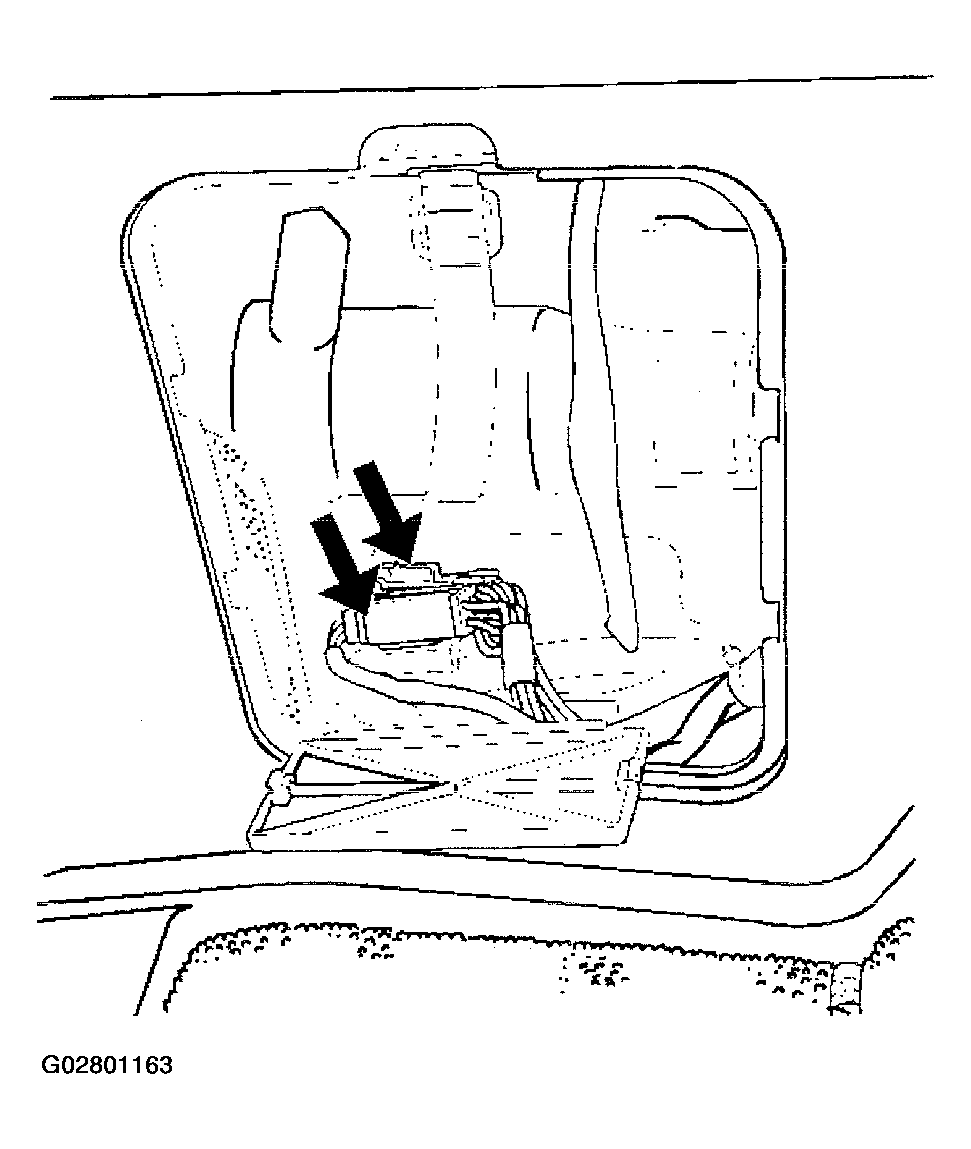

    Fig 1: Disconnecting The Tailgate Harness Connection
    G02801163Courtesy of ISUZU MOTOR CO.
  5. Remove tailgate fixing bolts.

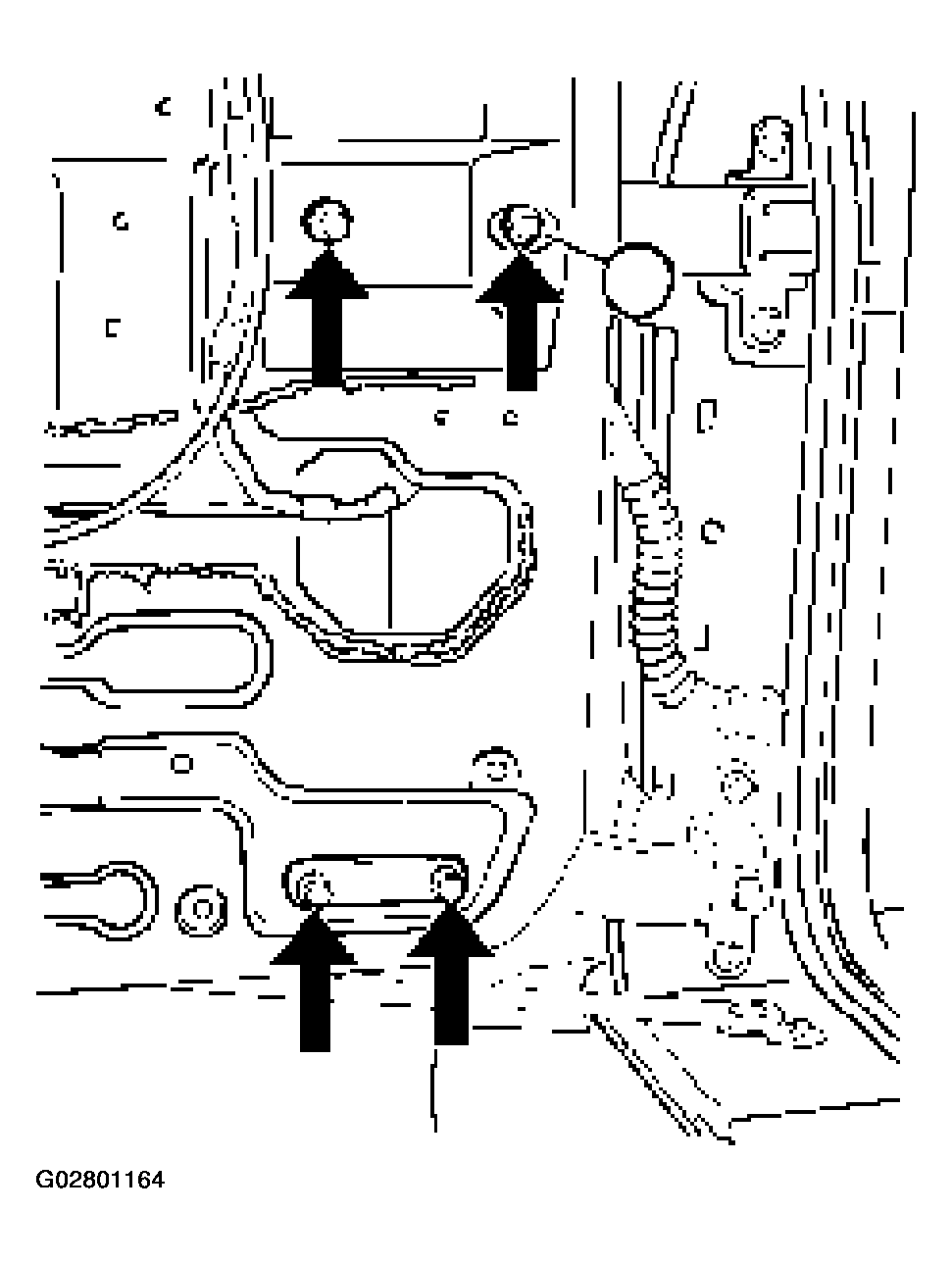

    Fig 2: Removing Tailgate Fixing Bolts
    G02801164Courtesy of ISUZU MOTOR CO.
  6. Remove tailgate assembly (LH).
  7. Remove tailgate hinge.
    • Apply a setting mark (1) on the body side hinge and remove the hinge fixing bolts.

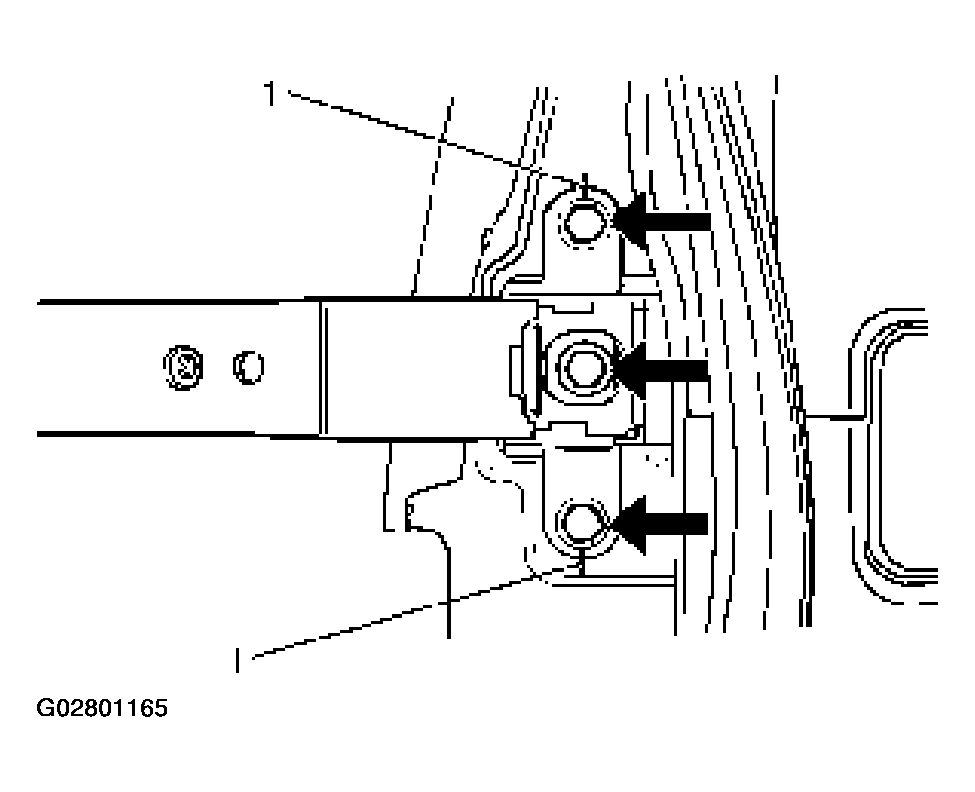

    Fig 3: Removing Tailgate Hinge
    G02801165Courtesy of ISUZU MOTOR CO.
