Tailgate Assembly (RH): Removal

  1. Disconnect the battery ground cable.
  2. Remove rear combination light (RH).
  3. Remove tailgate trim panel (RH).
  4. Remove tailgate harness connection.
    • Disconnect the tailgate harness connection.

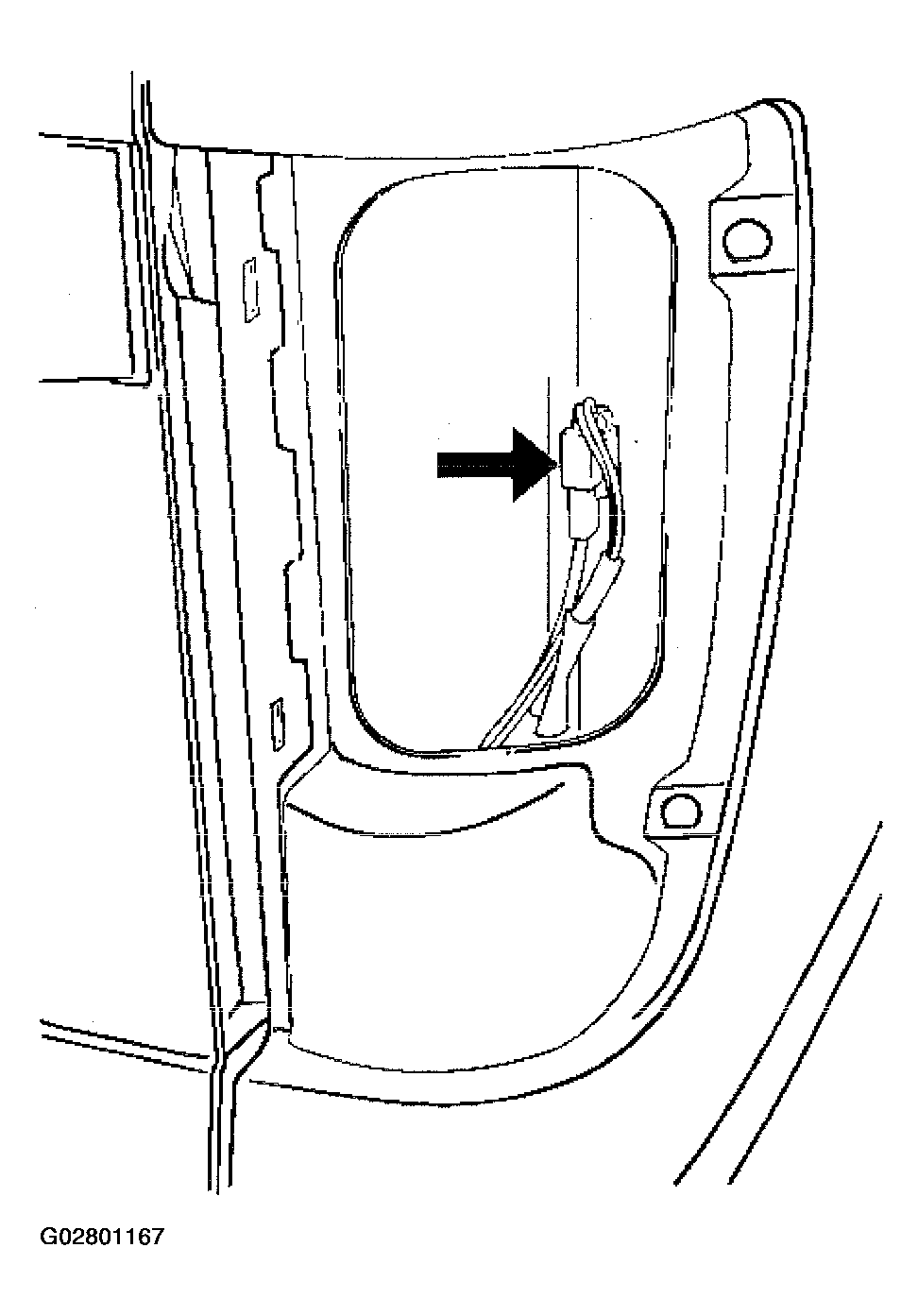

    Fig 1: Disconnecting Tailgate Harness
    G02801167Courtesy of ISUZU MOTOR CO.
  5. Remove tailgate fixing bolts.

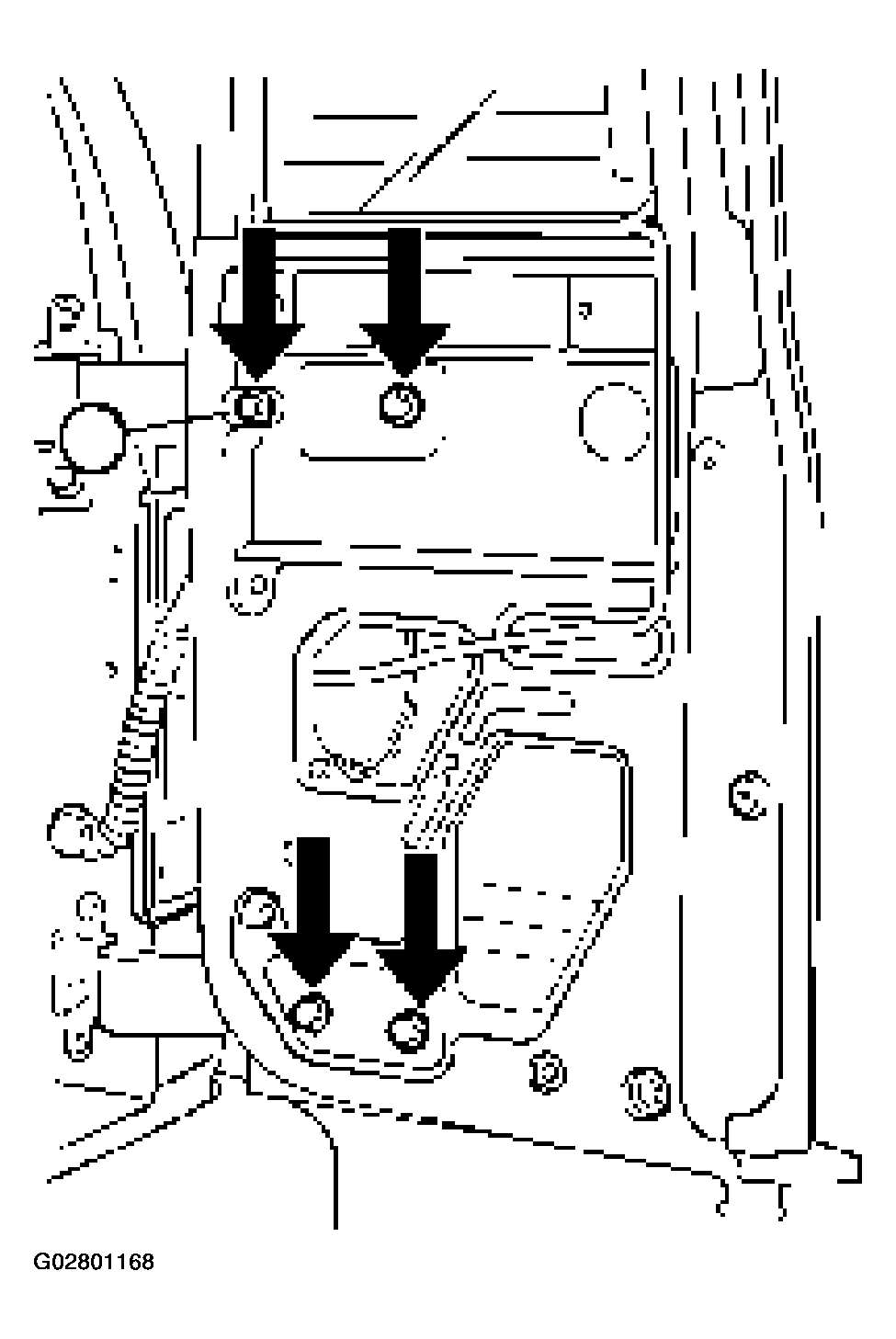

    Fig 2: Removing Tailgate Fixing Bolts
    G02801168Courtesy of ISUZU MOTOR CO.
  6. Remove tailgate assembly (RH).
  7. Remove tailgate hinge.
    • Apply a setting mark (1) on the body side hinge and remove the hinge fixing bolts.

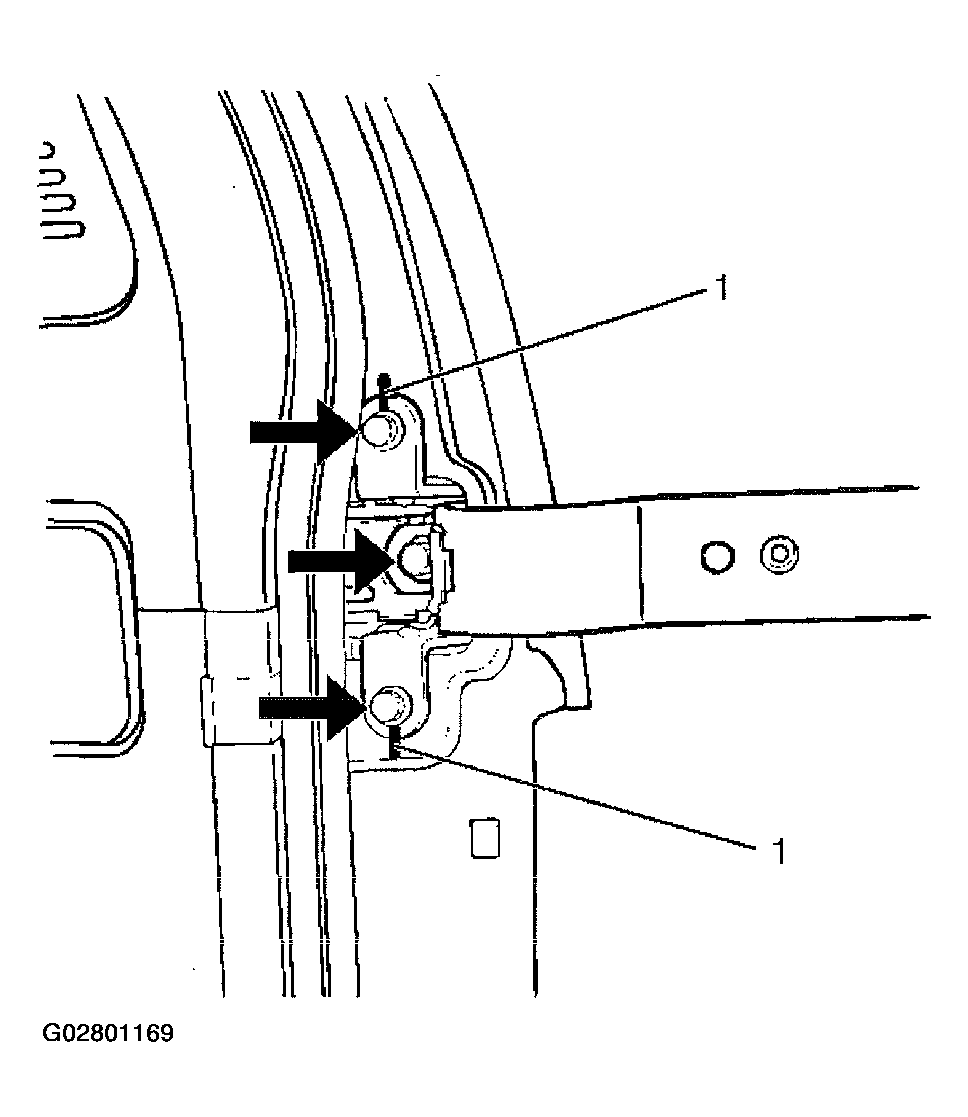

    Fig 3: Applying Setting Marks On Body Side Hinge
    G02801169Courtesy of ISUZU MOTOR CO.
