Tailgate Center Weatherstrip: Installation

  1. Tailgate center weatherstrip (1).
    • Start assembling at the A portion.

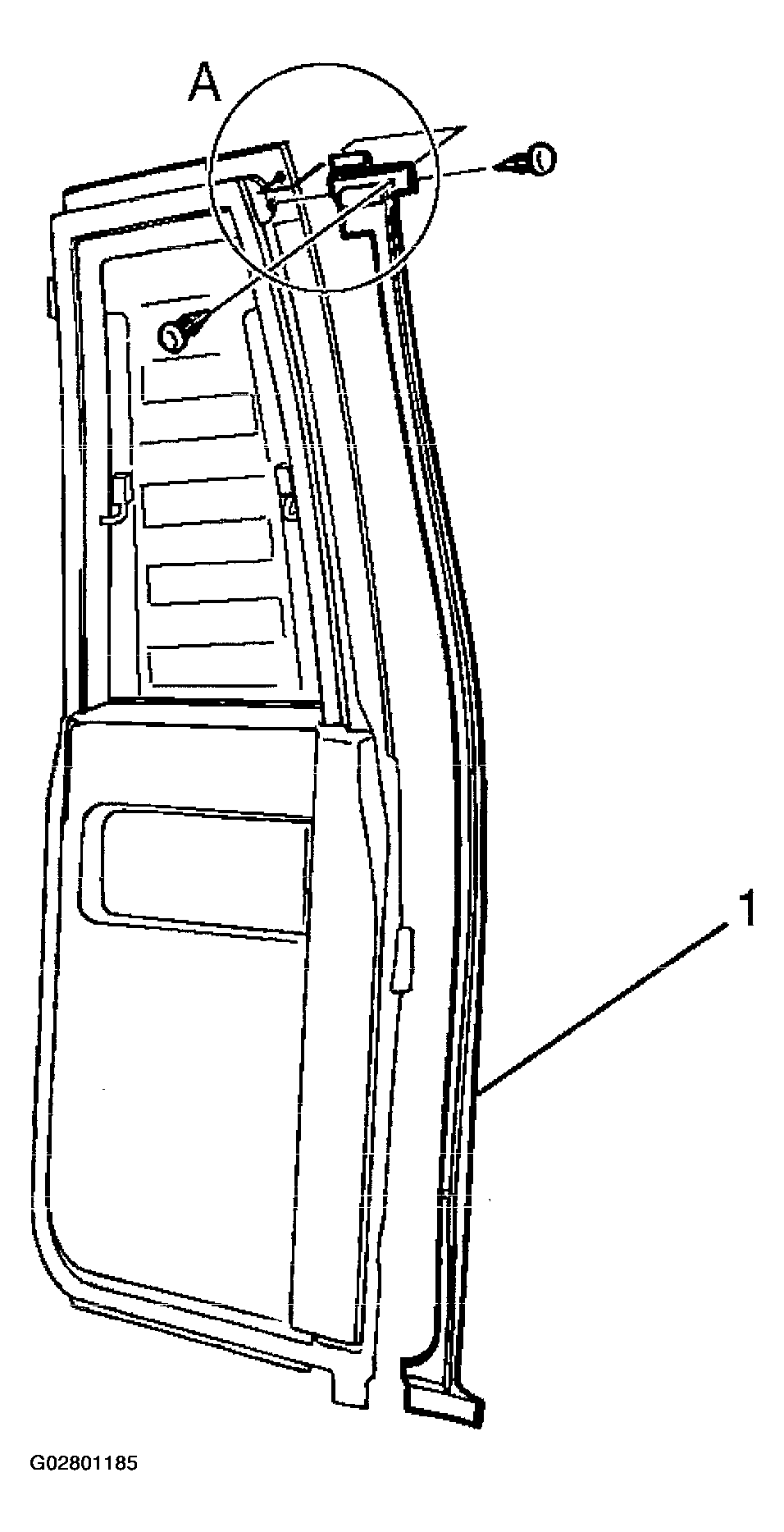

      Fig 1: Locating Tailgate Center Weatherstrip
      G02801185Courtesy of ISUZU MOTOR CO.
    • Clean the tailgate center weatherstrip (4) adhesive tape (2) and the butyl seal (3) fitting position of the tailgate panel.
    • Affix new adhesive tape and the butyl seal to the weatherstrip (lower side) in order to install the tailgate center weatherstrip to the tailgate panel with no gap between them.

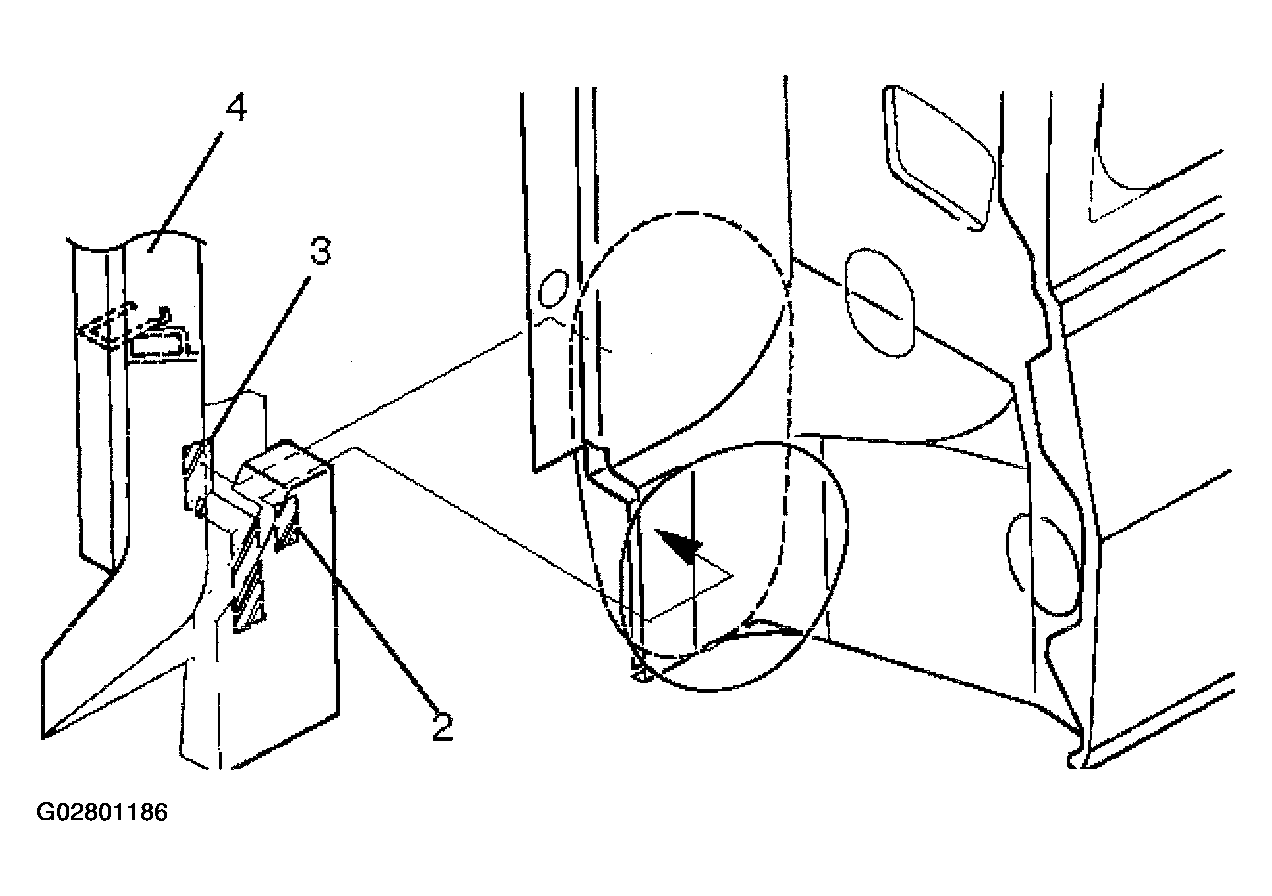

      Fig 2: Installing Tailgate Center Weatherstrip
      G02801186Courtesy of ISUZU MOTOR CO.
