Tailgate Frame Cover (RH): Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. Hit the lower A edge portion (2) of the tailgate frame cover (1).
2. Clearance between the frame cover and the tailgate panel (B portion) is 1 mm (0.04 in).

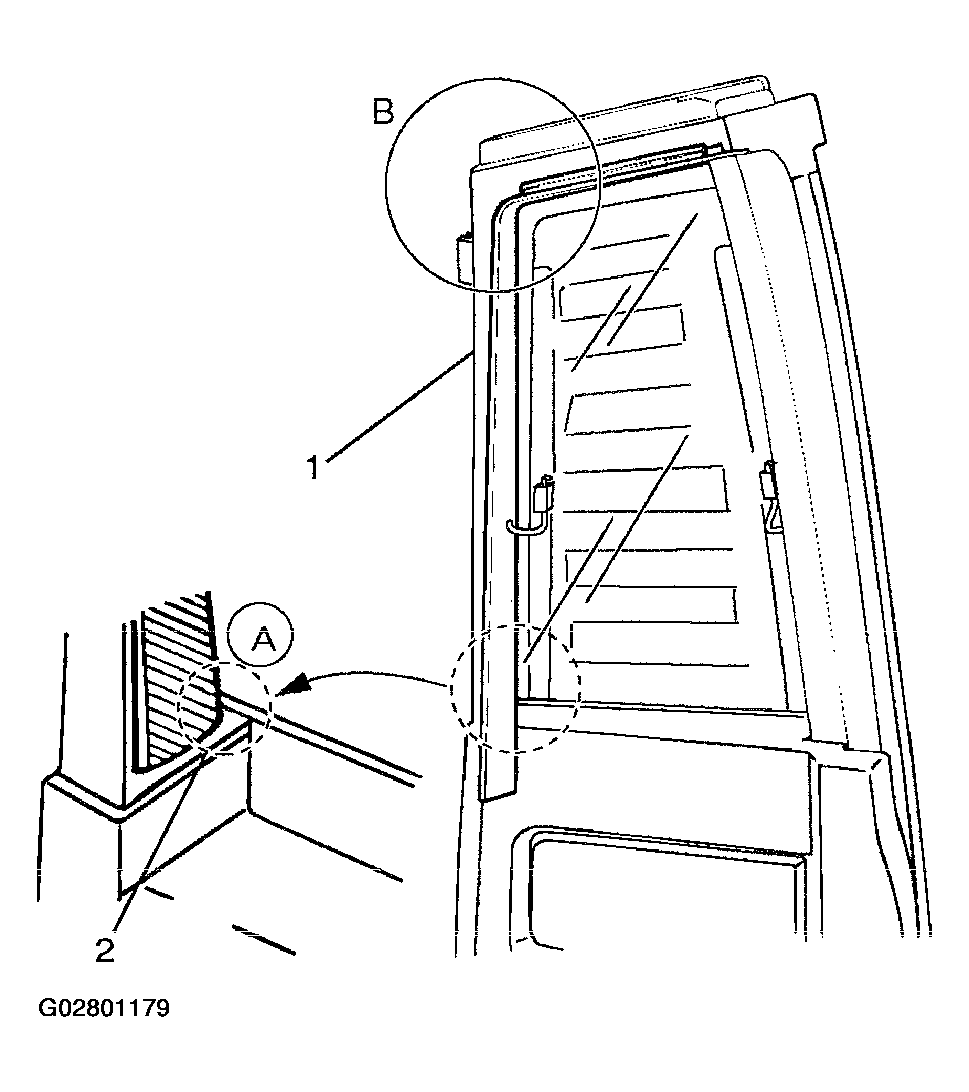

   Fig 1: Installing Tailgate Frame Cover (RH)

   Courtesy of ISUZU MOTOR CO.
