Parts List
4L30-E PARTS LISTCase and Associated Parts
1 of 2
2 of 2
Pump Assembly

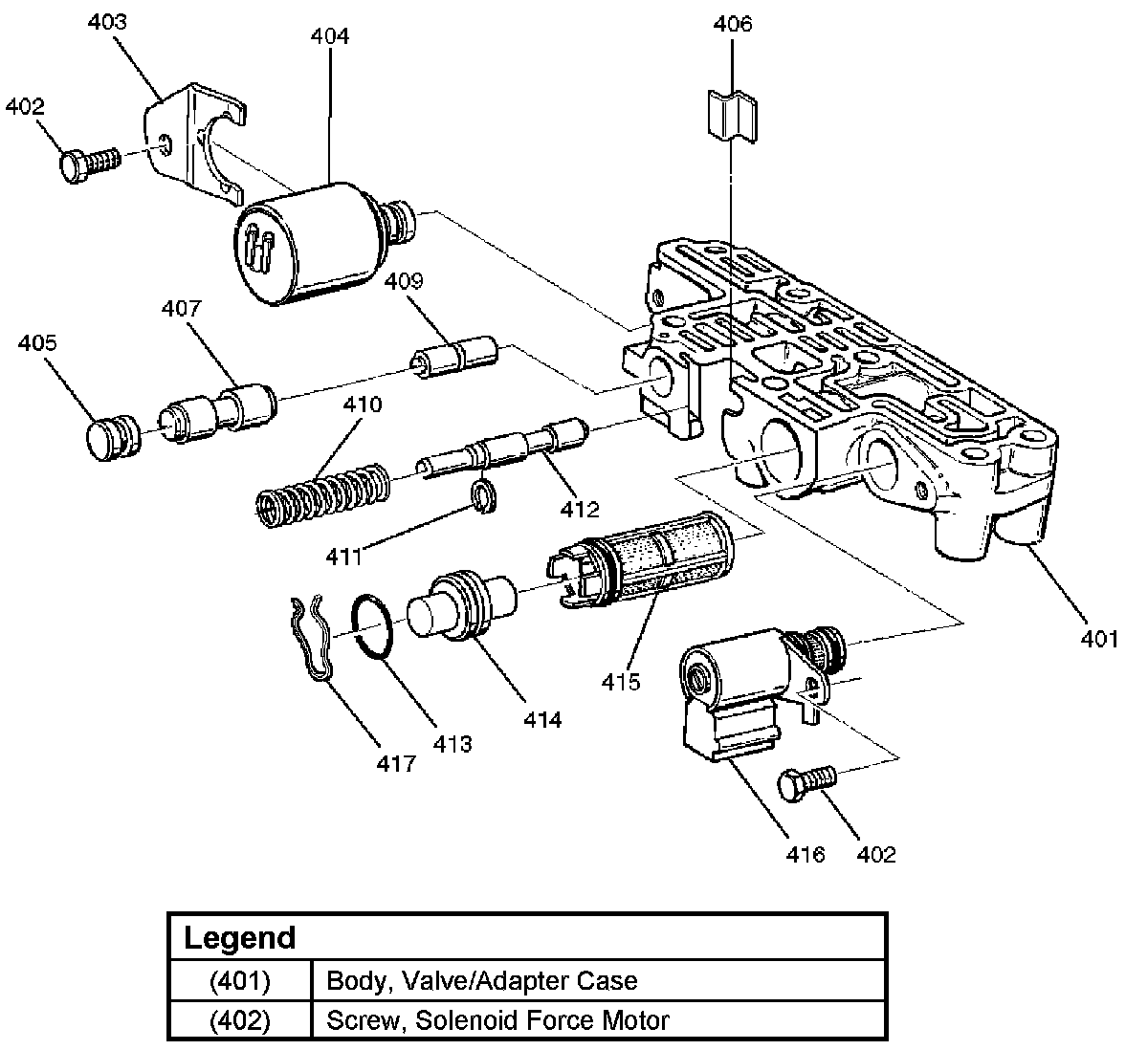

Valve Body Assemblies
1 of 3
2 of 3
3 of 3
Overdrive Internal Components
1 of 2
2 of 2
Internal Components
Center Support Assembly

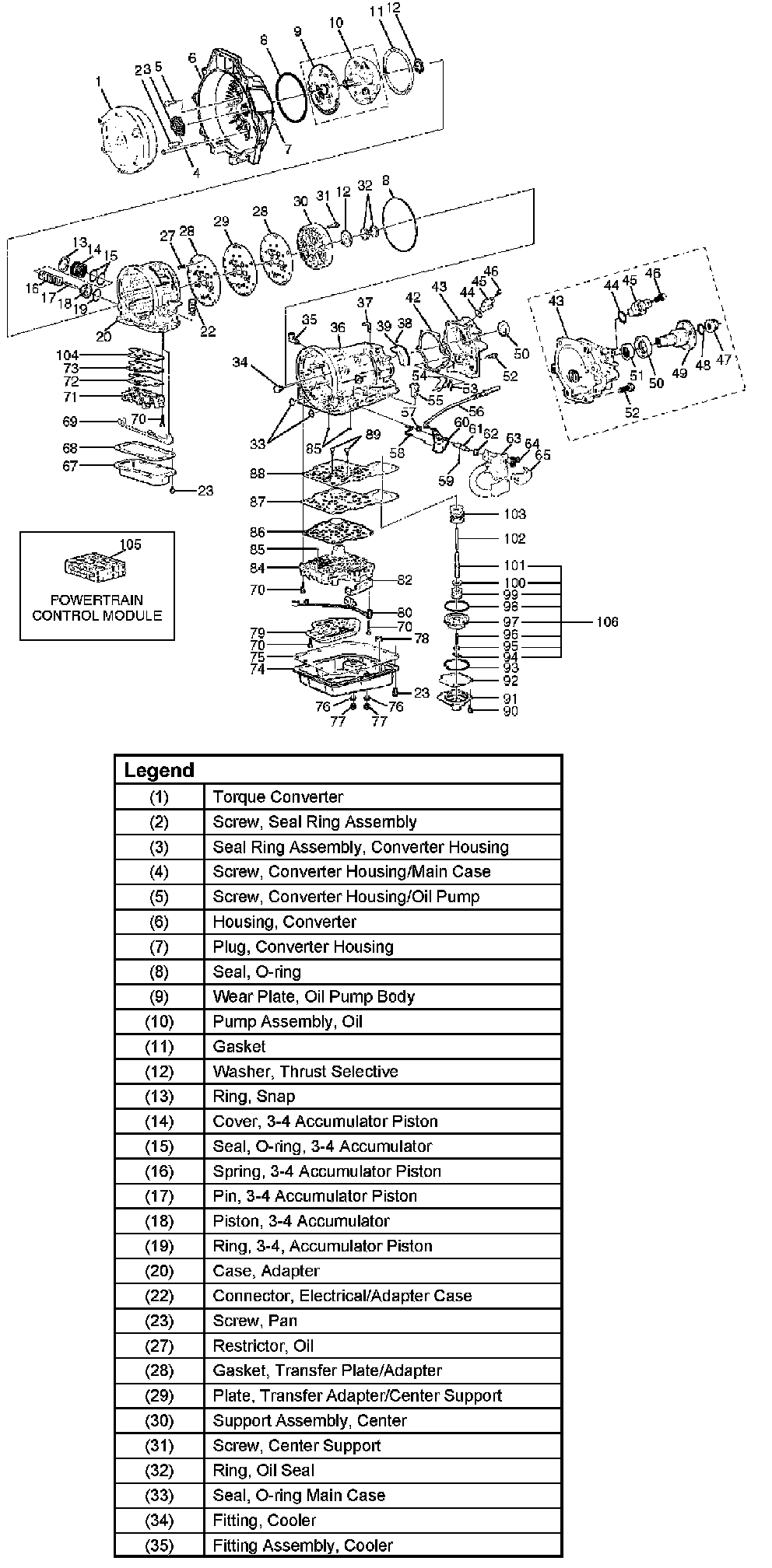

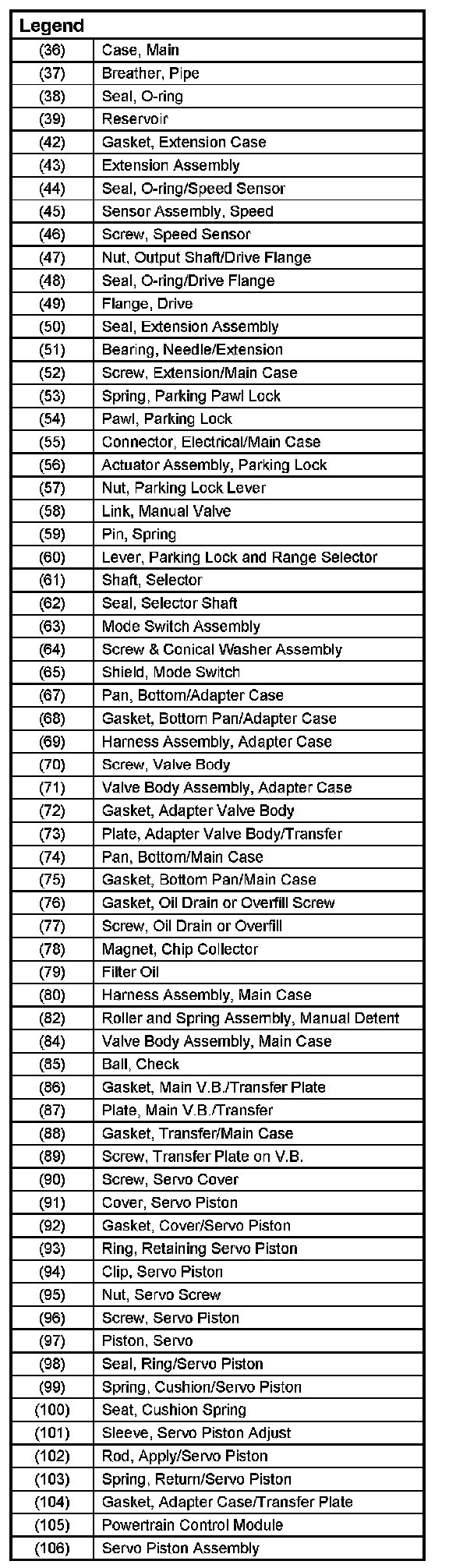

Case and Associated Parts
1 of 2
2 of 2

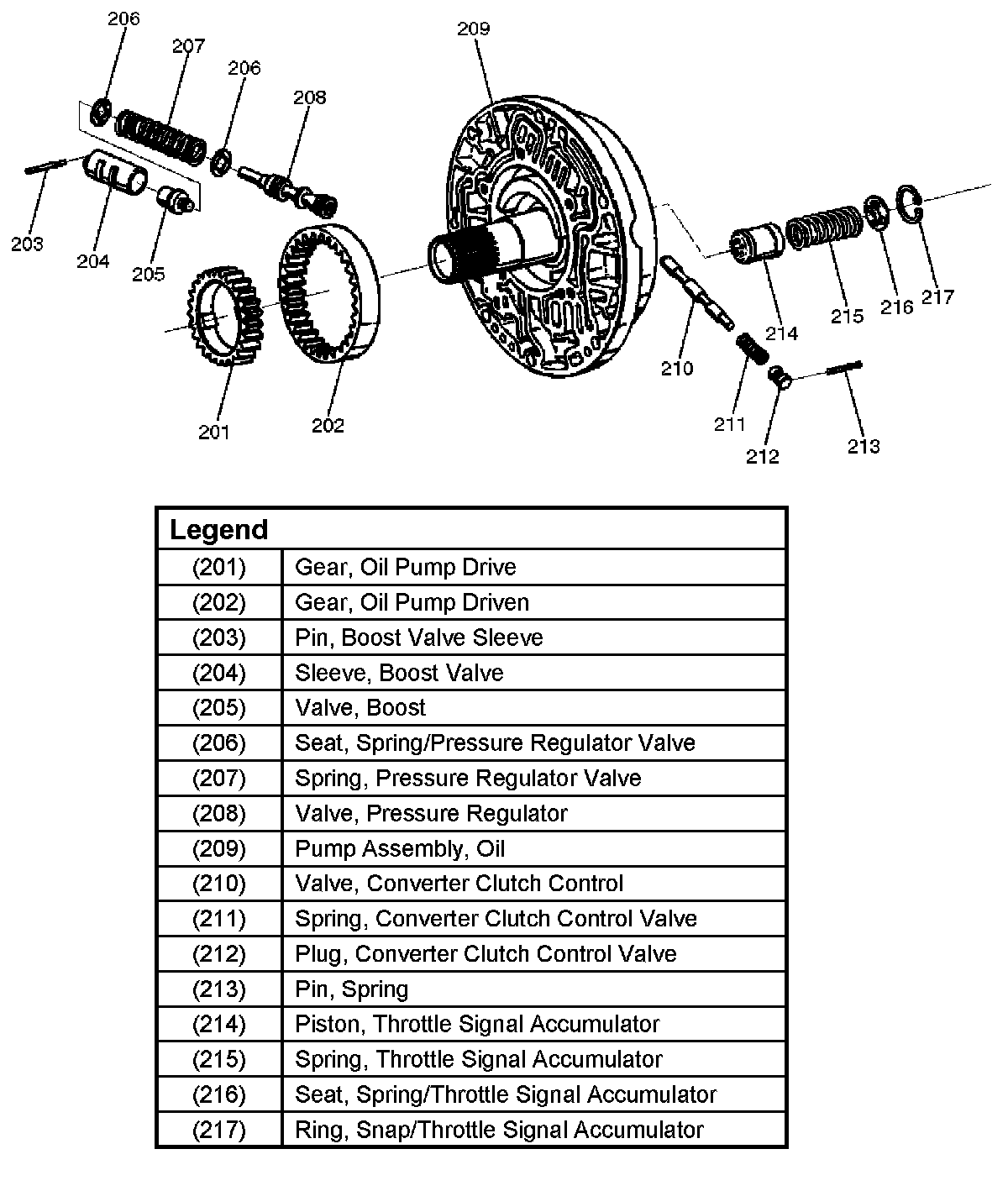

Pump Assembly

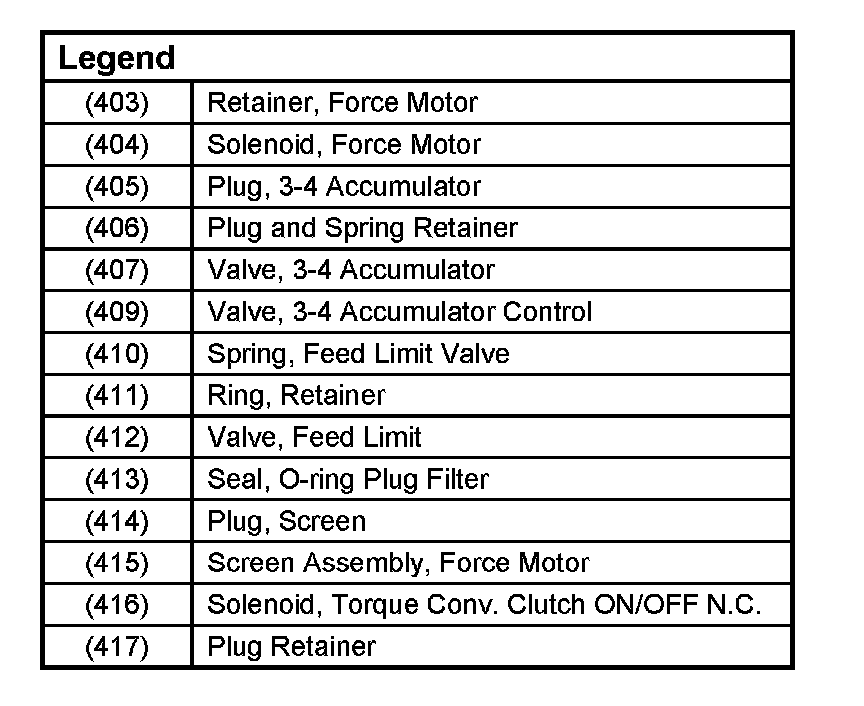

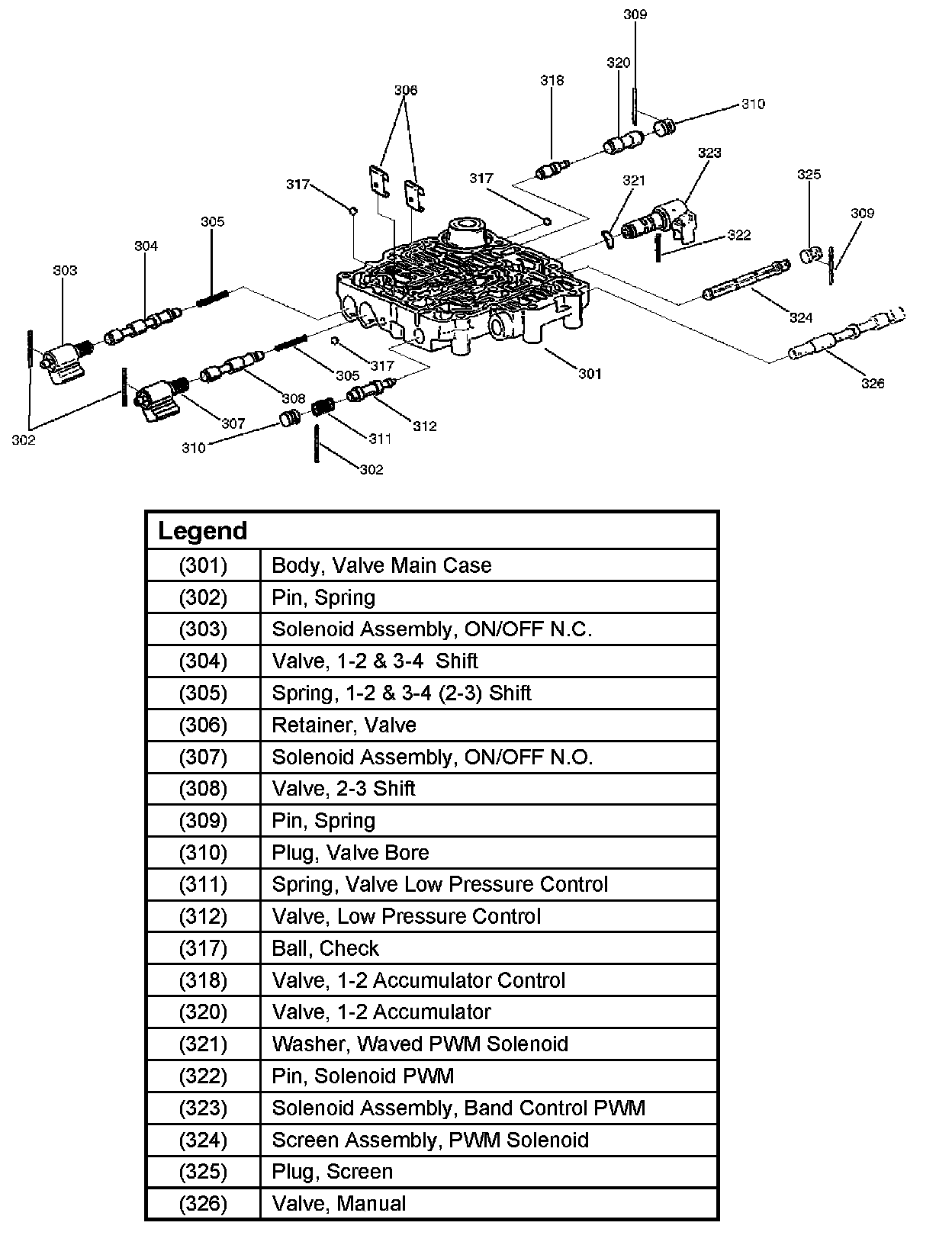

Valve Body Assemblies
1 of 3
2 of 3
3 of 3

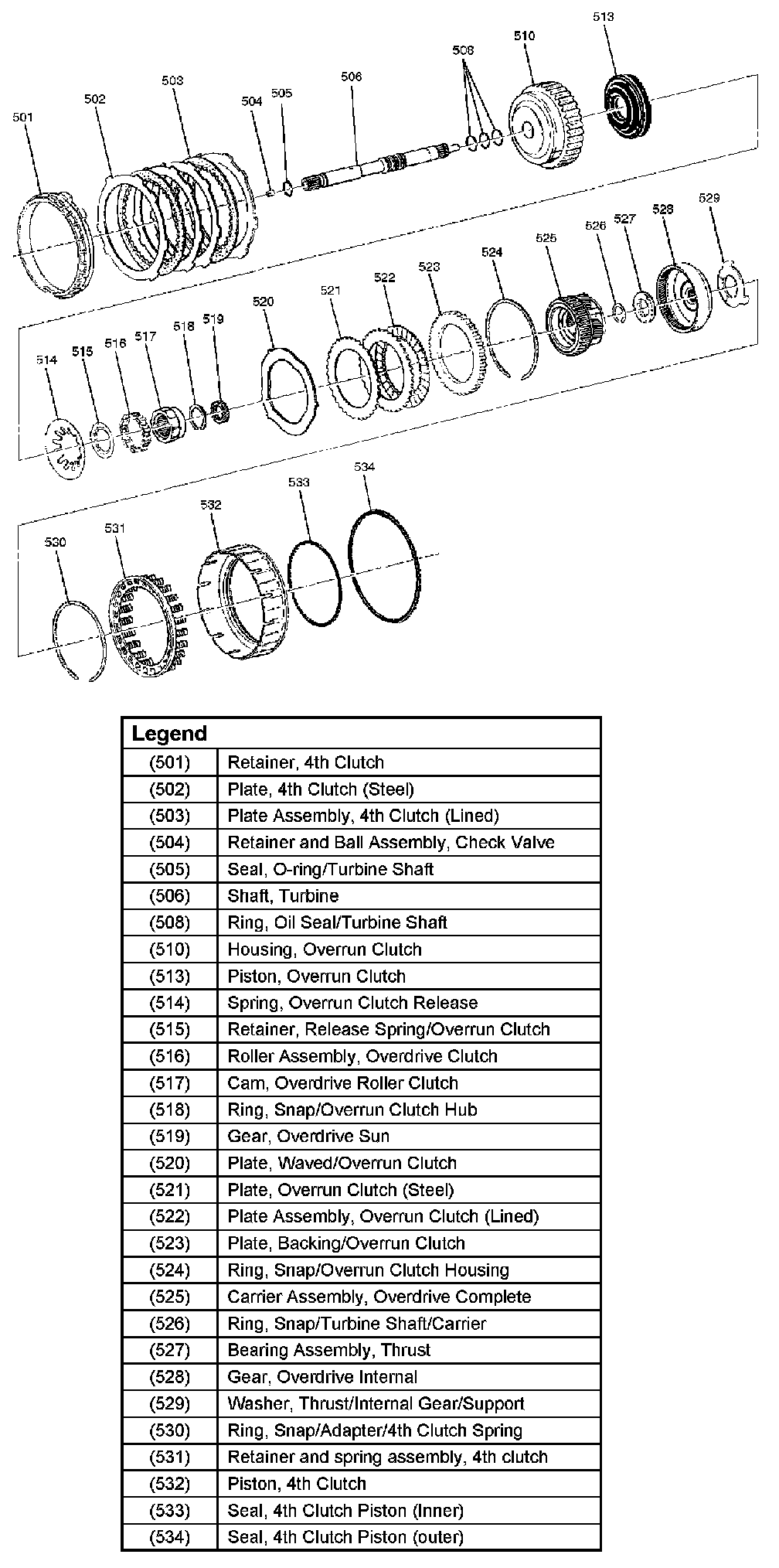

Overdrive Internal Components
1 of 2
2 of 2

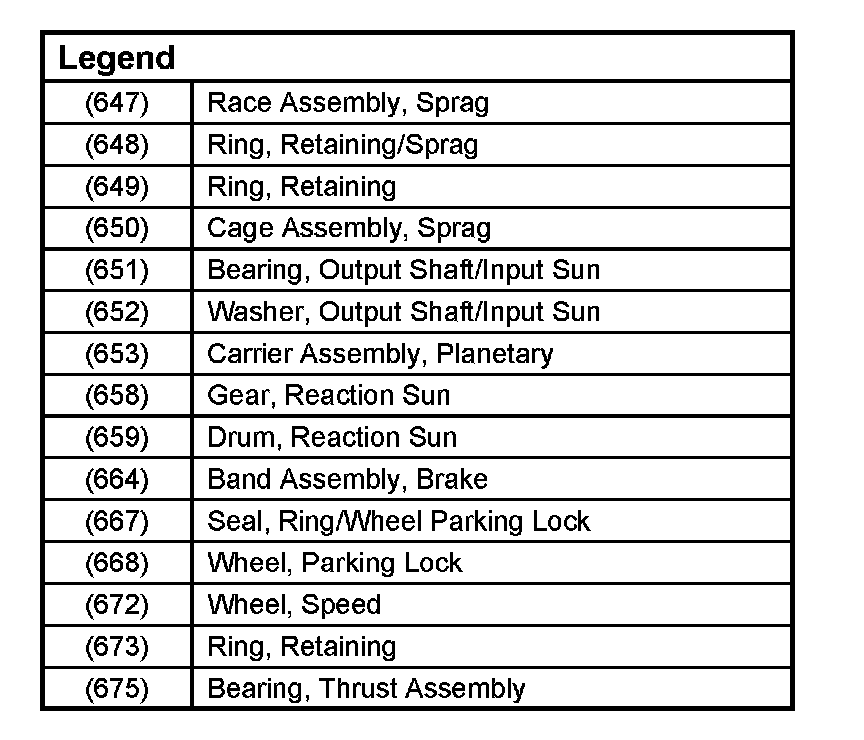

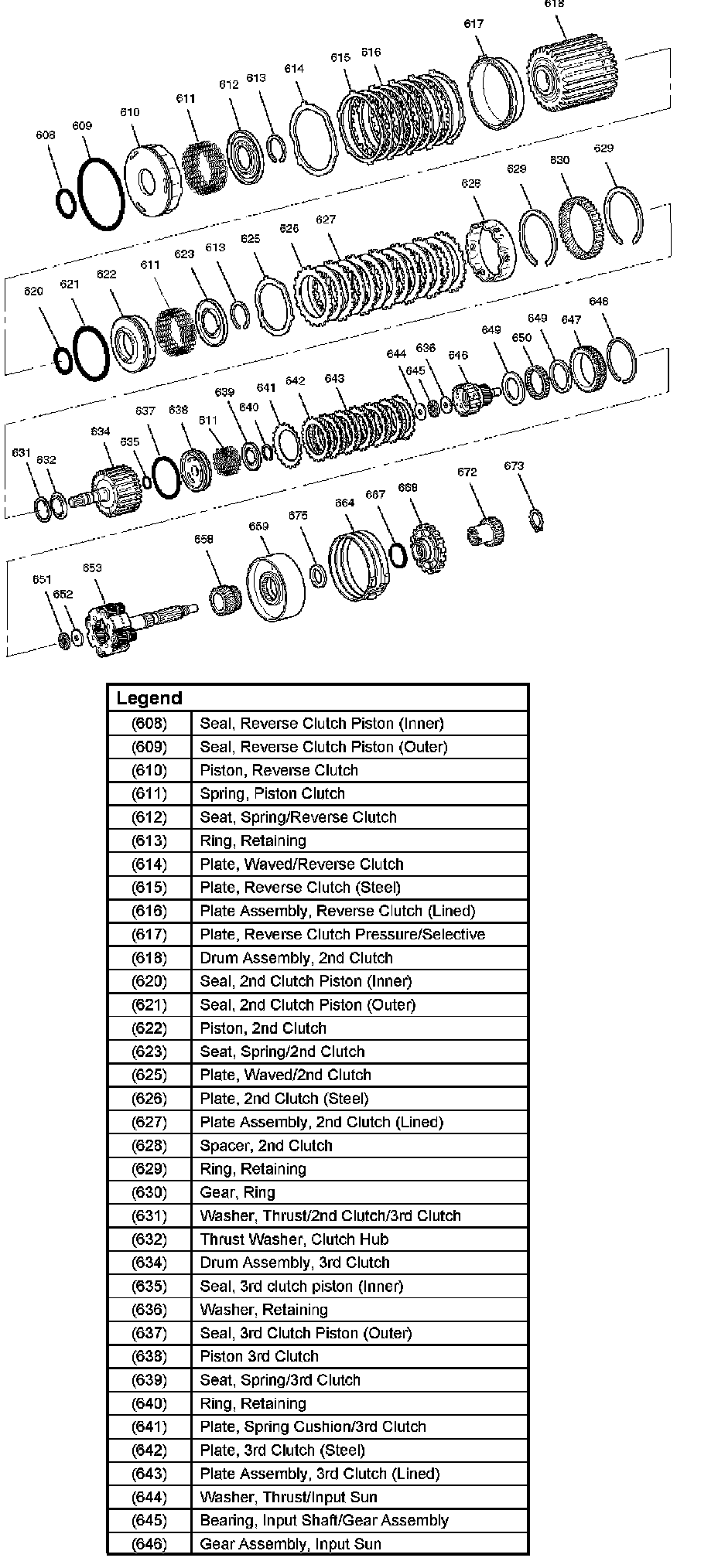

Internal Components
Center Support Assembly
