Service Specifications

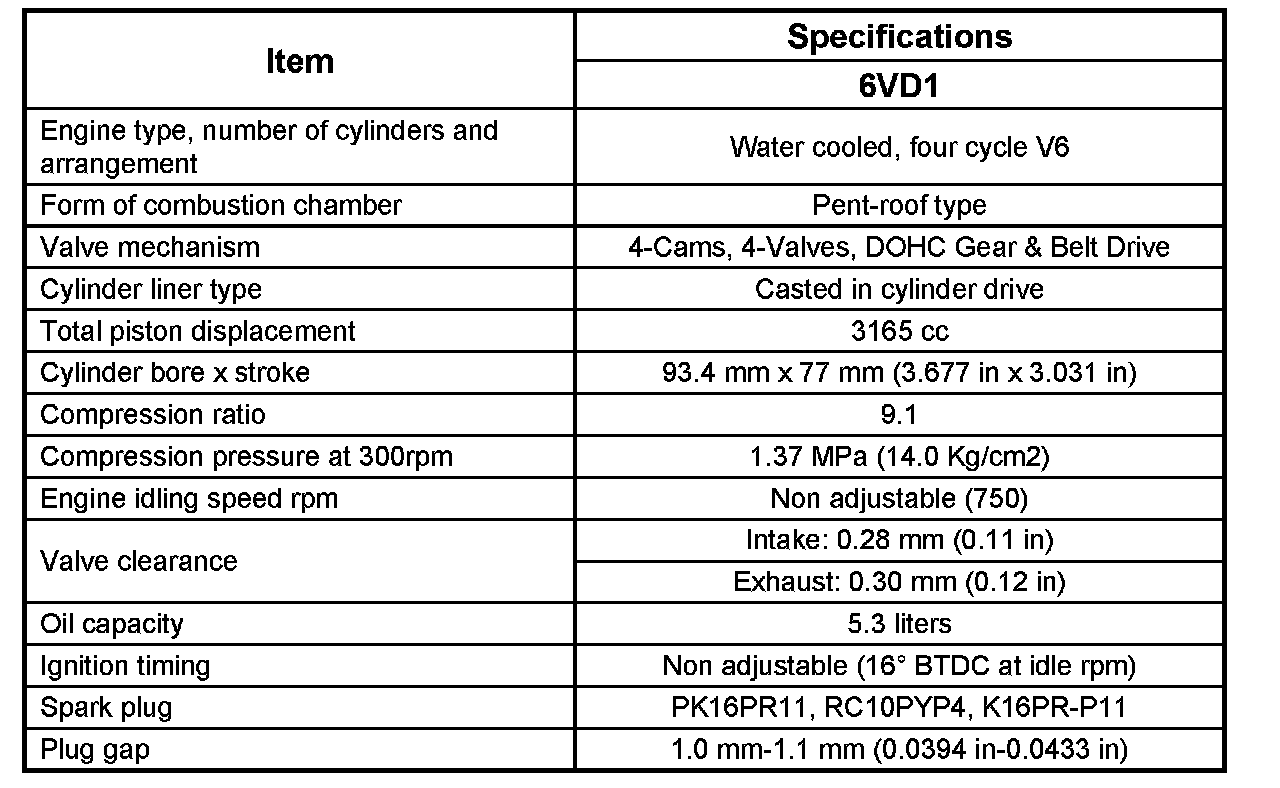

General Specifications

Cylinder Head

Surface Variation

Head surface and manifold surface
Standard 0.05 mm (0.002 inch) or less
Warpage limit 0.2 mm (0.0079 inch)
Maximum Repairable limit 0.2 mm (0.0079 inch)
Head height
Standard height 133.2 mm (5.2441 inch)
Warpage limit 0.2 mm (0.0079 inch)
Maximum Repairable limit 133.0 mm (5.2362 inch)
