Home >> Isuzu >> 2001 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> System Diagram >> Transfer Rear Case Assembly

April 5, 2026: LEMON Manuals is launched! Read the announcement.

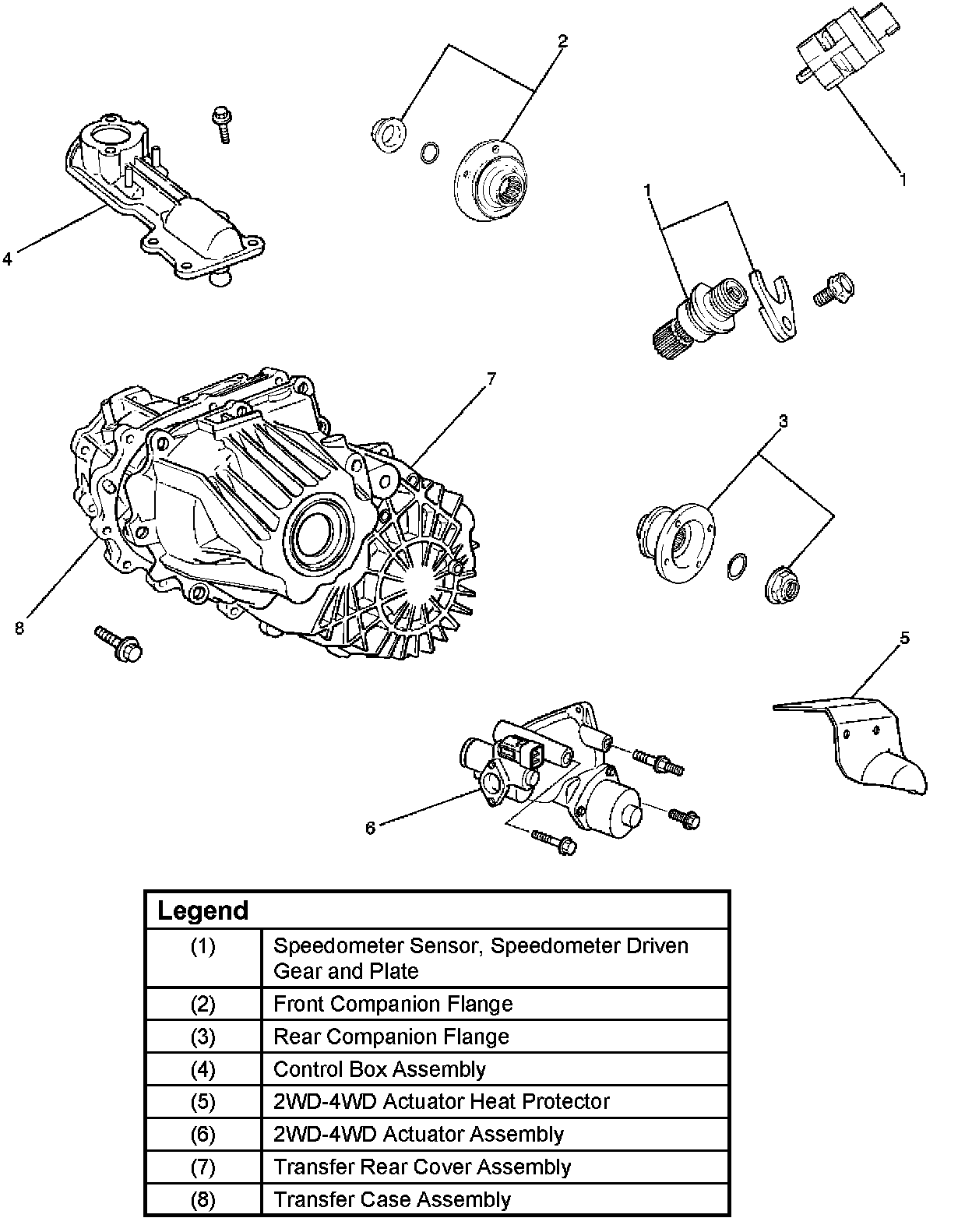

Transfer Rear Case Assembly
