Connector Locations

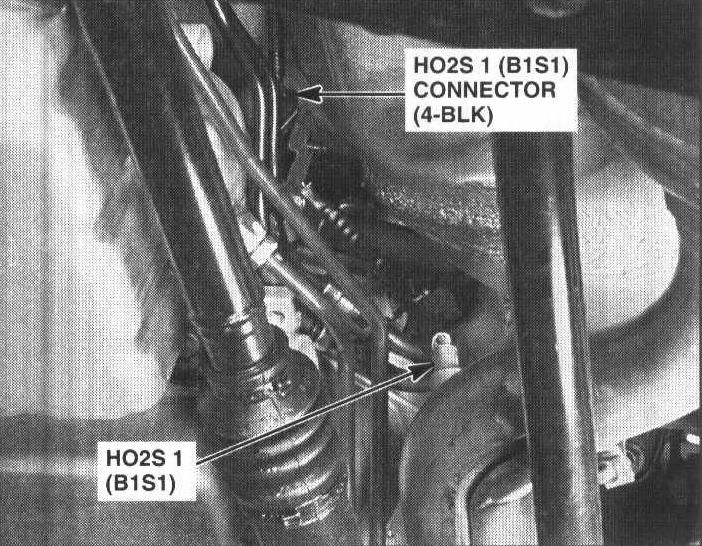

93. Left Front Exhaust Downpipe:

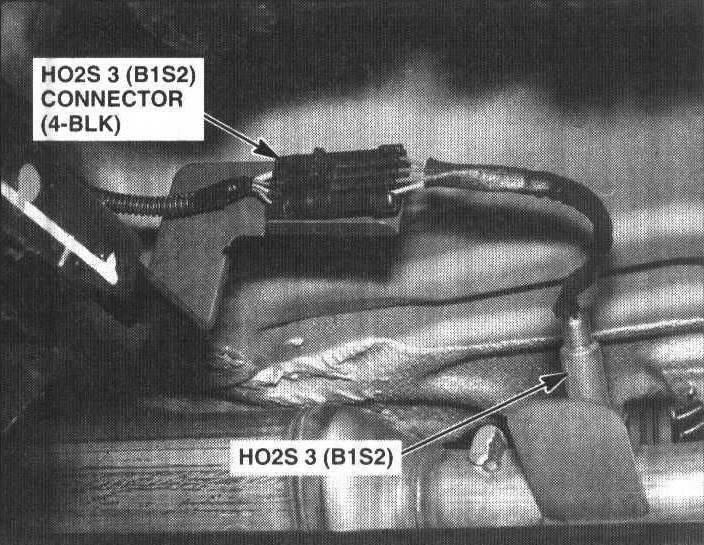

94. Rear of Left Catalytic Converter:

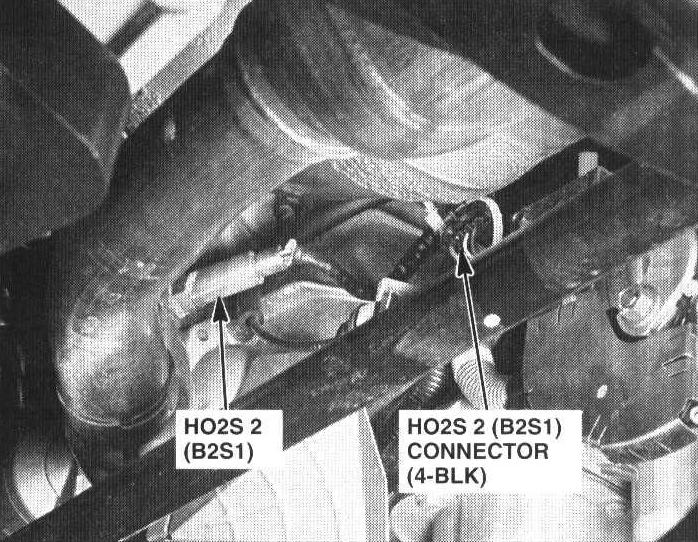

95. Right Front Exhaust Downpipe:

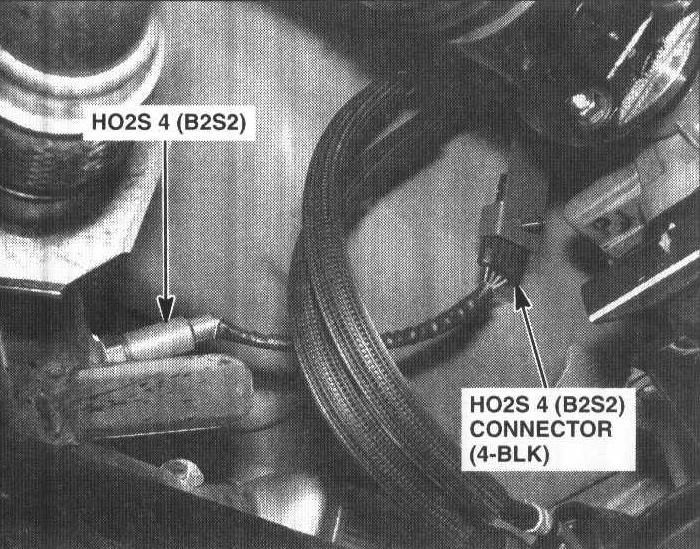

96. Rear of Right Catalytic Converter:
