Body and Frame: Locations

Dash and Console Lights Index:

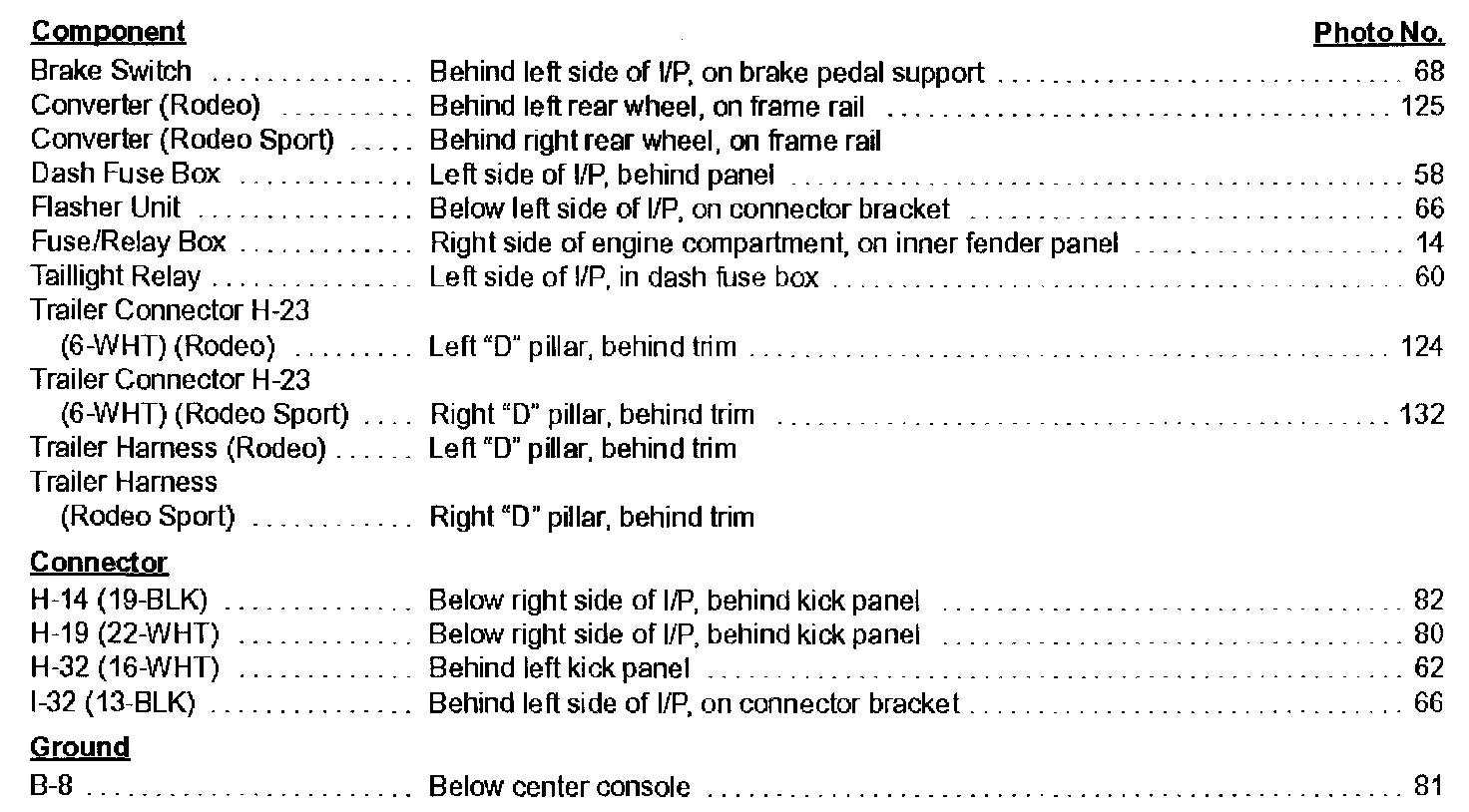

Trailer Adapter Index:

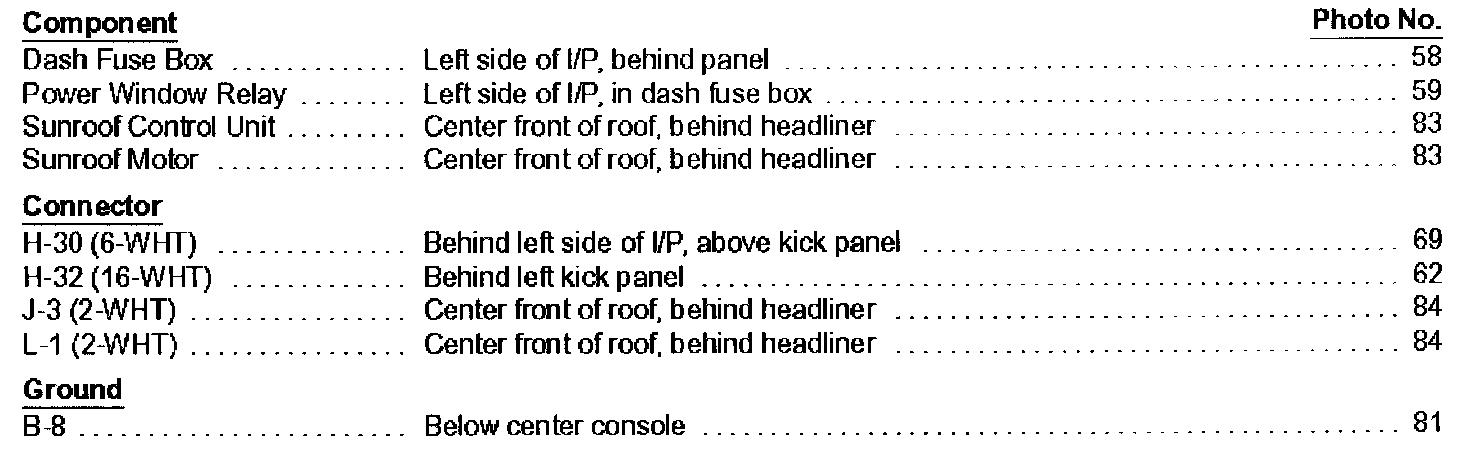

Power Sunroof Index:

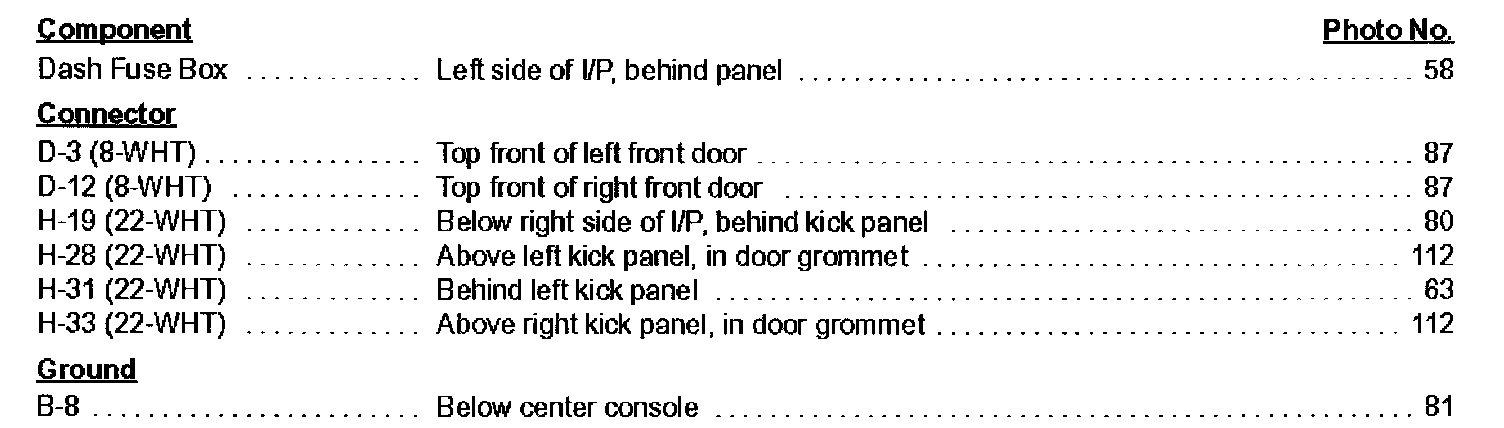

Power Door Locks Index:

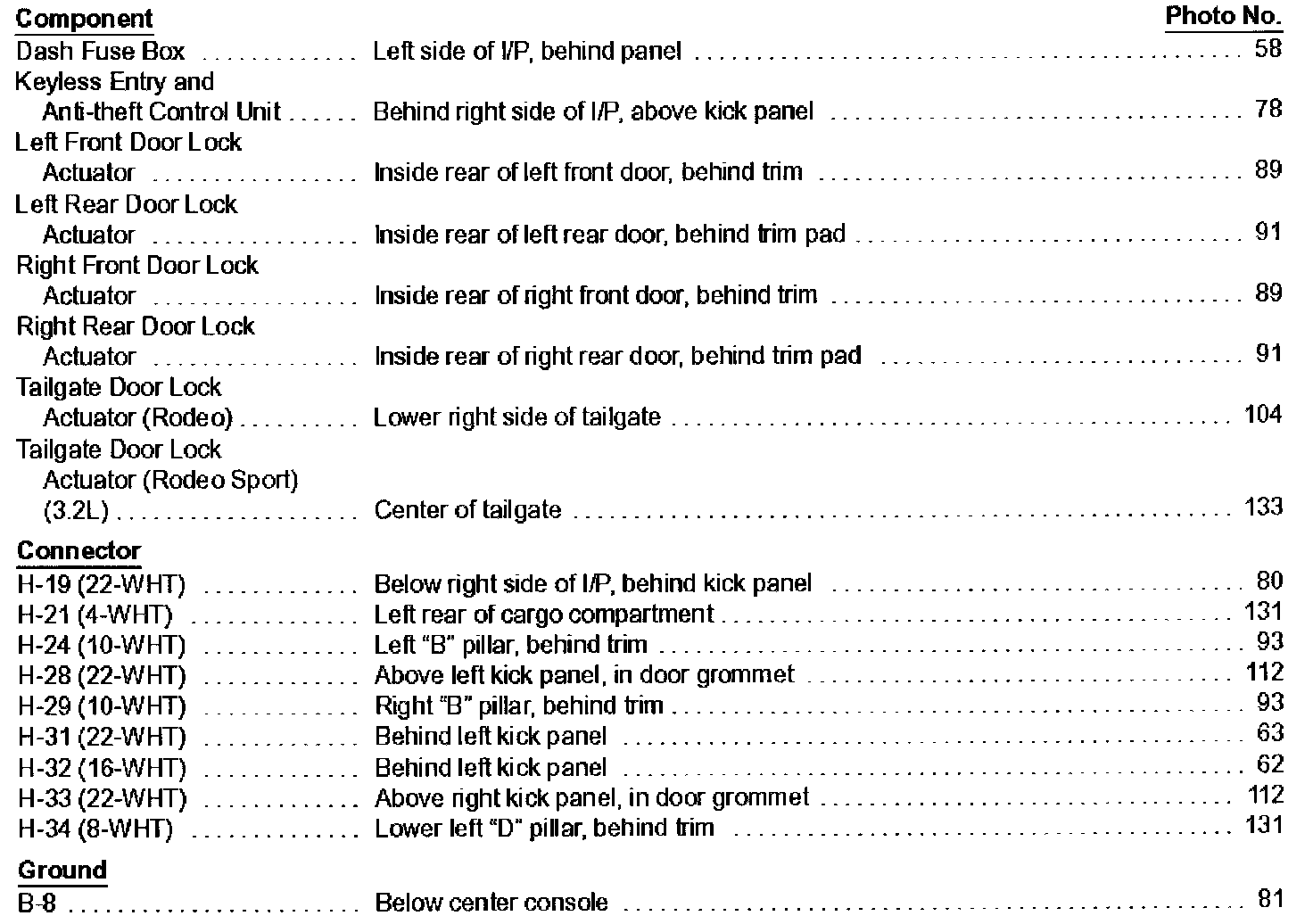

Keyless Entry And Anti-Theft System Index (Part 1):

Keyless Entry And Anti-Theft System Index (Part 2):

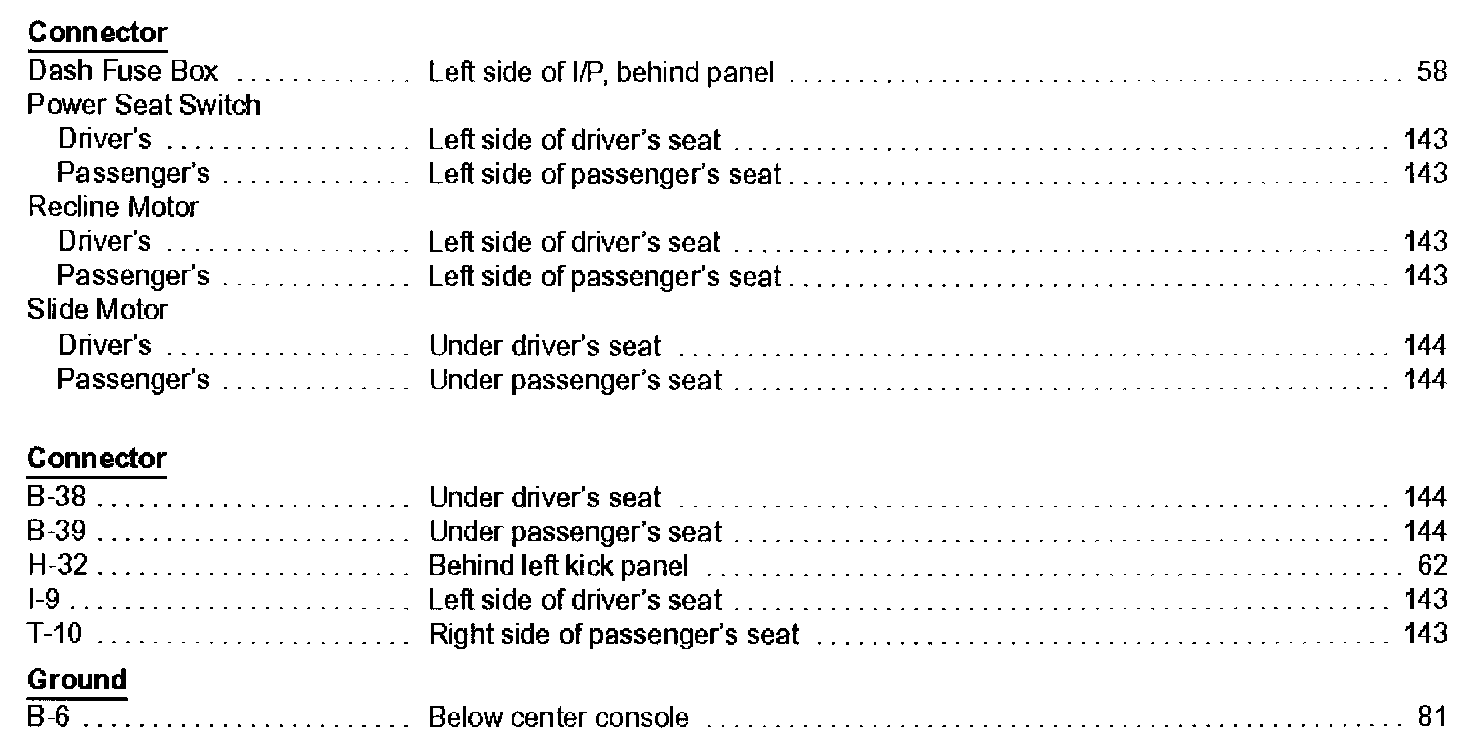

Power Seats Index:

Power Mirrors Index:

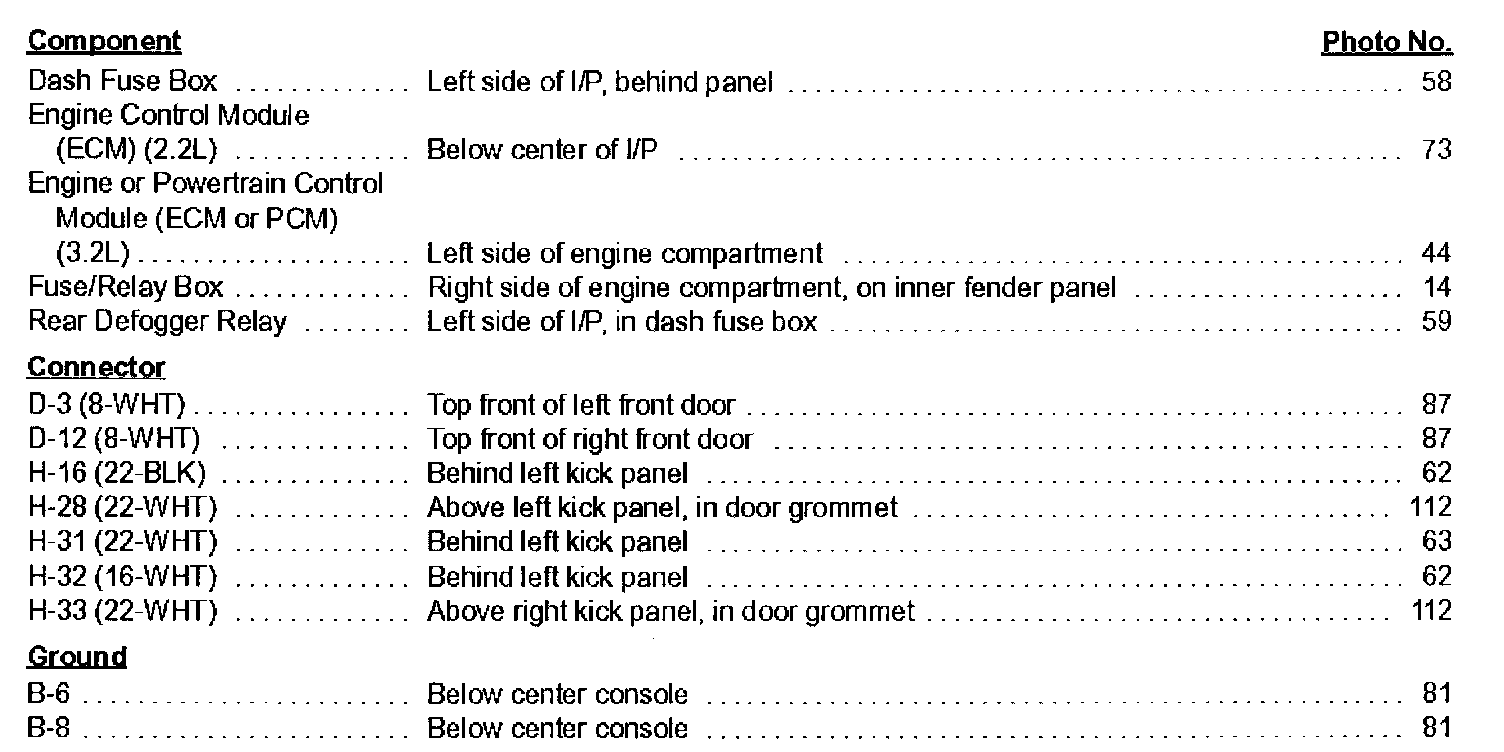

Power Mirror Defoggers Index:

Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
Locations
