Seats: Locations

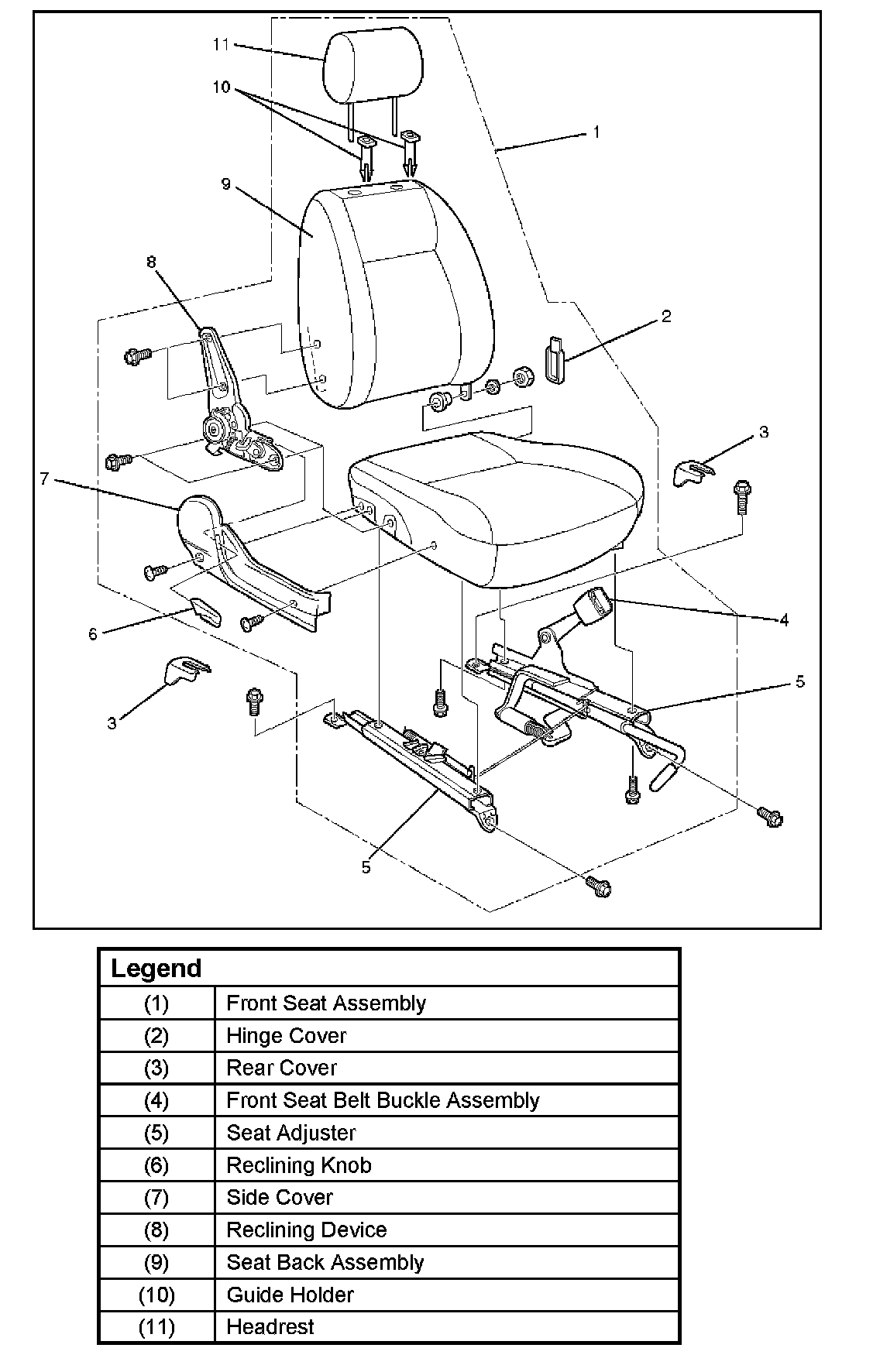

Front Seat Assembly And Associated Parts:

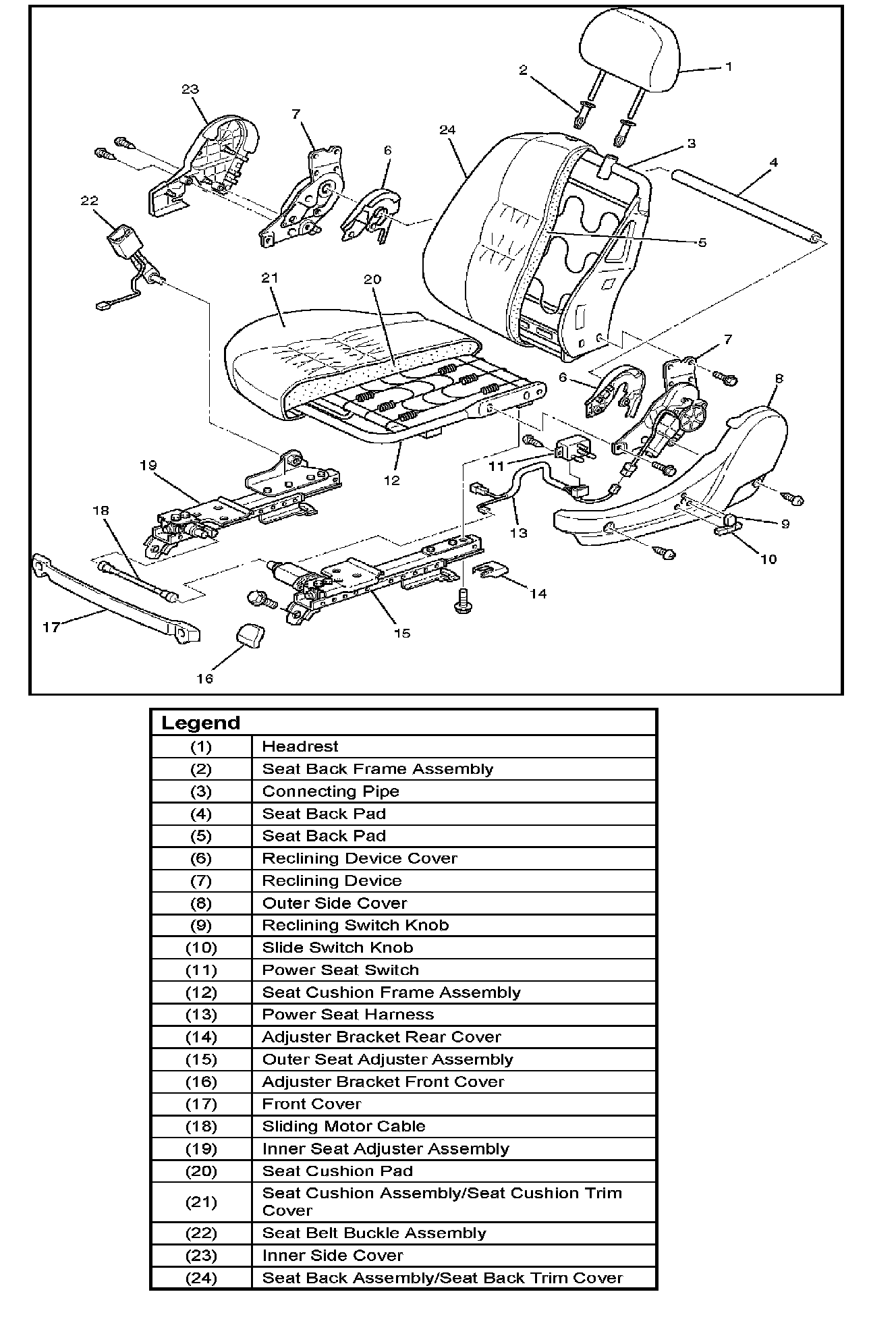

Power Seat Assembly And Associated Parts:

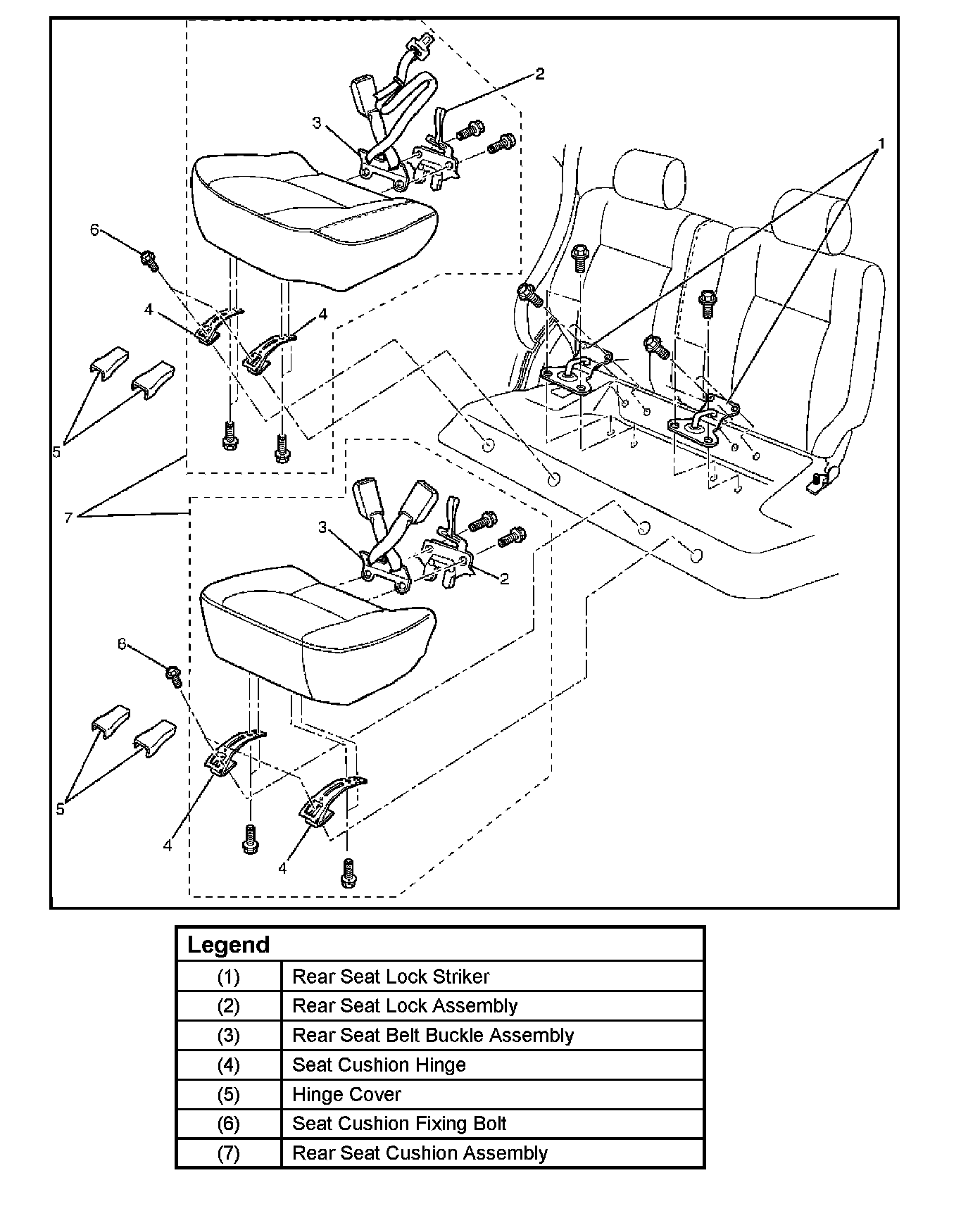

Rear Seat Cushion Assembly And Associated Parts:

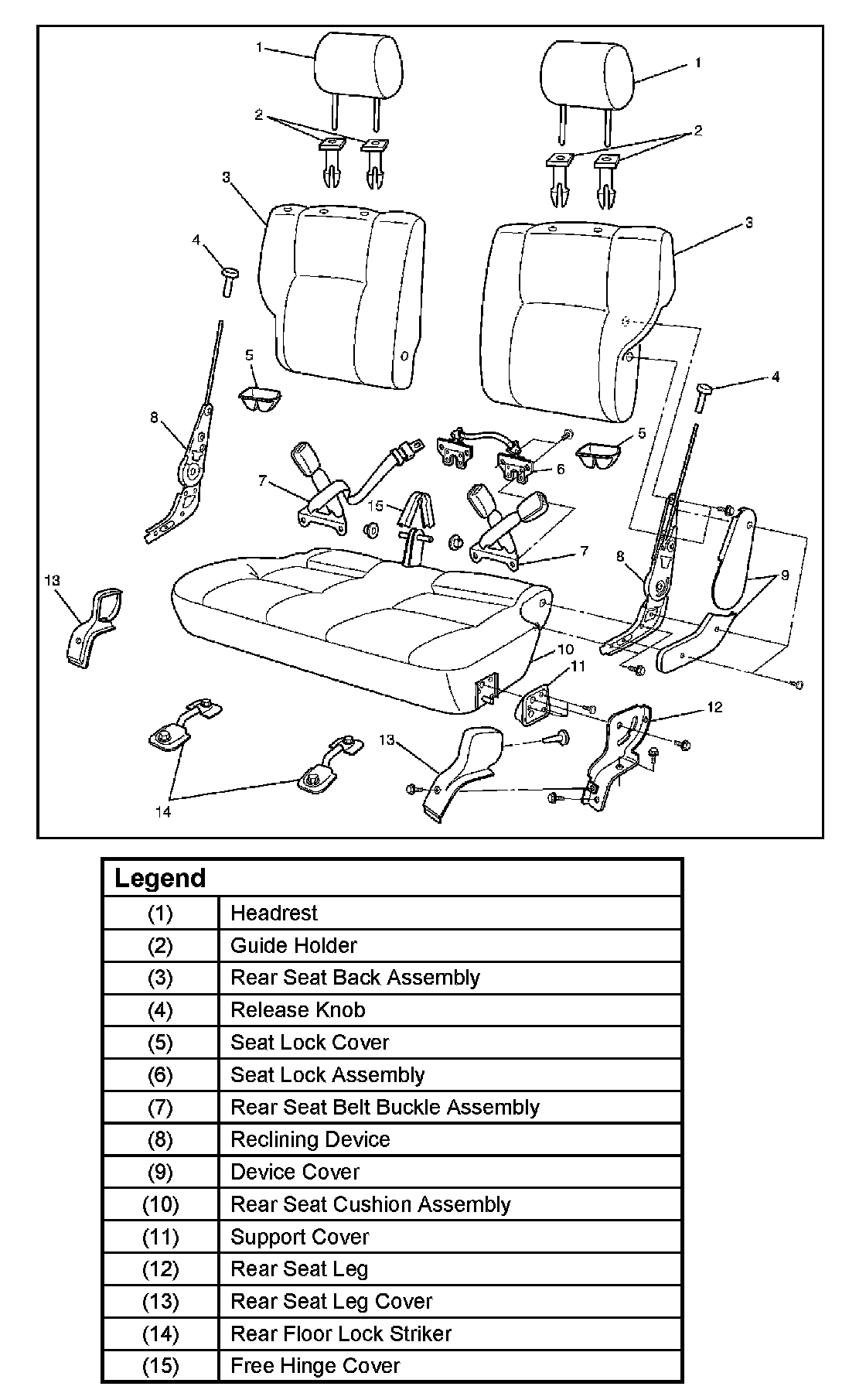

Rear Seat Assembly And Associated Parts:

Power Seats Index:

Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
Locations
