Compressor HVAC: Locations

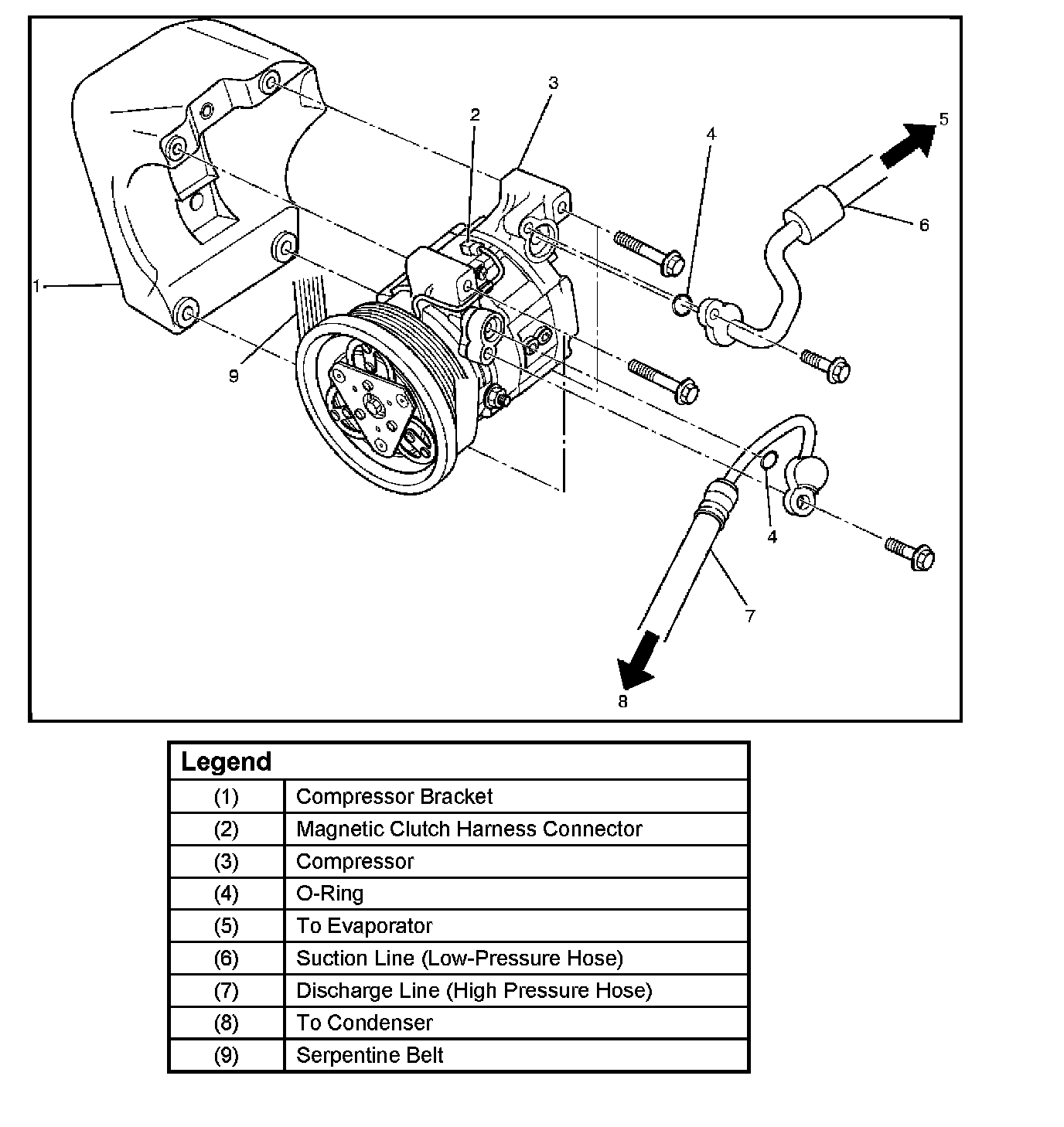

Compressor Assembly And Associated Parts:



8 - Left Front Of 2.2L Engine Compartment (3.2L Similar):
