Engine Control Module: Diagrams

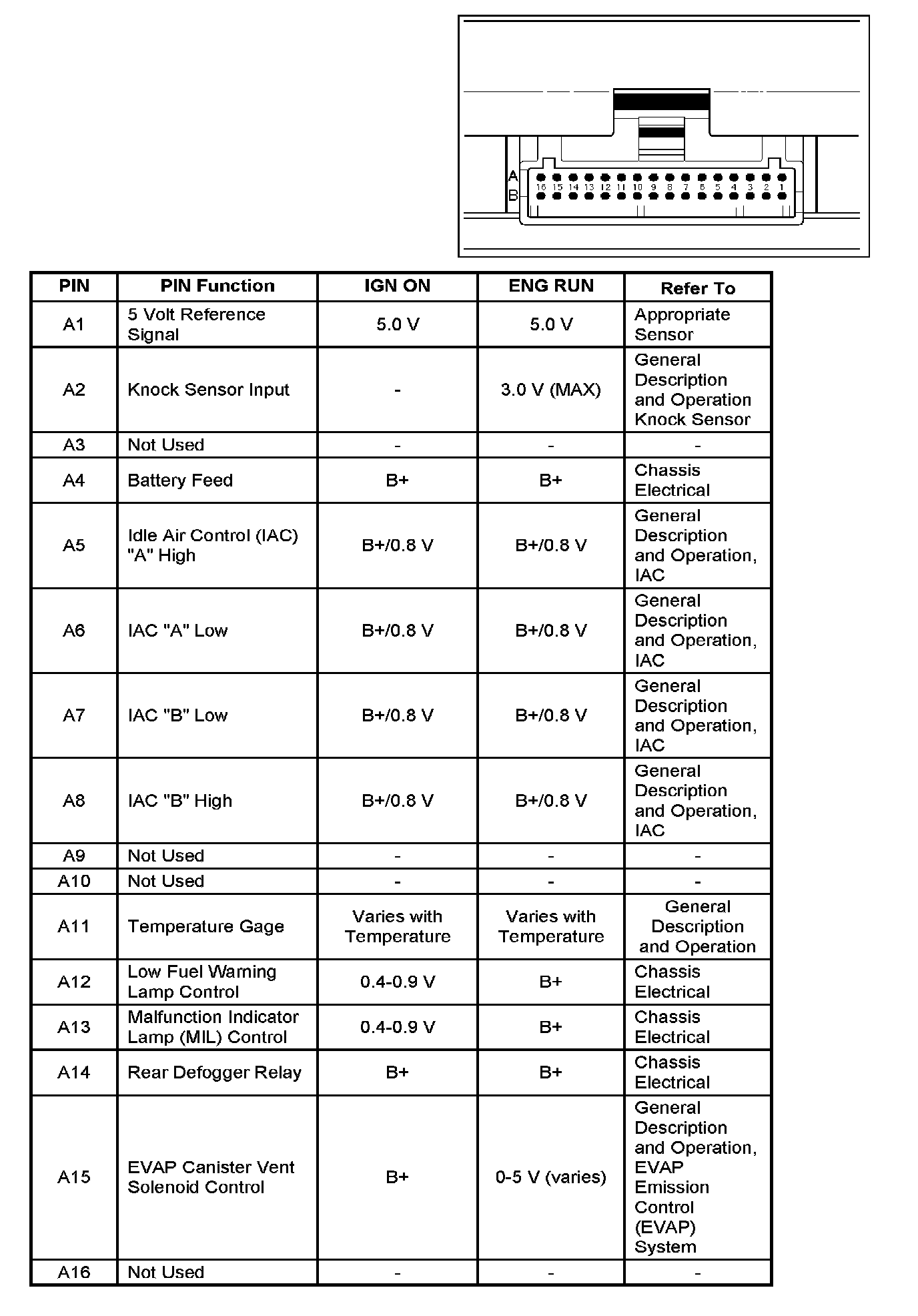

PCM Pinout Table, 32-Pin Red Connector - Row "A":

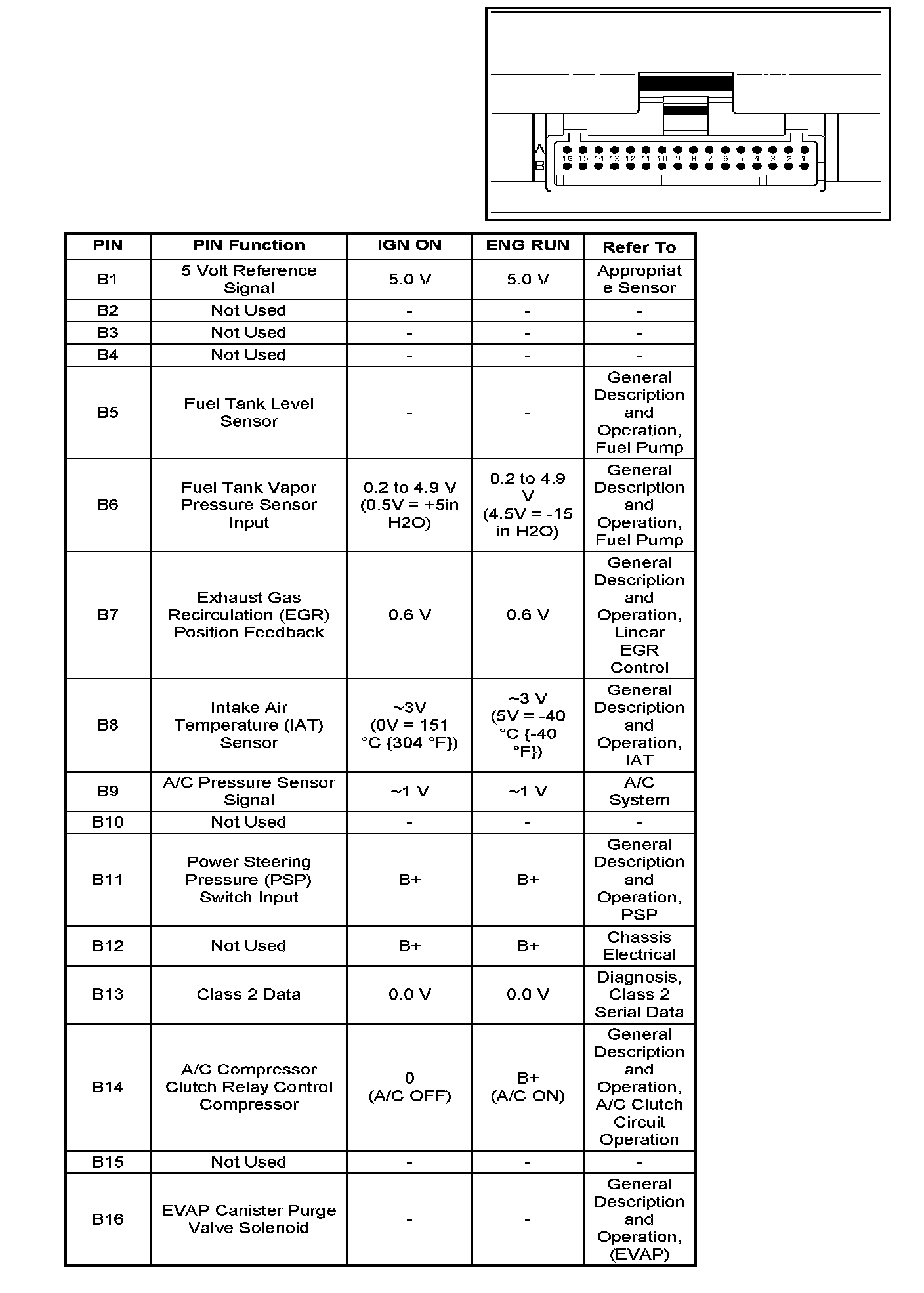

PCM Pinout Table, 32-Pin Red Connector - Row "B":

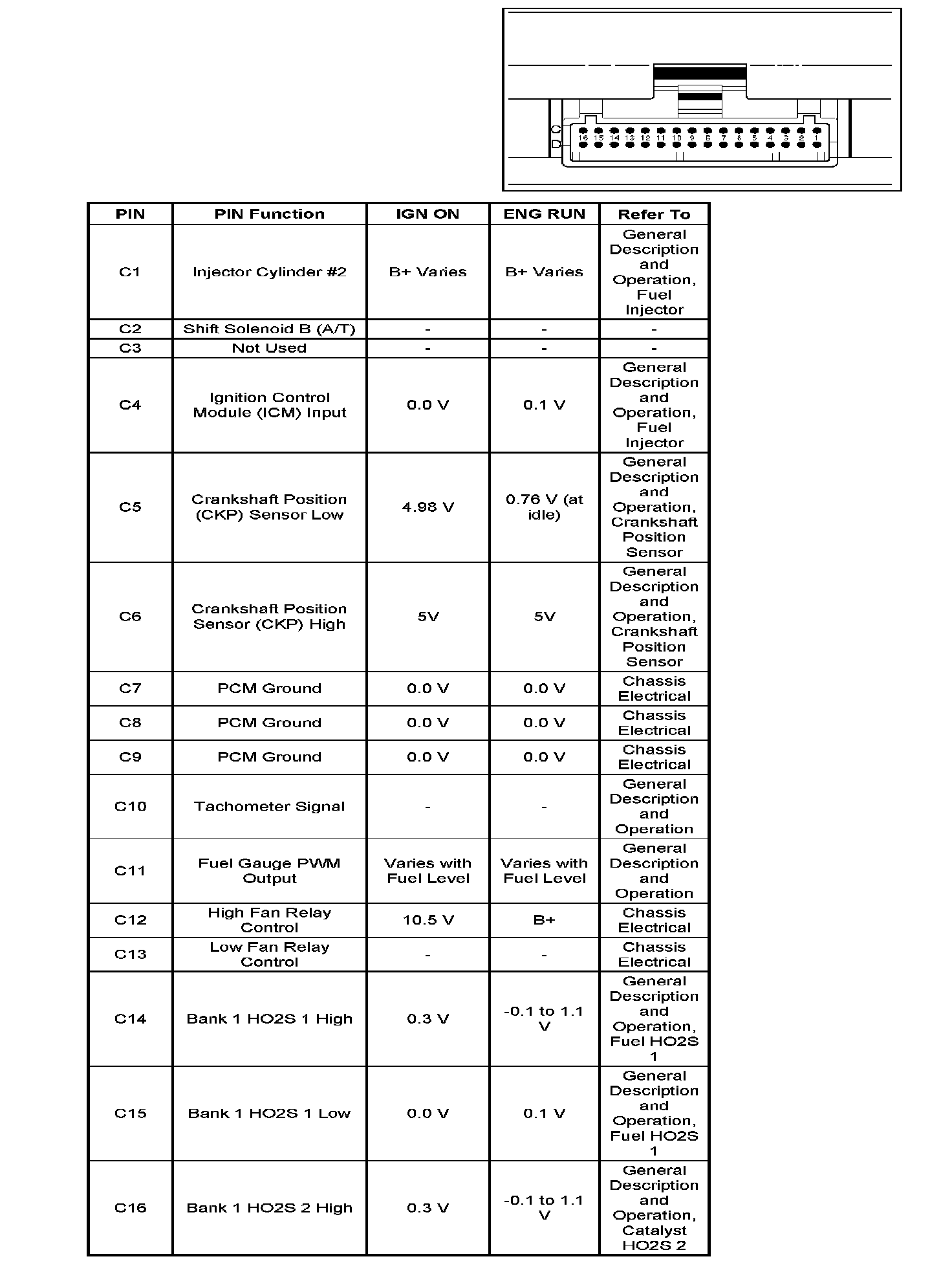

PCM Pinout Table, 32-Pin Red Connector - Row "C":

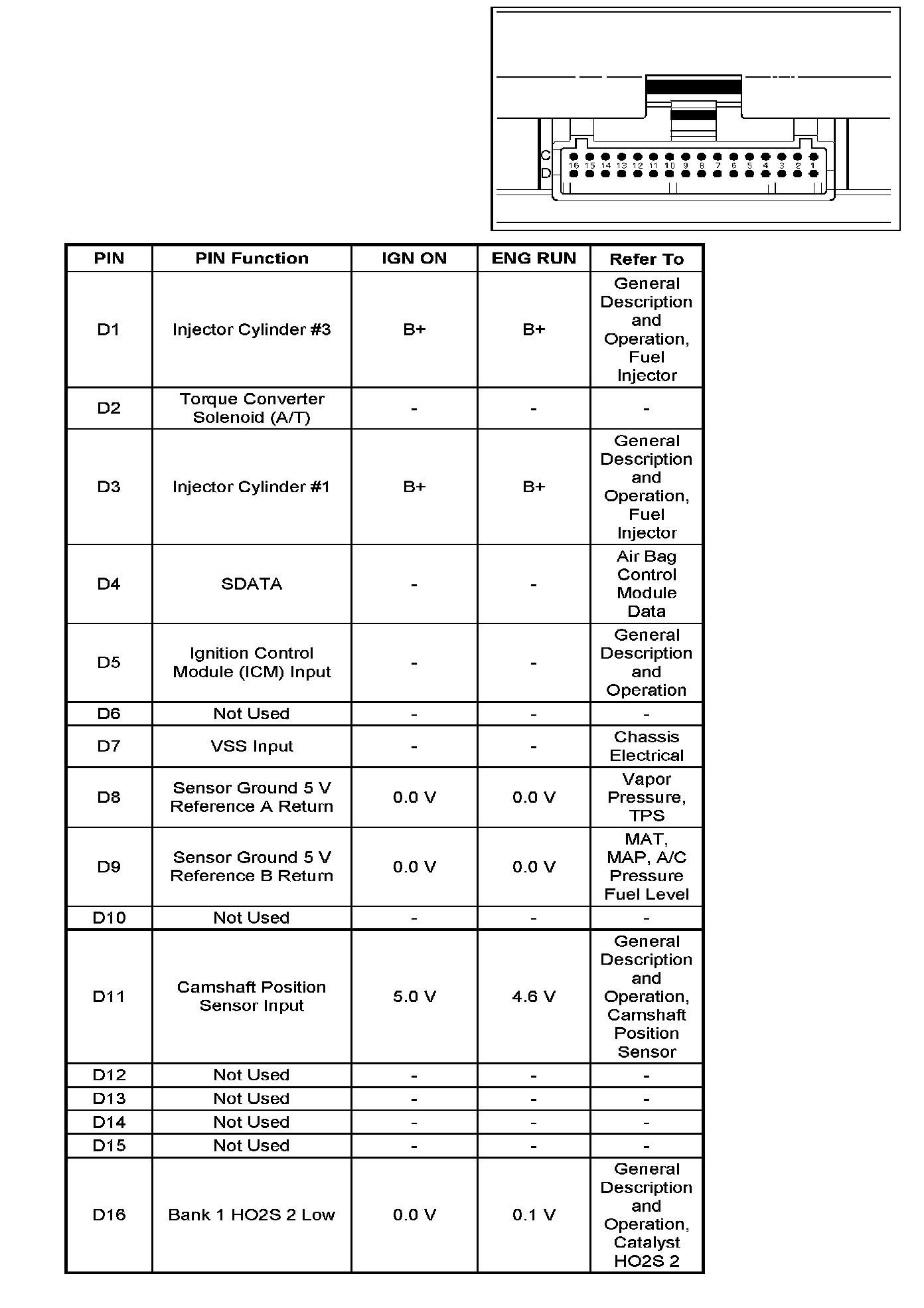

PCM Pinout Table, 32-Pin Red Connector - Row "D":

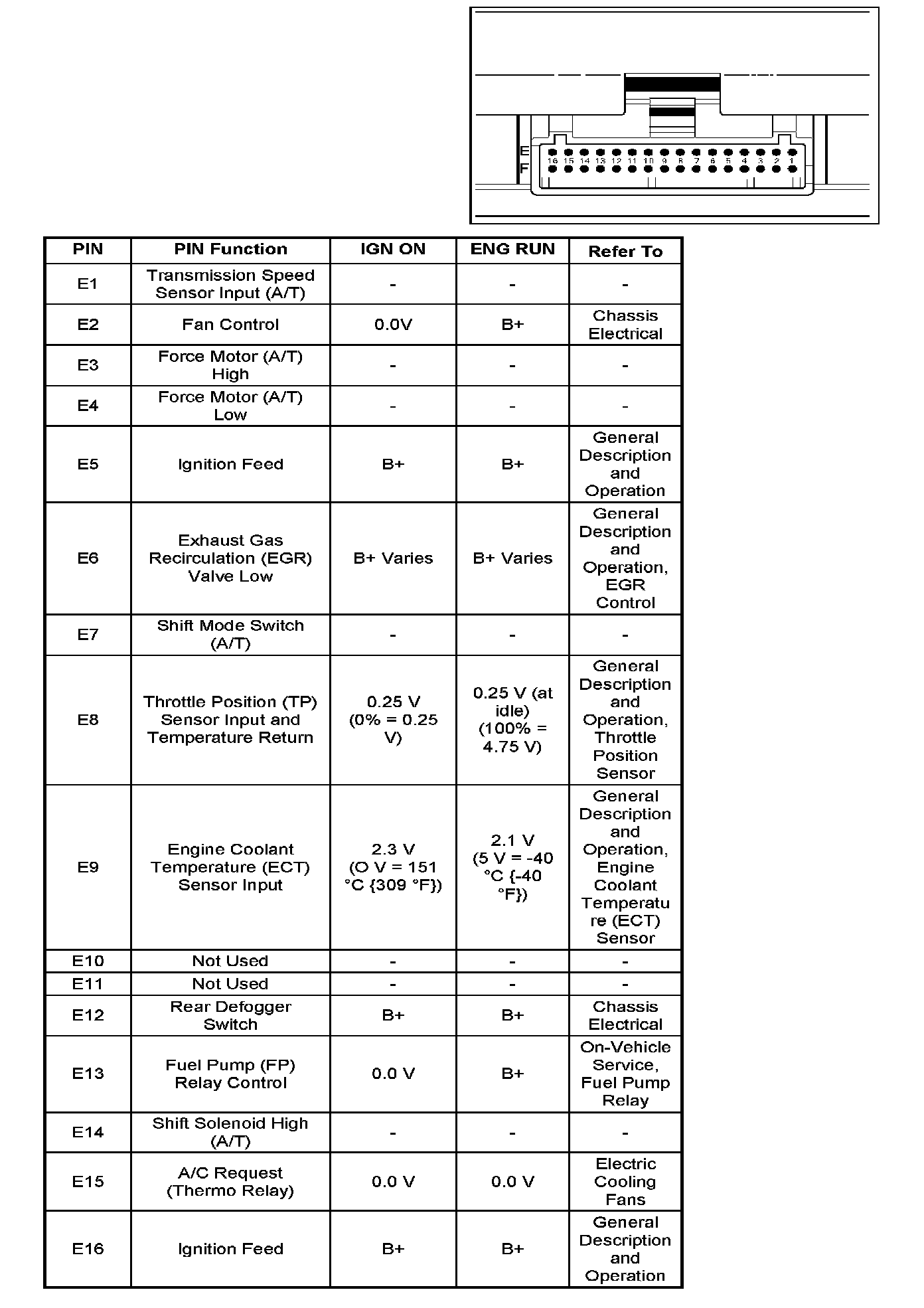

PCM Pinout Table, 32-Pin Red Connector - Row "E":

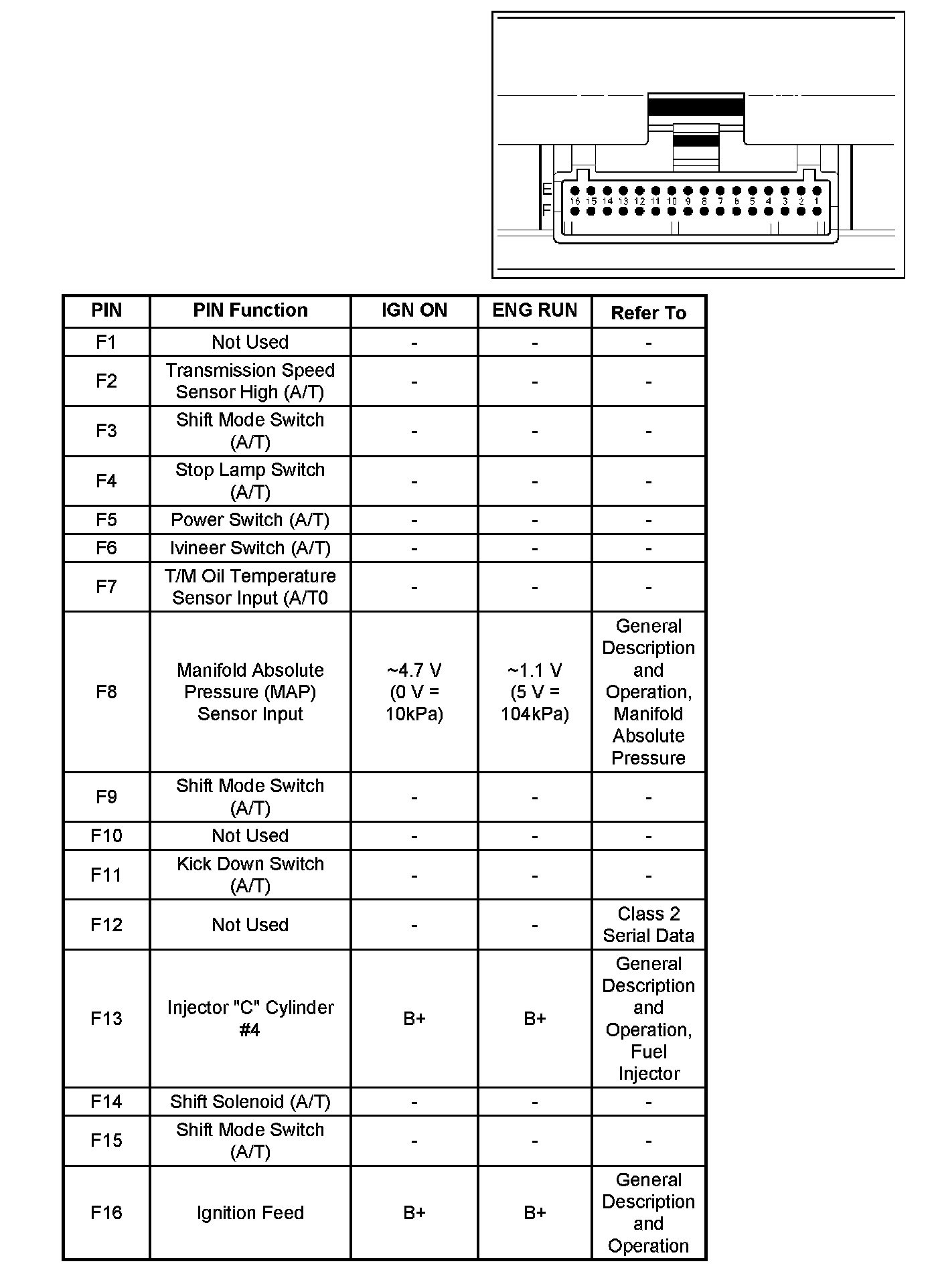

PCM Pinout Table, 32-Pin Red Connector - Row "F":
