Wiper and Washer Systems: Locations

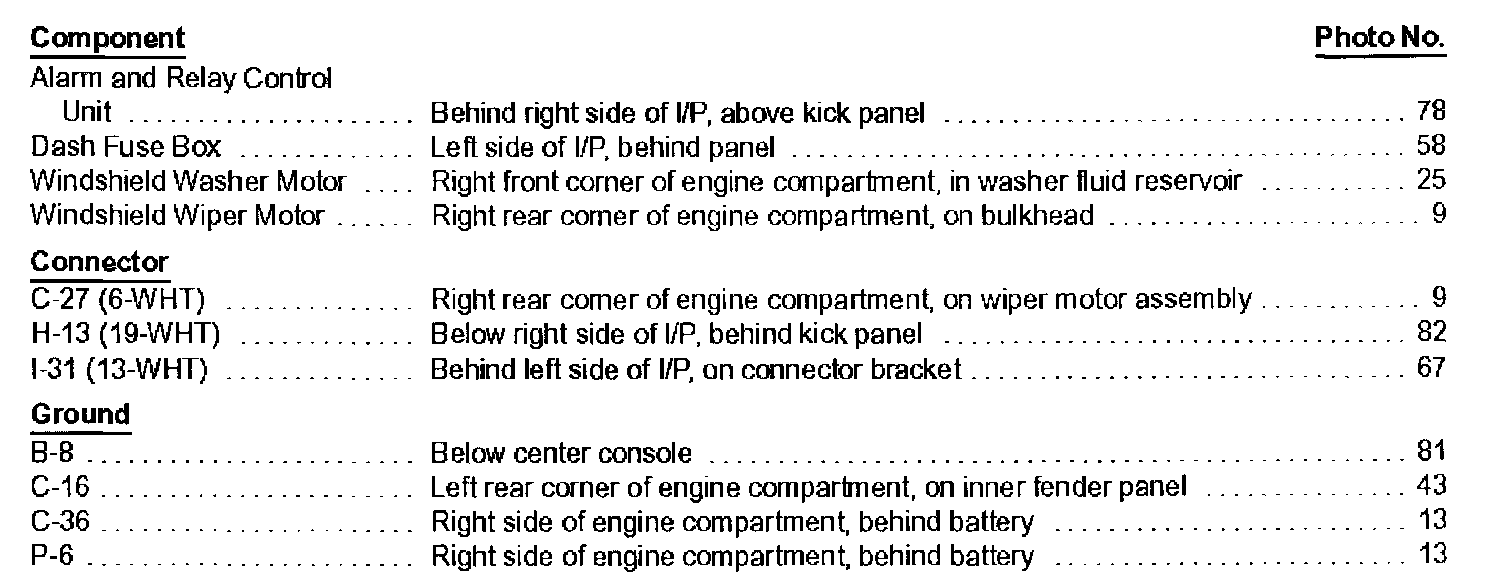

Windshield Wiper/Washer Index:

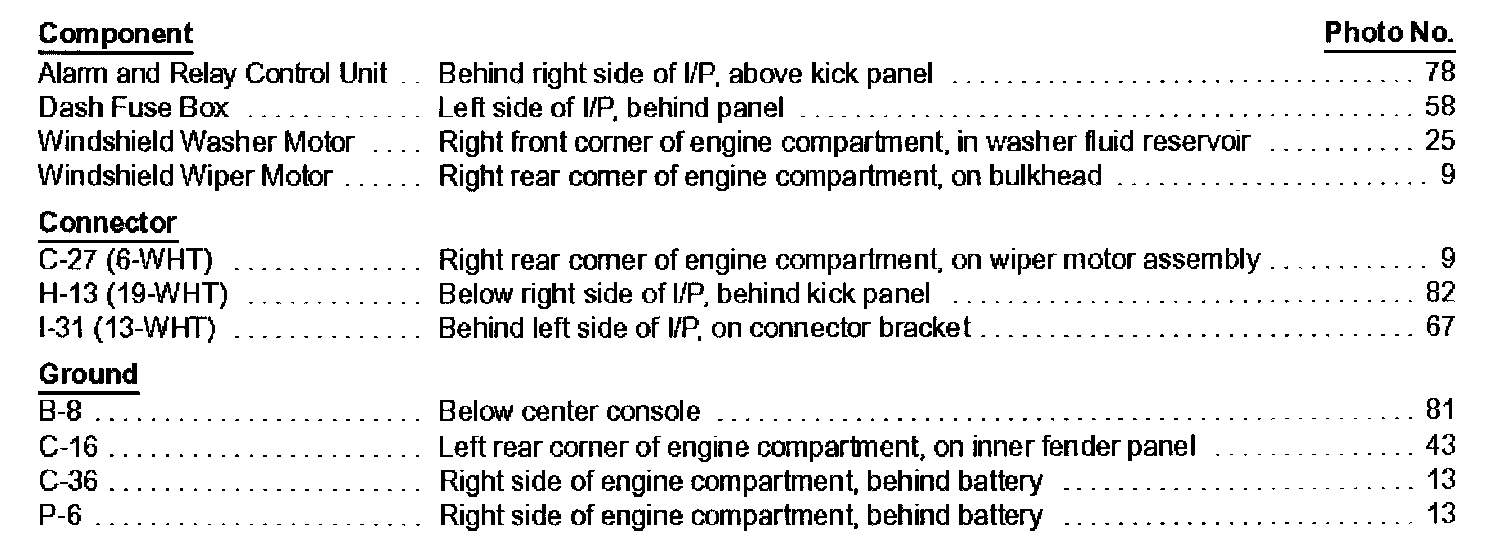

Windshield Wiper/Washer: Variable Intermittent Index:

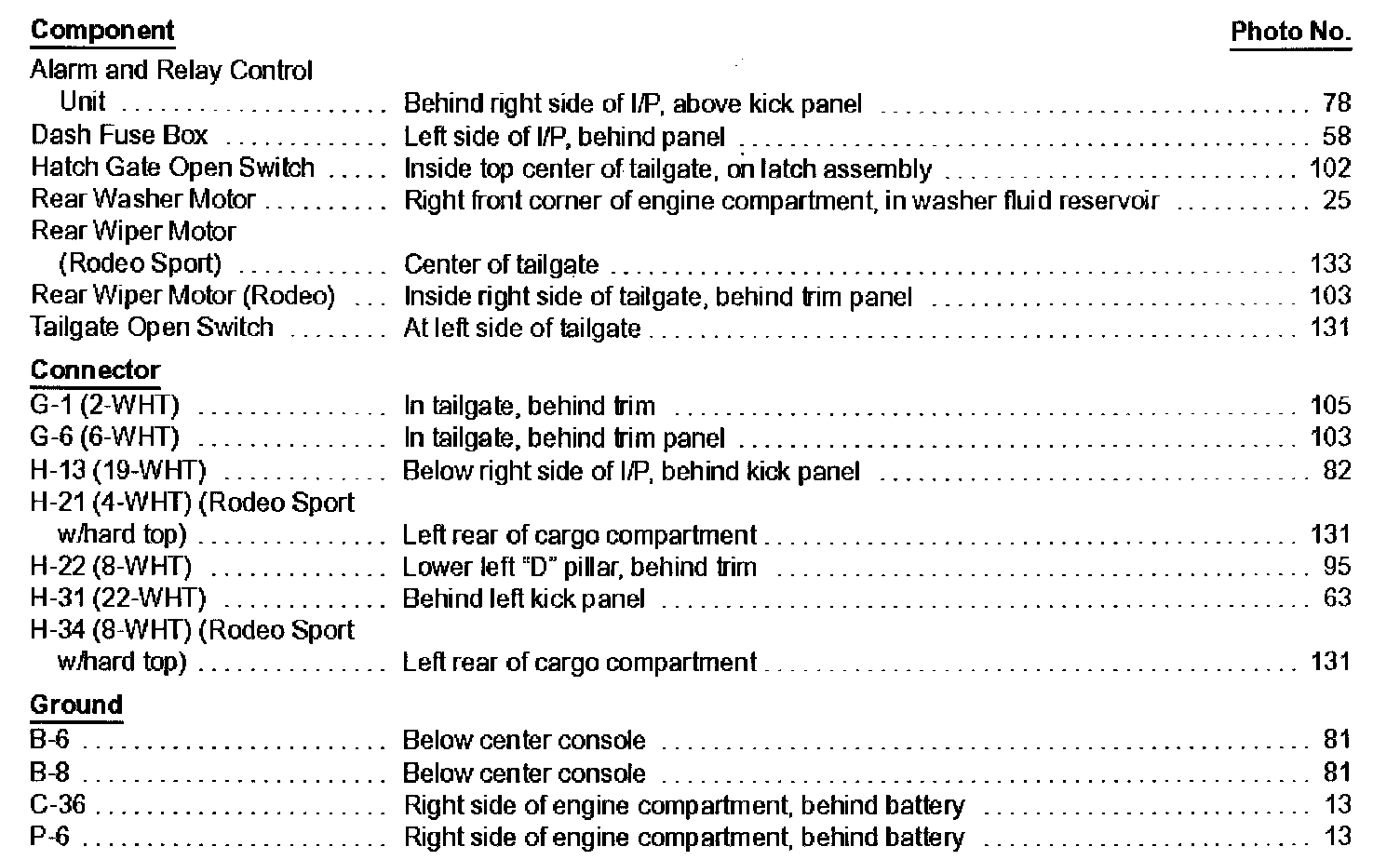

Rear Wiper/Washer Index:

Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
Locations
