Front Door Weatherstrip: Installation

To install, follow the removal steps in the reverse order, noting the following points.

1. Apply soapy water to the door frame groove, when installing the front door weatherstrip (2).
2. Apply the sealing adhesive (3) to the upper A portion of the door frame (1) and press it for installation after assembling the weatherstrip (2).

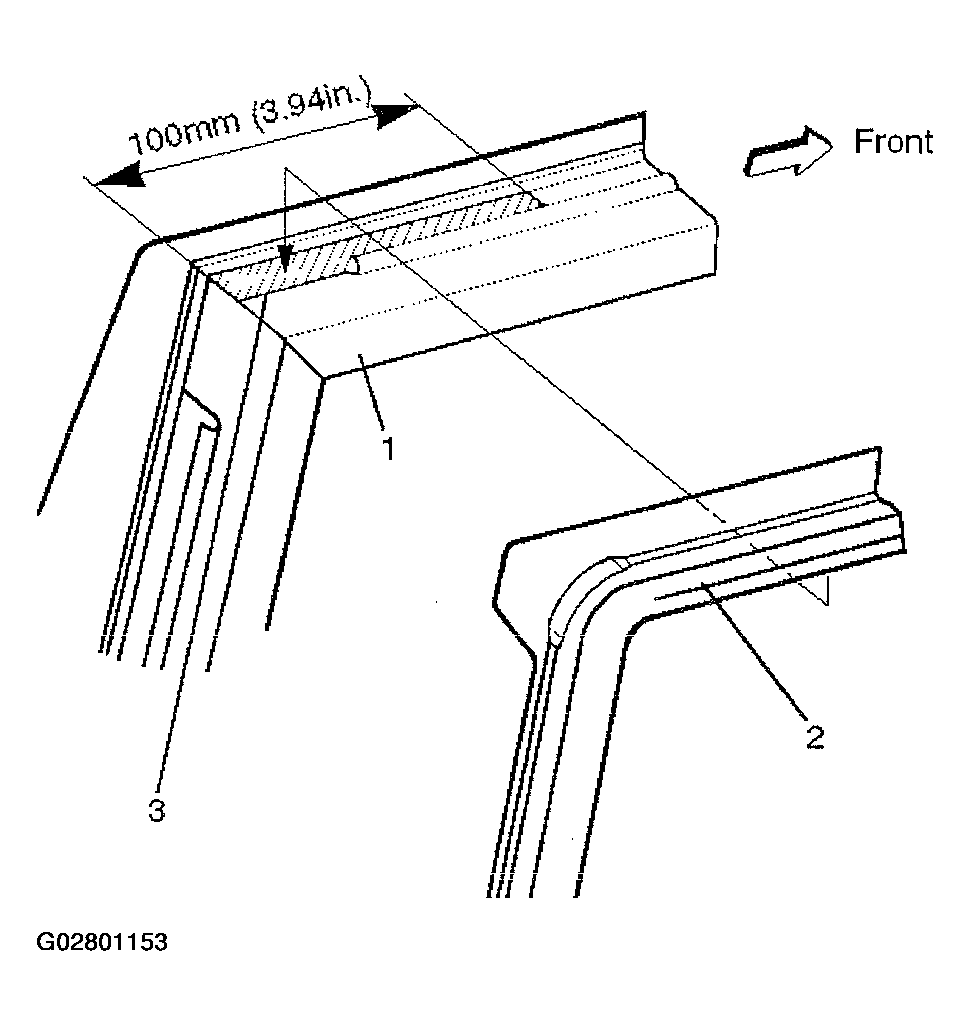

   Fig 1: Applying Sealing Adhesive

   Courtesy of ISUZU MOTOR CO.
3. After positioning the weatherstrip (4) corner, insert the weatherstrip into the door frame groove from A point in the arrow-marked direction.
4. Insert the weatherstrip clip (5) into the door panel up to its base.

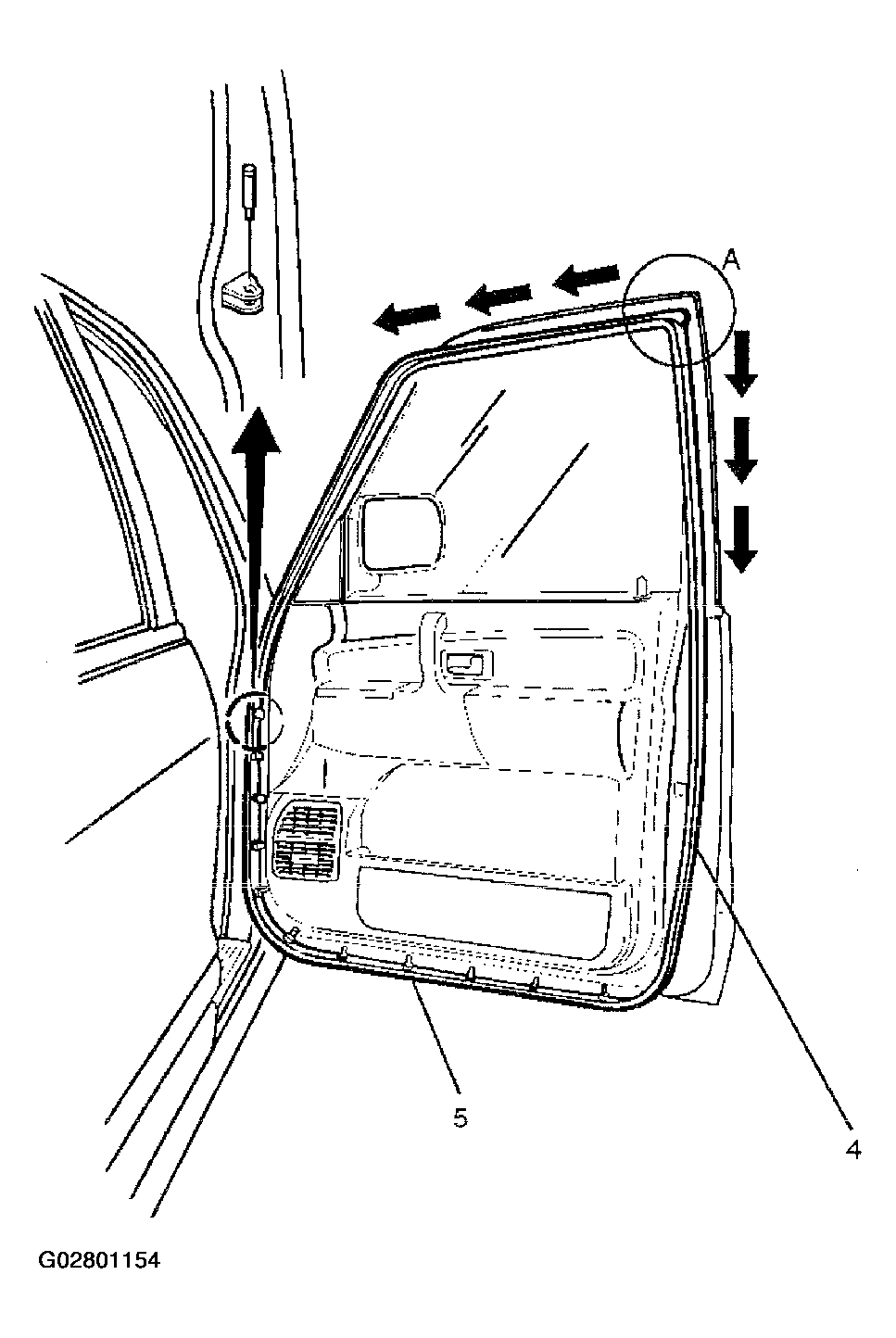

   Fig 2: Inserting Weatherstrip Clip

   Courtesy of ISUZU MOTOR CO.
