Chart TC-1 Sensor Output Inspection Procedure (Use TECH 2)

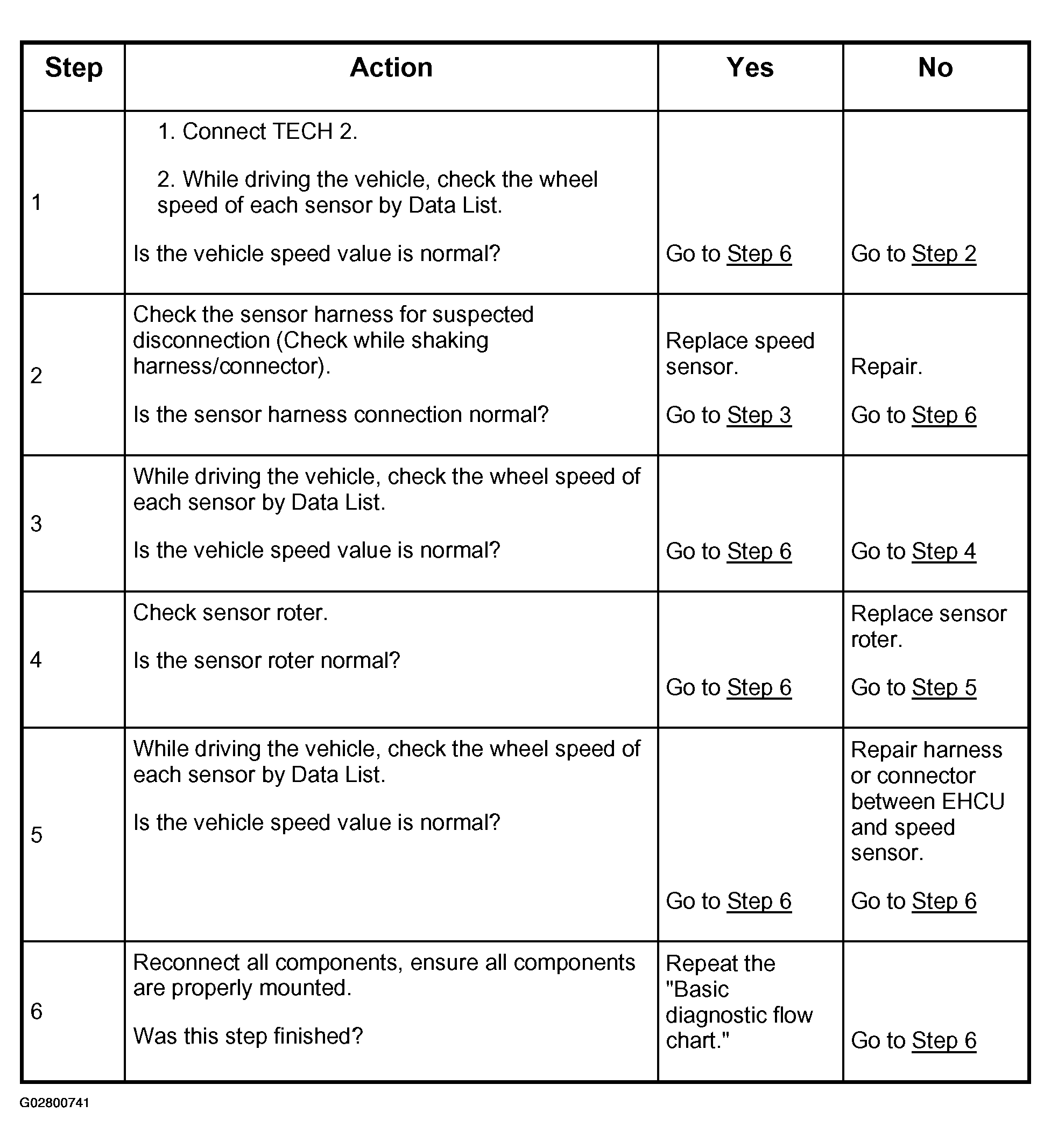

Fig 1: Sensor Output Inspection Procedure (Use TECH 2)
G02800741Courtesy of ISUZU MOTOR CO.
