Rear Section

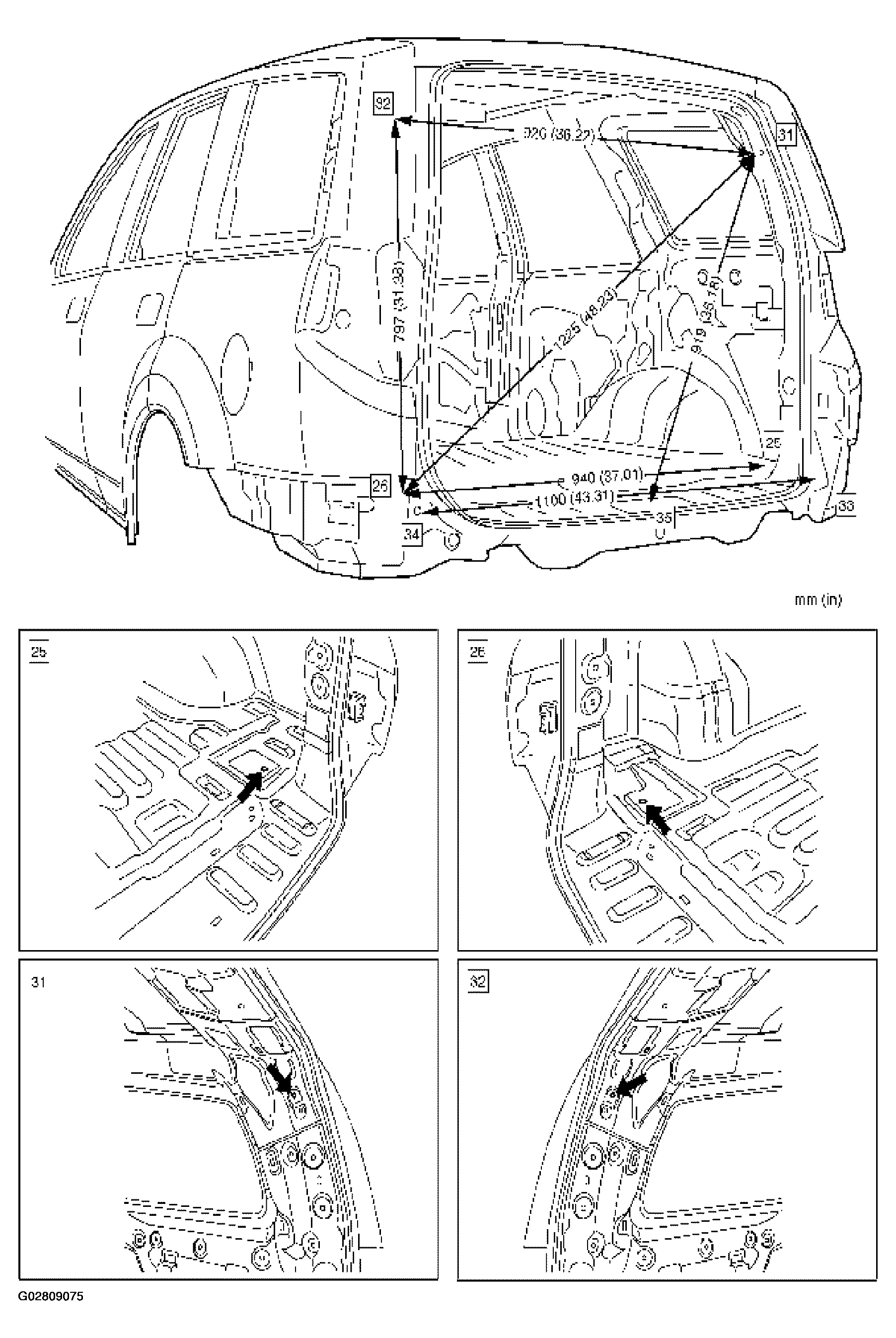

Fig 1: Identifying Body Dimension Rear Section (1 Of 2)
G02809075Courtesy of ISUZU MOTOR CO.

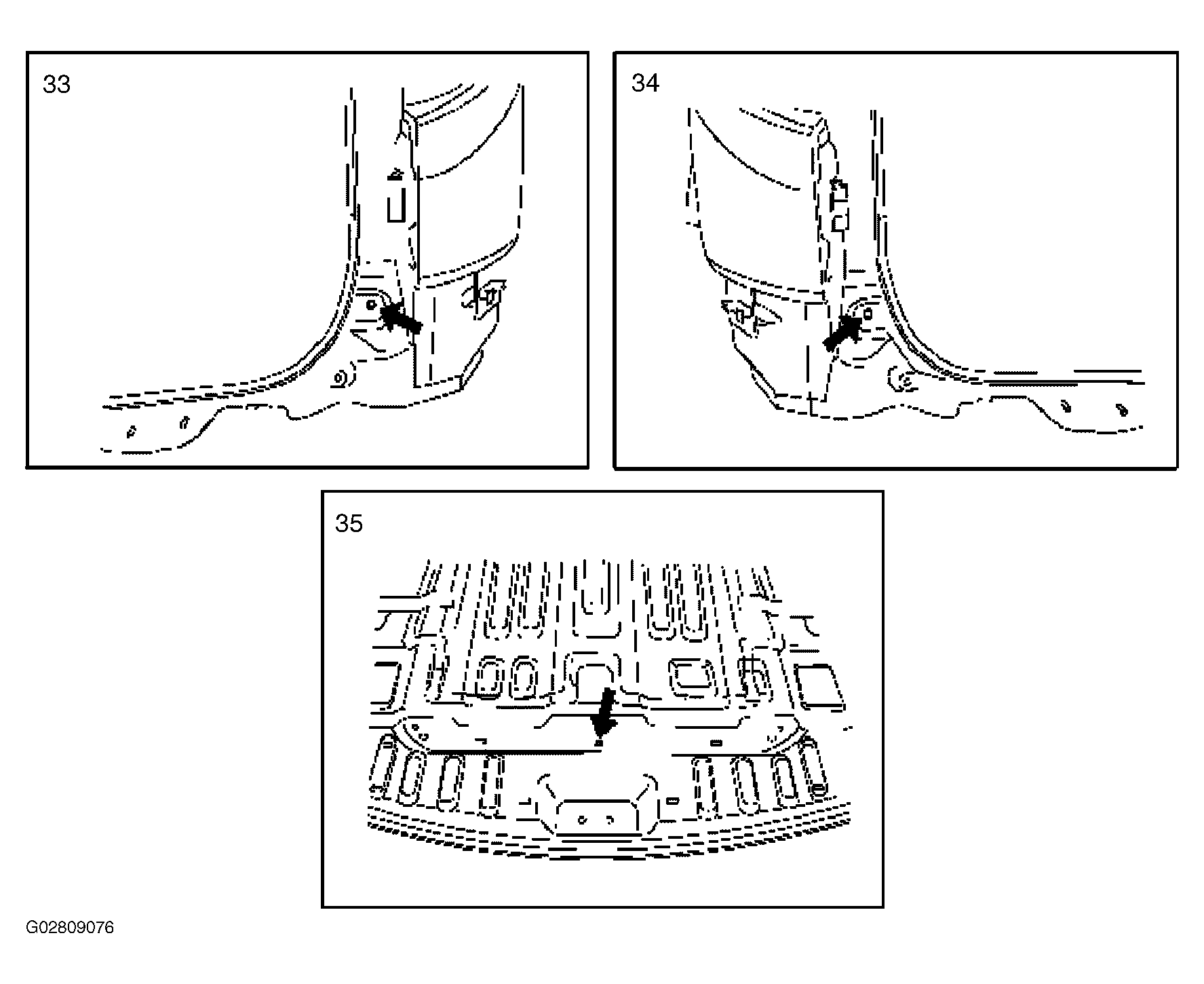

Fig 2: Identifying Body Dimension Rear Section (2 Of 2)
G02809076Courtesy of ISUZU MOTOR CO.
