Parts Location: Installation

To install, follow the removal steps in the reverse order, noting the following points:

Align the door fitting to the body.
- Check the fender and front door (1).
  Clearance: 5.0 mm (0.196 in)

  Height (step): Flush
- Check the front door and rear door (2).
  Clearance: 5.0 mm (0.196 in)

  Height (step): Flush
- Check the rear door and body (3).
  Clearance: 5.0 mm (0.196 in)

  Height (step): Flush

  Adjust clearance with door hinges.

  Adjust height (step) by tapping on the fender lightly with a rubber hammer.

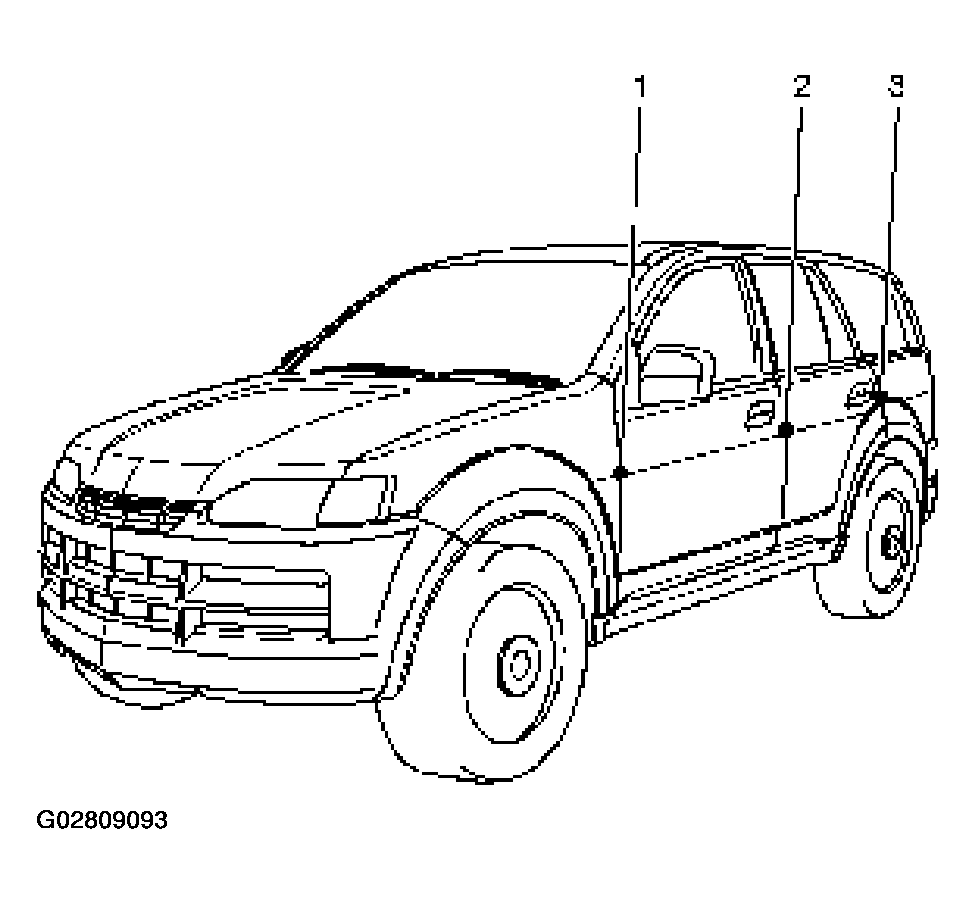

  Fig 1: Checking Doors & Body Clearance
  Courtesy of ISUZU MOTOR CO.
Tighten the door hinge bolts to the specified torque.
Torque: 34 N.m (25 lb ft)

See Figure under TORQUE SPECIFICATIONS.
Tighten the door check arm bolt and nuts to the specified torque.

Torque: 9 N.m (78 lb in)

See Figure under TORQUE SPECIFICATIONS.
