Diagnosis By Abs Warning Light Illumination Pattern: Notes

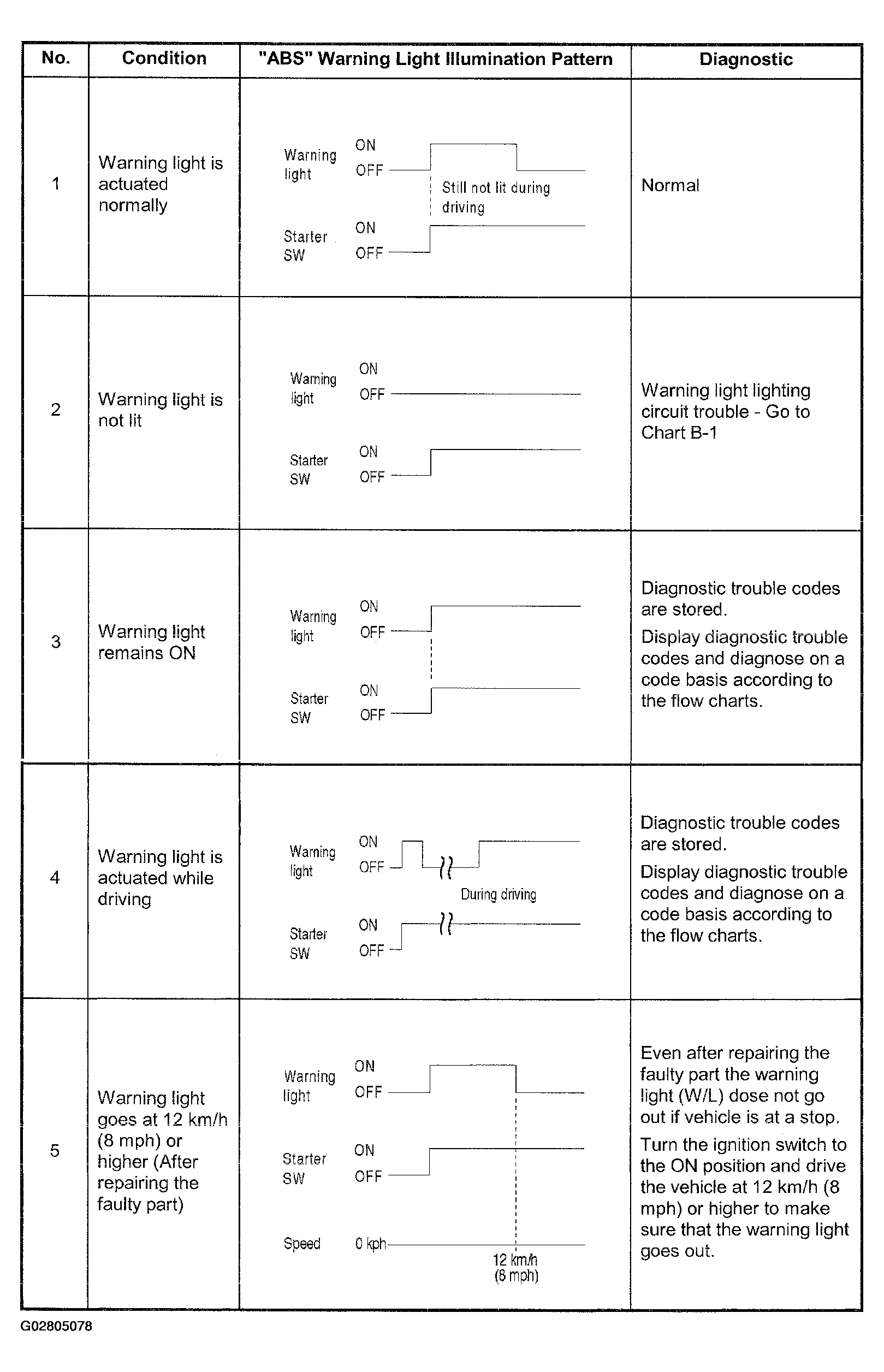

In the event that there is abnormality in the "ABS" warning light illumination pattern while the key is in the ON position or if the warning light is actuated while driving, refer to the flow chart below for the correct diagnostic procedure.
