Basic Inspection Procedure

  1. Basic Inspection of Service Brake

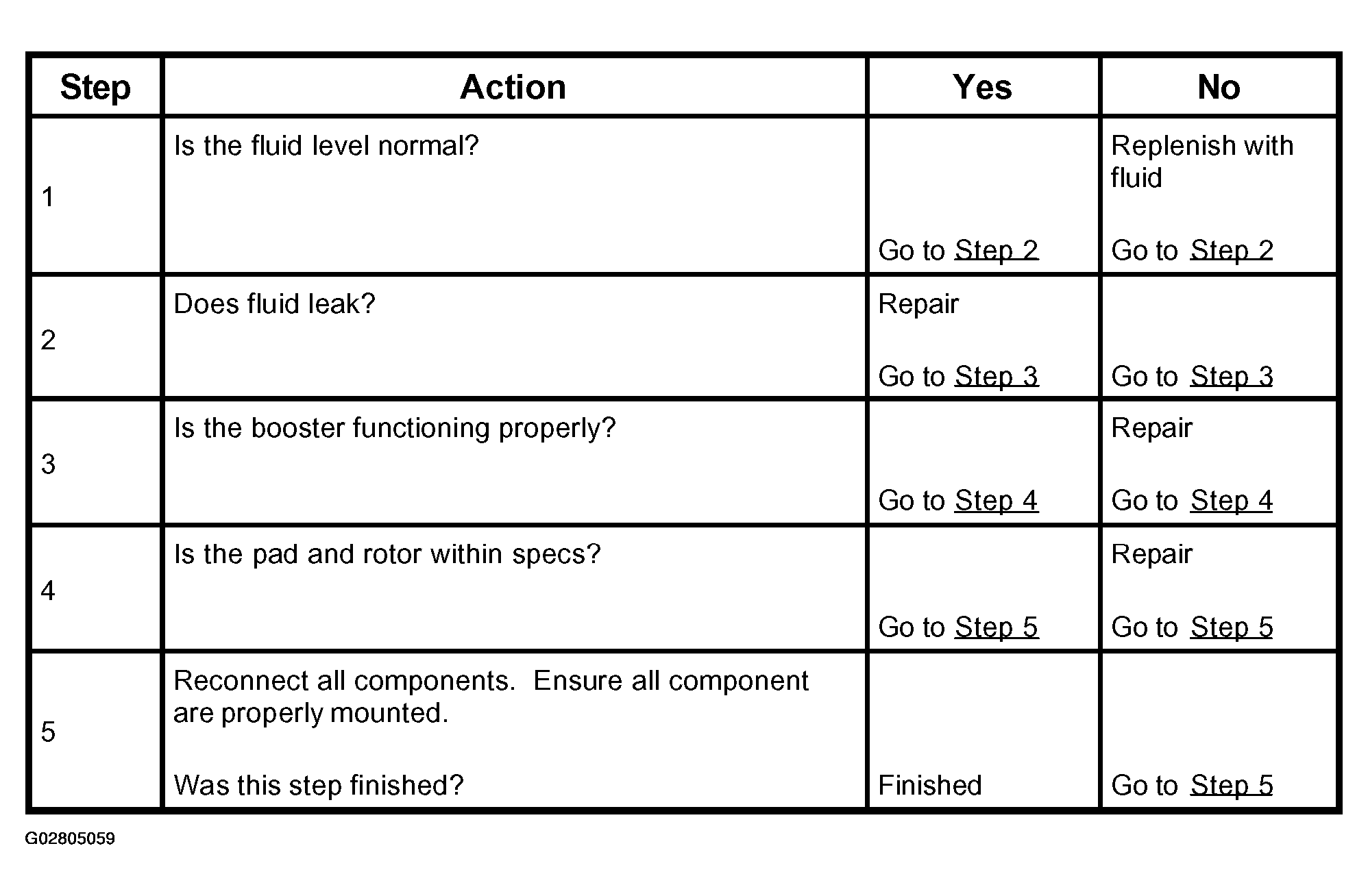

    Fig 1: Diagnosis Procedure - Service Brake (1 Of 2)
    G02805059Courtesy of ISUZU MOTOR CO.
  2. Ground Inspection

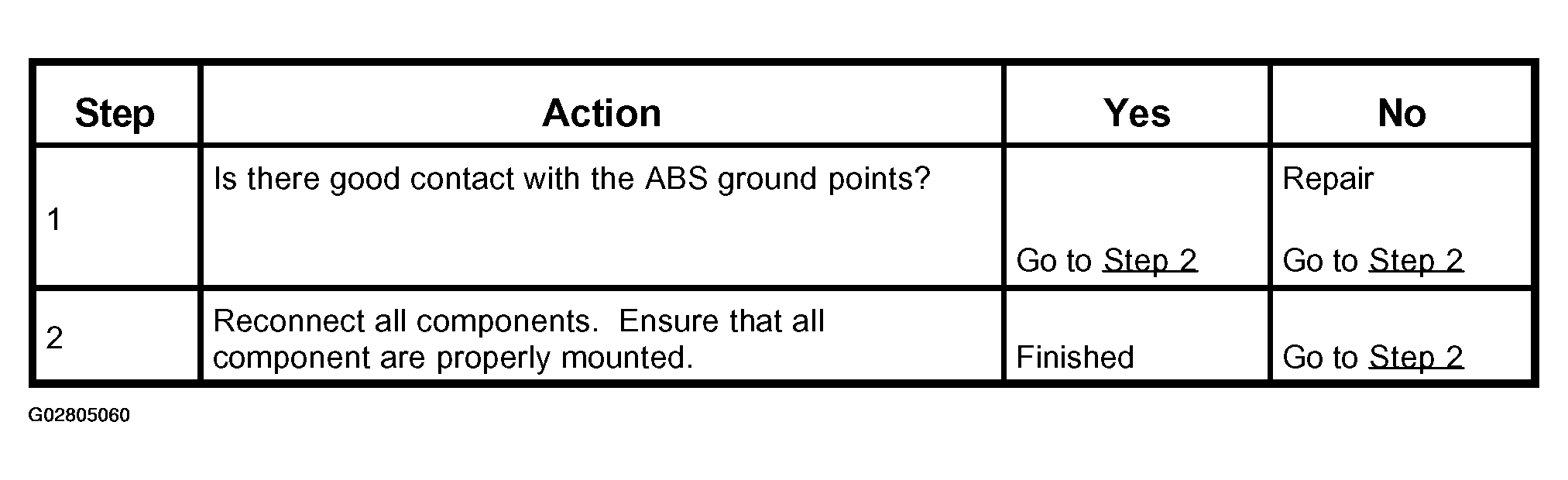

Fig 2: Diagnosis Procedure - Service Brake (2 Of 2)
G02805060Courtesy of ISUZU MOTOR CO.
