Chart C-1-2: Fr Sensor Output Inspection Procedure

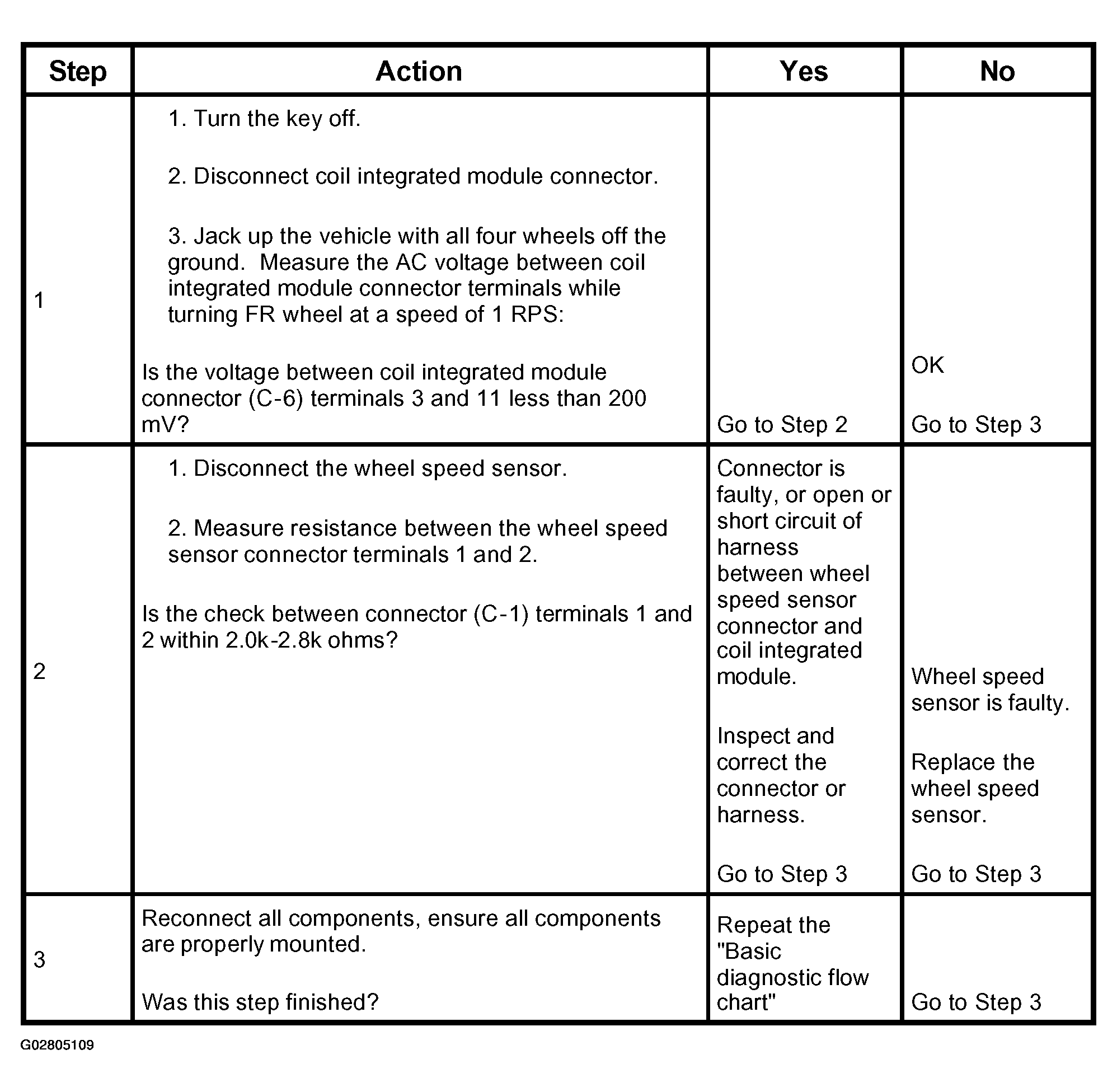

Fig 1: Diagnosis Procedure - C-1-2 FR Sensor Output Inspection
G02805109Courtesy of ISUZU MOTOR CO.
