Measuring Insulation Resistance

• Measure insulation resistance using a 500 volt megaohm meter.
• Replace spark plugs if measured value is out of standard.

Insulation resistance:  50 M-ohm or more

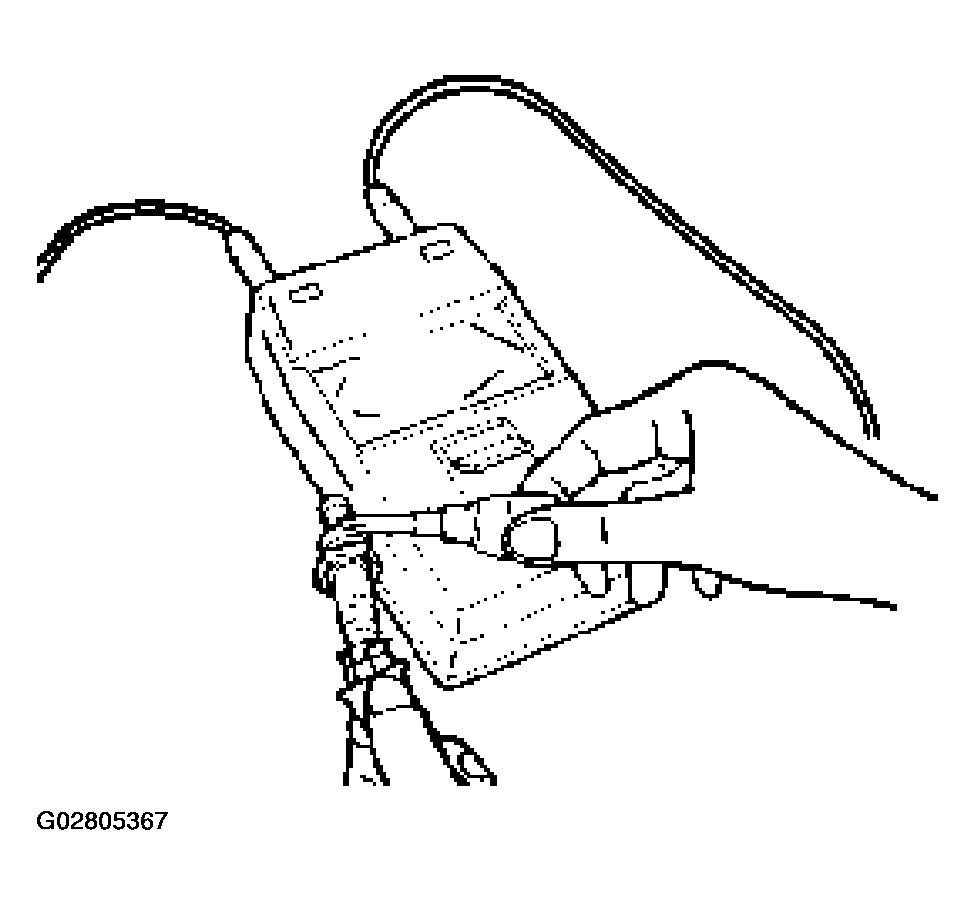

Fig 1: Measuring Insulation Resistance

Courtesy of ISUZU MOTOR CO.
