Circuit Diagram

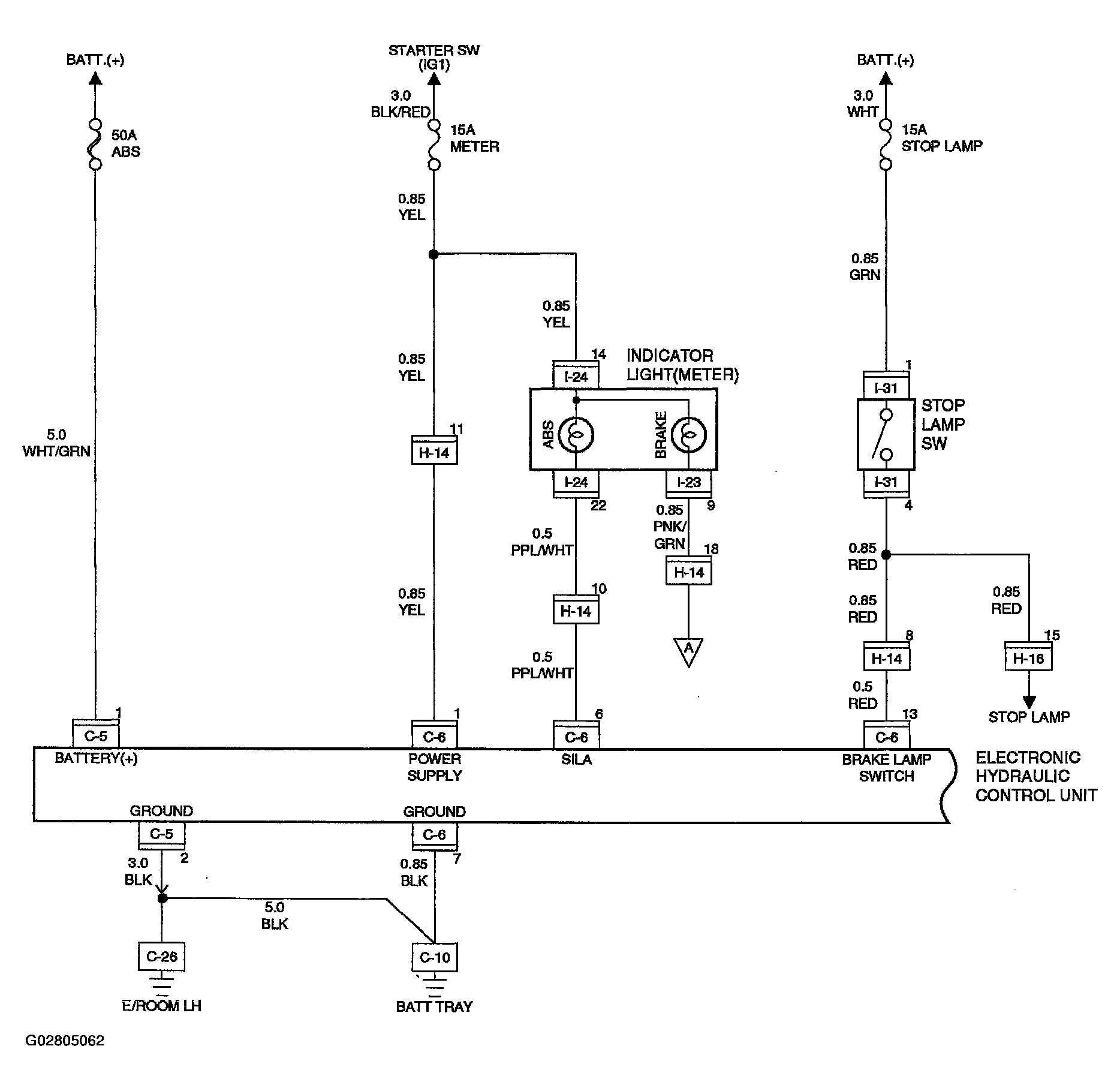

Fig 1: Circuit Diagram (1 Of 3)
G02805062Courtesy of ISUZU MOTOR CO.
Fig 2: Circuit Diagram (2 Of 3)
G02805063Courtesy of ISUZU MOTOR CO.

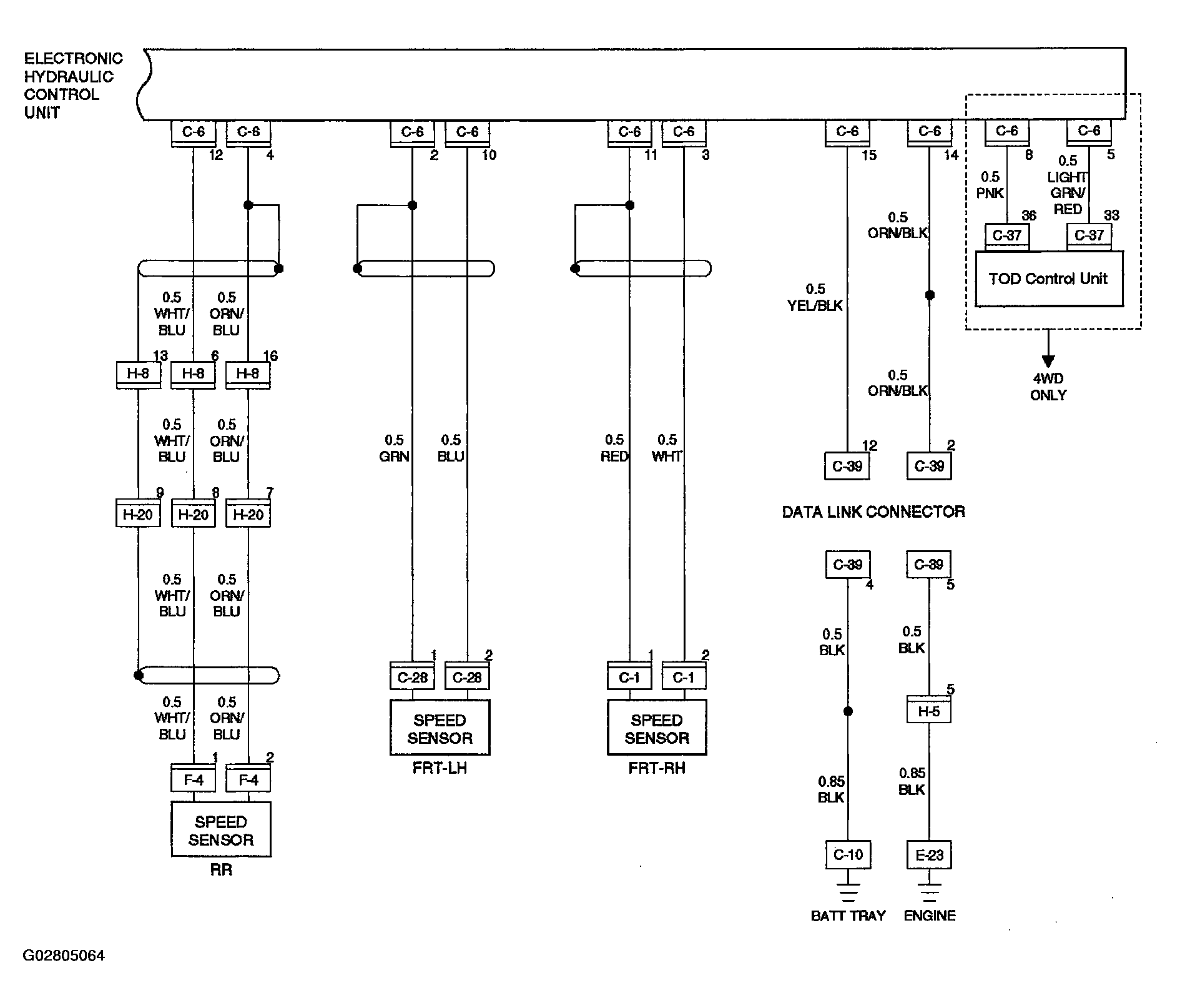

Fig 3: Circuit Diagram (3 Of 3)
G02805064Courtesy of ISUZU MOTOR CO.
