Isuzu
>>
2002
>>
Axiom Base, RWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
EHCU Connector Pin-Out Checks
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EHCU Connector Pin-Out Checks: Notes
Disconnect Electronic Hydraulic Control Module.
Perform checks with high impedance digital multimeter J-39200 or equivalent.

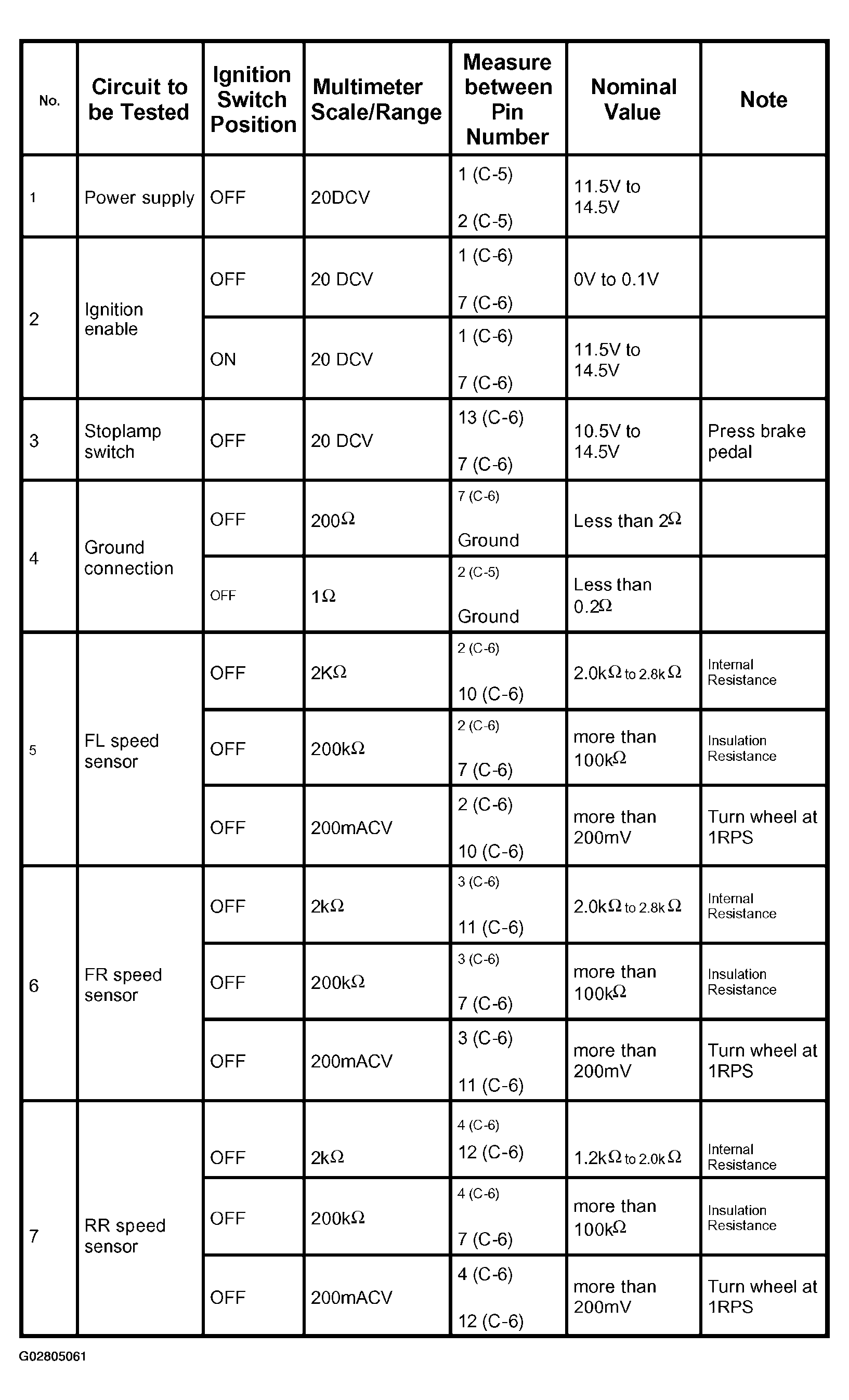

Fig 1: Diagnosis Procedure - EHCU Connector Pin-Out
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
