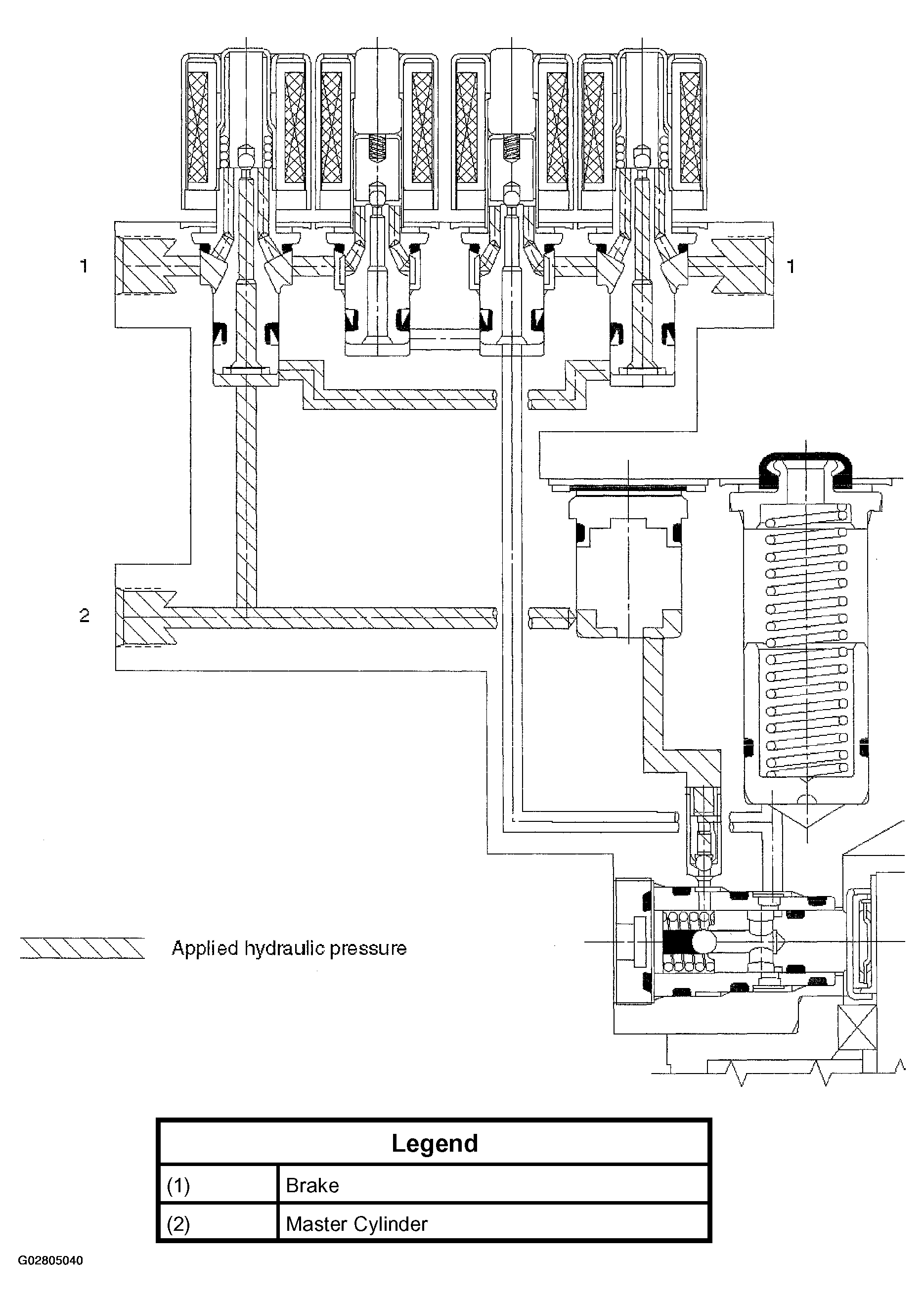

Normal Braking
During normal (non anti-lock) braking, the solenoid valves has current flow. The dump valve is closed and the isolation valve is opened due to spring force. Brake fluid travels through the center of the isolation valve (normally open) around the dump valve (normally closed) then to the brake pistons.
