Chart TC-1: Sensor Output Inspection Procedure

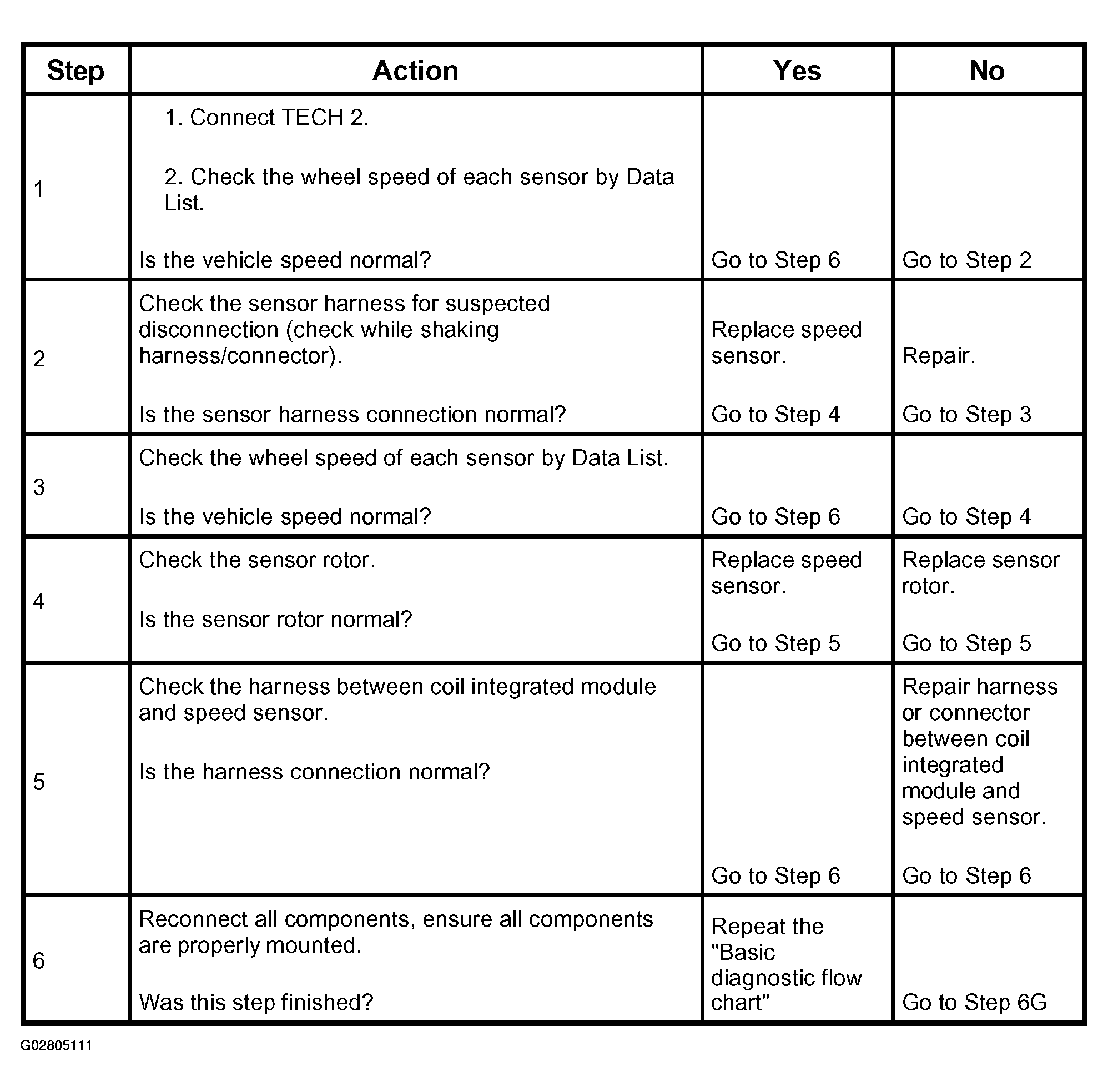

Fig 1: Diagnosis Procedure - TC-1 Sensor Output Inspection
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
