Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

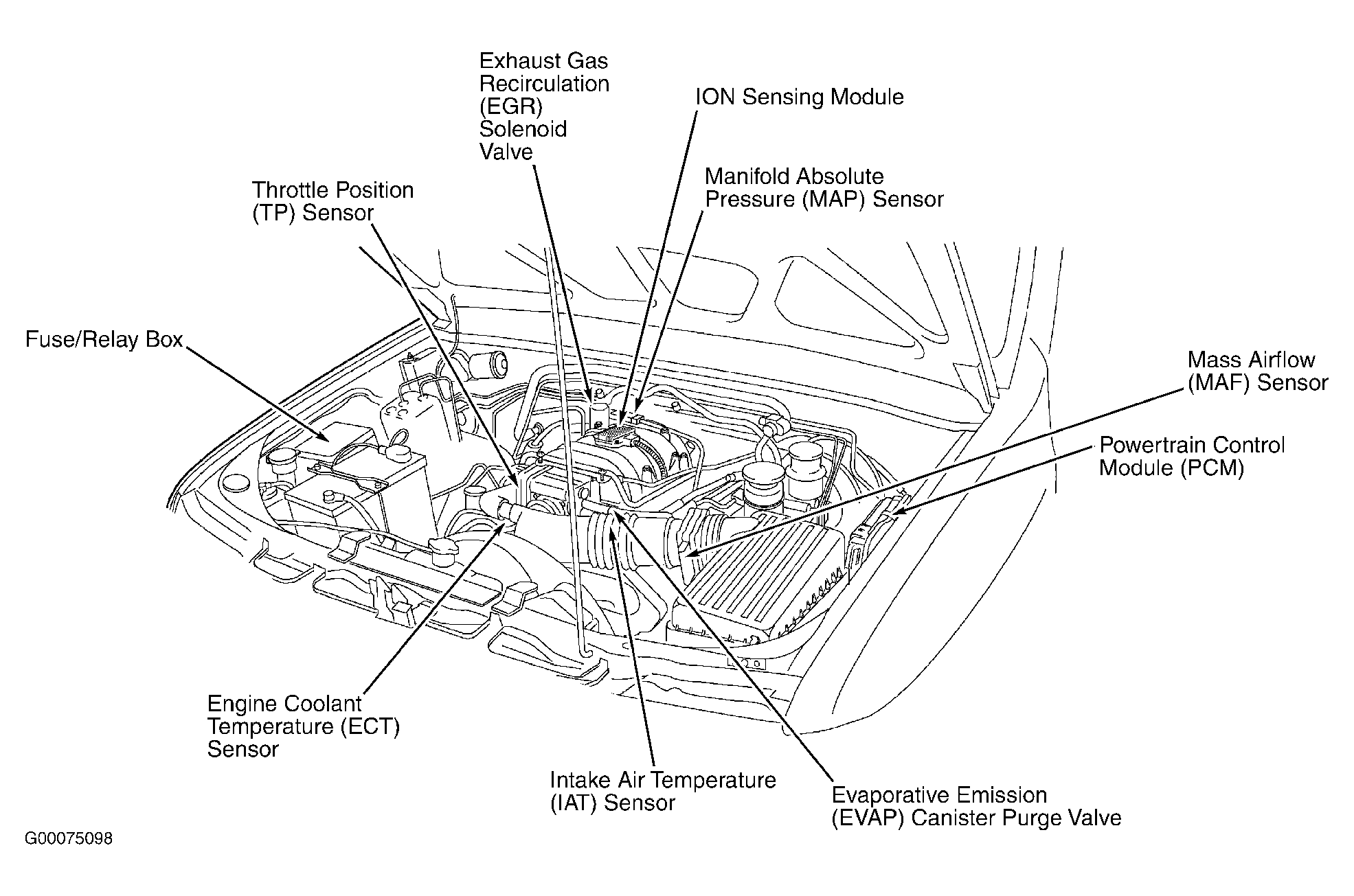

Fig 1: Engine Compartment

Courtesy of ISUZU MOTOR CO.

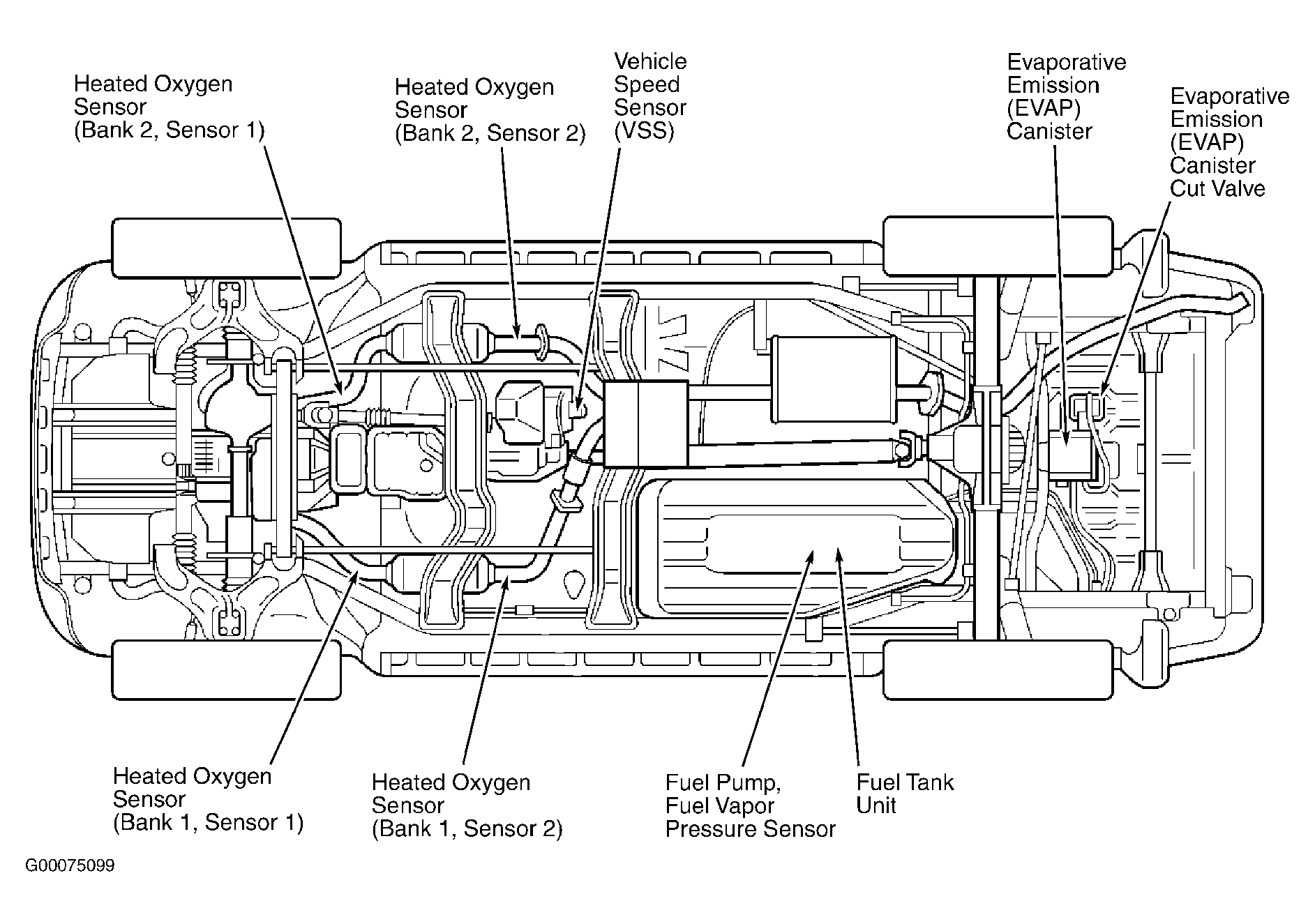

Fig 2: Undercarriage (4WD)

Courtesy of ISUZU MOTOR CO.

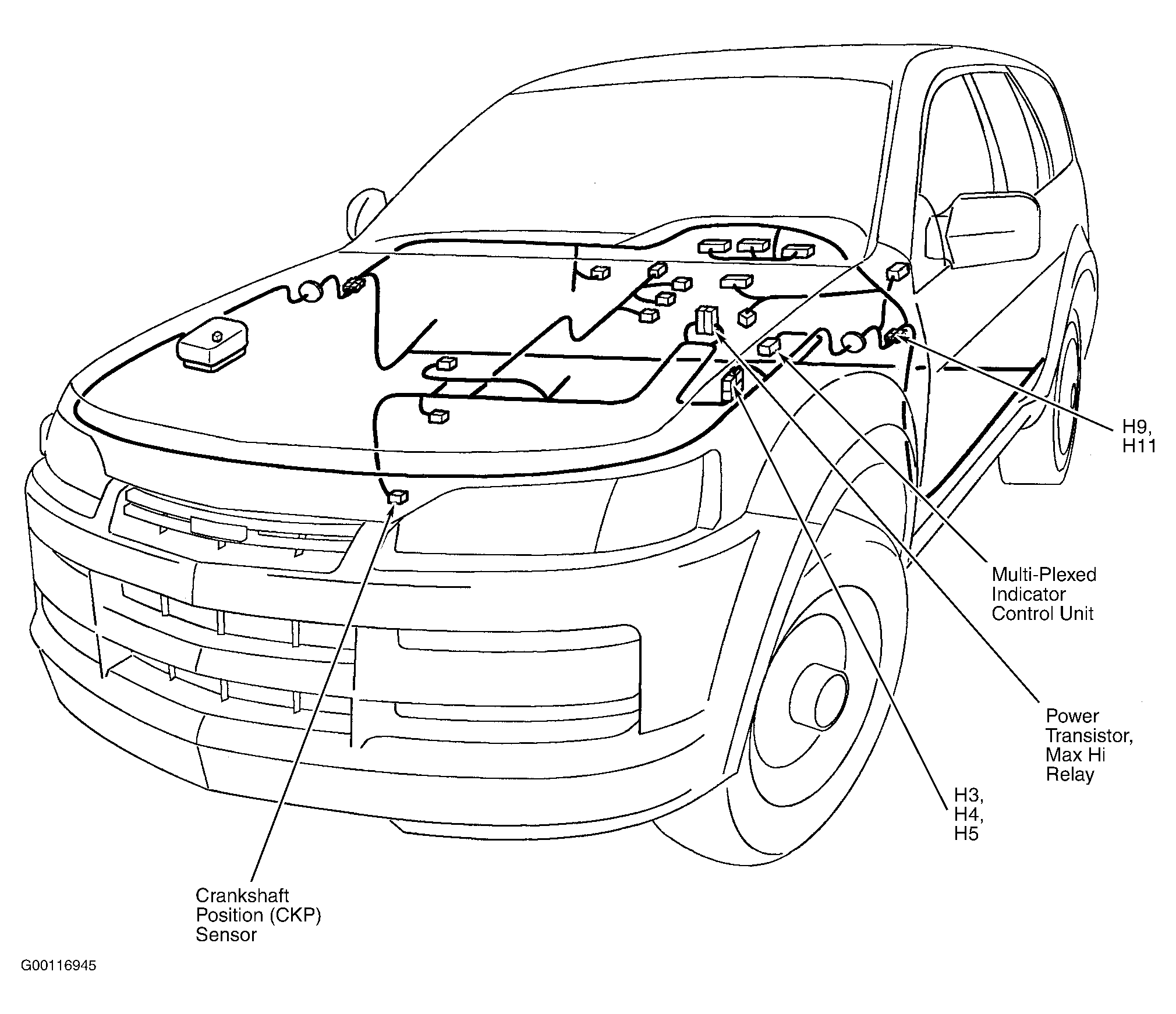

Fig 3: Engine Compartment & Left Side of Dash

Courtesy of ISUZU MOTOR CO.

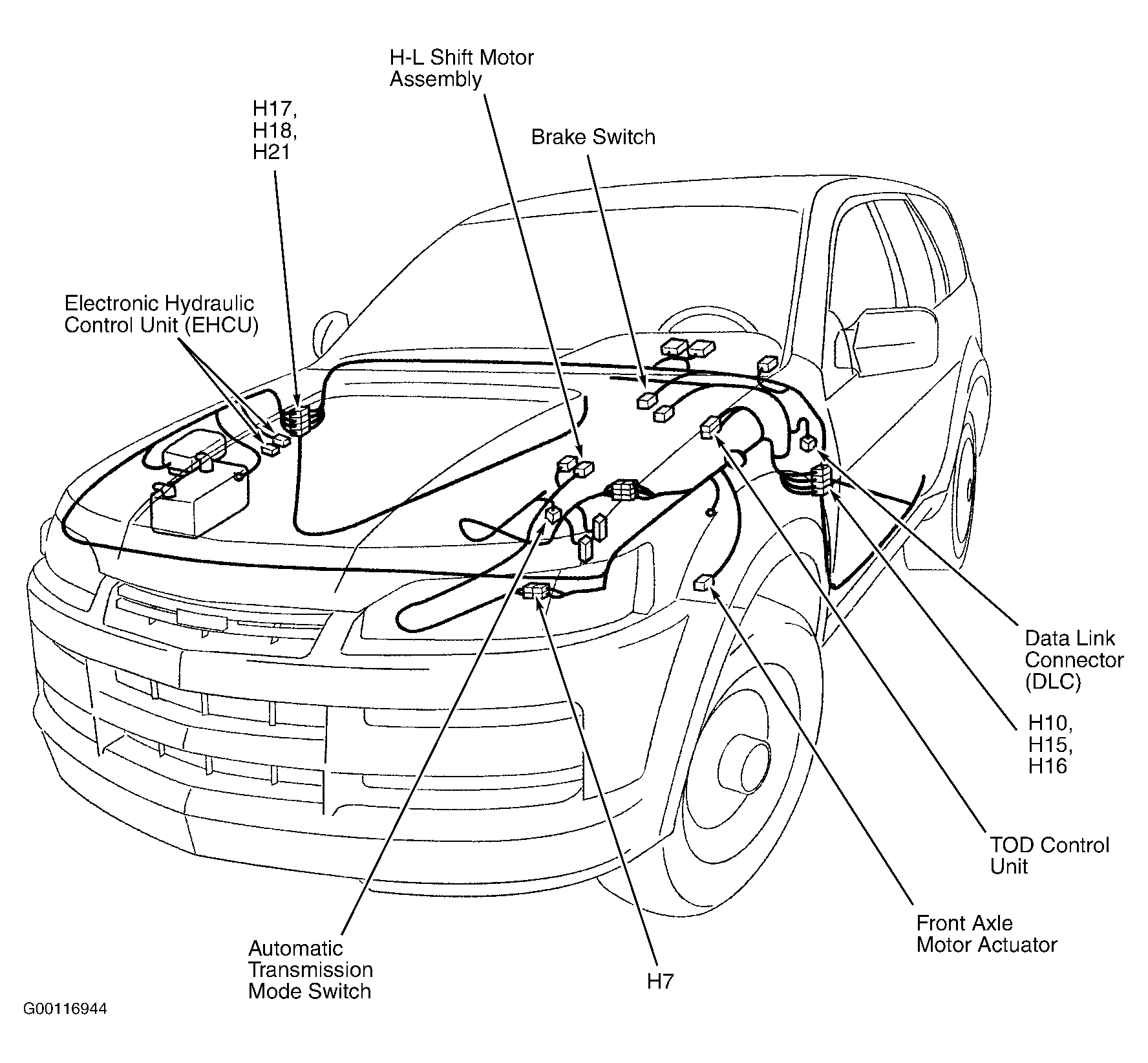

Fig 4: Left Side Of Engine Compartment & Dash

Courtesy of ISUZU MOTOR CO.

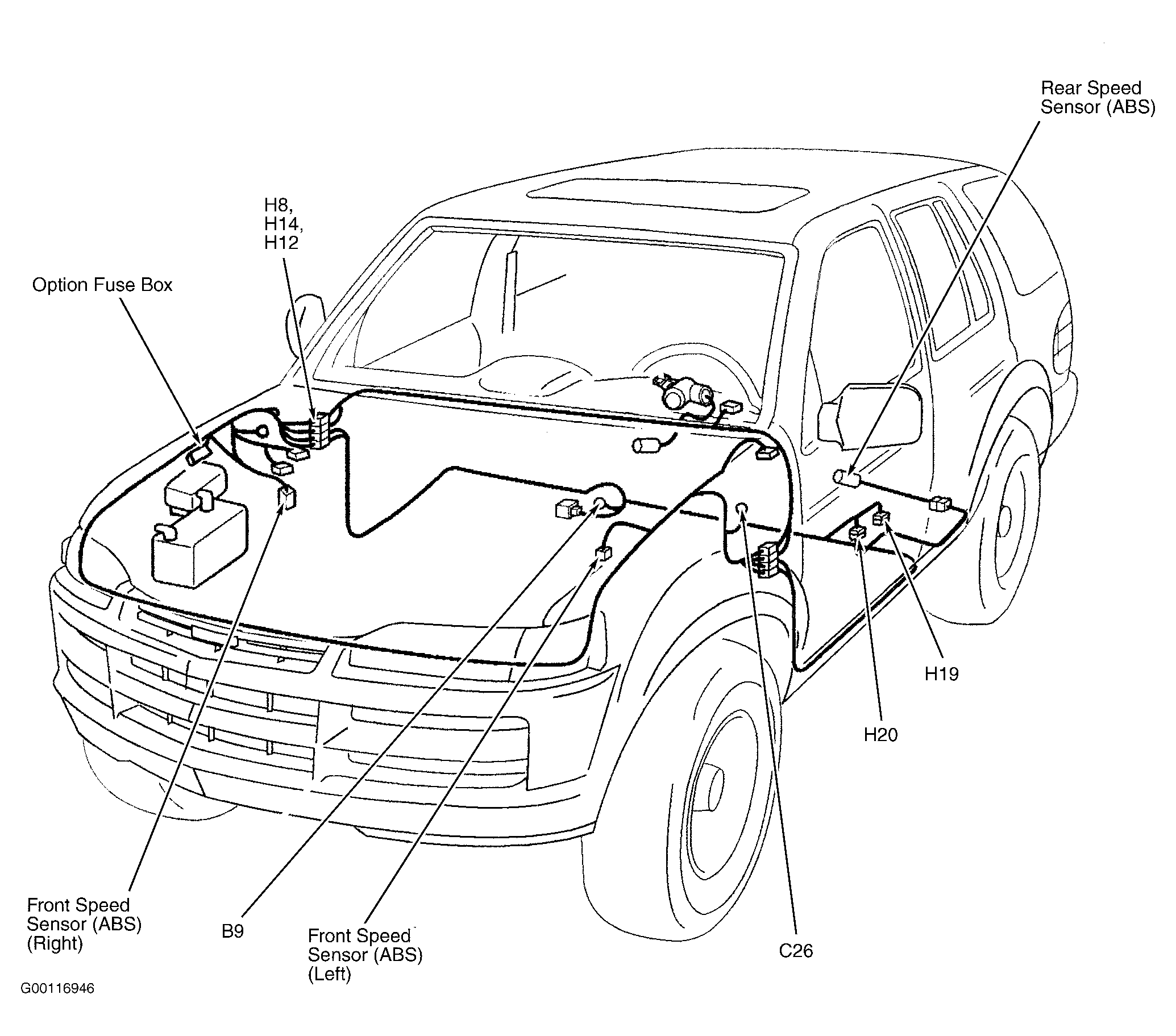

Fig 5: Wheel Speed Sensor & Vehicle Overview

Courtesy of ISUZU MOTOR CO.
