Bench Testing: Brush

  1. Measure length of brush.
  2. Replace with new one if below limit. See Fig 1 and see STARTER SPECIFICATIONS  for measurement.

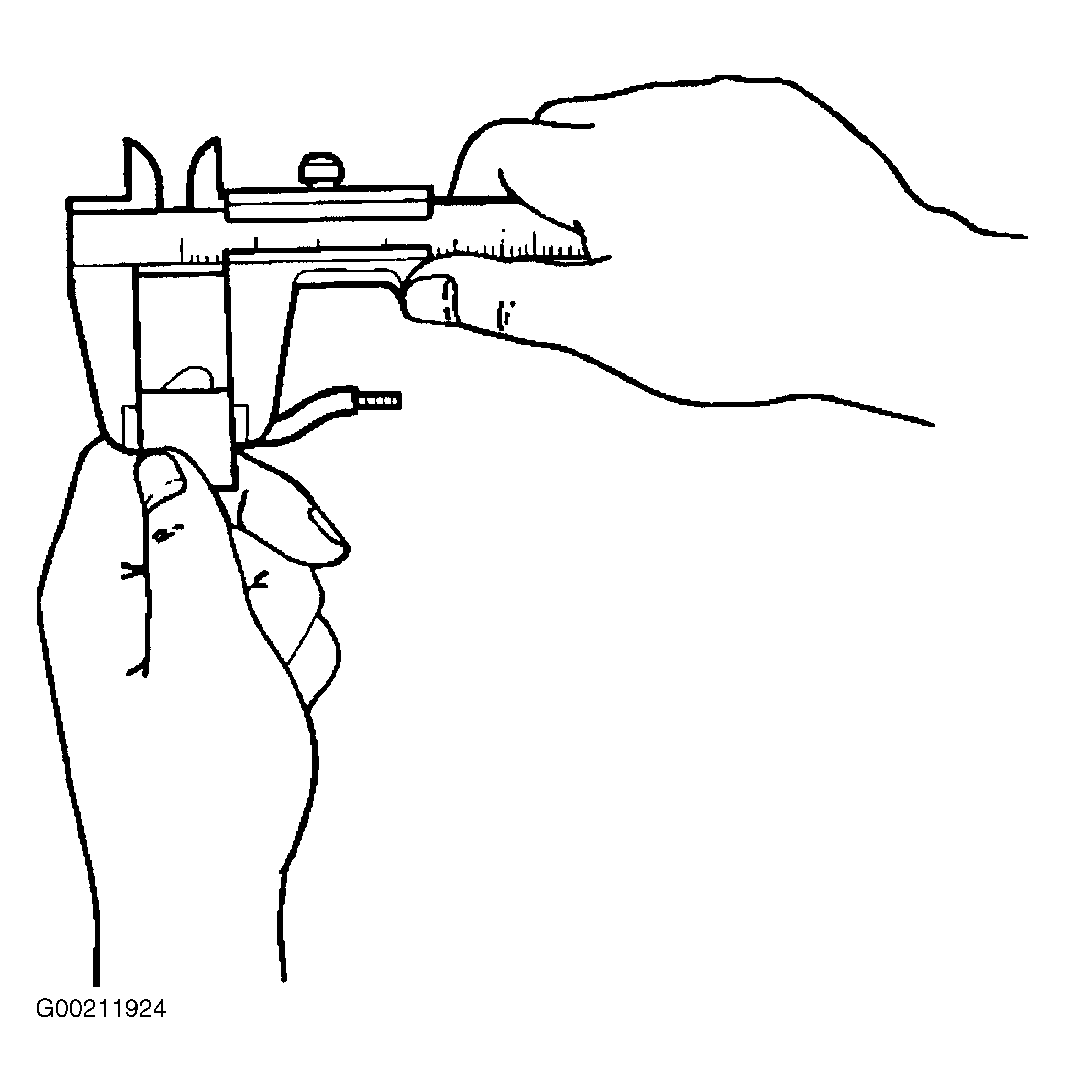

    Fig 1: Measuring Length Of Brush
    G00211924Courtesy of ISUZU MOTOR CO.
