Pull In Test

  1. Connect the ground (-) to terminal C and magnetic switch body. See Fig 1.
  2. Verify that the pinion pulls out when the battery (+) pole is connected to terminal 50.

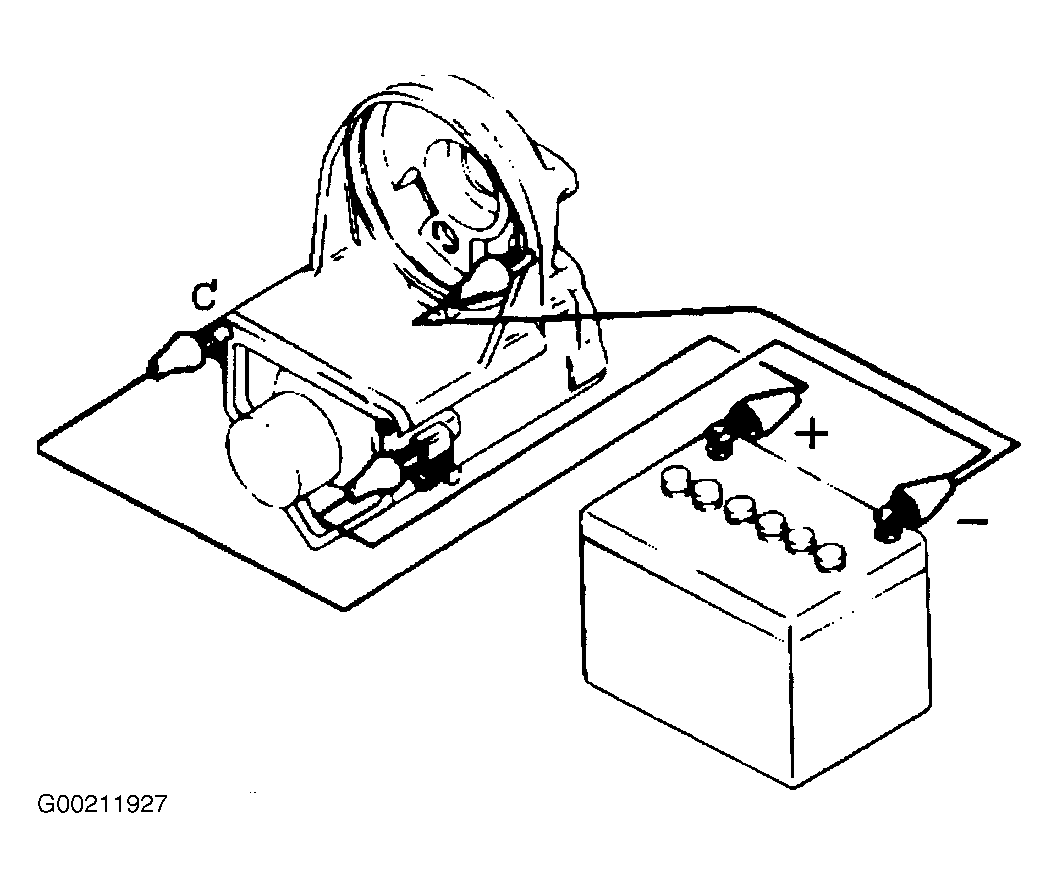

    Fig 1: Connecting Ground To Terminal "C" & Magnetic Switch Body
    G00211927Courtesy of ISUZU MOTOR CO.
