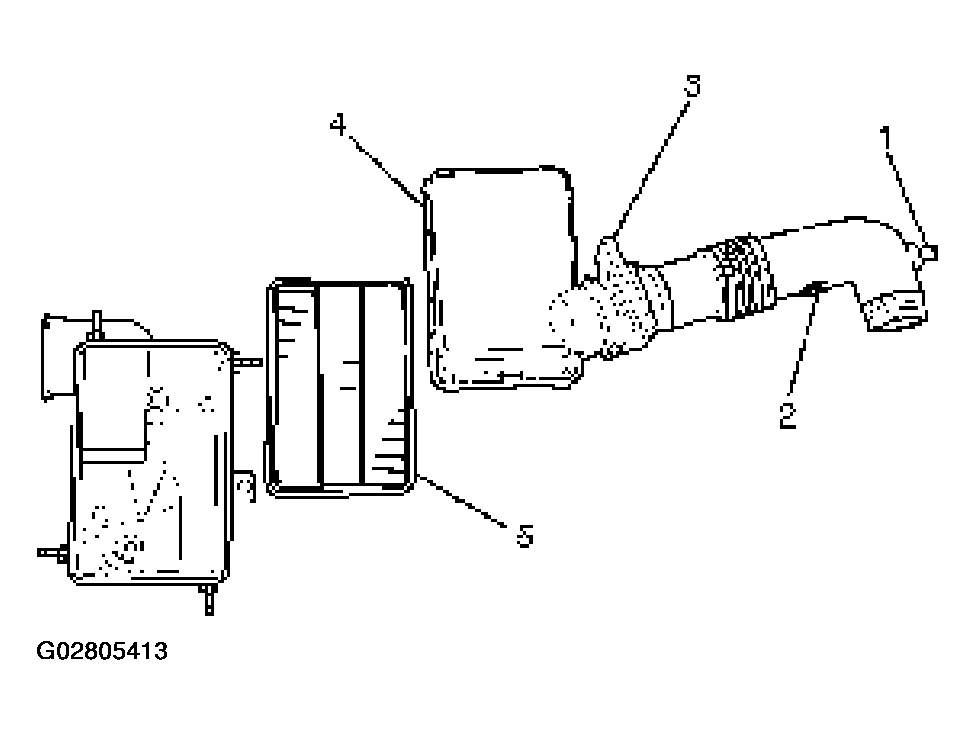

Air Cleaner Element: Installation
- Install air cleaner element (5).
- Attach the mass air cleaner duct cover to the body completely, then clamp it with the clip (4).
- Install air flow sensor (3).
- Install air temperature sensor (2).
- Install positive crankcase ventilation hose connector (1).
