Crankshaft Position Sensor: Removal

  1. Disconnect battery ground cable
  2. Wiring connector from crankshaft position sensor.
  3. Remove crankshaft position sensor from cylinder block.

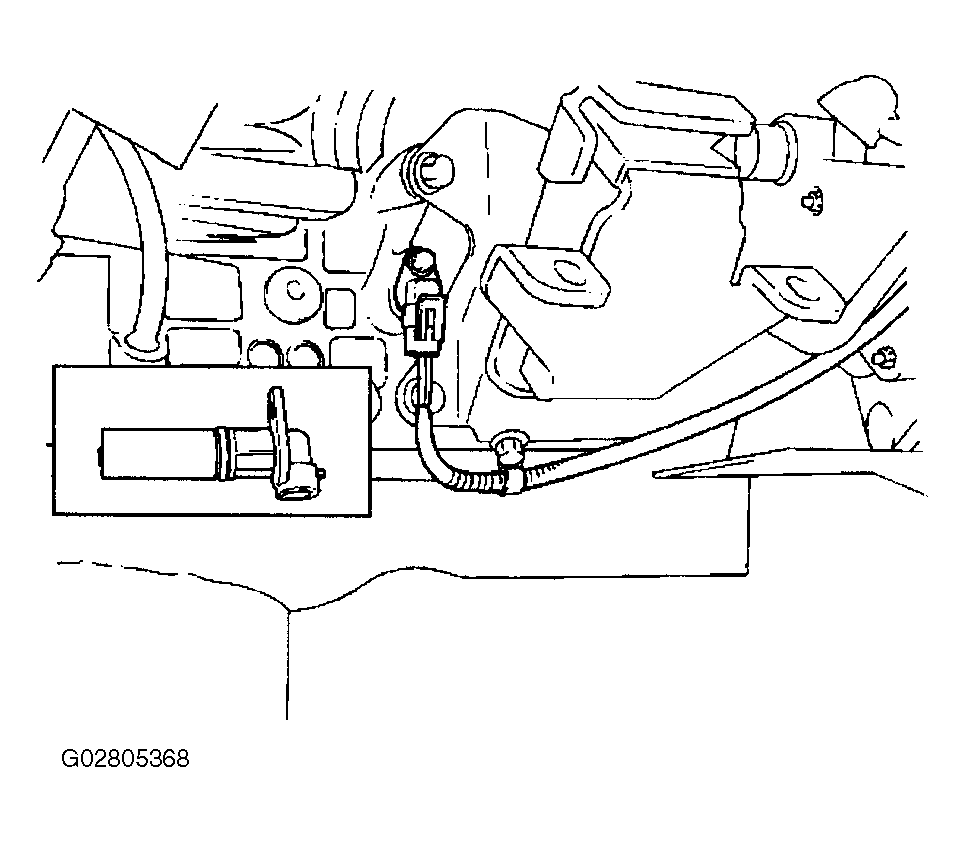

Fig 1: Locating Crankshaft Position Sensor
G02805368Courtesy of ISUZU MOTOR CO.
