Inspection And Repair

Check the ignition coil assembly for insulation. Check terminals for corrosion or damage, and replace as necessary.

Measuring resistance of ignition coil assembly.

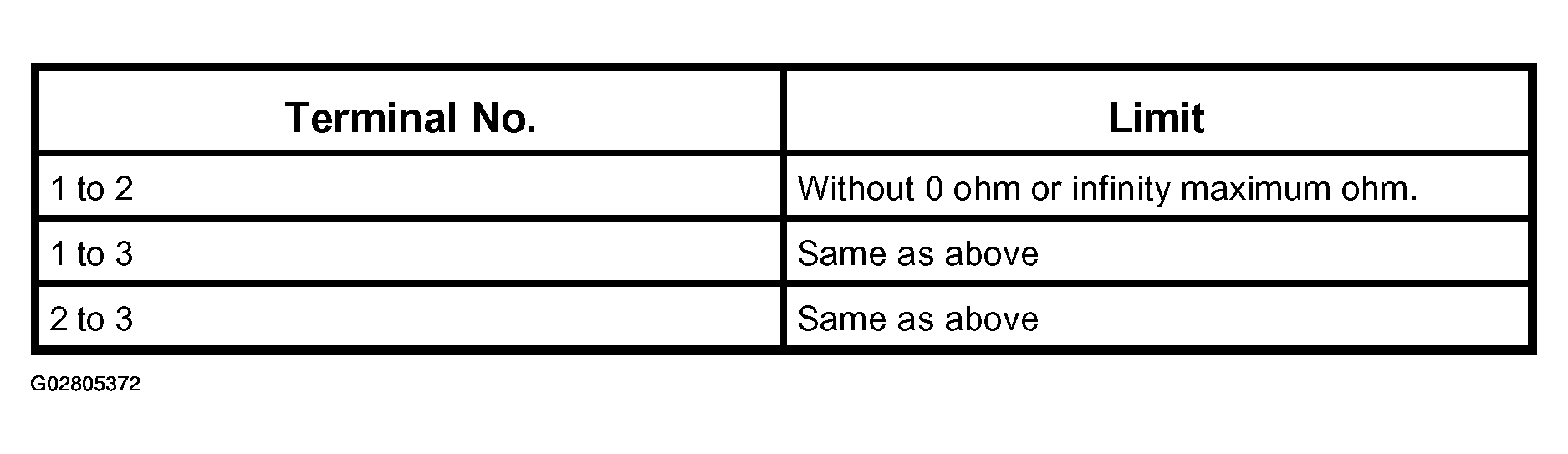

Fig 1: Ignition Coil Resistance Specifications

Courtesy of ISUZU MOTOR CO.

Measure resistance of ignition coil assembly, and replace the ignition coil assembly if its value exceeds the standard.

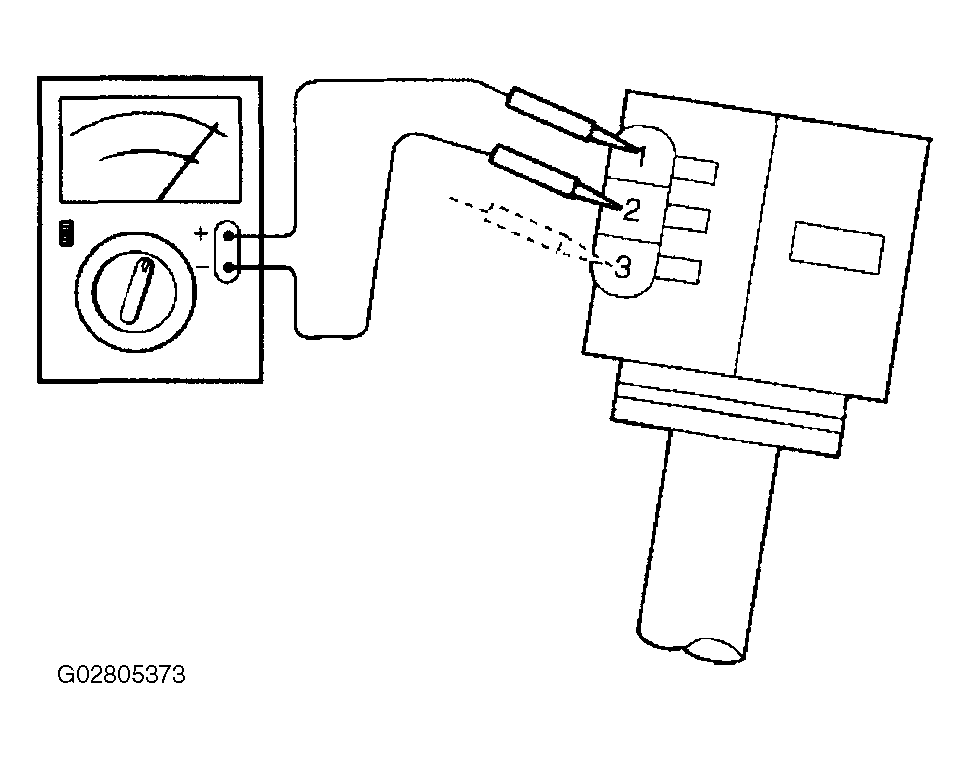

Fig 2: Measuring Resistance Of Ignition Coil Assembly

Courtesy of ISUZU MOTOR CO.
