Disassembled View: Disassembly

  1. Install the J-38559-A cover compressor on adapter case.
    • Compress piston cover then remove snap ring.

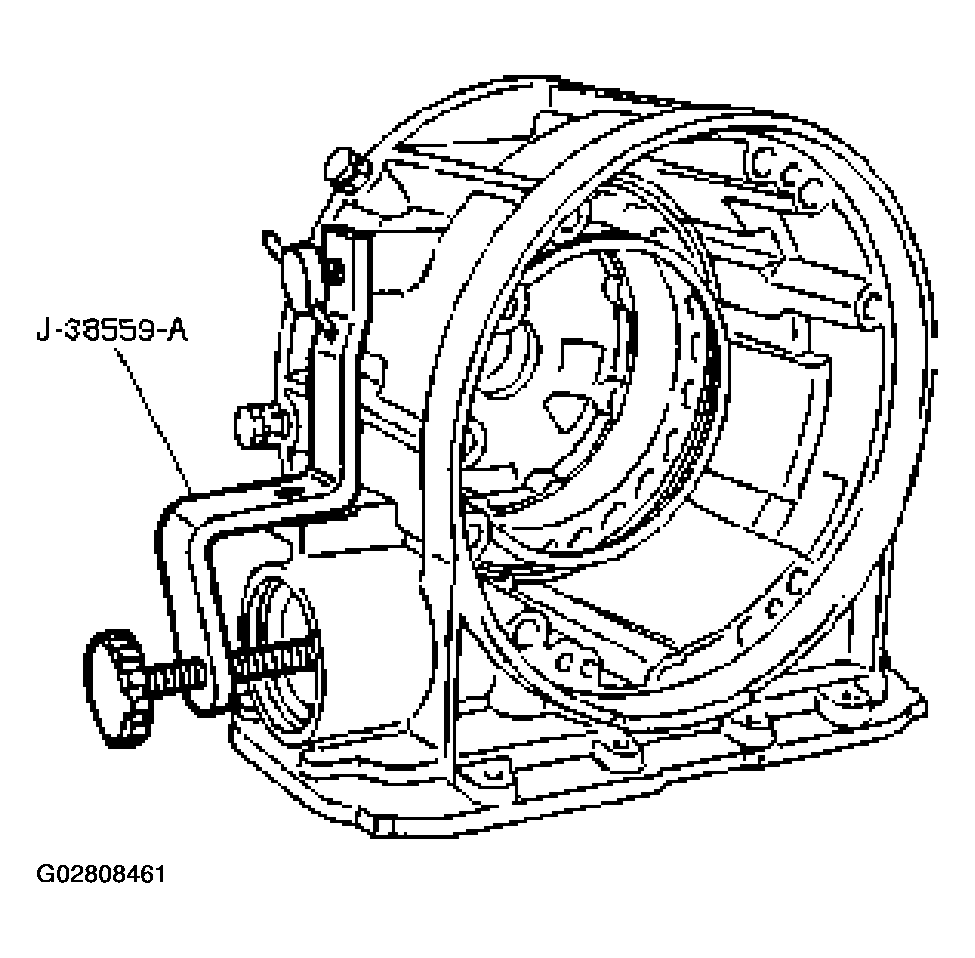

      Fig 1: Compressing Piston Cover
      G02808461Courtesy of ISUZU MOTOR CO.
  2. Install the J-41096 cover remover and J-38584 adapter to center hole of cover.
    • Use the J -23907 slide hammer to remove cover.
  3. Remove spring and piston assembly.

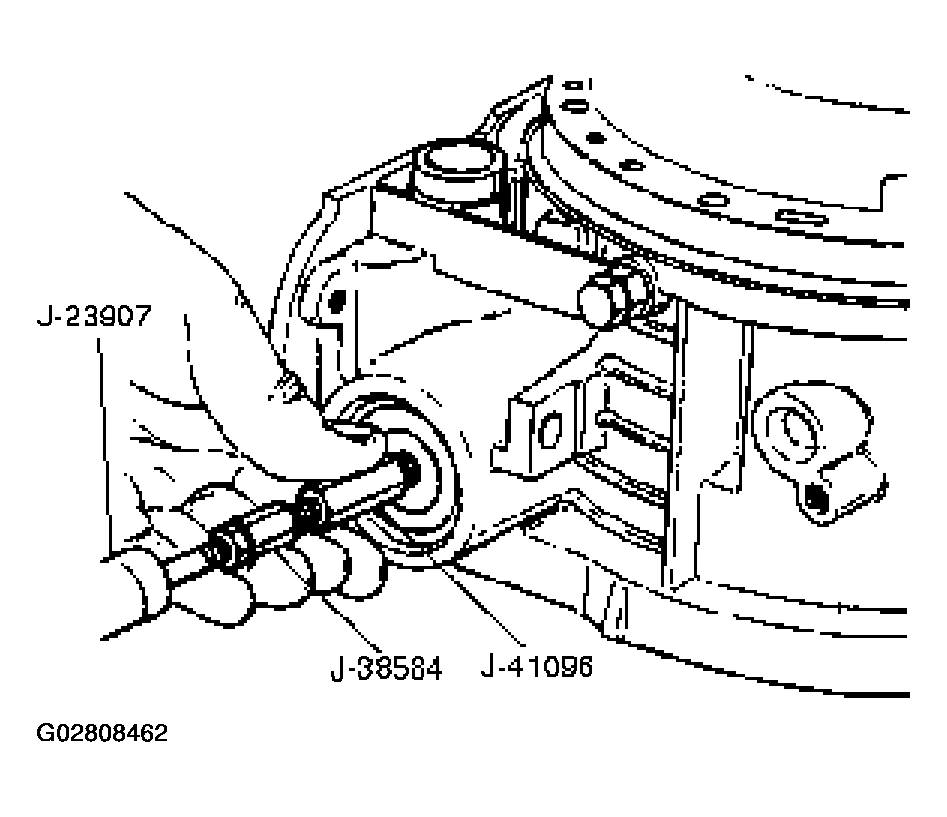

    Fig 2: Removing Spring & Piston Assembly
    G02808462Courtesy of ISUZU MOTOR CO.
