Disassembled View: Notes

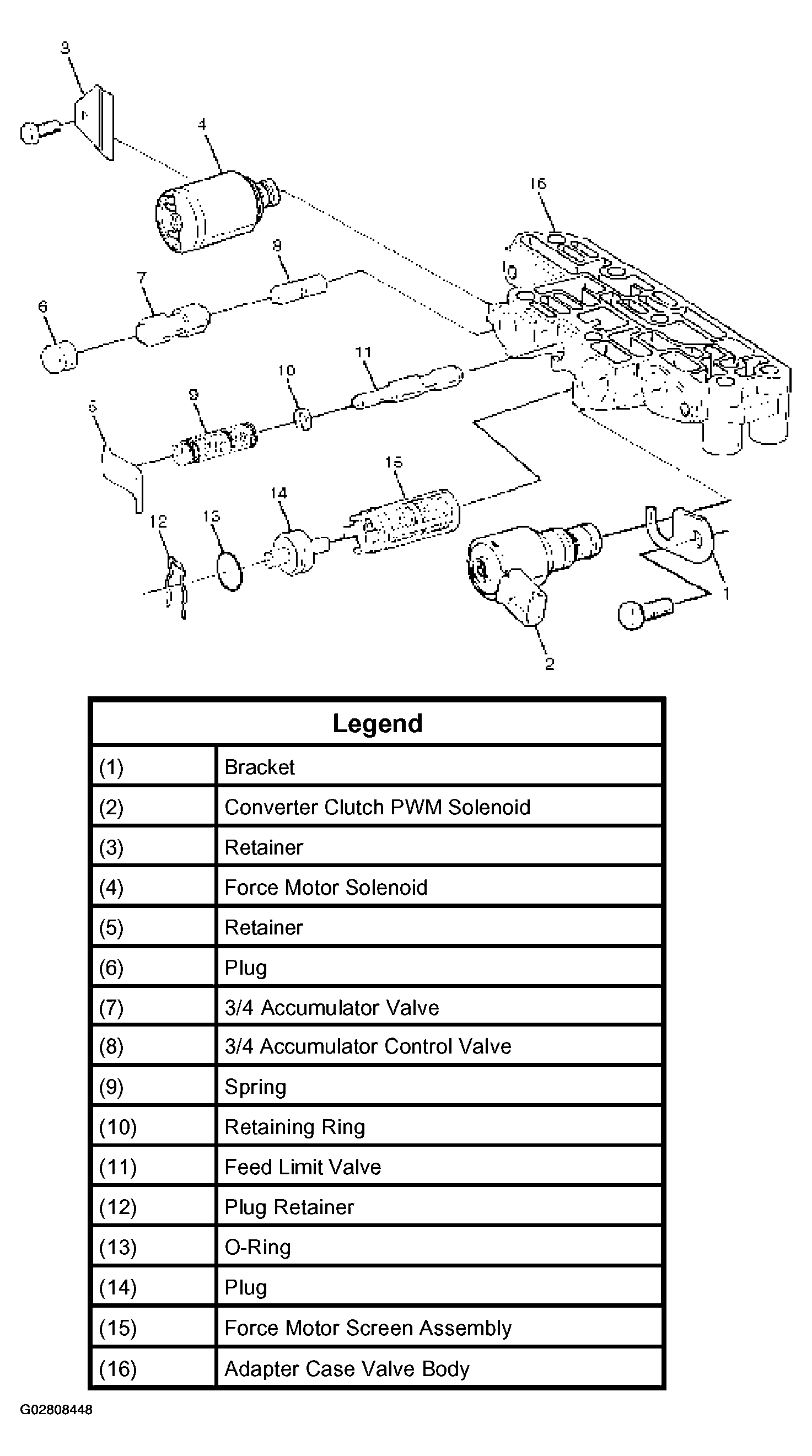

Fig 1: Disassembled View Of Adapter Case Valve Body
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
