Disassembled View: Reassembly

  1. Install 1-2 accumulator control valve (26), 1-2 accumulator valve (25), plug (24), and spring pin (23).
  2. Install band control screen assembly (22), plug (21), and spring pin (20).
  3. Install low pressure control valve (19), spring (18), plug (17), and spring pin (16).
  4. Install spring (15), 2-3 shift valve (14), retainer (13), solenoid B (12), and spring pin (11).
  5. Install spring (10), 1-2/3-4 shift valve (9), retainer (8), solenoid A (7), and spring pin (6).
  6. Install waved washer (5), band control solenoid (3), and pin (4).
  7. Install manual valve (2).
  8. Install check ball (27) to valve body (28).
  9. Install gasket (valve body/transfer plate) and transfer plate using two J-3387-2 guide pins.
    • Install two 11 mm bolts.

      Torque:  13 N.m (113 lb in)

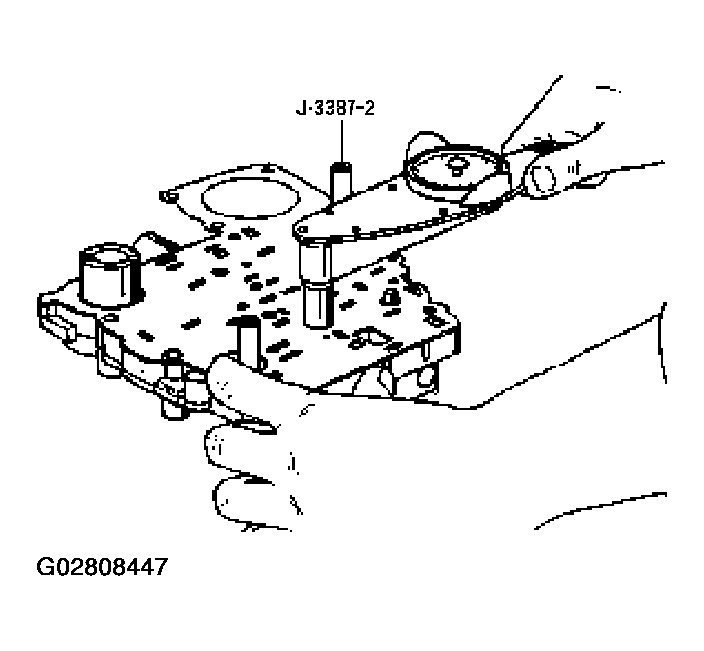

      Fig 1: Installing Gasket (Valve Body/Transfer Plate) & Transfer Plate
      G02808447Courtesy of ISUZU MOTOR CO.
    • Install gasket (transfer plate/main case).
