Torque Specifications

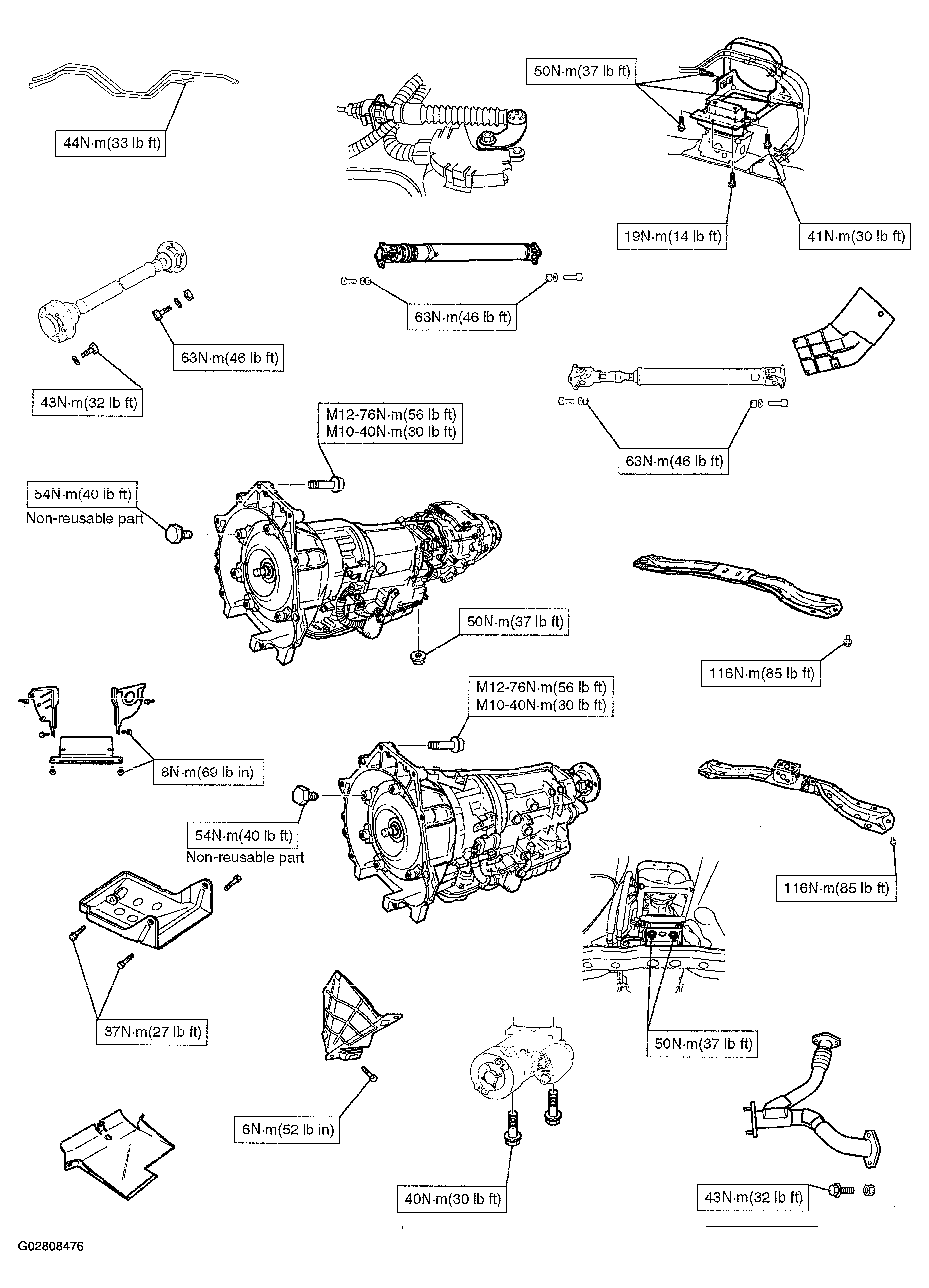

Fig 1: Torque Specifications Chart (1 Of 3)
G02808476Courtesy of ISUZU MOTOR CO.

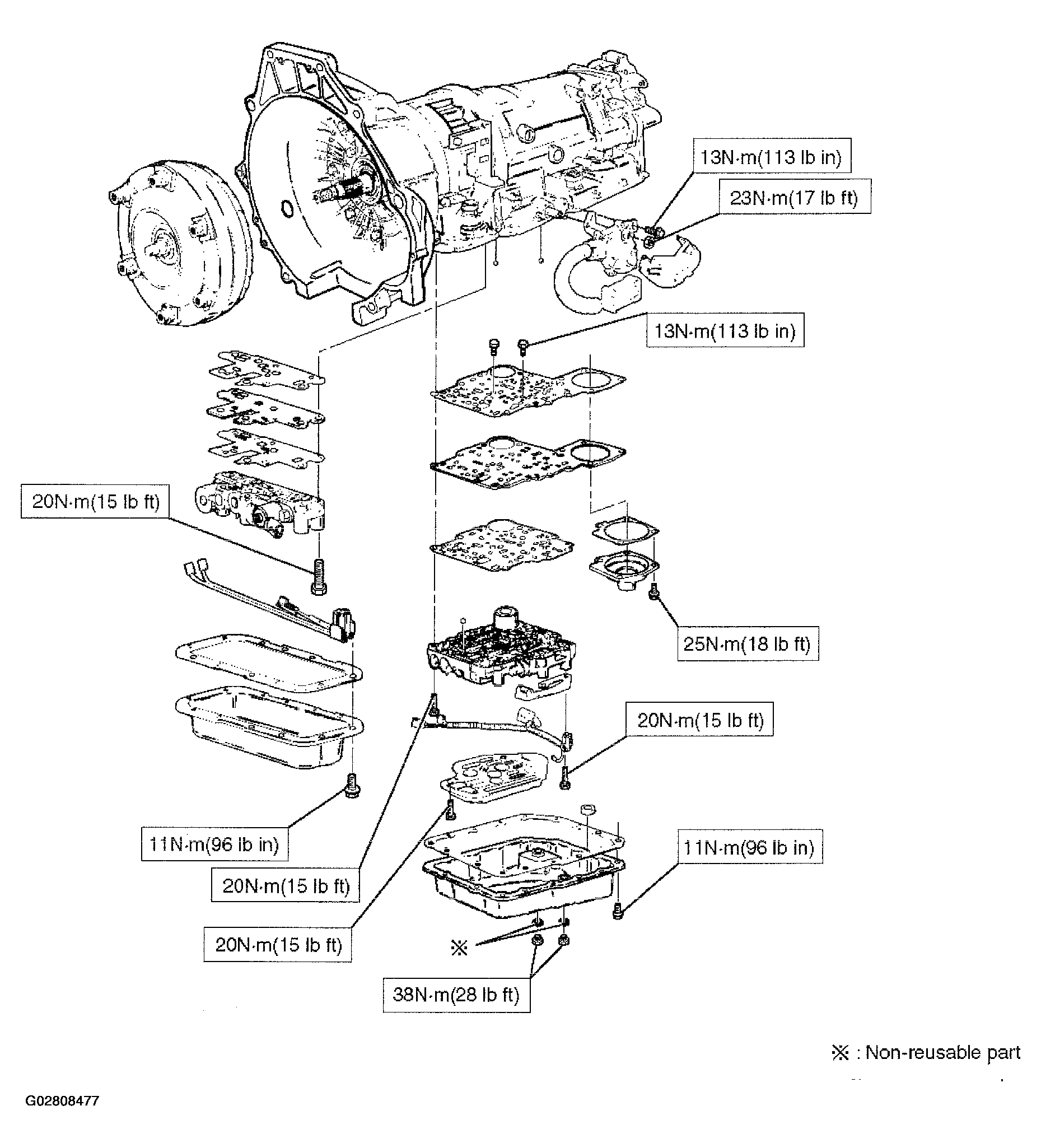

Fig 2: Torque Specifications Chart (2 Of 3)
G02808477Courtesy of ISUZU MOTOR CO.

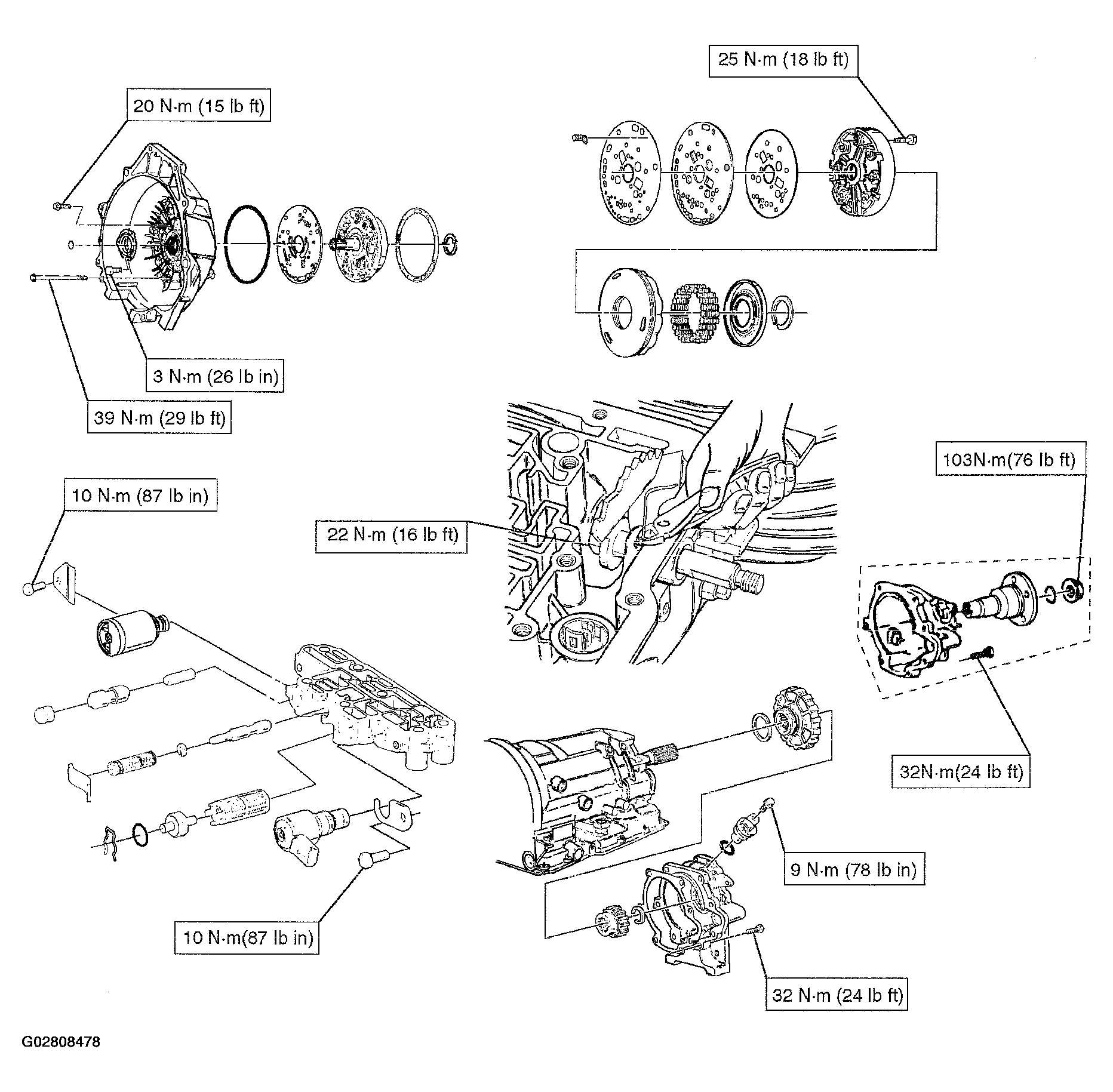

Fig 3: Torque Specifications Chart (3 Of 3)
G02808478Courtesy of ISUZU MOTOR CO.
